Description

Introduction to the product

The GeoTech RMF140 medium series flail mower features excellent components and a very competitive price.

Reversible flail mower with side shift and hydraulic jack suitable for different operations (grass, pruning, staw, etc.)

Suitable for reversible tractors and for tractors with front attachment. It can be applied to tractors in both frontal and rear position.

The hydraulic side shift is on chromed guide.

Side trasmission with 4 belts, roller bearings, rear roller, and lubricated gearbox.

Double drive protection for a long lifespan with a quite low maintenance.

TECHNICAL DETAILS (in summary):

Real working width: 140 cm
Real width occupied (with side skids assembled): 155 cm
Weight: 414 kg

STANDARD EQUIPMENT (in summary):

Double power take-off
Hydraulic side shift
Smooth hammer flails

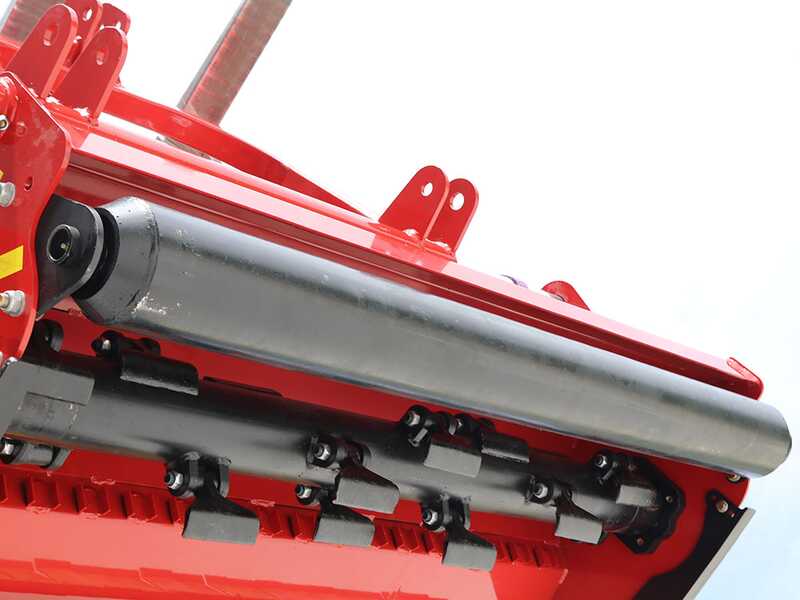

Rear roller
Adjustable skids

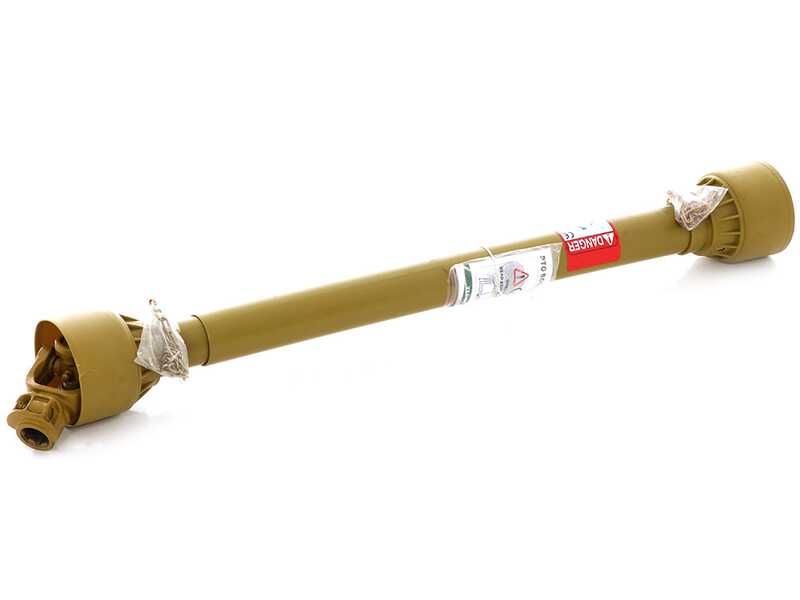

Cardan shaft

WARNING!

NOT RECOMMENDED FOR REVERSIBLE TRACTORS UNLESS EQUIPPED WITH POWER TAKE-OFF (PTO) ROTATION SHUTTLE!

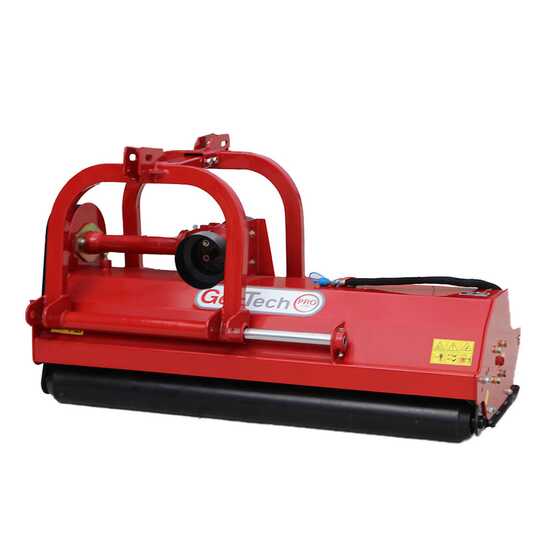

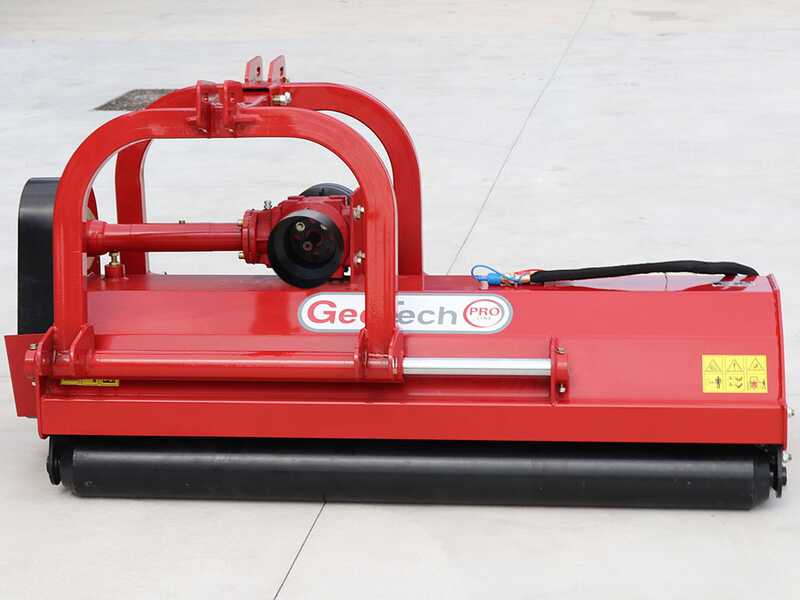

GeoTech-Pro RMF140 - Reversible Tractor-mounted Flail Mower - Medium-heavy Series - Hydraulic Shift

Reversible system

The reversible flail mower is suitable for tractors with front or rear attachment. It can be linked to the tractor in frotal or in rear position.

It is suitable for the shredding of grass, bushes and brambles. In general, it is suitable for the cleaning of open fields.

Cutting tools: hammer flails

Nr. of smooth hammer flails on standard equipment: 14

High quality smooth hammer flails.

The finely shred grass and sarments and rolls the turf at the same time. Thanks to the high numero of engine rotations (540 rpm) and the high number of hammer flails it reduces the wafe effect of the turf and carries out an excellent shredding operation.

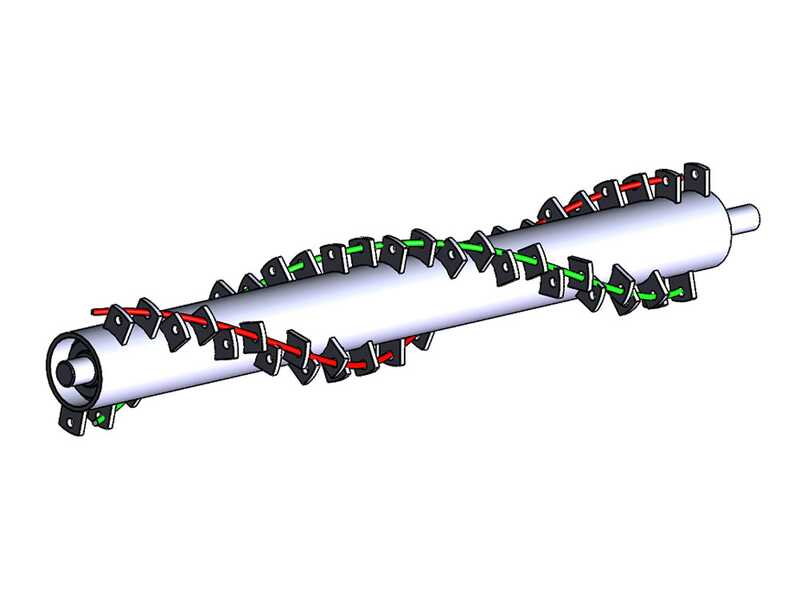

Figurative image of the double-spiral rotor.

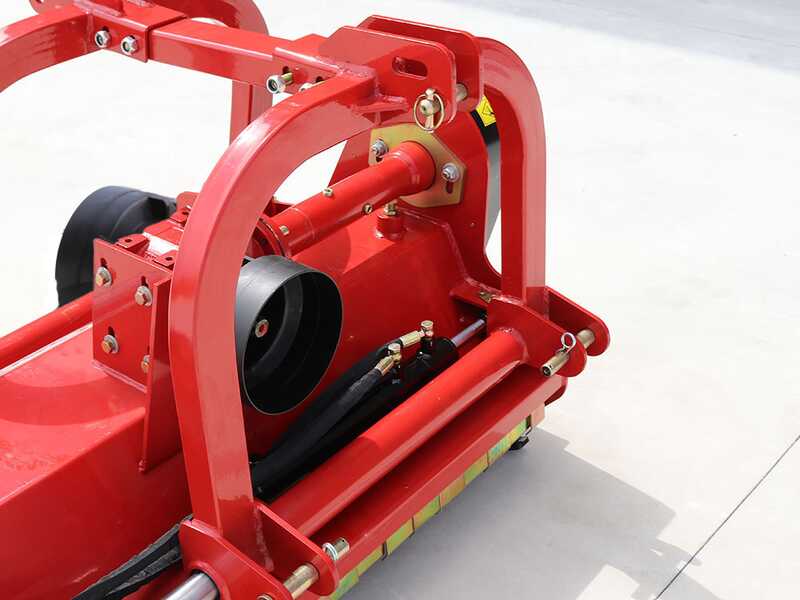

Hydraulic side shift and fixed 3 points linkage

Side movement actioned by means of an hydraulic cylinder. Provided with two fast linkage tubes to be connected to the tractor’s hydraulic joints.

It is very solid movement, structured by means of a chromed steel rod that protects the shift against small accidental hits.

Focus on the joints, very close to the machinery frame, and not protuberant. This allows the flail mower to work very close to the tractor, avoiding the stone is thrown towards the operator and mostly eliminating any possibility the machinery could be lifted as its weight will charge the tractor in a minor way. This allows the machinery connection despite its big weight, also to tractors of minor mass and dimensions compared to it.

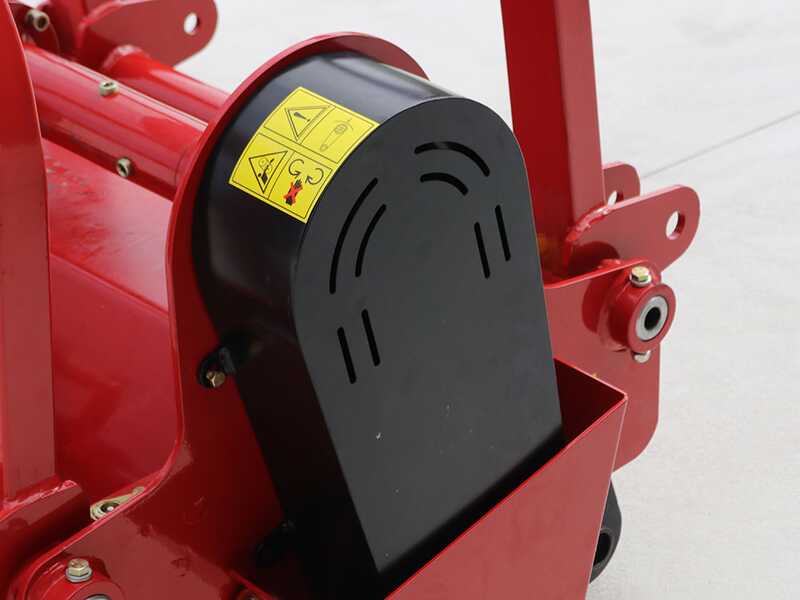

Side belt transmission and reduction gearbox group

Gearbox in oil bath. The casing is made of cast and the inner gears are made of tempered steel.

Side 4 big section belts transmission (the most part of the flail mowers on market have a 2 belt transmission)

Belt protection side shield, with optimized dimension of low thickness. This kind of side shield save room on the product’s total width making it smallest product on market compared with their working width. Considering the room taken from the carter and the skid on the opposite side, the total flail mowers width is just 20 cm more than the cutting width!!

Focus on the greaser side transmission, easy to access from a dedicated opening.

Double protection of the drivan and greaser.

Standard 1 3/8" z6 power take-off PTO (suitable for each model of recently manufactured tractors): whether you are dealing with older tractors, it is recommended to previously check that they provide the same power take-off type featuring the standard right/clockwise rotation.
