GeoTech-Pro STP971 WEL - Petrol Snowplough - Loncin G250FDS

GeoTech STP971 WEL in short:

ST: Snow Thrower.
P: stands for GeoTech Pro.
9: 9 Hp rated output.
71: 71 cm standard auger width.
W: means that the machine is equipped with Wheels.
E: stands for Electric start.
L: stands for Loncin, which is the motor's brand.

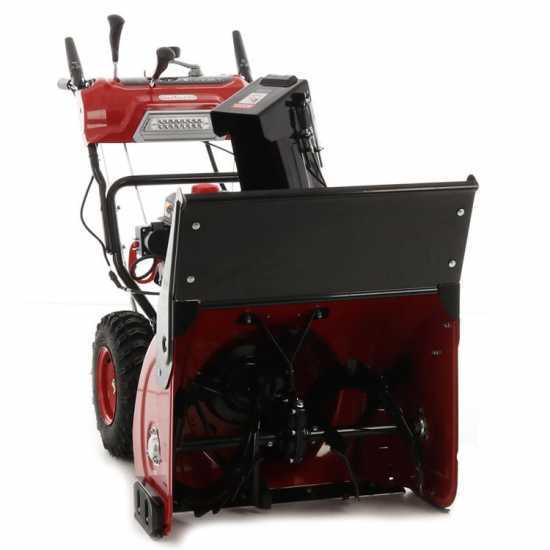

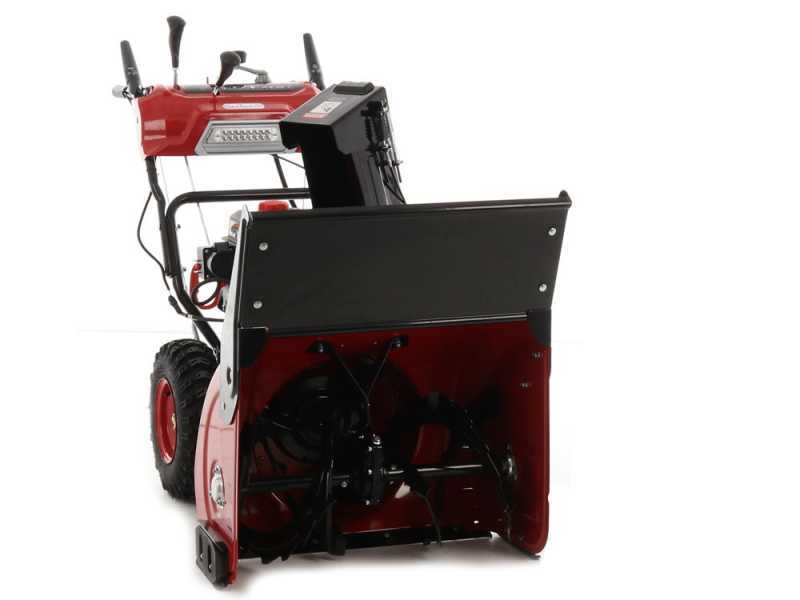

GeoTech STP971 WEL snow thrower is a heavy-duty product powered by a powerful 250 cc engine. It is best suited to work on medium areas even with bad weather that would affect the adherence. It is equipped with Traktor wheels for optimum traction and adherence.

As the snow blower has an electric start, is possible to connect it to your home electric line in order to start the machine even when it is very cold.

The high-quality and big rear auger, with 71 x 51 cm housing, has and advanced and toothed steel auger unit. It churns up the snow and discharges it many metres away through the discharge chute. You can reverse and adjust it by means of the dedicated controls. Follow other features and characteristics of GeoTech STP971 WEL:

• Heated grips;
• LED headlights;
• 6+2 speeds gearshift;
• Upper deflector;
• Side drift cutter;
• Clean-out tool.

GeoTech STP971 WEL snow thrower is powered by a Loncin 4-stroke engine. This 252 cc engine is supplied with air-cooling system, overhead valve and aluminium cylinder.

This engine achieves 9 Hp at 3600 RPM.

The engine is winterized, which means that it is equipped with a special cover in order to protect the most breakable component parts subjected to cold weather and to protect the engine in case of sudden drop in temperatures. Therefore, the engine is adapted for work in low temperatures.

Technical features:

As the snow blower has an electric start. This system is not supplied with batteries and, therefore, is possible to connect it to your home electric line. Batteries suffer jumps in temperature reducing their charge or their lifetime. Moreover, they suffer a sporadic use.

Winterized engines like this one aren't provided with air filter as, working in environments with low temperatures and snow, this last can create humidity that could freeze damaging the air filter and causing problems to the machine.

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before using.

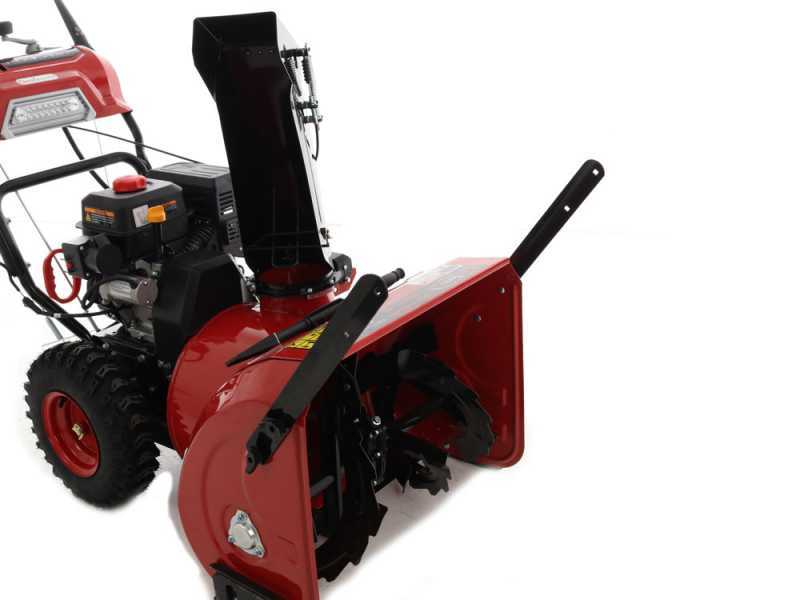

Auger screw housing width of 71 cm and height of 51 cm.

The high-quality auger unit provided has an advanced and toothed steel auger unit. This structure is best suited to churn up even the thickest snow.

The shear bolts protect the auger gearbox. Therefore, they react to stones or other obstacles by automatically unhooked from the gearbox.

Two-stage system

The snow is fed into the housing by the ribbon auger and is then discharged away through the discharge chute by a high-speed reinforced fan impeller.

Aluminum reducer with steel auger gearbox in grease bath.

Adjustable plastic skid shoes.
They allow working on any surface, from smooth to rough surfaces (adjust the working height by means of the skid shoes). It can also work over gravel surfaces. The advantage of the plastic skid shoes is that they do not scratch the ground surface.

The discharge chute is adjustable by means of the controls on the panel. It is made of enameled steel. The chute deflector is controlled with a remote lever positioned on the panel as well.

The angle of rotation of discharge chute is 190 °: from the centre is 95° on each side.

Discharge chute totally oriented to the left.

Discharge chute totally oriented to the right.

Deflector totally up-oriented (maximum throwing distance).

Deflector totally down-oriented.

The chute is provided with a chute guard as safety measure against debris.

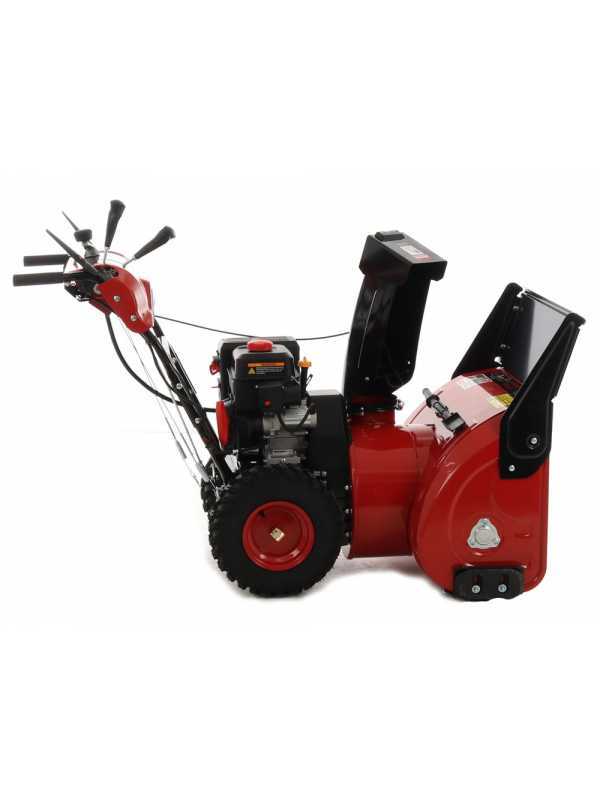

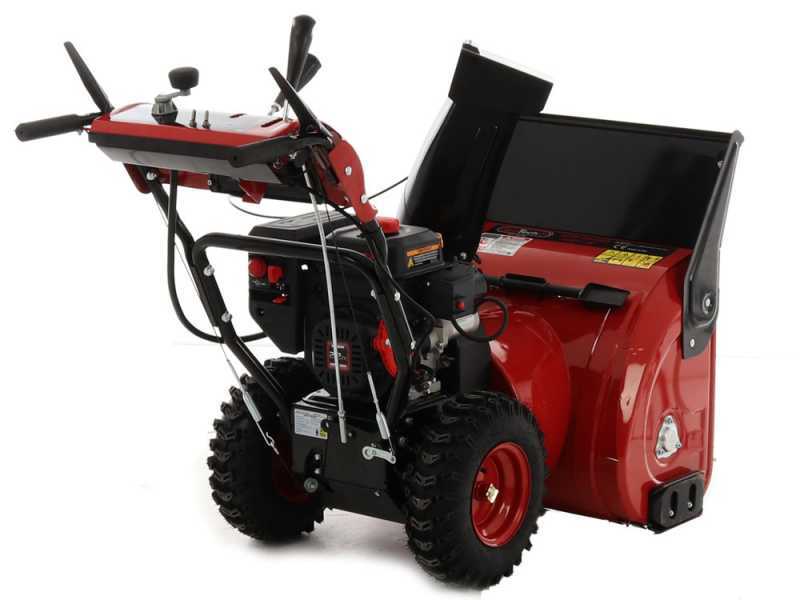

Panel is well-provided and easy to use. It includes the main functions of the machine.

Drive speed control lever:
6 forward speed and 2 reverse speed.

Power-assisted steering system: It allows disconnecting the traction drive from the wheels by means of the red lever. It makes your snow thrower easy to steer and maneuver.

Electric heated grips for more comfort while working.

Focus on the switches with mini-LED lights intended for the headlights and the heated grips.

Upper lever on the right side: it stops the forward and the reverse movement of the machine, independently from the selected speed. For safety reasons, the machine will stop automatically releasing the lever.

Upper lever on the left side: it controls the auger screw and the impeller fan (it controls both simultaneously).

Discharge chute is adjustable by means of the controls on the panel.

Focus on the lever to adjust the discharge chute deflector.

Powerful artificial LED headlights positioned on the panel.

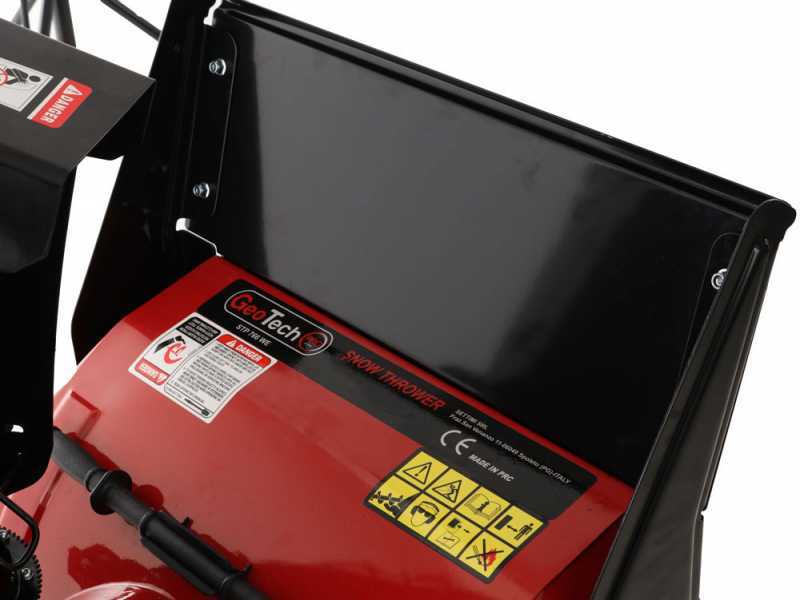

Chute upper deflector: it improves the performances. In fact, when snowdrifts are very high and deep, it can feed snow inside the auger housing even when snowdrifts are higher than the housing.

Side drift cutters: they cut through snowdrifts avoiding the snow on the side (cut by means of these blades) may fall again where the snow has already cleared.

Clean-out tool: if the discharge chute is clogged, use the clean-out tool.

Traktor wheels (15 x 4.8 - 7) for good traction using engine's horsepower.
