Description

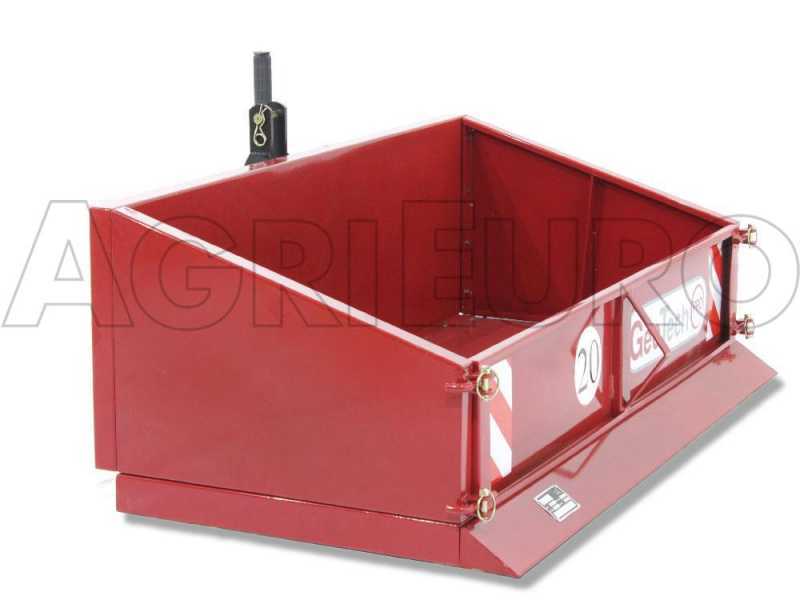

GeoTech TB120 metal tipping transport box

The GeoTech TB120 transport box is ideal for collecting firewood and removing debris around your property.

Ideal for moving tools, fuel tanks, sprayers, generators and dirt around even from the roughest terrain.

Swinging and removable tail gate.

By removing the rear tail gate it is also intended for loading soil, sand, grain, and many others.

Main features:

Higher rear walls
Reinforced rear base
Quick-release overturning lever
Swinging and removable tail gate
Easy to store
Sturdy construction

Capacity: 400 L

Maximum load capacity: 500 Kg

Box width: Approx. 120 cm

Weight: 86 Kg

3-Point hitch for tractors

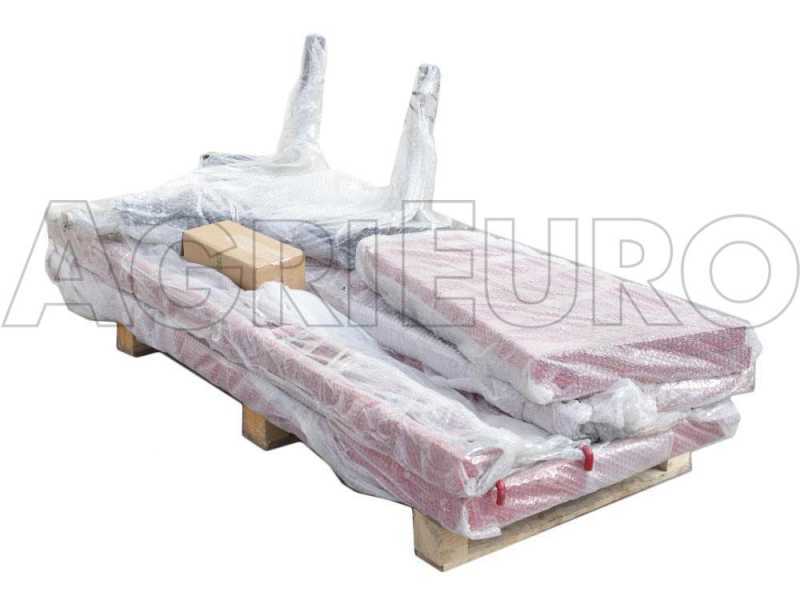

The GeoTech TB210 tractor transport box comes fully disassembled.
The assembly requires approx. 1 h.

TB Transport Box overall dimensions:

Useful inside box: 63 cm
Transport box width: 80 cm
Useful inner height of the front tail gate: 46 cm
Useful inner height of the removable rear tail gate: 26 cm

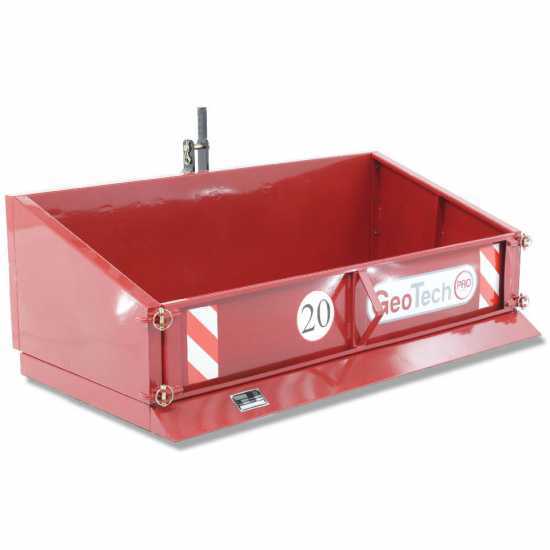

GeoTech PRO TB120 Tractor-mounted Tipping Metal Transport Box - Lifting Bucket

Manual tipping

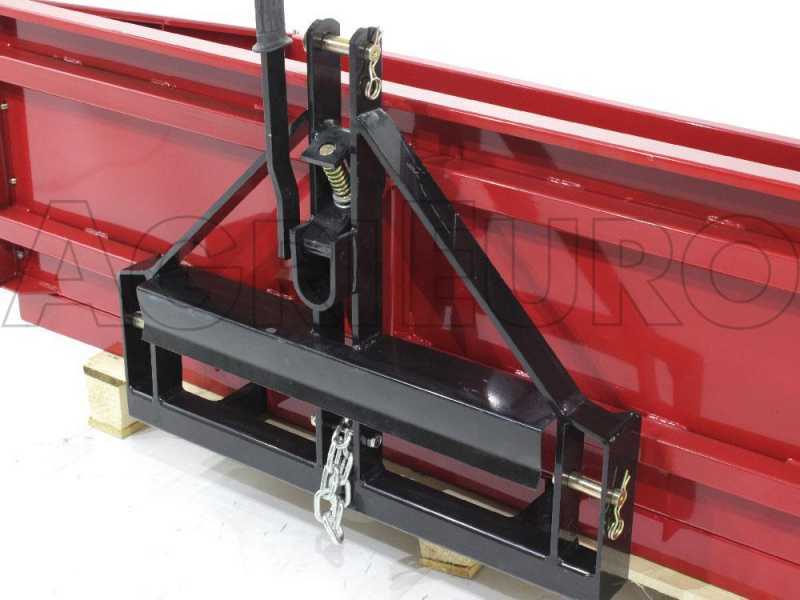

This GeoTech tractor transport box is equipped with a quick-release tipping lever.

The quick release system is managed by a manual lever:

The box is released by simply pulling the lever
This allows overturning the box
Focus on the safety chain which stops the box tipping

It is possible to use the transport box as a tractor loader bucket too by simply removing its rear tail gate:

Focus on the tipping position

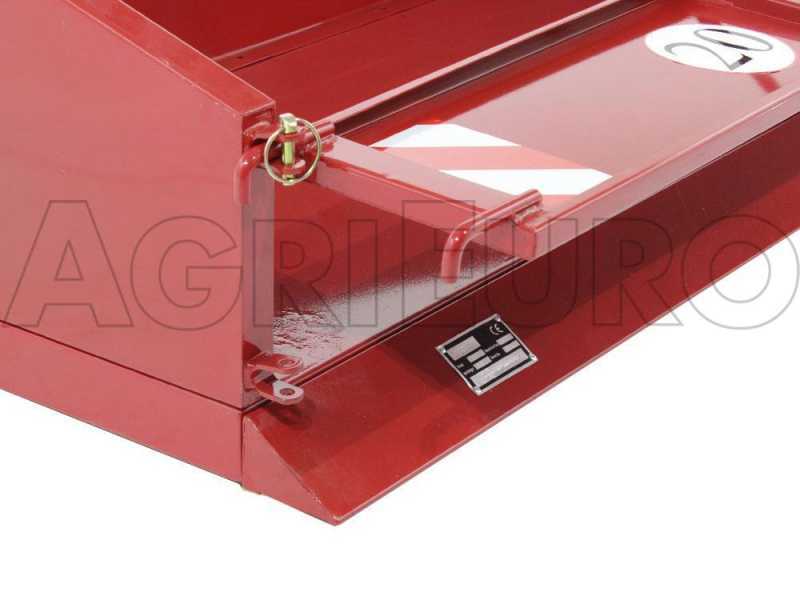

Swinging and removable rear tail gate

Swinging and removable tail gate.

By removing the rear tail gate it is possible to use this box also as a tractor lifting bucket for small agricultural operations. It is also intended for loading soil, sand, grain, and many others.

Focus on the machine used as a box
Swinging tail gate
Loader bucket mode, ideal for light operations

When used in loader bucket mode, it isn’t possible to use the box as a digging bucket as the front blade is not suitable for digging. Therefore, the transport box can be used exclusively as a loader or transport box.
