Description

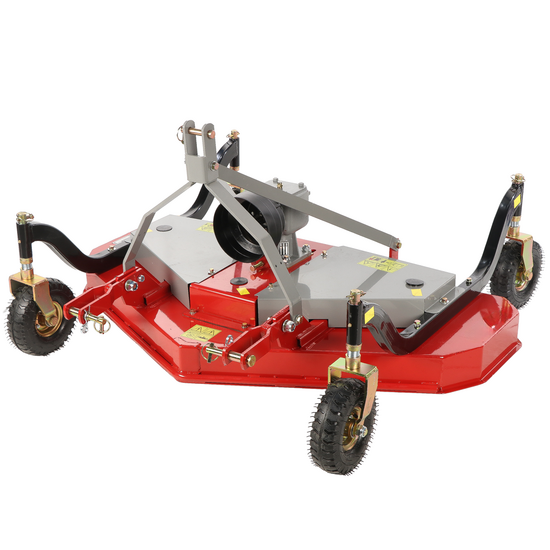

AgriEuro TLP 180 tractor mounted lawn mower

The TLP 180 lawn mower is a machine suitable fot the maintainance of lawns, golf courses, kick fields and public gardens even on big surfaces. It has a sturdy and elastic structure and thanks to the high rotation speed of the rotors it guarantees a precise and accurate grass cutting.

It has a working width of 180 cm, the cutting height is adjustable in several positions through the wheels that vary from 30 to 70 mm.

It is equipped with a side discharge with the possibility of assemble a mulching kit.

Suitable for tractors from 15 to 70 hp.

It is equipped with 3 rotors with 1 blade that ensures the long lasting in time always at high performances.

TECHNICAL DETAILS (in summary):

Real working width: 180 cm
Real working width of the machine: 190 cm
Weight: 230 kg
Suggested for tractors: from 15 to 70 HP
3 point linkage
Belt transmission with cast iron reducer
Rear discharge
Adjustable swiveling wheels

They do not work with left direction of rotation!

WARNING!

Warning: This machine DOES NOT provide oil in the transmission. Please add the oil to the due level before use.

GeoTech-Pro TLP 180 - tractor mower - 3 rotors with 1 blade

The blades

The blades can cut grass and bushes in medium/difficult conditions, even in slopes, but without exceding.

It is mostly purchased to refinish the grass on public parks, golf courses or kick fields even with big surfaces.

Sturdy cast iron reducer with 2-belt transmission.

Working width: 180 cm

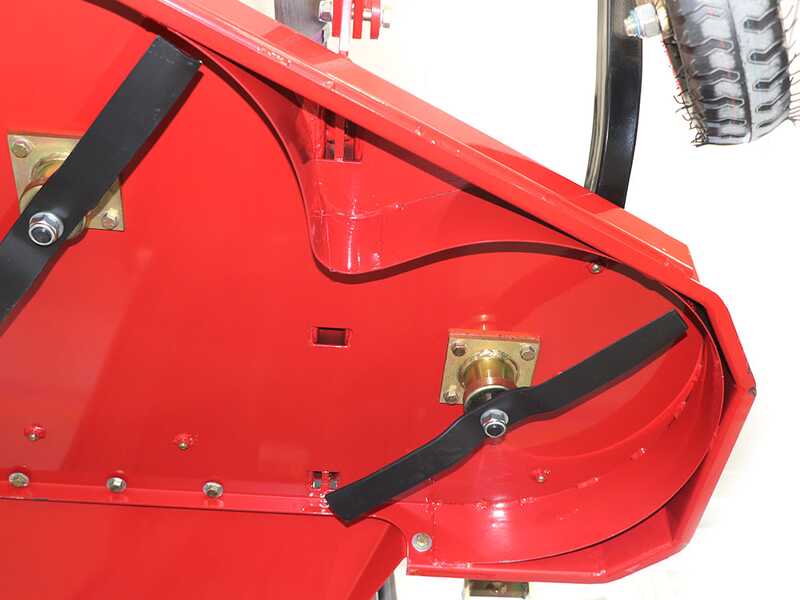

Focus on the blades.

Adjustable cutting height from 3 to 7 cm.

The system of rear discharge enables to cut the grass without the use of a grass collector by directly collecting it on the rear of the lawn mower.

Reducer and wheels

The trasmission of the this model, covered by a sturdy steel deck, has 2 belts and cast iron reducer at 540 g/min.

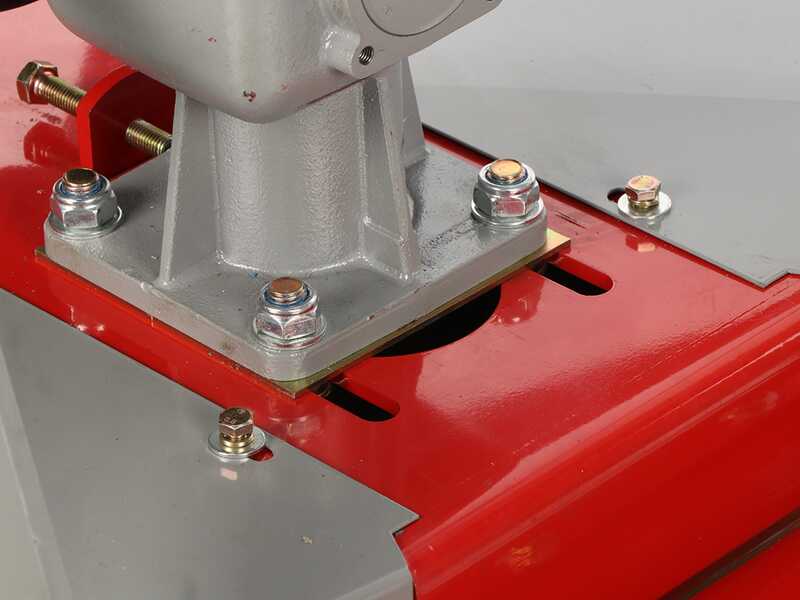

Focus on the reducer with cardan shaft protection.

It is possible to adjust the height of the swiveling wheels in order to obtain a cut from 2 to 9 cm. This operation takes just few minutes; just remouve the wheel, the zinc-coated spacers and replace the wheel.

Focus on the cardan shaft.

Focus on the lubrication points on the machine deck.

3 point linkage and discharge

The linkage is universal and adjustable for all tractors on the market.

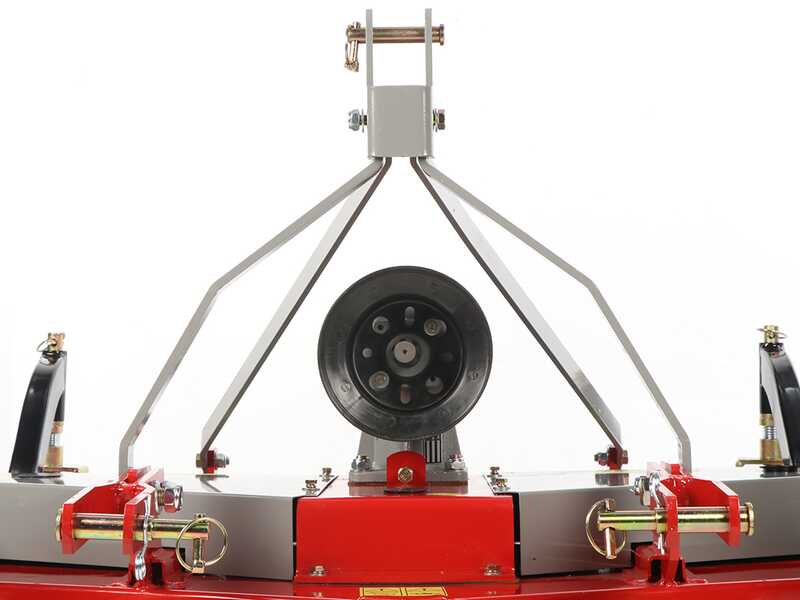

Focus on the sturdy 3 point linkage.

Focus on the cardan shaft support.

Rear discharge system:

It enables to cut the grass witout the help of a grass collector by directly collecting it on the rear of the lawn mower.

Focus on the protection against stones of the rear discharge.

Thanks to this discharge, the grass that has been cut is released on the just tilled soil and it decomposes; it is then tranformed into a nutritional substance for the lawn so guaranteeing a perfect balanced biological cycle.
