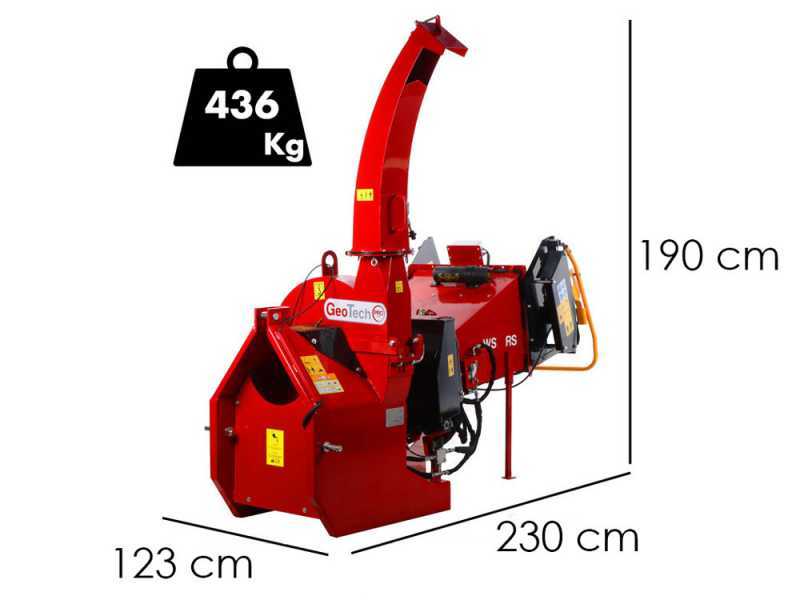

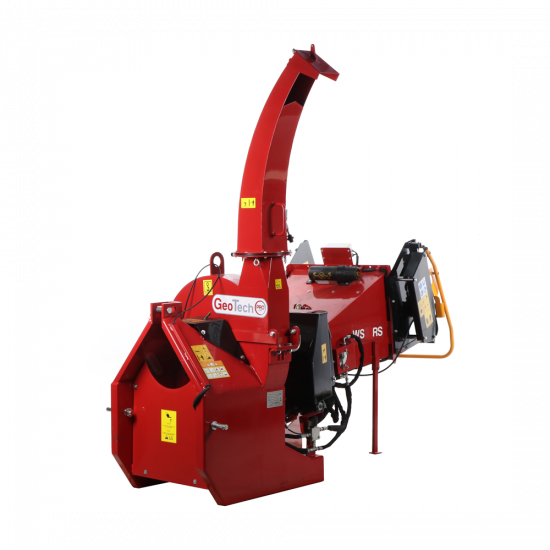

GeoTech-Pro WS52RS - Tractor Shredder - With Hydraulic Control Feed Rollers

The GeoTech Pro WS52RS Shredder is a PTO chipper ideal for reducing branches, leaves, and prunings into fragments. This model is particularly suitable for shredding large quantities of plant material, such as residues from cleaning, pruning, and maintenance of gardens and orchards.

The shredder is equipped with a large loading mouth to facilitate the introduction of branches and branched plant material, with the ability to shred wood with a maximum diameter of 176 mm and boards/semifinished products up to 310 mm.

It also features a 3-point hitch (category 1° and 2°) for tractor connection and a power take-off for operation.

The machine is equipped with two toothed rollers that allow automatic branch feeding, all managed by a hydraulic pump, greatly simplifying and speeding up loading operations.

The discharge mouth for the shredded fragments is rotatable at 290° and positioned over two meters high, allowing easy discharge of material directly into many types of containers.

Hopper mouth dimensions: 127x254 mm

The rotor is equipped with 4 double tempered interchangeable blades and a counter-blade.

Attention! Like all shredders and chippers, it is not suitable for grinding grass, leaves, pine needles, etc. (it is made to shred branches, but can grind leaves, needles, and other vegetation possibly attached to them)

Main usage prescriptions for all shredders on the market:
- The shredder must grind branches recently cut from the tree, and not dry (they would limit its shredding capacity and cause rapid blade deterioration);
- Branches should preferably be longline, regular, and not knotty (otherwise the cutting diameter is reduced);
- The declared cutting diameter is the maximum, so in use it represents the exception and not the rule. In such cases, consider purchasing a shredder with a larger cutting diameter;
- The cutting diameter can vary based on wood consistencies (for example, oak, olive, plum, peach are very hard woods and can reduce the cutting capacity of shredders)

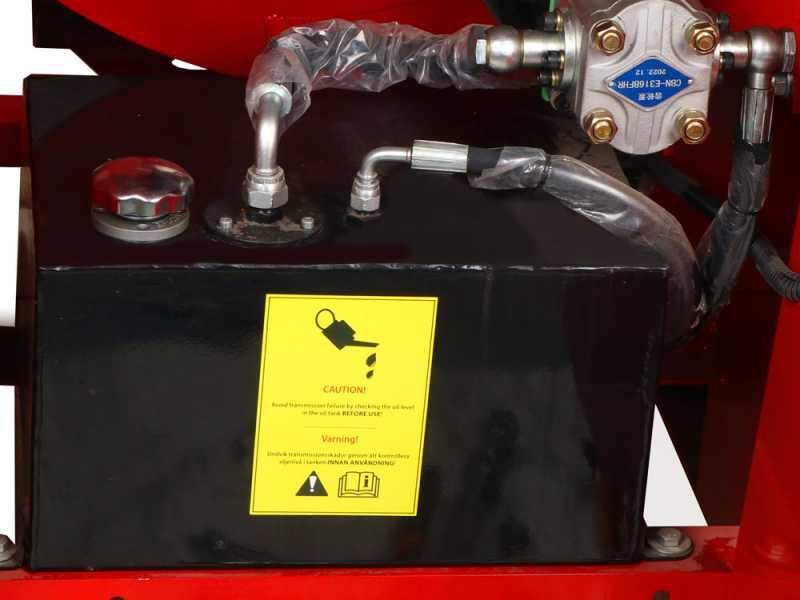

Unlike most tractor shredders, this machine is equipped with a completely autonomous hydraulic system consisting of the following elements:

• Hydraulic pump (applied at the rear of the grinding rotor, on the through-shaft PTO, which therefore drives both the grinding rotor and the pump itself)
• Roller opening regulator
• 16 l hydraulic oil tank (which powers this entire hydraulic system)
• Electric valve + various oil transmission pipes
• Two hydraulic motors that are driven by the aforementioned pump (they transform the oil flow sent by the pump into a rotary motion that drives the two self-feeding rollers)



Therefore, this shredder requires simple application to the tractor's 3-point hitch and the mounting of the PTO, which will drive both the rotor and the hydraulic self-feeding system, thus activating both.

This shredder has no hydraulic pipe to apply to the tractor. It can therefore be safely applied to older tractors not equipped with a hydraulic pump.

Detail of the rollers

The cutting apparatus consists of:
Nr. 4 cutting blades, mounted on a rotating steel disc at the end of the hopper.

The rotor has the following characteristics:

• Diameter: 74 cm
• Weight 95 Kg

Equipped with a large and robust grinding chamber. It has a rounded shape that ensures good productivity, as well as the longevity of the system. Detail of the flip-open system.

The counter-blade is mounted directly on the outer side of the grinding chamber.

Attention! Before starting the machine, make sure to adjust the counter-blade using the appropriate adjustment bolts to avoid damage to the rotor.

The steel hopper is large, with a size of 156x70 cm.

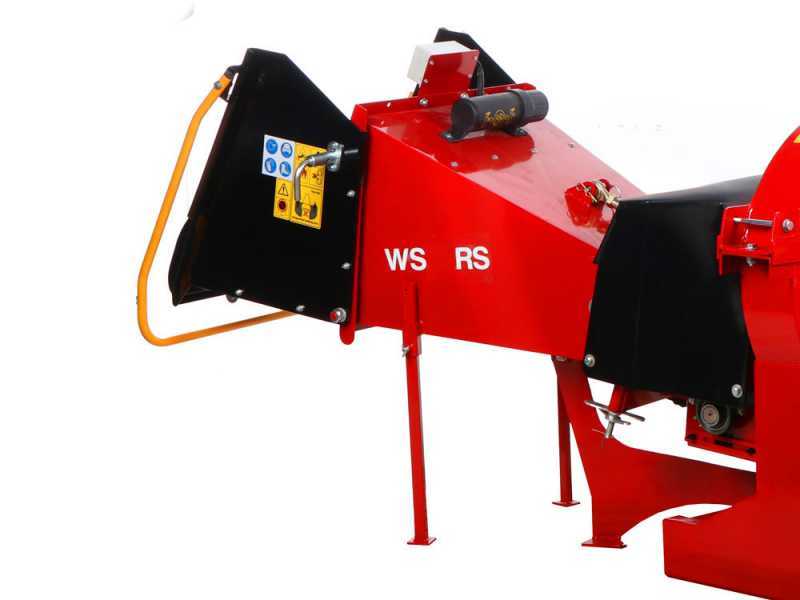

The machine is equipped with two toothed rollers mounted on an effective spring system, for automatic branch feeding.

Everything is managed by a hydraulic pump controlled by a simple numbered regulator for speed adjustment: therefore, depending on the thickness of the pieces to be shredded, it will be enough to adjust the rotation speed to optimize the cut. Everything is protected by a metal cover.

This system greatly simplifies and speeds up loading operations.

The chipper is equipped with an anti-jamming system: in case the rotor is under stress or blocks during material shredding, the lever on the loading hopper must be operated. This lever acts on the hydraulic valves that control the motor and reverses the rotor's rotation direction, unlocking it.

The control bar regulates the movement of the feed rollers in the following modes:

1) Forward Mode
2) Stop Mode
3) Reverse Mode

Foldable hopper for easier transport

The machine can also receive very large branches and fronds without prior processing.

Moreover, it has a higher capacity that allows inserting a lot of material at once.

The functionalities of this shredder are:

- Activation of automatic feed rollers for shredding
- Immediate stop system (safety)
- Reverse function for jam removal

Attention!

There are two emergency buttons, one above the hopper mouth and the second on the left side of the hopper!

Attention: The roller control hydraulic system arrives empty. Fill the tank before starting the machine. Ensure there are 2-3 cm of air from the top of the tank. Do not fill completely.

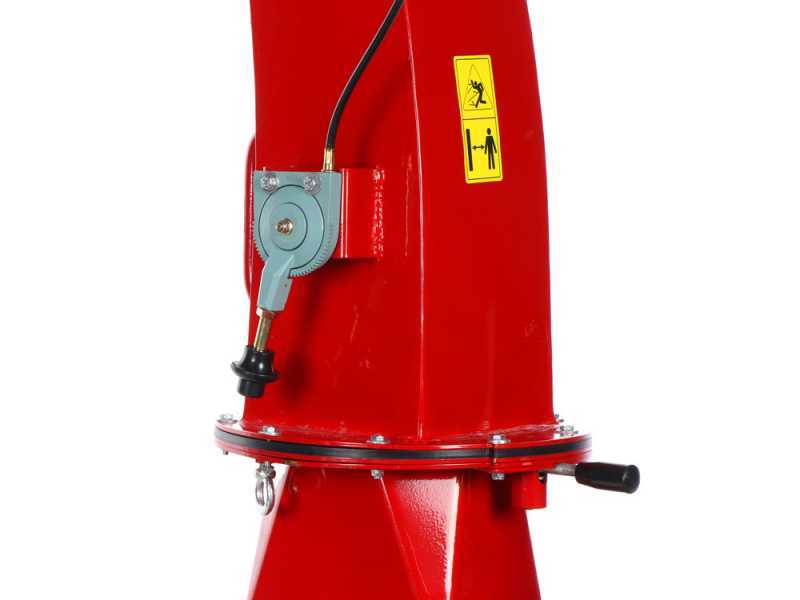

The discharge chute, which this shredder is equipped with, is rotatable at 290° and about 2.2 meters high.

Some examples:

• Position 1
• Position 2
• Position 3
• Position 4
• Position 5

Simply press the lever and rotate it to the preferred position.

The discharge inclination is adjustable via a toothed adjustment lever and is returned to position by a spring

Examples of positioning to control the expulsion distance of the chips:

• Position 1
• Position 2
• Position 3

Detail of the protective rubber panels at the hopper entrance.

Tractor PTO connection that allows operating the shredder (detail of the PTO protection and grease tube).

PTO speed 540–1000 revolutions per minute.

Detail of the robust 3-point hitch

Detail of the spring and lever system of the control bar.

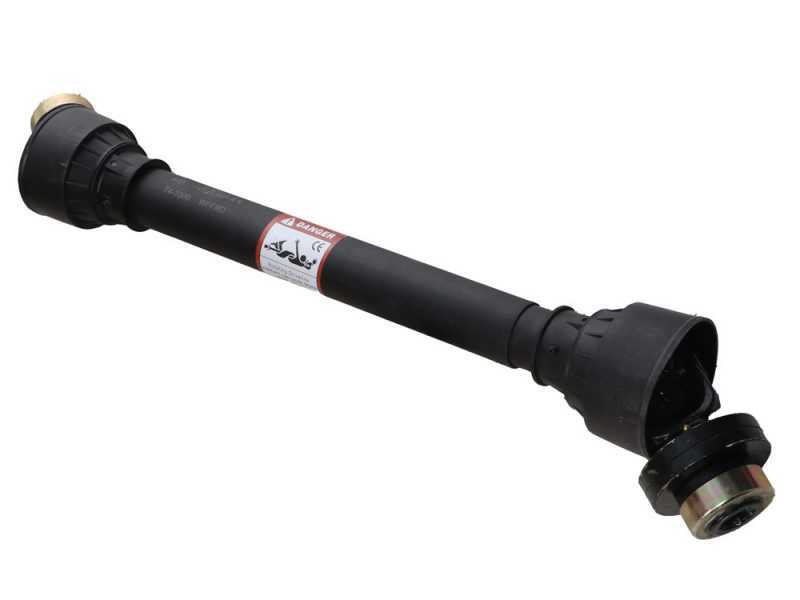

The supplied PTO shaft is equipped with a safety bolt.

The shear bolt torque limiter allows, in case of unexpected or excessive stresses and torques, to avoid damage to the mechanical parts of the machine in use.
In fact, when the torque exceeds the power bearable by the bolt, it shears and the transmitted power is zeroed.
To restore the transmission, it must be replaced with one of the same resistances, diameter, thread, and length.

The shredder is equipped with a supplementary support under the hopper to stabilize the machine.

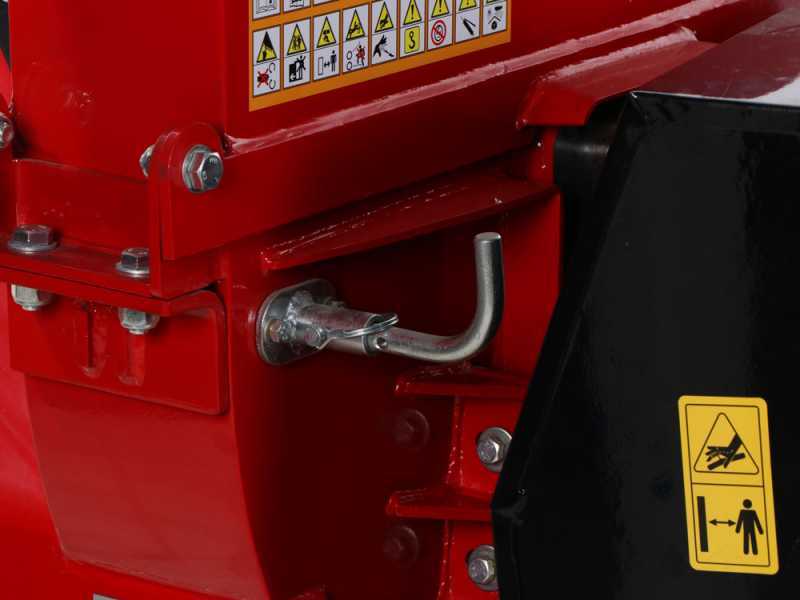

It is possible to quickly open the hopper by rotating it on two hinges for quick access to the rotor in case of jamming.

Detail of the screw tensioner

Detail of the 7-pin connector

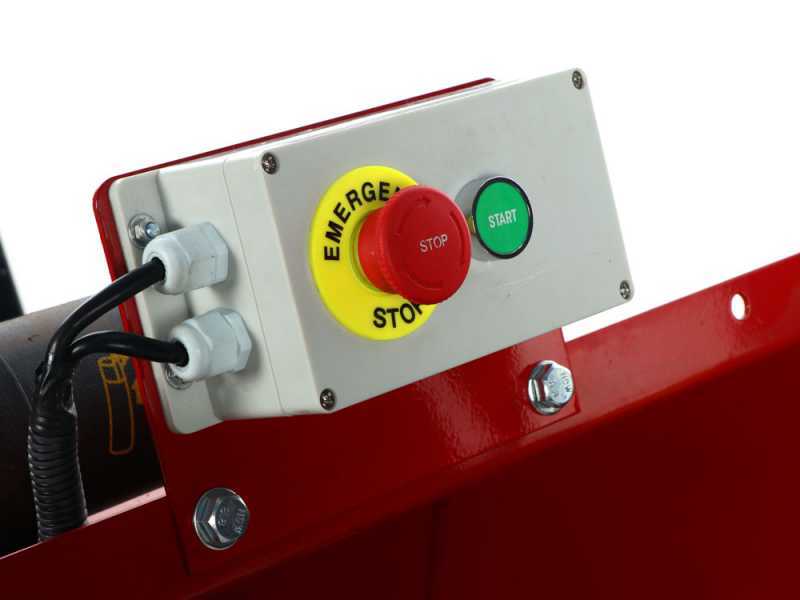

Detail of the control panel with emergency stop button
