GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force

Limited
Questions & Answers (10)
ID: 103309

EAN: 9999237537643

GeoTech
Catalogue GeoTech
8,9/10
After-sales assistance & Spare parts
31Pictures
11Videos
37Customer pics
GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force
GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force
GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force
GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force
GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force
GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force
Special offer
+1000 sold
Max. trunk diameter
25 cm
Piston stroke
52 cm
Operating mode
Single-phase 230 V
Nominal power
3 HP
Engine
Induction
Nominal power (W)
2200 W
Nominal splitting force
5 t
Product Features
Model:
SPHE 5
Type:
Horizontal
Double speed:
No
Operating mode:
Single-phase 230 V
Nominal splitting force:
5 t
Piston stroke:
52 cm
Worktop log cutting:
No
Ground splitting system:
No
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
3 HP
Nominal power (W):
2200 W
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump type:
Hydraulic
Oil tank:
Yes
Manufacturing country:
China
Cutting data
Max. trunk length:
52 cm
Max. trunk diameter:
25 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
No
Trunk lifting system:
No
Retractable piston for transport:
No
Tractor three-point hitch:
No
Replaceable wedge guides:
No
Cartridge oil filter :
No
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
14 cm
Free gifts/extra features
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
120x42x65
Net weight:
55 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
95x32x51
Gross weight (packaging included) :
65 Kg
Unloading with hydraulic tail lift:
No
Assembly time:
60 minutes
Prompt Delivery
544 items in stock
Free Shipping
Estimated delivery: 14/04/2025 - 16/04/2025
Free returns (up to 30 days after receipt) *
Lowest price:
€ 302,03
-13 %
€ 262,81
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

You're viewing:
Customers also viewed:
Description

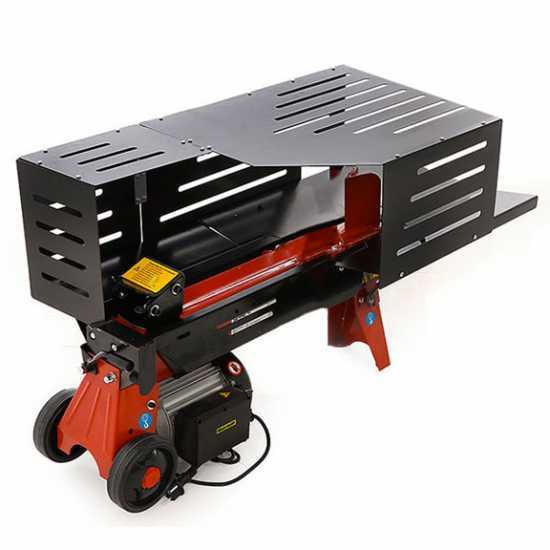

GeoTech SPHE 5 log splitter

The GeoTech SPHE 5 is a small-sized electric log splitter powered by a 230V single-phase motor that can develop a splitting force of 5 tons, intended for a hobby, domestic use.

This machine allows you to split logs efficiently, effortlessly and safely, thanks to the protections in compliance with the CE standards.

HORIZONTAL STRUCTURE: it allows splitting even large-sized logs without having to lift them up (you can place them on the cutting plate without any effort, given the low height of the support leg)

It is powered by a powerful 230V/50Hz, 2200W single-phase electric motor

Splitting force: 5 tons

Trunks diameter: from 5 to 25 cm

Trunks height: from 20 to 52 cm

Equipped with a handle and wheels for easy transport.

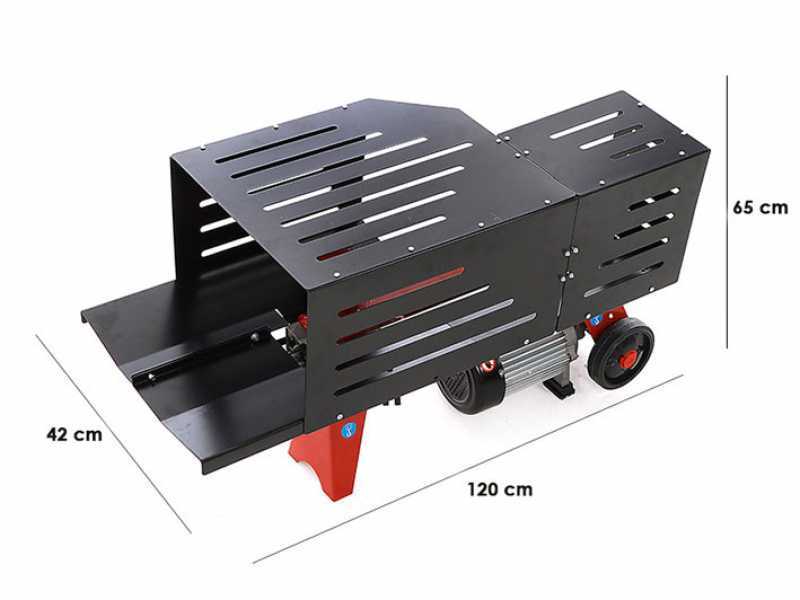

Overall dimensions: 120x42x65

Weight: 55 kg

It is in compliance with the CE safety standards.

GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force
GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force

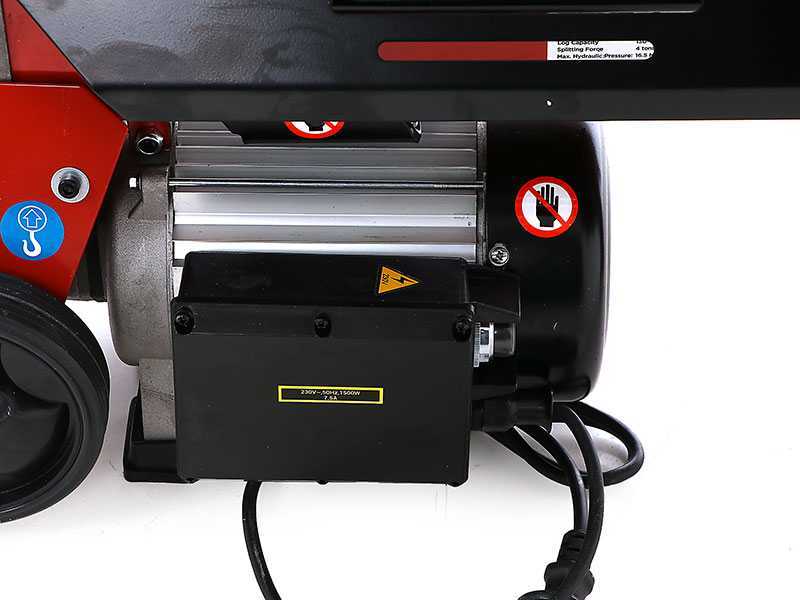

Electric motor

This horizontal log splitter is powered by a single-phase electric motor.

Electric consumption: 2200 W

Power supply: 220-240V 50Hz

Focus on the on/off switch

GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force
GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force

Controls and other features

Two-hand operation:

1) The first hand must press the electric motor start button (which operates the pump).

2) The second hand pulls the piston drive lever to operate the splitting process.

Oil tank capacity: 3.5 L

Piston head made of cast aluminium

Focus on the sturdy cutting wedge

The heavy-duty multi-welded wedge ensures great performance and long-lasting durability. It can easily split even hardwood.

The handle and transport wheels near the motor guarantee high ease of transport.

Wheels diameter: 14 cm

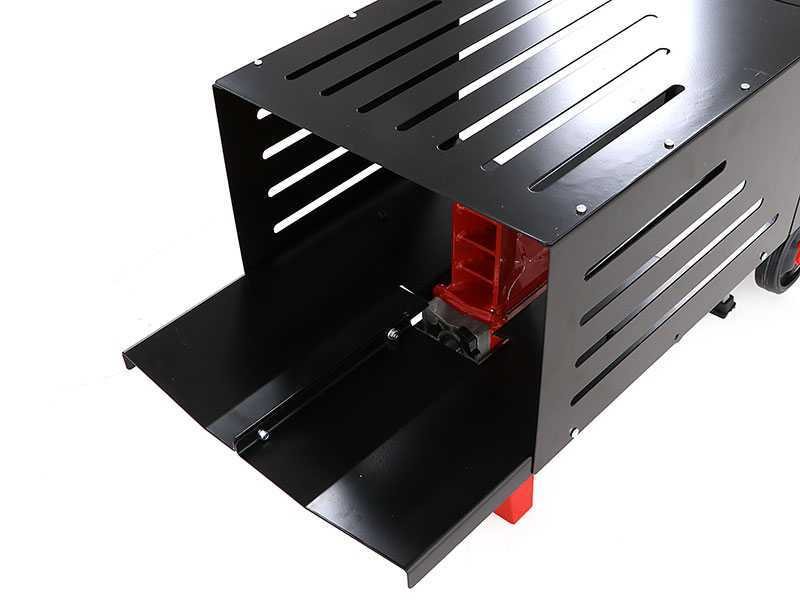

Focus on the guards in compliance with the CE standards.

GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force
GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force GeoTech SPHE 5 Horizontal Log Splitter with Electric Motor - 5 Tons Splitting Force
Free items & Standard equipment

Standard equipment

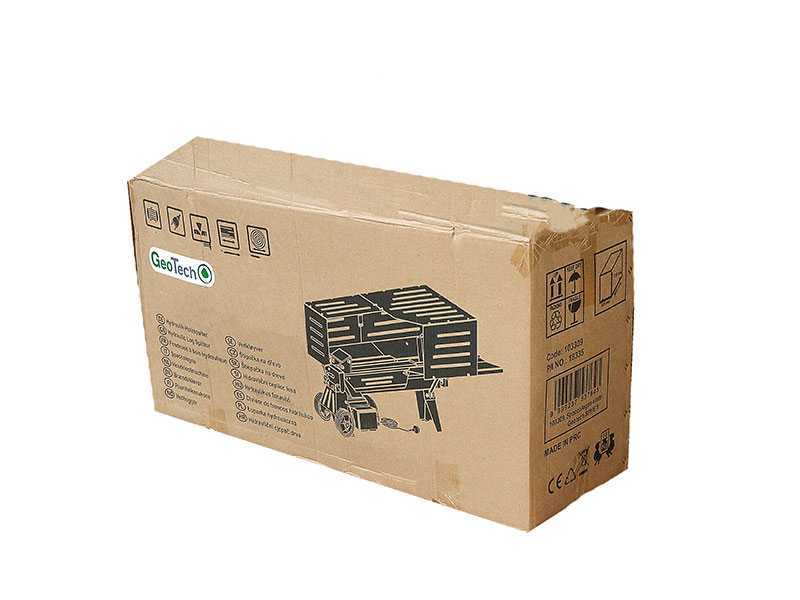

The machine is shipped in its original packaging.

You’ll only have to assemble the guards provided on standard equipment.

The maintenance and instructions manual is included in the package.
