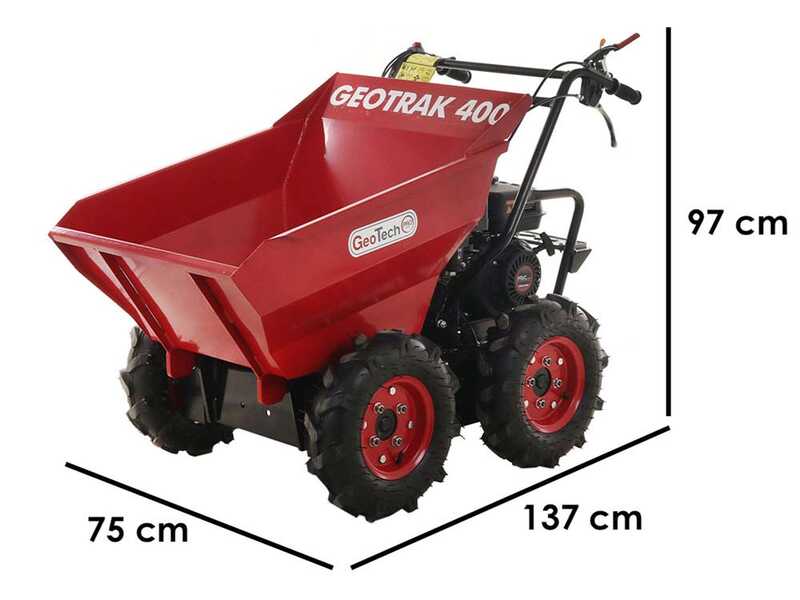

GeotechPro GEOTRAK 400 Power Wheelbarrow - Dumper Barrow 400 Kg - 4 Drive Wheels

GeotechPro GEOTRAK 400 power wheelbarrow with tipping barrow, thanks to its self-propelled on wheels and its powerful 4-stroke engine, is able to carry loads of 400 Kg thus being an instrument which use can be useful in many different fields from agriculture to animal husbandry to construction and gardening.

It has 4 drive wheels all of tracktor type, they therefore allow to maintain a very good adhesion with the ground even in the most complicated conditions.

Thanks to its own wheels on tracks and to powerful Loncin engine this power wheelbarrow is able to carry loads of 400 Kg also, thus being an indispensable tool for each type of transport.

The machine is equipped with a powerful Loncin G200F, engine capable of delivering:

• 6HP Power

It can carry weight up to a maximum downhill slope of 6° While in idle climb you can also get to go slope of 15 °

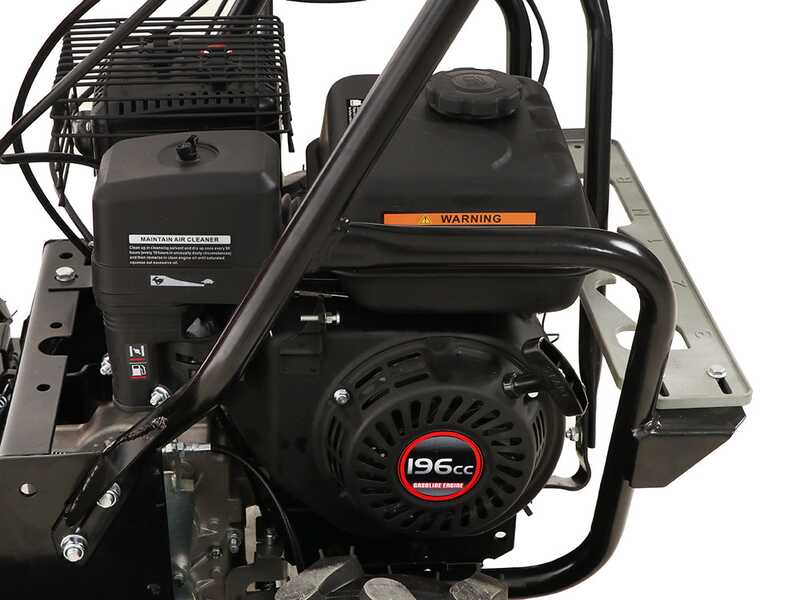

Loncin G200F original latest 4-stroke petrol engine with 196 cc capacity and a nominal power of 6 HP. It has been designed with the ”OHV” overhead valve technology. This latest model with OHV technology is suitable for high-power required working operations.

It also has a multiplier of connection between the motor and the professional type pump in an oil bath

Features:

• Engine type: 4-Stroke
• Rated Power: 6 HP
• Cylinder type: Cast iron
• Displacement: 196 cm³
• Max. rpm 3600 rpm
• Fuel tank capacity: 3.1 L
• Euro V

Rated Power: 6 HP
The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers.

* This figure is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

Effective power: 5.5 Hp
It corresponds to the real power expressed motor shaft. This is the power indicated as official in the manual or in the technical data of the motor manufacturer.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.

Gearbox: large, easily the most robust and reliable on the market.
But despite this very soft and precise. Entirely made in Italy

Speed:
3 forward
1 reverse

Parking brakes:
annexes to the gearbox, for greater stability and security.
These are automatically activated to release the command (leaving the car in neutral, even in strong gradient, the machine remains perfectly blocked)

Transmission:
Robust and resistant, it allows to manage the steering acting on the single track deactivating the rotation

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

This power wheelbarrow is self-propelled to facilitate the operator's work

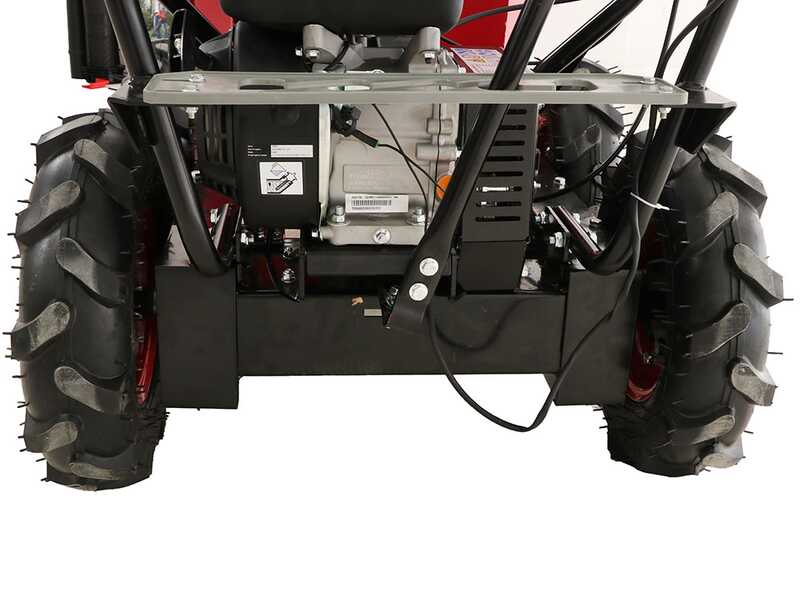

All four wheels are traktor type to provide greater grip and traction on muddy and more uneven terrain.

Having available 4 drive wheels will make very simple to move the power wheelbarrow even in tight spaces while maintaining always a great adherence to the ground.

To turn you will need to press one of the two levers on the handlebars according to the direction in which it needs to turn.

Body in high-strength steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The power wheelbarrow has an effective capacity of 400 Kg, even on sloping grounds.

The barrow tilting operation is very simple, just press the lever in fact placed on the right of the machine. It will disengage the safe of the barrow and make it possible for the operator to overturn the same with extreme simplicity.

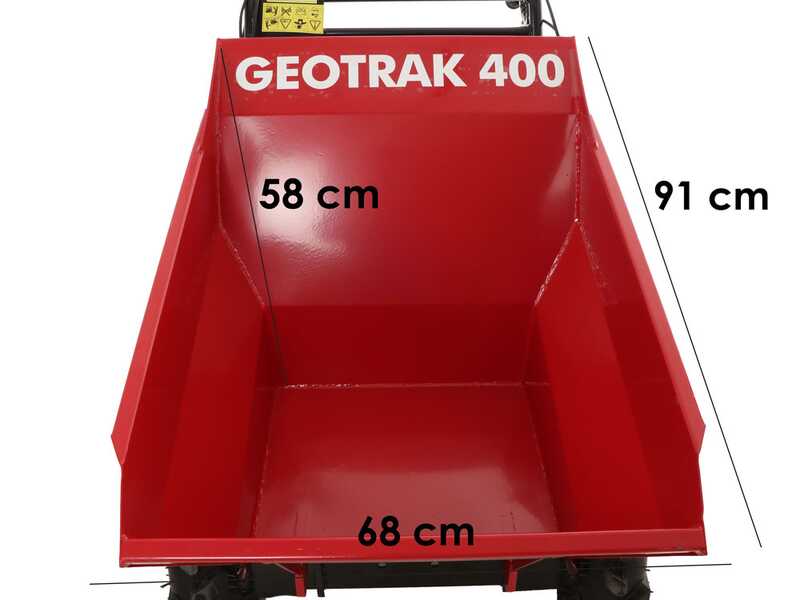

Barrow dimensions: 910x680x580 mm

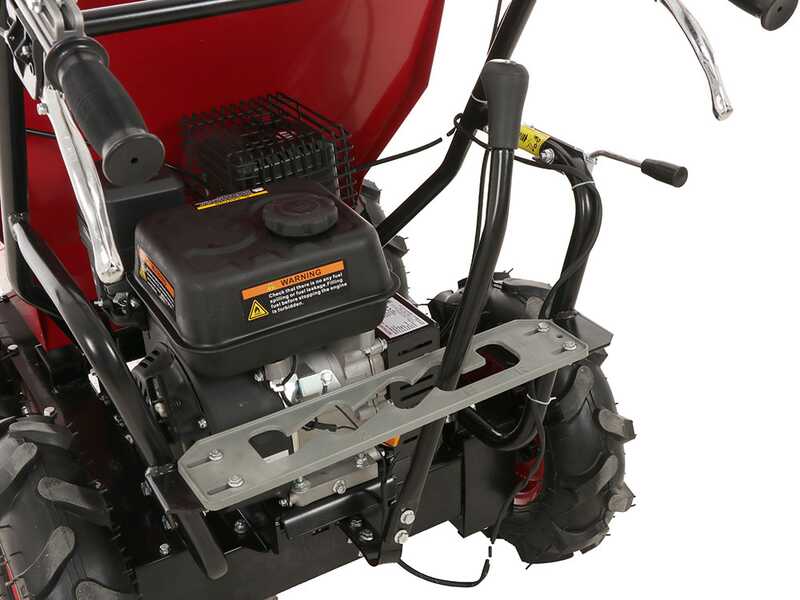

Control: easy to operate and ergonomic, they offer precision and can be controlled in the work

Large red lever for motion activation.

The two lower levers are for the steering, respectively right and left.

The steering is modulated as a function of the control lever and allows it to move smoothly. By partially pulling one or the other lever also the steering of the affected track, right or left, will be partial.
This allows the steering of the power wheelbarrow in an extremely easy way, without causing any sudden movements.

Safety brake that allows the immediate arrest.

Accelerator lever

Gear shift

Lever for disengaging the barrow
