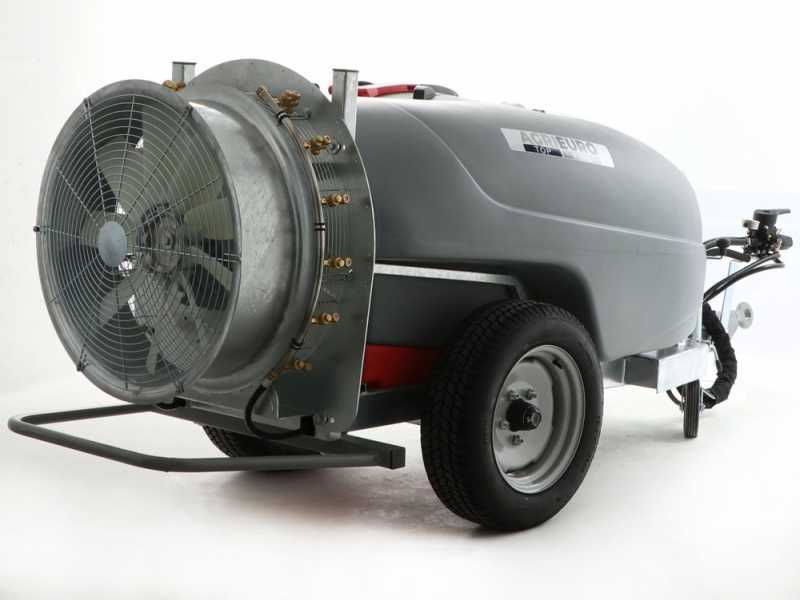

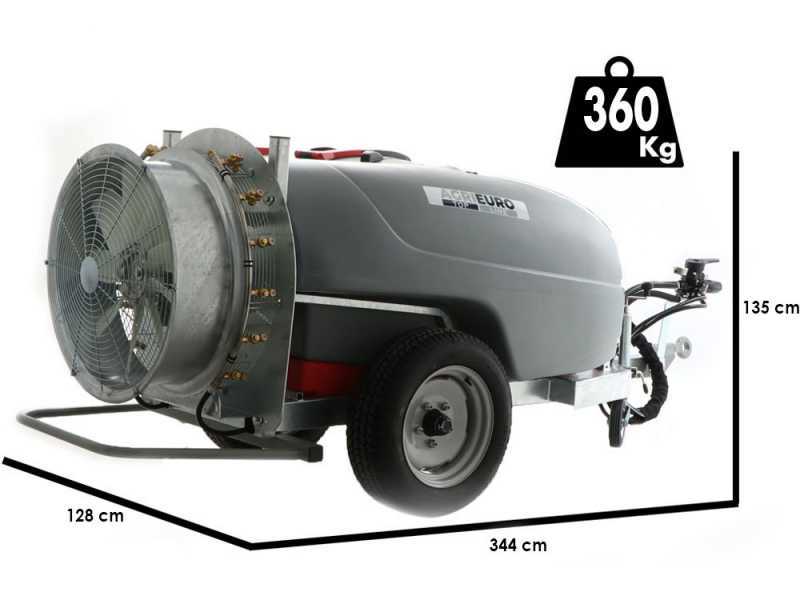

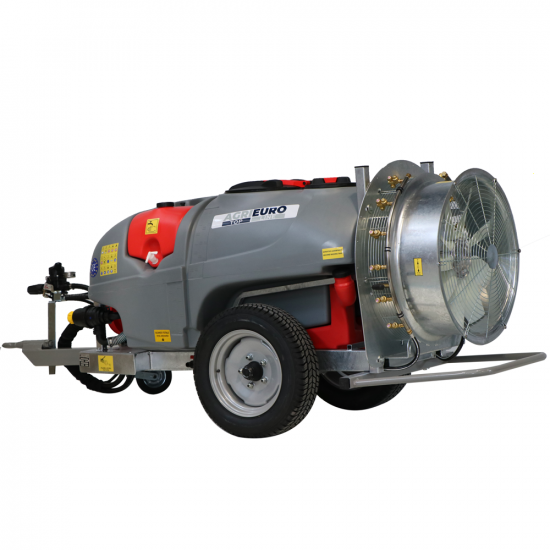

Gray T Car 800/70 - Trailed Tractor-Mounted Mist Blower for Spraying - 800L Capacity - AR1064 pump

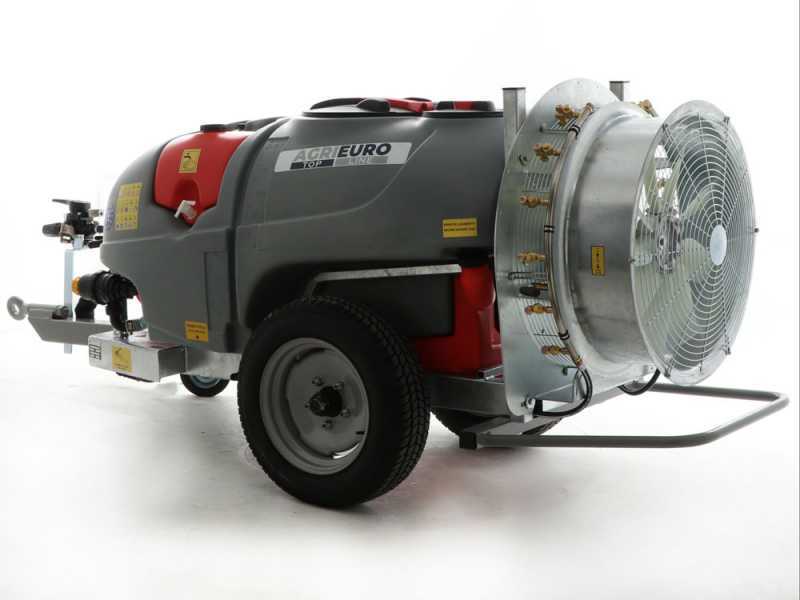

The new Agrieuro Top-Line towing-mounted sprayer is a device used for spraying plant protection products and other chemicals on the surface of plants. The sprayer is connected to the tractor through a three-point hitch, which makes it easy to transport and use.

The operation of the sprayer is quite simple: the product is mixed with water inside the sprayer's tank, and is then sprayed onto the plants through the large 700 mm fan that generates a strong circular air flow that pushes the droplets already emitted and pulverised by the jets. The nozzles are designed to create a fine spray that settles evenly on the surface of the plants.

The main advantage of the trailed agricultural sprayer is its wide ground coverage: thanks to its size and its suitability for being towed by a farm tractor, the trailed sprayer is able to cover large areas of ground in a short period of time, reducing working time and increasing the efficiency of the operation.

The trailed sprayer can be used on different crops and in different types of soil, thanks to its ability to adapt to the farmer's needs. In addition, it can be attached to less powerful machines due to the presence of wheels.

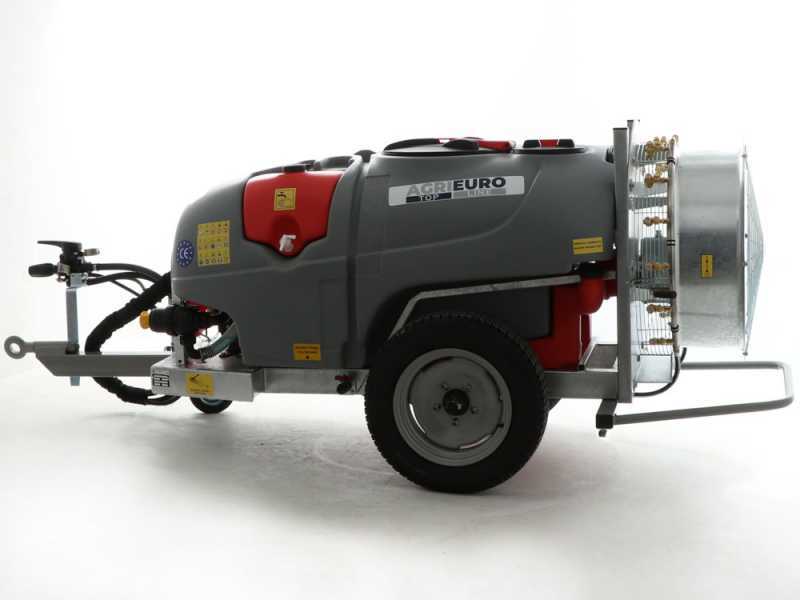

Frame made of Swedish steel with hot-dip galvanisation treatment, which makes it very resistant to rust attack over time.

However, it is important to use the atomiser responsibly, avoiding excess chemicals and respecting local safety rules and regulations.

Thanks to its versatility and ability to cover large areas quickly and efficiently, it has become a popular choice among farmers around the world.

Swedish steel fan unit with hot-dip galvanisation treatment, equipped with oil-bath gearbox.

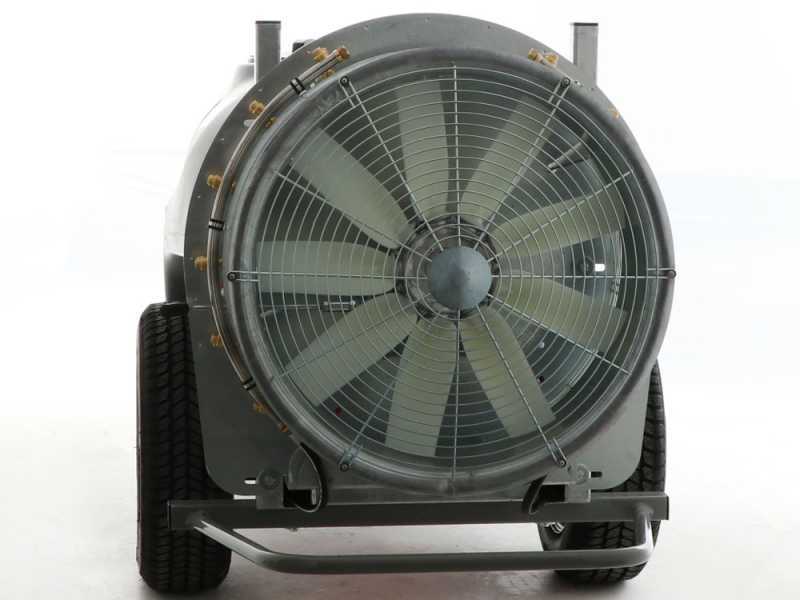

700 mm diameter rear suction axial fan (9 blades).

The fan is the essential element that determines the power of the sprayer, hence it determines the ability to push the atomised product in width and height. The nylon fans guarantee excellent weather resistance.

Thanks to the fan's features, the product can be used in the following fields:

• Citrus groves
• Orchards
• Vineyards
• Greenhouse crops
• Olive grove
• Tall trees
• Berries, blueberries, avocados
• Banana groves

The sprayer's transmission is an oil-bath gearbox for maximum reliability over time.

The gearbox is manufactured in Italy by CMV of Lonigo. (Box made of cast iron)

Made in Italy guarantees excellent construction quality and materials for this component, as well as easy availability of spare parts if needed.

Focus on the fan drive engagement lever with speed 1° and 2° + neutral position.

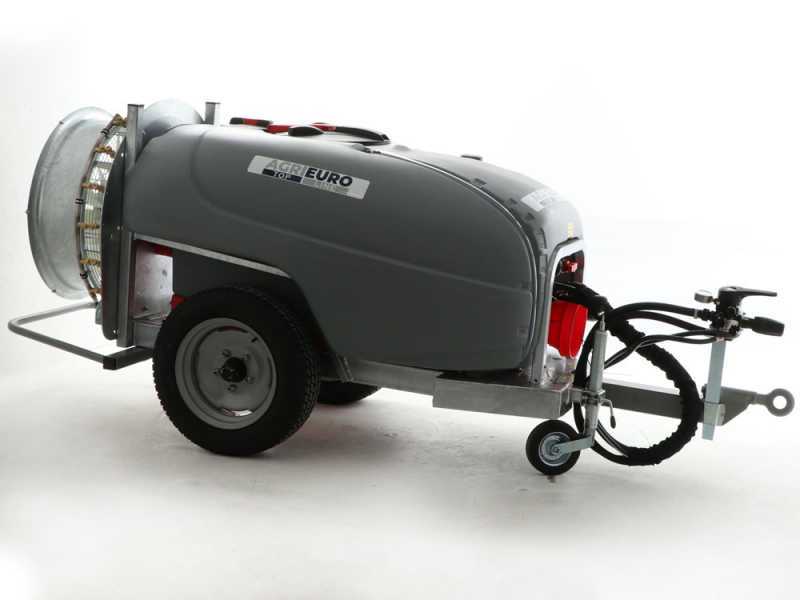

Stainless steel spray rods divided into two sectors, a left one with 6 jets and a right one with the other 6 jets.

Double brass spray nozzles with anti-drop and quick-closing system.

Ceramic nozzles 1.0 / 1.2

Provided with three steps that coincide with the positions:

• Nozzle with larger hole (higher liquid delivery)
• Central position = closed jet
• Nozzle with smaller hole (less liquid delivery)

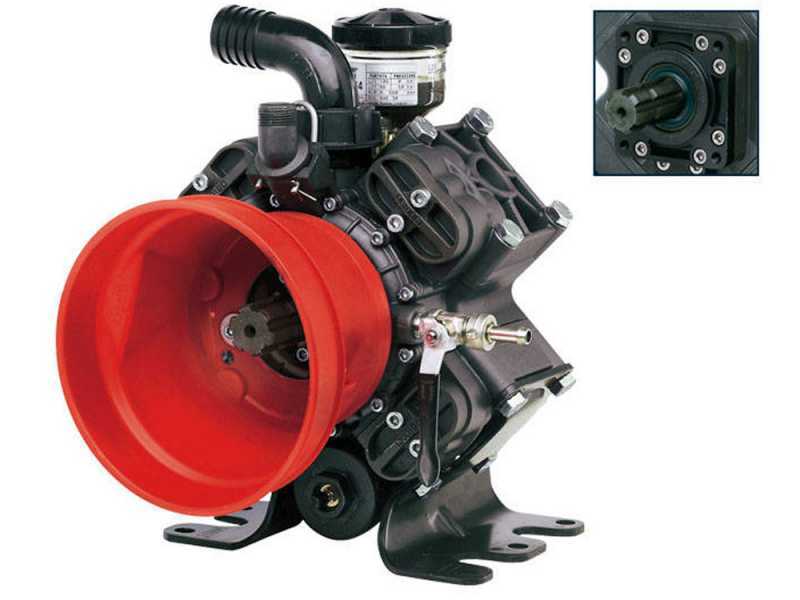

Annovi Reverberi AR-1064 four diaphragm semi-hydraulic aluminium pump used in the professional agricultural sector on sprayers for orchard or vineyard treatments with plant protection products under high pressure.

The parts in contact with the liquids are made of anodised aluminium and AISI 303/304. NBR diaphragms that guarantee high standards of resistance to chemicals used in plant protection treatments. NBR rubber seals. Die-cast carter with mechanical parts in an oil bath, tank made of transparent plastic material to check the level. Complete with overpressure valve with reset and Cardan protection.

Newly developed membrane locking system to prevent contact tearing even under heavy-duty conditions. Valves with a spherical sector profile that oppose less resistance to the passage of liquid and improve volumetric efficiency.

Performance

• N. membrane / pistons: 4
• Flow rate: 108.5 L/m
• Pressure: 50.0 bar
• Power: 7,3 CV
• RPM: 550
• Weight: 23.5 Kg

Homo kinetic Cardan protection.

Pump with double direct output, one of which is dedicated to the internal mixer and another used for other applications

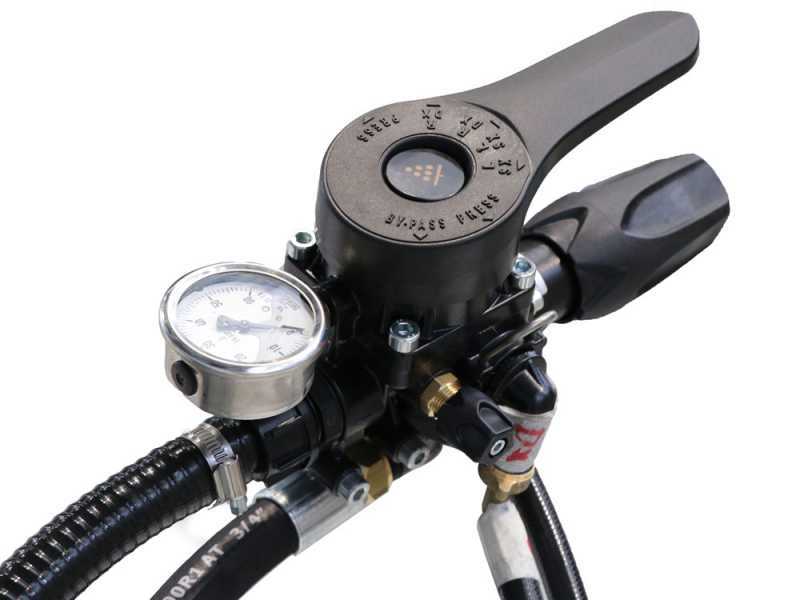

Three-way pressure adjustment unit.

Pressure adjustment knob.

Pressure gauge.

The two side taps supply respectively the right-hand sector of the fan and the left-hand sector.

Control lever for opening or closing the control unit.

This means that the two sectors can also be switched on separately, i.e. only the nozzles on the right-hand side or only on the left-hand side (e.g. when you are on the edge of your plot).

Remote control unit equipped with very long cables, which allows the control unit to be brought right up to the tractor.

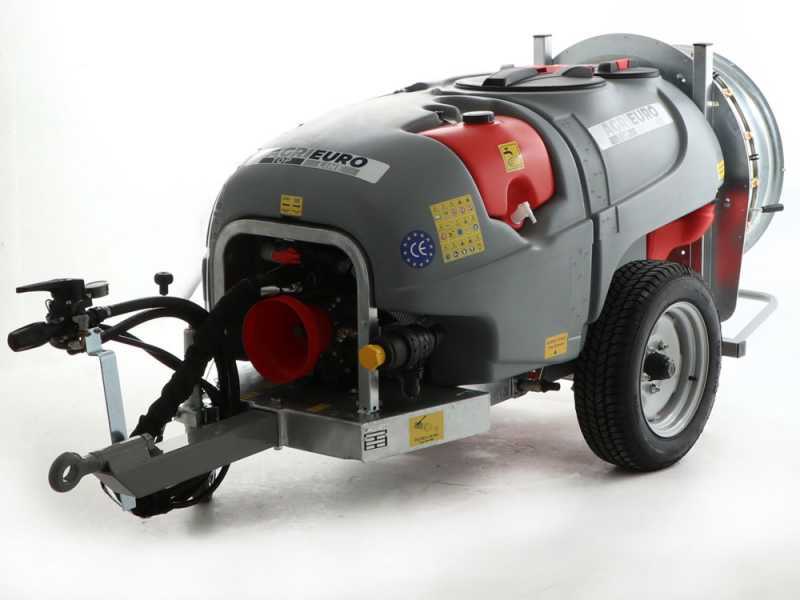

Frame reinforced with Swedish steel with hot-dip galvanisation treatment, which makes it very resistant rust attack over time.

Tow-bar with up to 3-stage attachment.

Adjustable axle width for greater machine stability on more uneven terrain.

The wheels of the trailed sprayer play a key role in the operation and transport of the equipment.

The wheels mounted on this sprayer ensure maximum grip on the ground in order to cope with rough and uneven terrain typical of agricultural areas.

Wheel model: 205/ 60 r 15.

Support caster providing stability to the machine (adjustable with the appropriate lever when coupling to the tractor)

Polyethylene full-emptying tank, capacity (L) 800.

Additional tank for circuit cleaning.

Focus on the lever for total emptying of the bottom tank.

Multi-volume hydraulic mixer, to constantly blend the solution inside the tank, equipped with a high-pressure nozzle that sprays into the centre of the tank.

Equipped with a self-filling system (the hose for self-filling the barrel must be purchased additionally).

Focus on the inlet water filter.

Machine in accordance with CE standards
