GreenBay DIG BSE-600 - Petrol Catenary - B&S XR2100

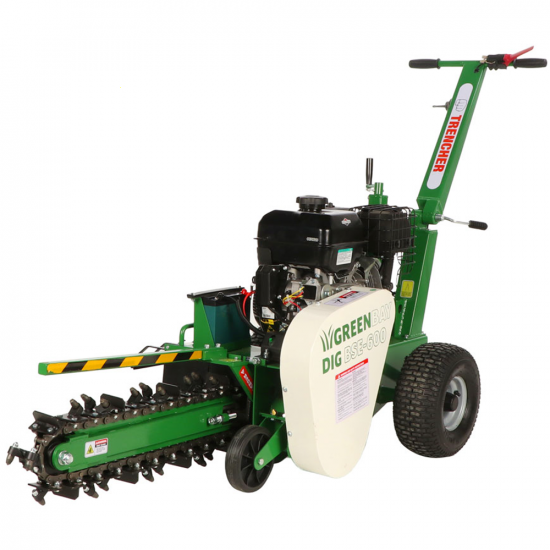

The GreenBay DIG BSE - 600 is an excellent product for those looking for a high-performance trencher with excellent build quality.

DIG BSE - 600 is an excellent trencher for quick and easy excavations for laying electrical cables and/or piping. This machine has a professional cutting action thanks to 27 blades made of carbide alloy, and it is ideal for use in the hardest and most compact soils, even in the presence of crushed stone.

The GreenBay DIG BSE - 600 is a comfortable machine to use thanks to its adjustable handlebar with 4 different heights, which change the trencher digging depth.

Thanks to the 27 blades, the machine can safely penetrate the ground, avoiding damage to the surrounding soil.

• Machine digging capacity: 60m/h
• Working width of: 100 mm
• Working length of: 800 mm

This machine has a compact and ergonomic design, so it is very easy to use even in narrow spaces.

These machines are equipped with low speed and high torque, which provide an optimal penetration into the soil and a lower wear of the chain with better results at the same time.

Laying the cables in the garden or building an irrigation system is a job that requires a lot of effort and time, thanks to the trencher you can do the job in the shortest possible time and with less effort.

The trencherhas a powerful Briggs & Stratton XR2100 4-stroke air-cooled 420 cc engine, with overhead valves and aluminum cylinder.

Features:

Focus on the throttle lever

Focus on the air adjustment lever and tank

Focus on the air filter

Focus on the spark plug

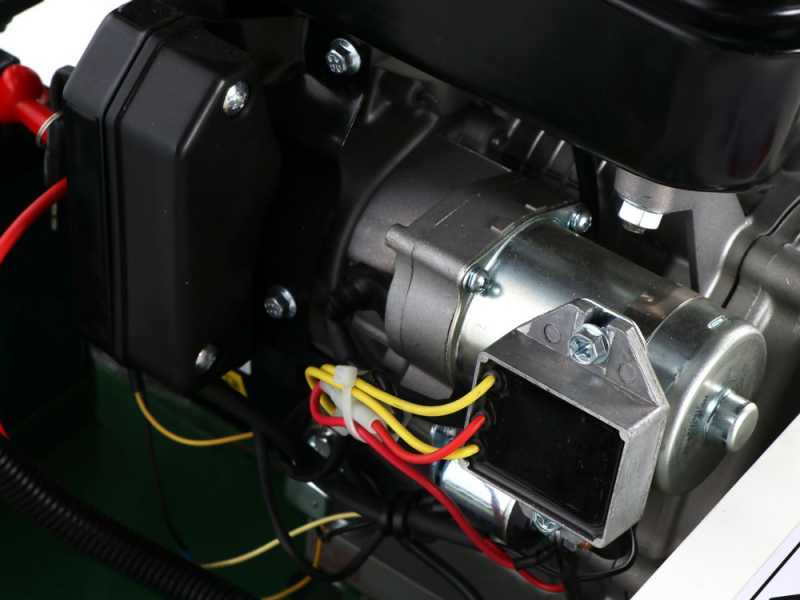

Engine supplied with electric start

Nominal Power: 13.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: 12.06 Hp
It corresponds to the real power expressed motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the speed of rotation provided.

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

CAUTION: using it at less than full speed can lead to several problems and the shredder won’t be able to grind large branches and perform a high-quality grinding.
- Lowering of engine speed or switching off the engine during use;
- rapid deterioration of drive belts between engine and rotor;
- damage to the centrifugal clutch which, if the engine is not at maximum speed, does not fully expand, leading the engine to wear out and irreparably damaging it

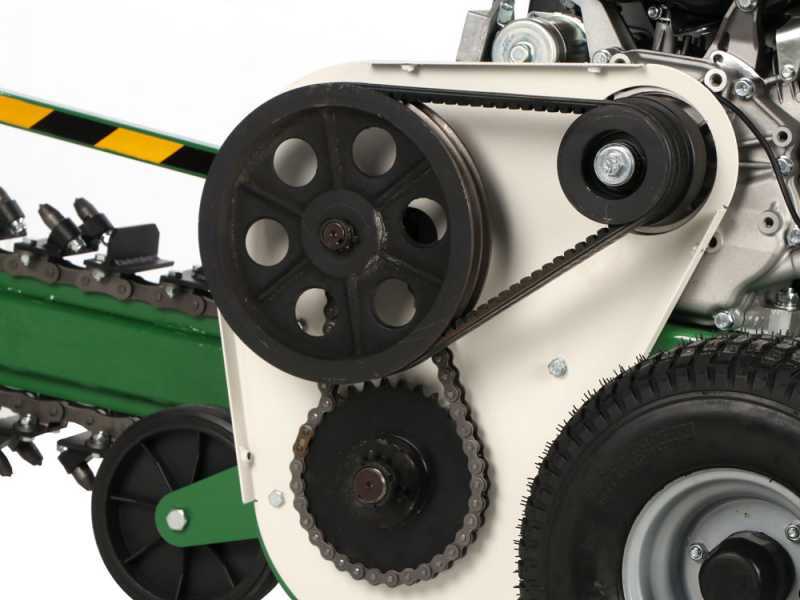

The trencher is equipped with intermediate double belt drive transmission

This feature gives high sturdiness to the unit, protecting both the engine and all the shredding system from every possible internal hit or kickback.

Higher durability over time compared to the standard system of all the manufacturers of petrol-powered machineries directly connected to the shredding cutting system.

Its cutting action, thanks to 27 blades in carbide alloy, is ideal for very compact hard soils.

The DIG BSE - 600 B&S trencher, with the use of the special handle, gives the possibility to reach a digging depth from 0 mm to 600 mm.

With a compact, narrow design, it can also be used in confined spaces.

The digging capacity of the machine is 60m / h, and it has a working width of 100mm, excellent for quick excavations intended for the laying of pipes and / or electrical cables.

Working length of 60 cm.

Detail of the rotor lubrication system

The main controls of the trencher are simple and intuitive.

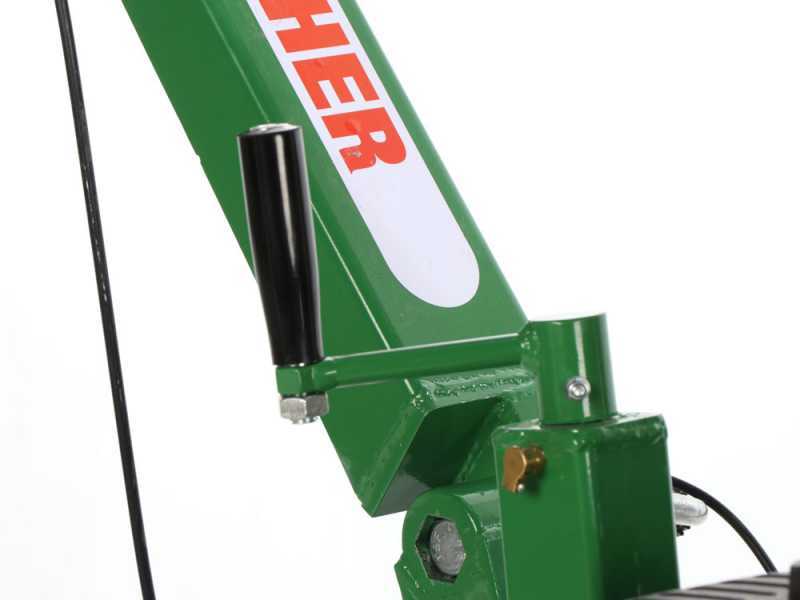

Thanks to a single handle, the handlebar height can be adjusted so that the machine is easy to use at any height.

Switch to stop the machine

Provided with throttle lever of the engine rpm.

Focus on the brake lever:

• 1 : added brake
• 2 :not added brake

Adjustable handlebars and digging depth in 4 different positions.

Tires from 15x6.00-6 Perfect for all terrain and with optimal manoeuvrability.

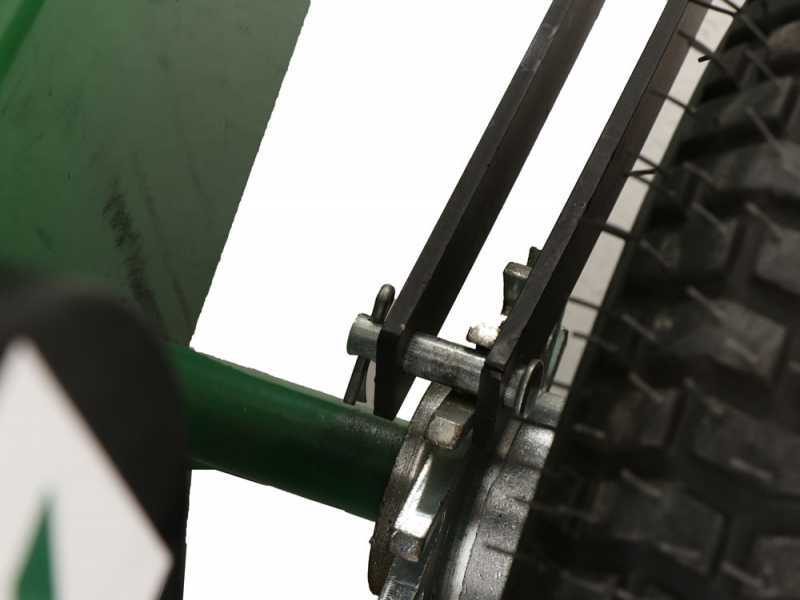

Wheel brake of easy access for safe operation.

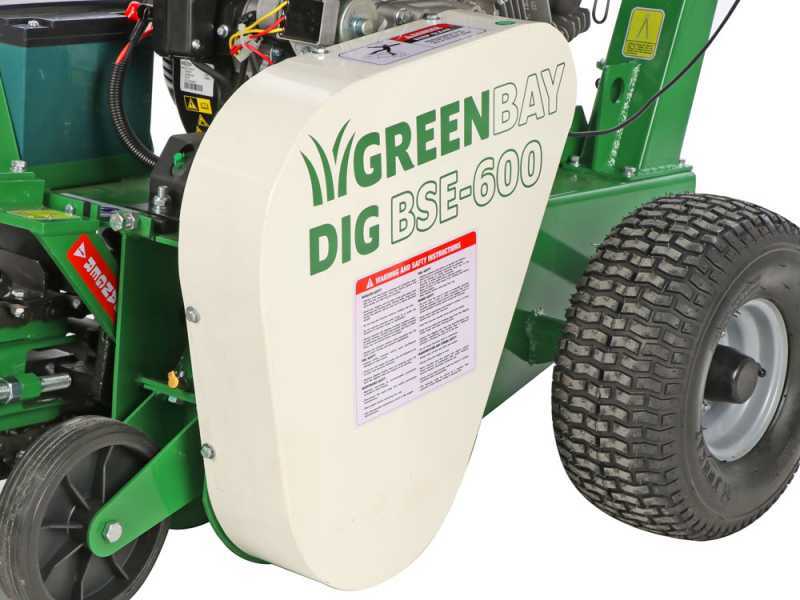

Focus on the protective casing of the belt, to avoid hits and damage

Comfortable and practical handle to ease transportation

Machine manual lifting pole

Protection device additional to the cutting apparatus

Focus on the chain tensioner

Focus on the lube of the primary shaft supporting the trencher

Chain Length: 2000 mm

Chain Speed (Max) 550m/min

5.42 mm thick steel
