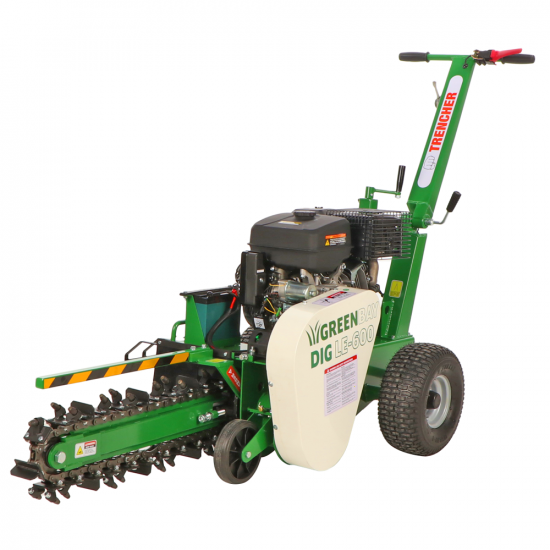

GreenBay DIG LE-600 - Petrol Catenary - Loncin G420F

GreenBay DIG LE - 600 trenchers is an ideal product for those looking for a machine with excellent performance and long-lasting durability

GreenBay DIG LE - 600 is a machine suitable for digging soil and asphalt for laying pipes and electrical cables. This machine has features that place the GreenBay DIG LE - 600 at the top of its class, its chain has 27 blades made of carbide alloy, which allows you to use it on the most challenging terrain even in case of stony soils.

GreenBay DIG LE - 600 is a comfortable machine to use thanks to its handlebar with a variable height from 0 mm to 600 mm, which you can adjust according to your working needs.

The engine of the GreenBay DIG LE - 600 has a powerful 420 cc Loncin petrol engine, with a maximum power output of 15 Hp, which allows performing the best soil tilling.

Thanks to the 27 blades, the machine can safely penetrate the ground, avoiding damage to the surrounding soil.

• Machine digging capacity: 60m/h
• Working width of: 100 mm
• Working length of: 800 mm

The digging capacity of the machine is 60m / h, and it has a working width of 100mm.

This machine has a compact and ergonomic design, so it is very easy to use even in narrow spaces.

These machines are equipped with low speed and high torque, which provide an optimal penetration into the soil and a lower wear of the chain with better results at the same time.

Laying the cables in the garden or building an irrigation system is a job that requires a lot of effort and time, thanks to the trencher you can do the job in the shortest possible time and with less effort.

Features:

• Engine brand and model: Loncin G 420 F
• Single-cylinder engine type : 4-Stroke- OHV
• Cylinder type: Aluminium
• Displacement: 420 cm³
• Power: 15 Hp

Focus on air filter

Focus on the spark plug

Focus on the air adjustment and tank lever

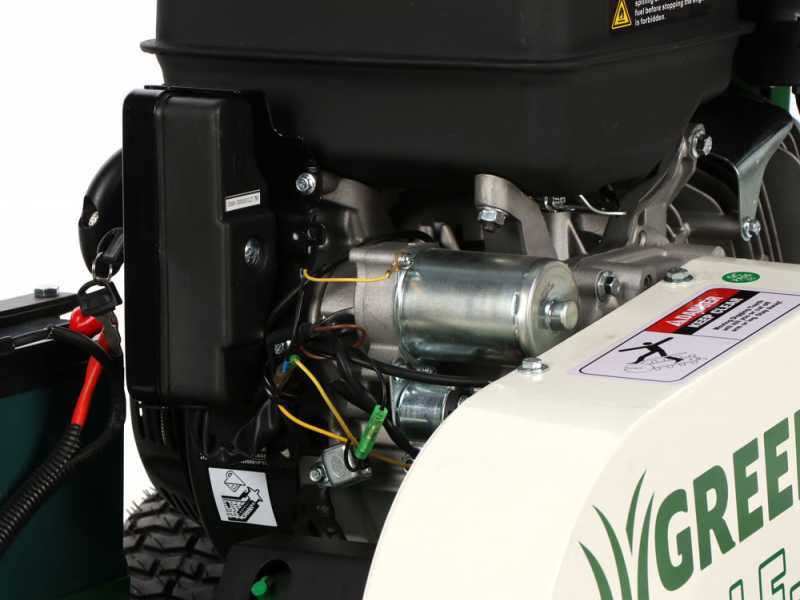

This trencher model features an engine supplied with electric start

Rated Power: 15 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Real power: 13 Hp
It corresponds to the real power expressed motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the speed of rotation provided.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

CAUTION: do not use it at maximum speed, in addition to not obtaining an efficient grinding of the branches and not be able to grind larger diameters, may involve a whole series of anomalies:
- lowering speed or stopping the engine during its use;
- rapid deterioration of the transmission belts between the motor and the rotor;
- damage to the centrifugal clutch which, if the engine is not at full speed, you do not get the full expansion of the same by determining the consumption of up to burn and need to be replaced

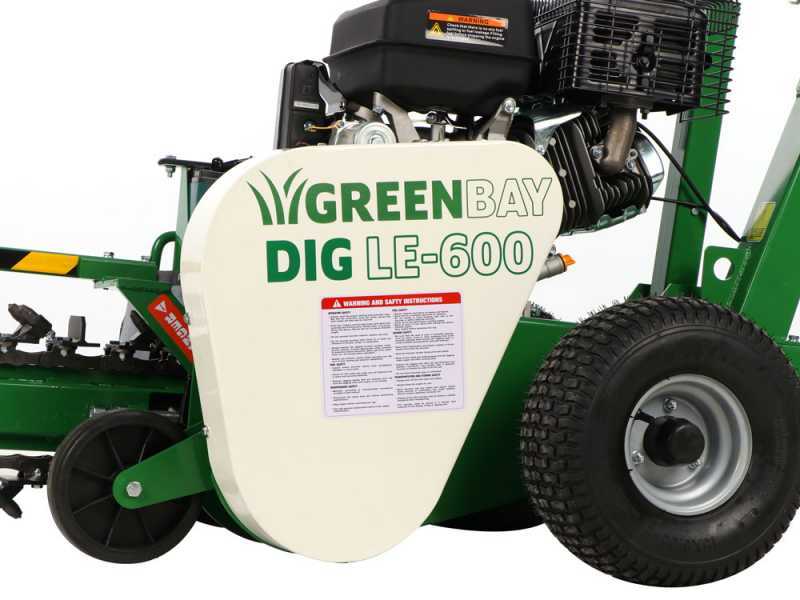

The trencher is equipped with intermediate double belt drive transmission

This feature gives high sturdiness to the unit, protecting both the engine and all the shredding system from every possible internal hit or kickback.

Higher durability over time compared to the standard system of all the manufacturers of petrol-powered machineries directly connected to the shredding cutting system.

Its cutting action, thanks to 27 blades in carbide alloy, is ideal for very compact hard soils.

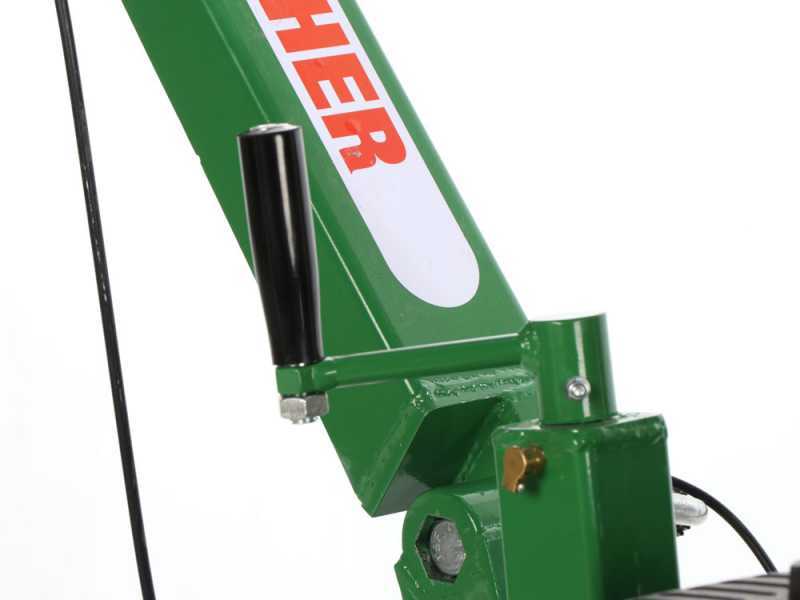

The DIG LE - 600 Loncin trencher, with the use of the special handle, gives the possibility to reach a digging depth from 0 mm to 600 mm.

With a compact, narrow design, it can also be used in confined spaces.

The digging capacity of the machine is 60m / h, and it has a working width of 100mm, excellent for quick excavations intended for the laying of pipes and / or electrical cables.

Working length of 60 cm.

Detail of the rotor lubrication system

The main controls of the trencher are simple and intuitive.

Thanks to a single handle, the handlebar height can be adjusted so that the machine is easy to use at any height.

Switch to stop the machine

Provided with throttle lever of the engine rpm.

Focus on the brake lever:

• 1 : added brake
• 2 :not added brake

Adjustable handlebars and digging depth in 4 different positions.

Tires from 15x6.00-6 Perfect for all terrain and with optimal manoeuvrability.

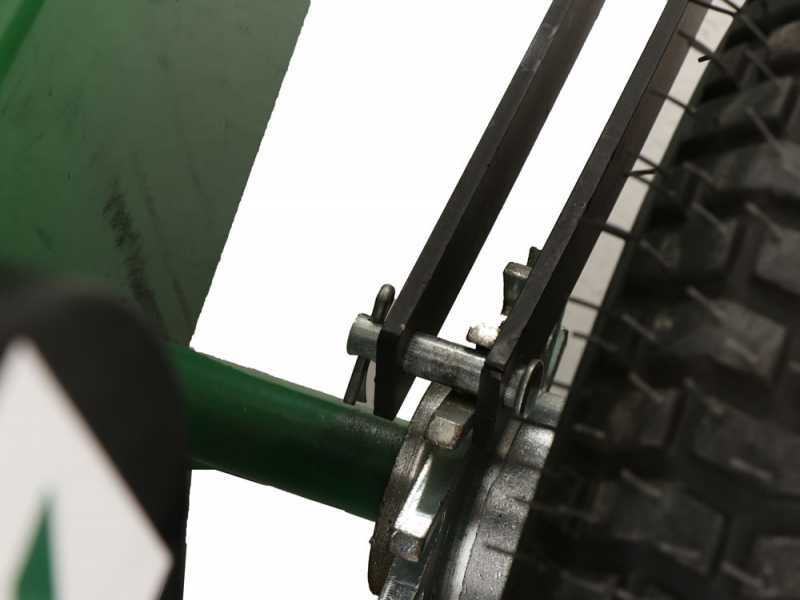

Wheel brake of easy access for safe operation.

Focus on the protective casing of the belt, to avoid hits and damage

Comfortable and practical handle to ease transportation

Machine manual lifting pole

Protection device additional to the cutting apparatus

Focus on the chain tensioner

Focus on the lube of the primary shaft supporting the trencher

Chain Length: 2000 mm

Chain Speed (Max) 550m/min

5.42 mm thick steel
