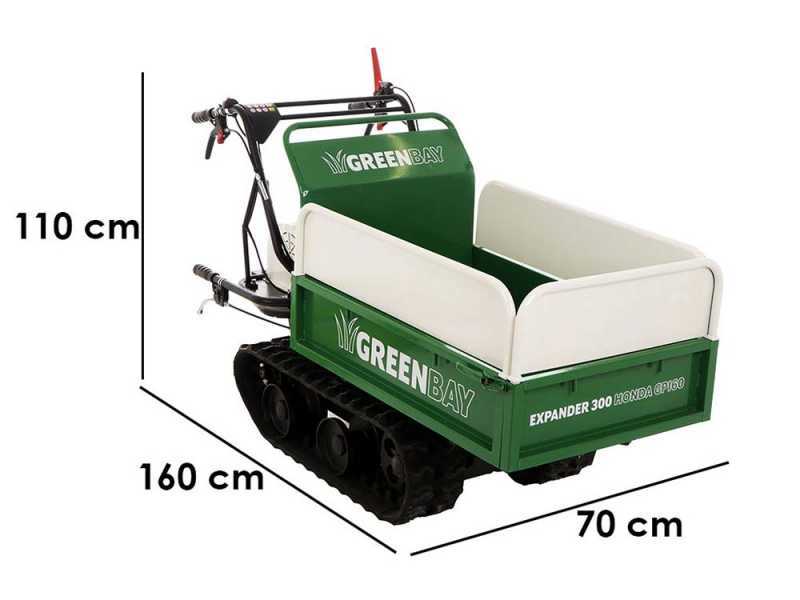

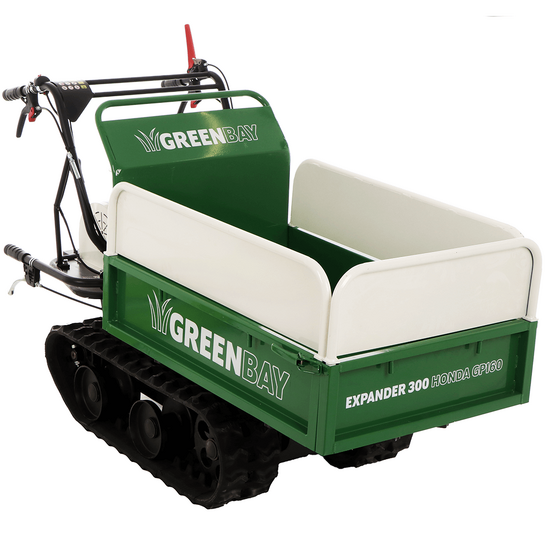

GreenBay EXPANDER 300 Tracked Extendable Power Barrow - Honda GP160 Engine

GreenBay EXPANDER 300 HONDA GP160 Tracked Power Barrow:

A sturdy and versatile machine, designed for use in agriculture and construction.

It features a load capacity of 300 Kg.

A very sturdy frame and a body with extendable tailgates allows the transport of any type of material easily and efficiently. The machine tracks allow it to move even on uneven and uneven terrain.

Honda GP160 engine 4 HP, 163 cc

It provides stability and safety during use even with heavy loads and slopes that normal wheelbarrows cannot handle.

Equipped with extendable body, which allows to significantly increase the load capacity.

In addition, another great advantage is the additional removable tail lifts, which provide extraordinary working versatility. By using tail lifts, you will be able to increase the load, which will considerably reduce the number of transports to be carried out for the job.

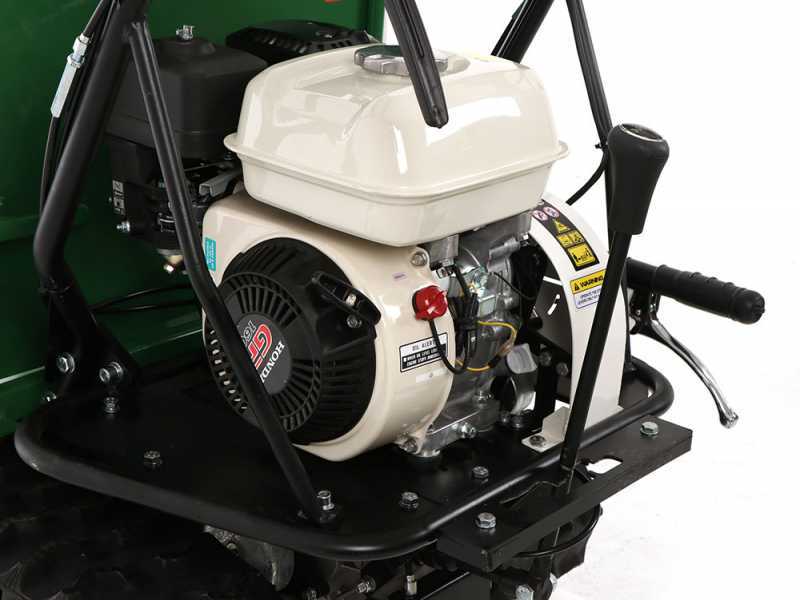

The HONDA GP160 engine with which the tracked power barrow is equipped guarantees excellent longevity and reliability of the machine.

The HONDA GP160 engine guarantees high performances and it is suitable for works where high power is required, achieved thanks to the high displacement of 163 cc.

Features:

Brand new 4-stroke engine (overhead valve shaft OHV - recoil ignition).

Easy re-coil start thanks to the automatic fuel priming system.

WARNING!
The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting.

Nominal Power: 5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: HP 4 (3600 rpm rotation speed)
It is the real power of the engine shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the speed of rotation provided.

Gearbox: Large, reliable and accurate.

Speed:
3 forward gears
1 reverse gear

Parking brakes:
connected to the gearbox, for greater stability and security.
These are automatically activated when the controls are released (if the machine is left in neutral position, even on a steep slope, it remains perfectly locked).

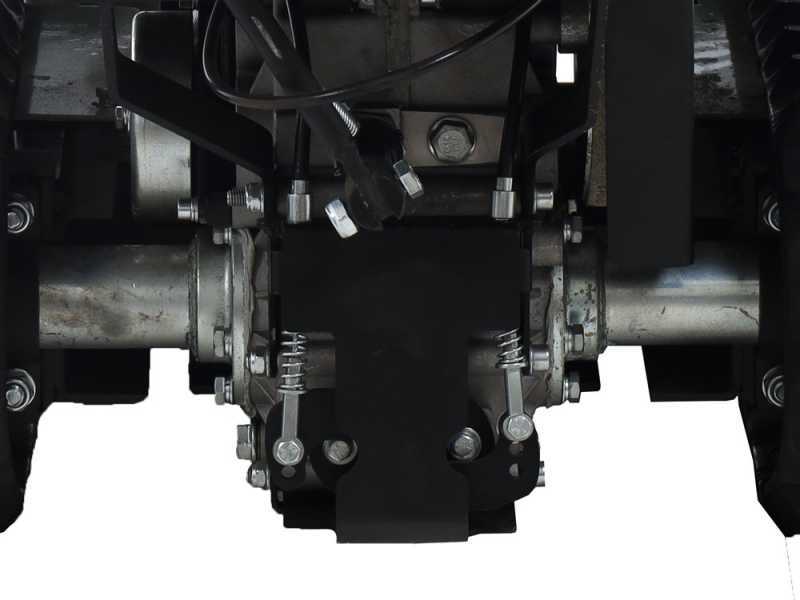

Transmission:
Sturdy and resistant, it allows managing the steering by acting on the single track, deactivating its rotation.

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

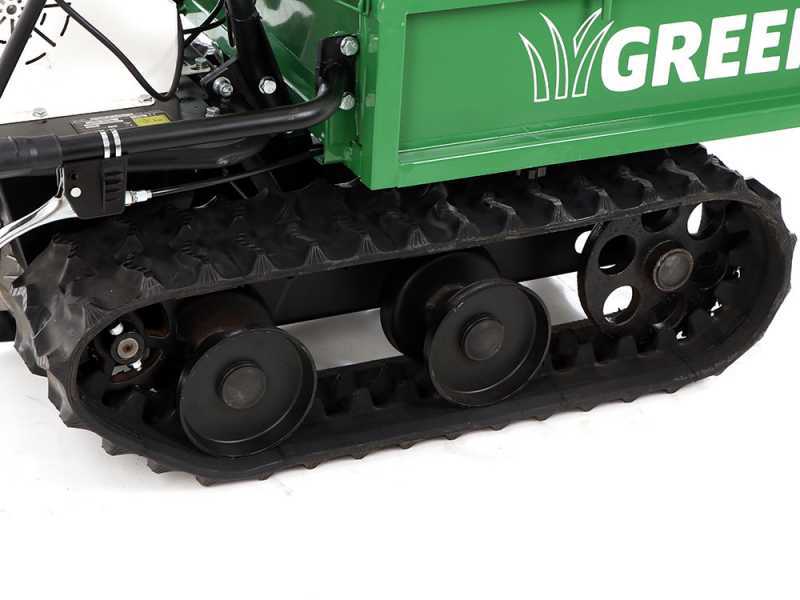

With their width and tread profile they guarantee perfect grip and stability on all types of terrain.

Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

Total track width: 95 cm

Thanks to the width and the tread configuration, they guarantee perfect grip and stability on all types of terrain.

Tracks made in high-density rubber to ensure a longer life and greater efficiency, with teeth designed to have a good adhesion on rough terrains, provided with 4 Rollers .

Rear side of the crawler track with a pointed 'tank-like' upper corner that allows it to climb steps or other obstacles with ease.

The sturdy frame with steel structure in high thickness which limits the vibrations and noise.

The low center of gravity also ensures an optimal stability during the work the position of the engine and the transmission facilitates maintenance

Adjusting the track tension thanks to the tension springs.

Body made in high-resistance steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress.

The loading platform is very close to the ground in order to make loading/unloading operations easier.

Mechanical tipping: use the proper rubber lever with spring to release it by hand. It is easy to use even with heavy loads by means of the tipping control lever on the side.

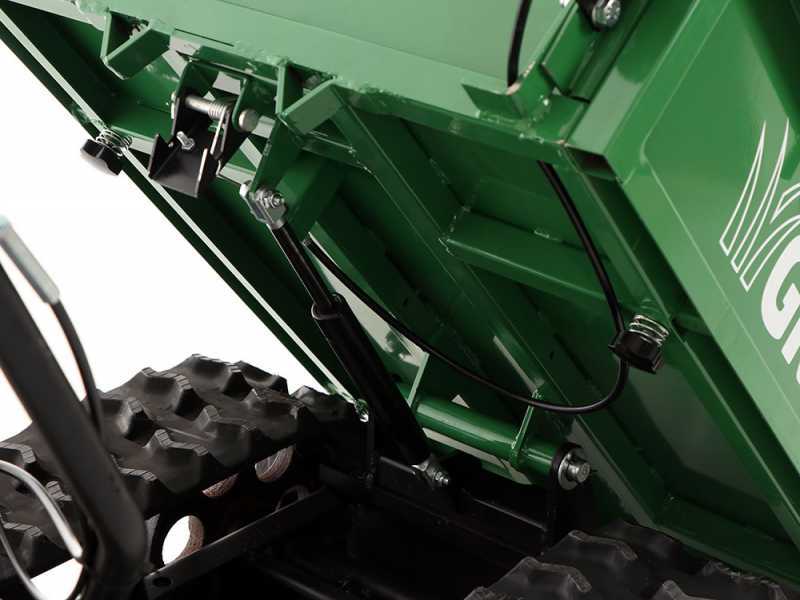

To facilitate the tipping operation, unloading the operator's weight, and to keep the body in the tipped position, the power barrow is equipped with a piston placed under the frame.

This will make all stages of the work much easier.

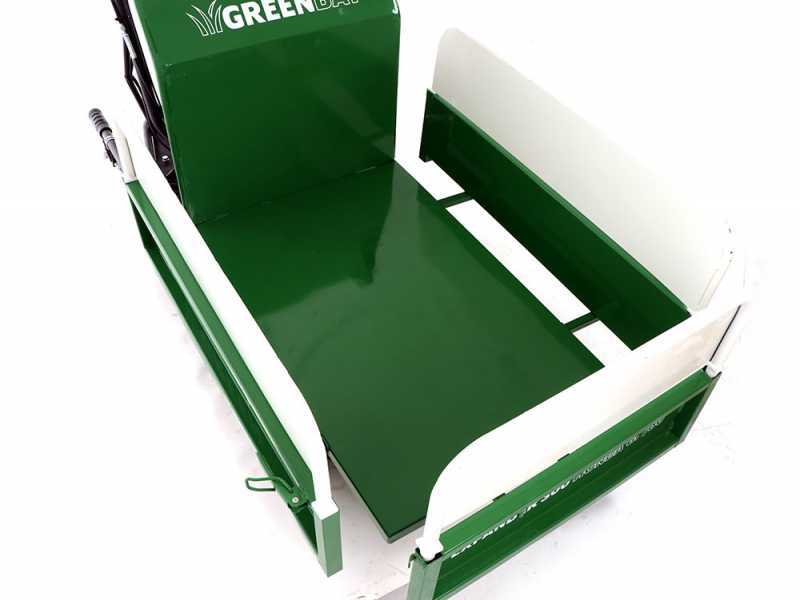

Closed barrow dimensions: 940 x 600 x 400 mm

Extended barrow dimensions: 1050 x 800 x 400 mm

The loading capacity can be significantly increased thanks to the extensible side panels.
Thus, in addition to the standard wing nut screws placed under the body, the power barrow is provided with sturdy hinges, which tighten the side panels to one another.

A further solution to further increase the load capacity is the standard-supplied removable panels.

By using tail lifts, it will be possible to increase the load by considerably reducing the number of transports for the job.

An example of use is for transporting and loading wood.
Using tail lifts will enable you to increase the load by considerably reducing the number of transports to be carried out for the job.

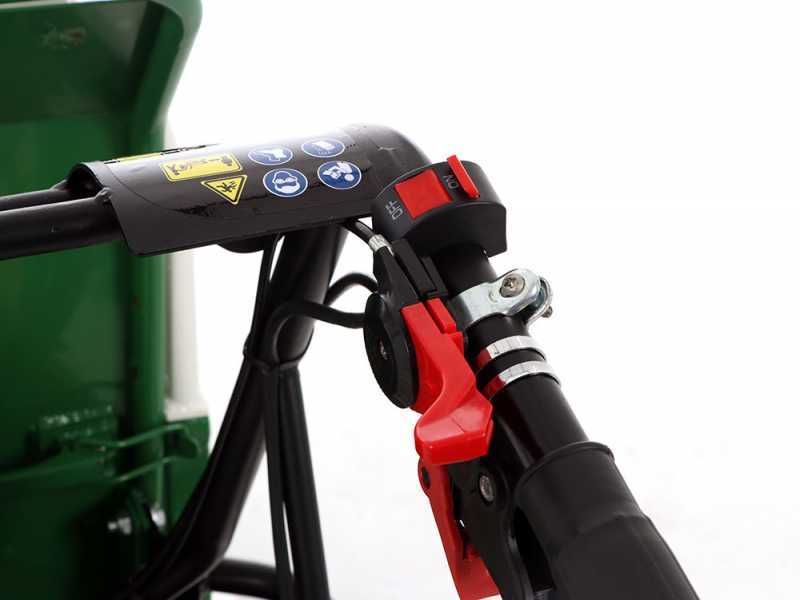

Controls: easy to operate and ergonomic, they offer precision and controllability in the work

Large red lever for motion activation.

The two lower levers are for the steering, respectively right and left.

The steering can be adjusted depending on the control lever and it allows moving smoothly. If either lever is partially pulled, the steering of the respective track, right or left, will also be partial.
This allows smoothly steering the power barrow.

Safety brake that allows immediately stop the machine.

Throttle lever and power switch
