GreenBay EXPANDER-H 500 crawler carrier - Honda GX270 engine

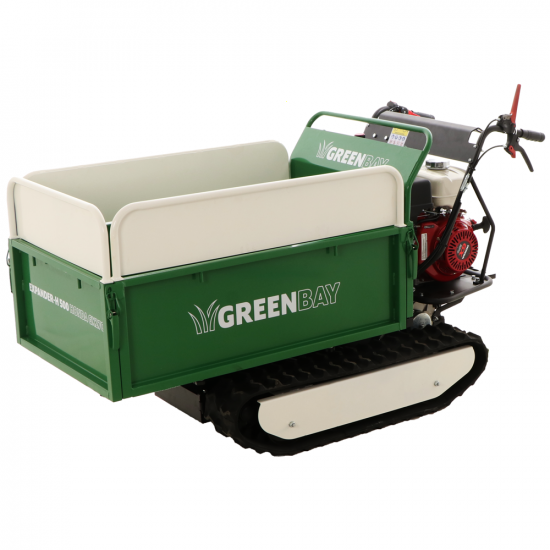

The GreenBay EXPANDER-H 500 wheelbarrows is a tracked wheelbarrow with an extendable body and an effective load capacity of 500 kg. A sturdy and versatile machine, designed for use in agriculture and construction fields.

The motor wheelbarrow can be used to transport materials such as sand, gravel, earth, timber and other similar products. Its load capacity of 500 kg makes it suitable for a wide range of applications from gardening to construction.

This wheelbarrow has a tipping body that is operated by a hydraulic system.

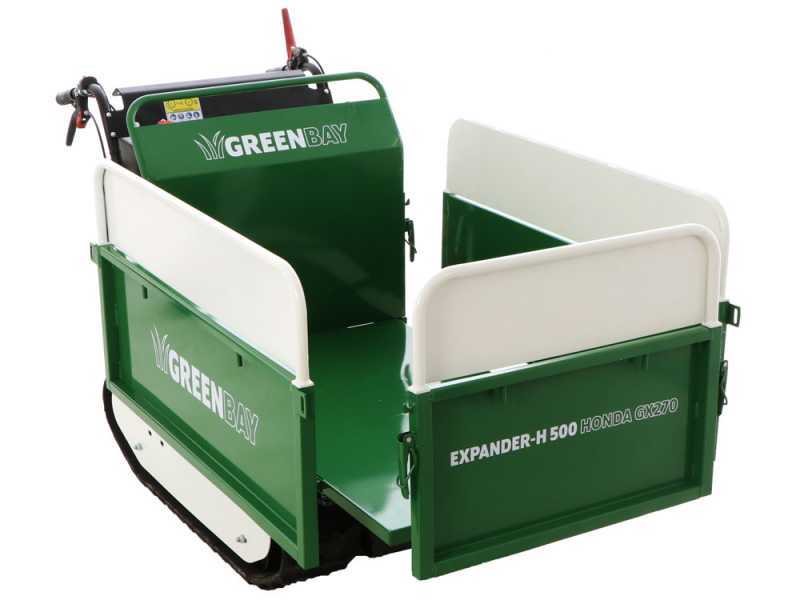

The body of this wheelbarrow can be extended, which greatly increases the load capacity of the machine. In addition, another great advantage is the additional removable tail lifts, which provide extraordinary working versatility. By using tail lifts, you will be able to increase the load, which will considerably reduce the number of transports to be carried out for the job.

The machine is equipped with the powerful Honda GX270 engine, capable of delivering an impressive output:

• 9HP power

The robust steel frame and three forward and one reverse gears make this wheelbarrow versatile and efficient.

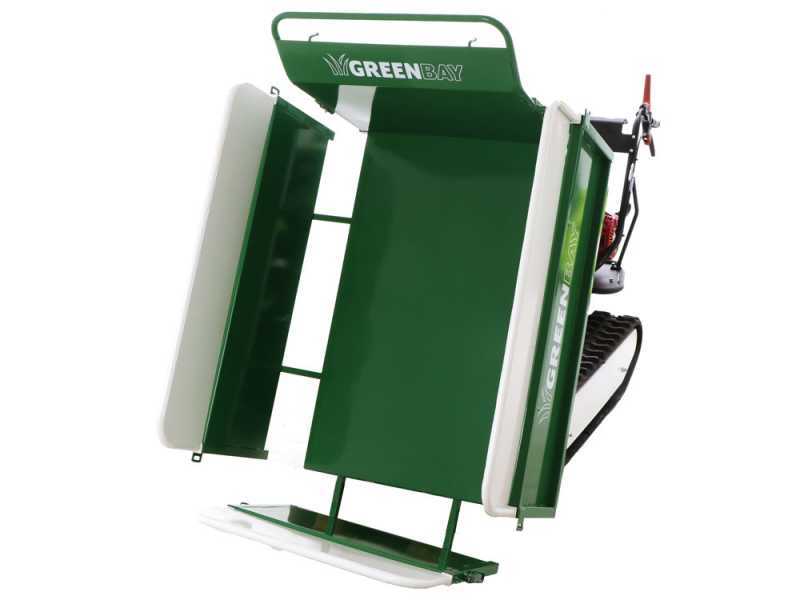

The hydraulic tipping of the body, with which this wheelbarrow is equipped, makes every work phase much easier, eliminating the effort to lift the body once it is loaded.

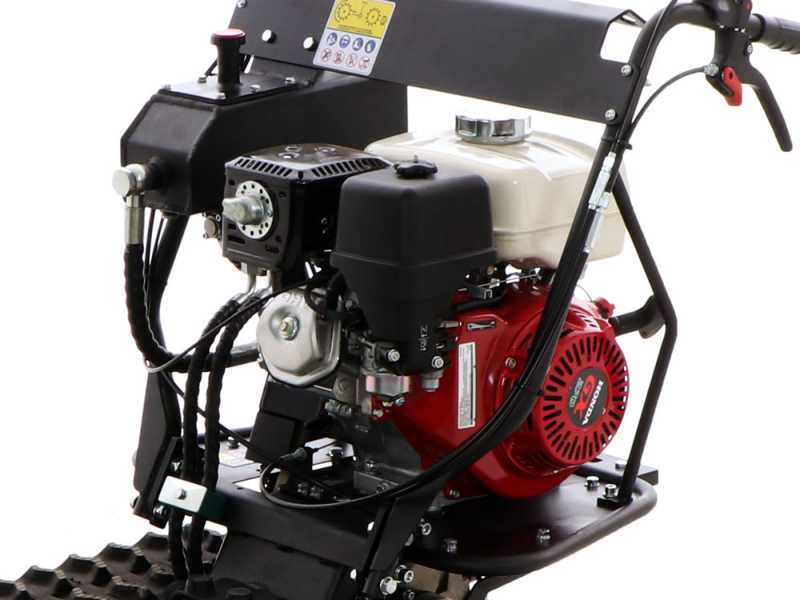

Honda GX 270 is a
super-professional, SUPER-POWERFUL and cutting-edge engine, which belongs to the latest overhead valve technology (OHV).

Features:

The Honda “GX” series is highly professional and was developed for heavy-duty woks in the building and agricultural field for generators, welders etc. It is characterised by great durability and reliability.

HONDA's GX - series engines stand today as ‘THE BEST ENGINES ON THE MARKET’.

WARNING!

These machines are tested by the producer before being shipped. Therefore, the engine is already filled with oil at level and with a minimum amount of fuel in the tank. Gearbox oil already at level. However, as detailed stated on the Instructions manual, both engine and gearbox oils need to be always checked before starting the unit.
Make sure to carefully read the instructions before starting the unit.

Nominal Power: 9.0 HP

* The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers. This figure is the one that is most widely used and publicised in the main sales channels.

Effective power: 6.2 HP

* Corresponds to the actual power expressed on the working organ in use. This is the power indicated as official in the engine instructions manual.

Gearbox: Large, reliable and accurate.

Speeds:
3 forward gears
1 reverse gear

Parking brakes:
connected to the gearbox, for greater stability and security.
These are automatically activated when the controls are released (if the machine is left in neutral position, even on a steep slope, it remains perfectly locked).

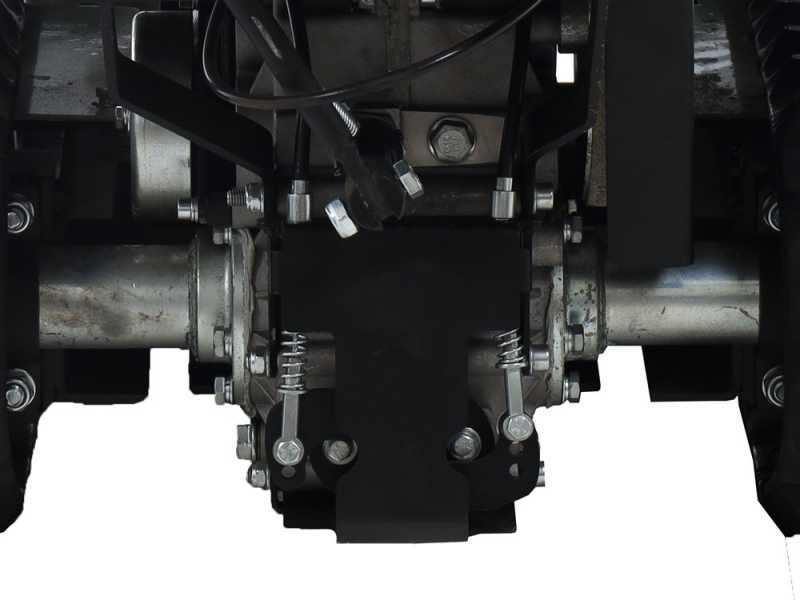

Transmission: Sturdy and resistant, it allows managing the steering by acting on the single track, deactivating its rotation.

The machine is supplied by the manufacturer with transmission oil level. However, oil levels must ALWAYS be checked before switching on as specified in the instruction and maintenance booklet.

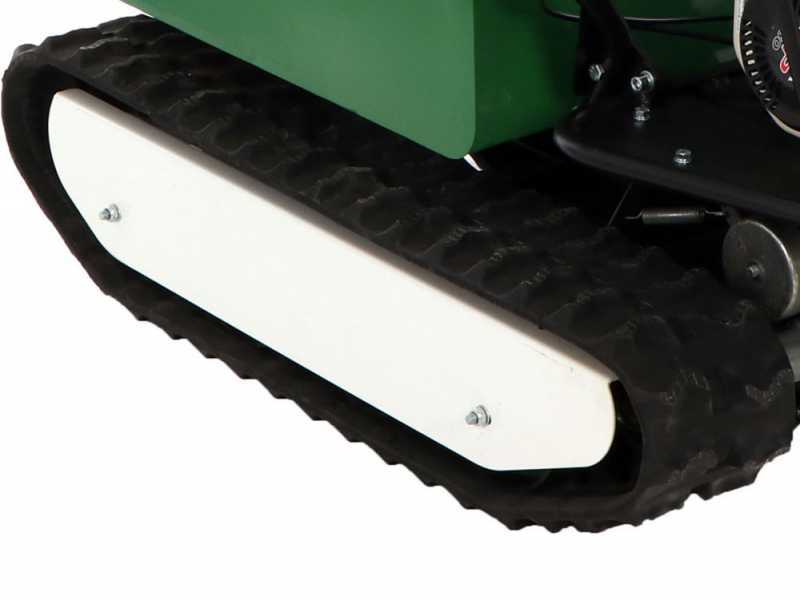

With their tread width and profile, they guarantee perfect grip and stability on all types of terrain.

Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

Total track width: 180 mm

Length: 107 cm

Height: 27 cm

Height from the lowest point of the machine to the ground: 7 cm

Thanks to the width and the tread configuration, they guarantee perfect grip and stability on all types of terrain.

Tracks made in high-density rubber to ensure a longer life and greater efficiency, with teeth designed to have a good adhesion on rough terrains, provided with 4 Rollers .

Rear of track with pointed ‘tank-type’ upper corner that allows it to climb steps or other obstacles with ease.

The robust frame with steel structure in high thickness which limits the vibrations and noise.

The low centre of gravity also ensures an optimal stability during the work the position of the engine and the transmission facilitates maintenance

High-strength steel body, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress.

In addition, the body structure is completely welded and free of holes, making it watertight, which allows the transport of any material with a high liquid content.

The load floor is at the minimum distance from the ground both to facilitate the operations of loading / unloading that to keep low the centre of gravity of the machine.

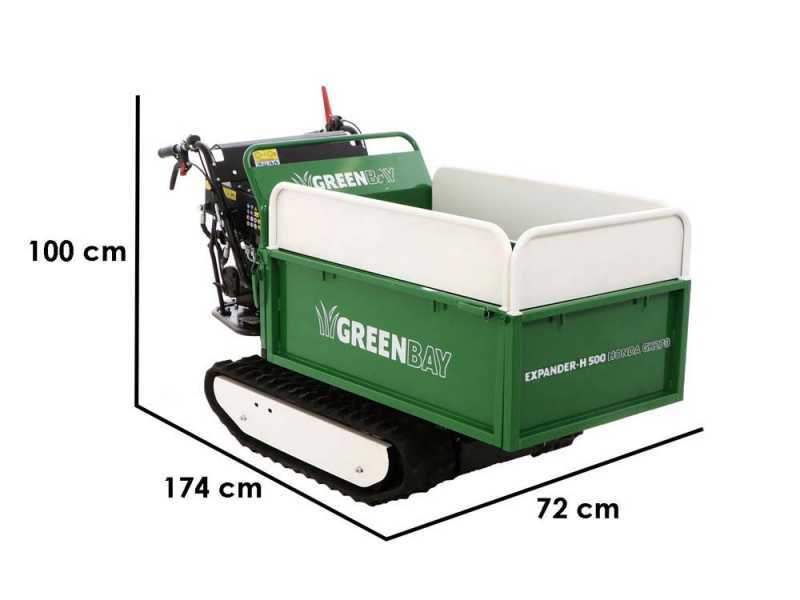

Caisson size: 1040x630x530 mm

Extended body size: 1190x780x530 mm

Hydraulic tipping: activated with the lifting lever.

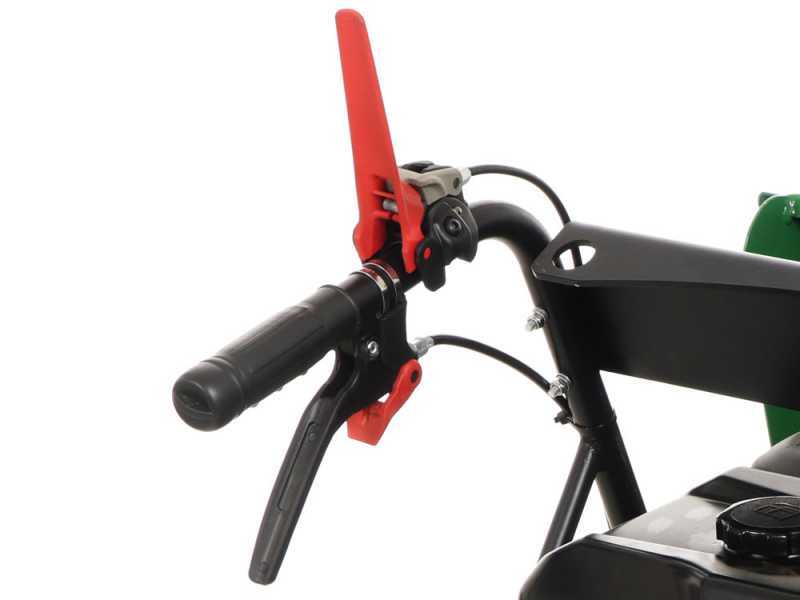

The machine is provided with two lower levers for steering, respectively on the right and on the left.

Large red lever for motion activation.

The two lower levers are for the steering, respectively, right and left.

The steering can be adjusted depending on the control lever and it allows smooth moving. If either lever is partially pulled, the steering of the respective track, right or left, will also be partial.
This allows smoothly steering the power barrow.

Safety brake that allows immediately stop the machine.

Throttle lever and power switch
