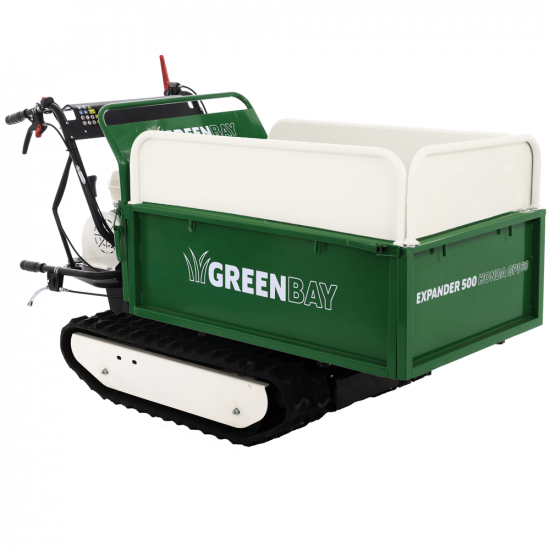

GreenBay EXPANDER 500 HONDA GP160 Tracked Power Barrow - Extendable Barrow - 500 kg Load capacity

The GreenBay EXPANDER 500 HONDA GP160 tracked power barrow is a very sturdy machine suitable for transporting all types of material in agriculture, construction and forestry. It stands out to be a tracked power barrow with an effective load capacity of 500 Kg. The very sturdy steel frame with three forward and one reverse gear makes this power barrow very versatile and high-performing. In addition, the extendable body makes work much easier and more efficient.

Equipped with extendable body, which allows to significantly increase the load capacity. In addition, another great advantage is the additional removable tail lifts, which provide extraordinary working versatility. By using tail lifts, you will be able to increase the load, which will considerably reduce the number of transports to be carried out for the job.

The HONDA GP160 engine with which the wheelbarrow is equipped guarantees excellent longevity and reliability of the machine.

We remind that it is always good to:
1) check the engine oil level
2) put oil in the filter because it is not present (in case of filter in oil bath)
3) carefully read the instructions manual before carrying out any oil check and topping up operation (the manufacturer can modify the supply modalities specified in the two upper points without any prior notice).

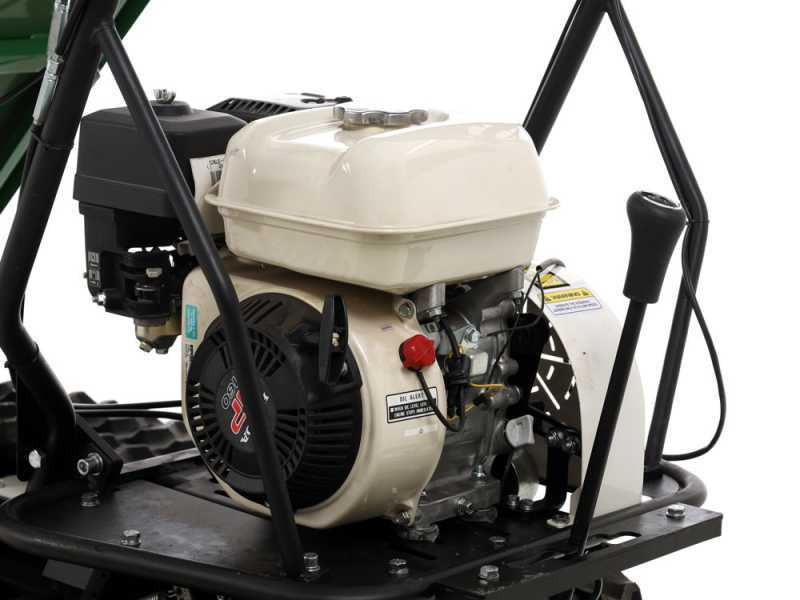

The HONDA GP160 engine guarantees high performances, and it is suitable for works where high power is required, achieved thanks to the high displacement of 163 cc.

Features:

Brand new 4-stroke engine (overhead valve shaft OHV - recoil ignition).

Easy re-coil start thanks to the automatic fuel priming system.

WARNING!
The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting.

Nominal Power: 5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: HP 4 (3600 rpm rotation speed)
It is the real power of the engine shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the speed of rotation provided.

Gearbox: Large, reliable and accurate.

Speed:
3 forward gears
1 reverse gear

Parking brakes:
connected to the gearbox, for greater stability and security.
These are automatically activated when the controls are released (if the machine is left in neutral position, even on a steep slope, it remains perfectly locked).

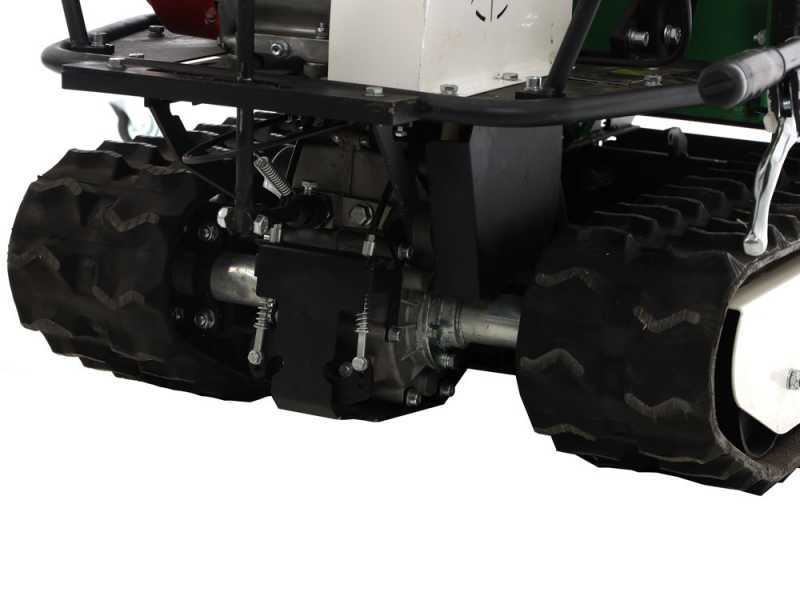

Transmission:
Sturdy and resistant, it allows managing the steering by acting on the single track, deactivating its rotation.

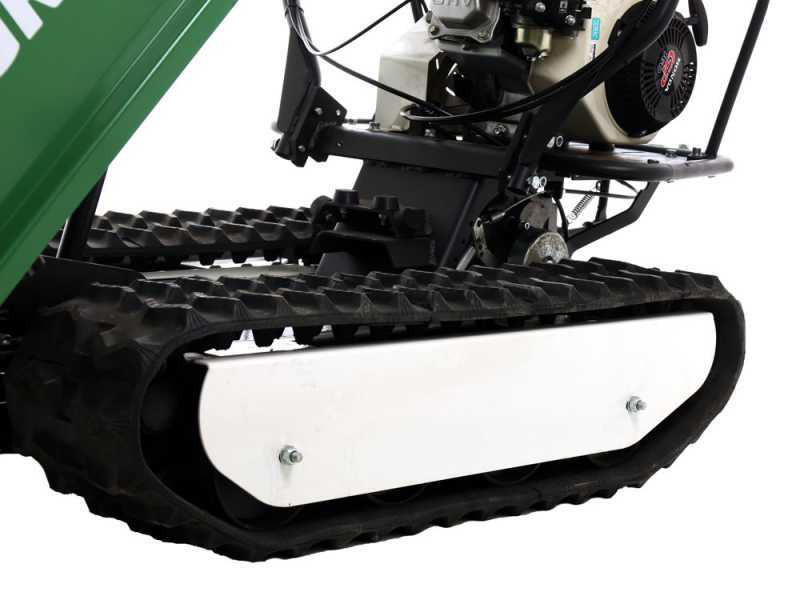

With their width and tread profile they guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

Total track width: 180 mm

Thanks to the width and the tread configuration, they guarantee perfect grip and stability on all types of terrain. Tracks made in high-density rubber to ensure a longer life and greater efficiency, with teeth designed to have a good adhesion on rough terrains, provided with 4 Rollers .

Focus on the rear part of the track with "tank shaped” sharp upper corner that allows the shredder to easily climb steps or other obstacles.

The robust frame with steel structure in high thickness which limits the vibrations and noise. The low center of gravity also ensures an optimal stability during the work the position of the engine and the transmission facilitates maintenance

Adjusting the track tension thanks to the tension springs.

Barrow made in high-resistance steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading platform is very close to the ground in order to make loading/unloading operations easier.

Mechanical tipping: use the proper rubber lever with spring to release it by hand. It is easy to use even with heavy loads by means of the tipping control lever on the side.

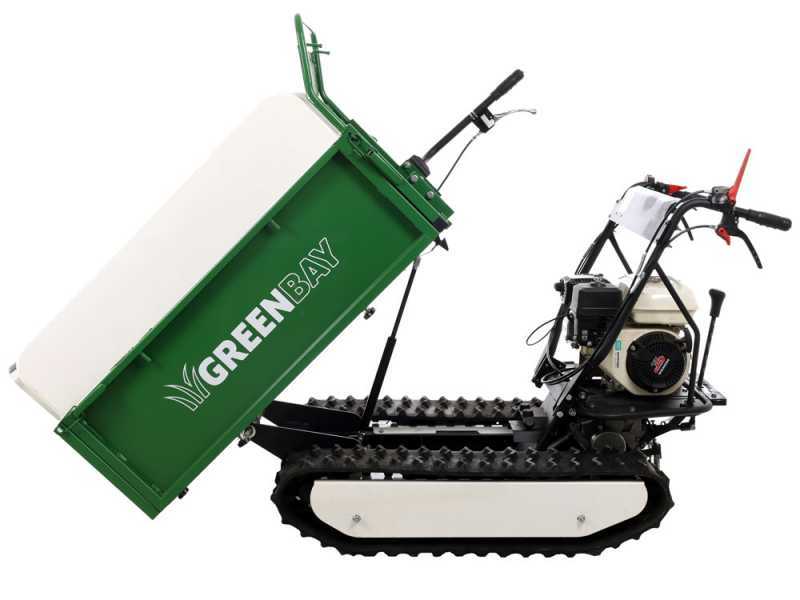

To facilitate the tipping operation by unloading the operator's weight, and to keep the body in the tipped position, the power barrow is equipped with a gas piston underneath the chassis.
It makes all work steps much easier.

Closed barrow dimensions: 1025 x 600 x 325 mm

Extended barrow dimensions: 1155 x 860 x 325 mm

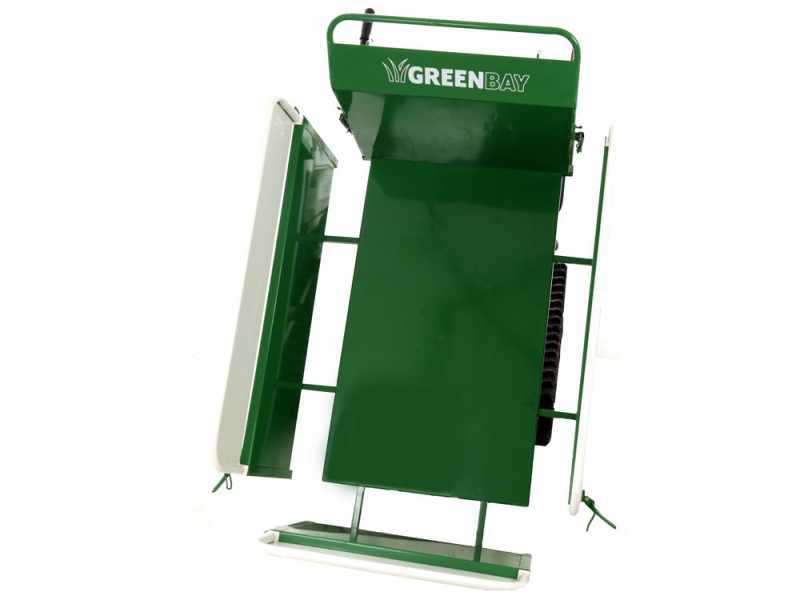

The loading capacity can be significantly increased thanks to the extensible side panels.
Thus, in addition to the standard wing nut screws placed under the body, the power barrow is provided with sturdy hinges, which tighten the side panels to one another.

A further solution to further increase the load capacity is the standard-supplied removable panels. By using tail lifts, it will be possible to increase the load by considerably reducing the number of transports for the job.

An example of use is for transporting and loading wood.
Using tail lifts will enable you to increase the load by considerably reducing the number of transports to be carried out for the job.

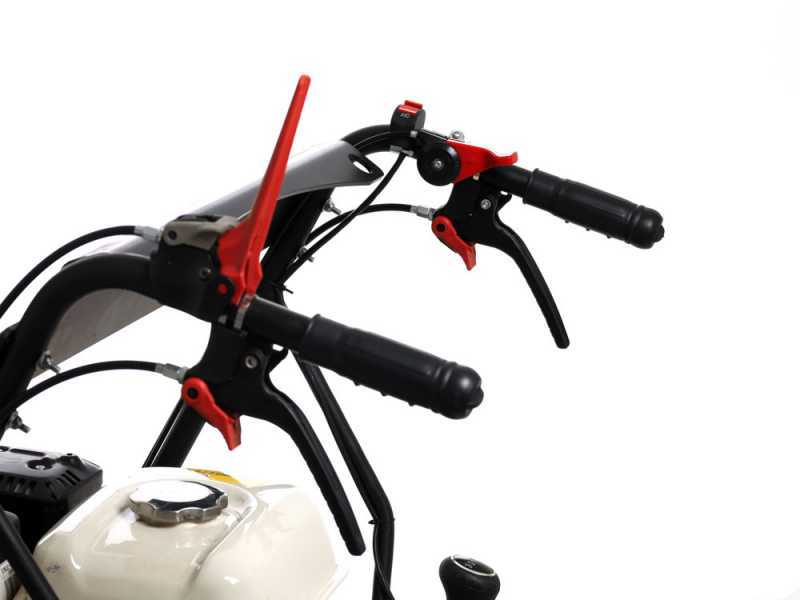

Controls: easy to operate and ergonomic, they offer precision and controllability in the work

Large red lever for motion activation.

The two lower levers are for the steering, respectively right and left.

The steering can be adjusted depending on the control lever and it allows moving smoothly. If either lever is partially pulled, the steering of the respective track, right or left, will also be partial.
This allows smoothly steering the power barrow.

Safety brake that allows immediately stop the machine.

Accelerator handle and power switch.
