GreenBay EXPANDER-H 500 Tracked Power Barrow - BS XR1450 Engine - Hydraulic body

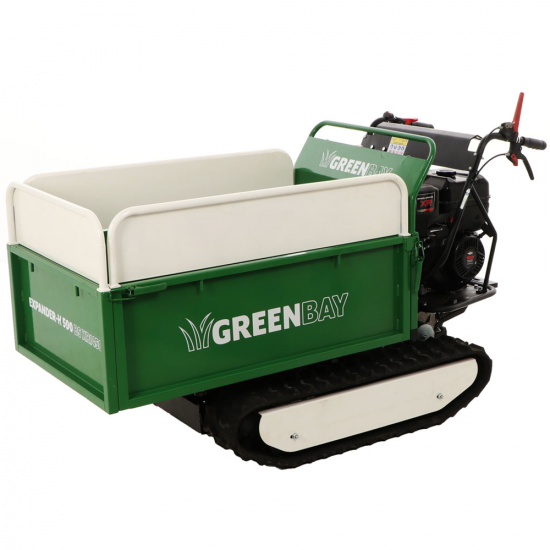

The GreenBay TIPPER-H 500 power barrow is a tracked machine with an extendable body and an effective load capacity of 500 kg. A sturdy and versatile machine, designed for use in agriculture and construction fields.

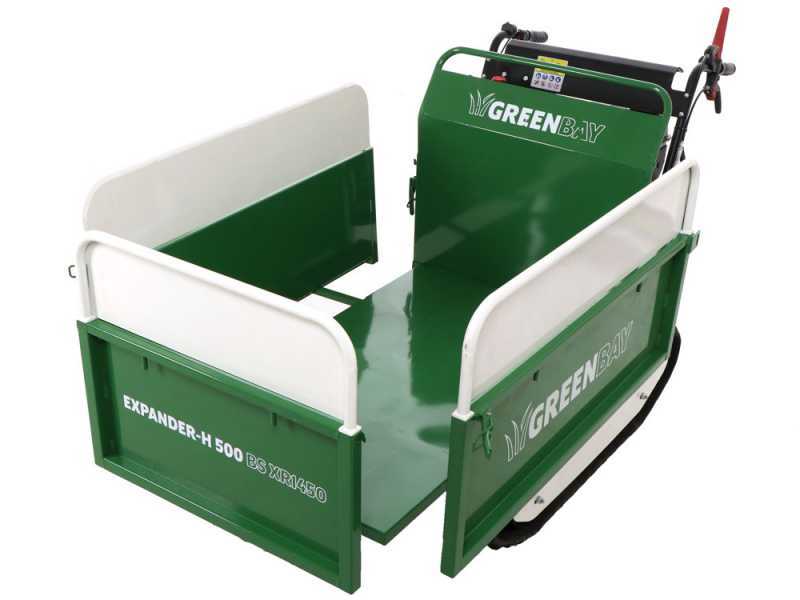

The body of this tracked loader can be extended, which greatly increases the load capacity of the machinery. In addition, another great advantage is the additional removable tail lifts, which provide extraordinary working versatility. By using tail lifts, you will be able to increase the load, which will considerably reduce the number of transports to be carried out for the job.

The machine is equipped with a powerful Briggs & Stratton 1450 XR Professional Series engine, capable of delivering:

• 12 HP Power

The robust steel frame and the gearbox with three forward and one backward gears make this power barrow a versatile and high-performing machinery.

The hydraulic tilting of the body of which this power barrow is equipped with, facilitates at the maximum each working stage, eliminating the effort to raise the truck once loaded.

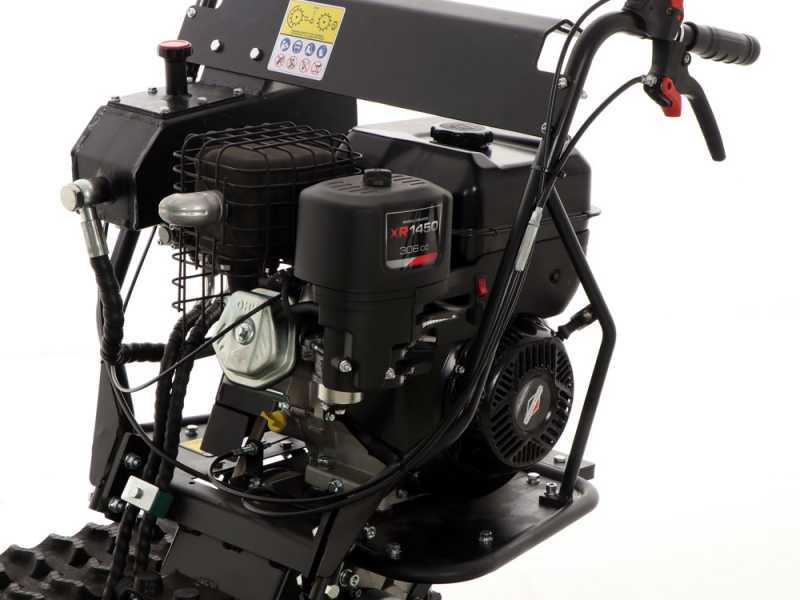

The Briggs & Stratton 1450 XR Professional Series engine is a high-performance engine, suitable for work where great power is required thanks to its high displacement of 306 cc.

"Professional Series" means:

• High performance and extended life: average engine life over 3 times that of CR engines. * Compared to the expected life standards of the Briggs & Stratton CR Series engine.
• These engines are designed for frequent use in working environments.
• Forged crankshaft for extended engine life.

Features:

Brand new 4-stroke engine (overhead valve shaft OHV - recoil ignition).

Easy re-coil start thanks to the automatic fuel priming system.

WARNING
The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Rated Power: 12 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: HP 10.0 (2600 rpm rotation speed)
It is the real power of the engine shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the speed of rotation provided.

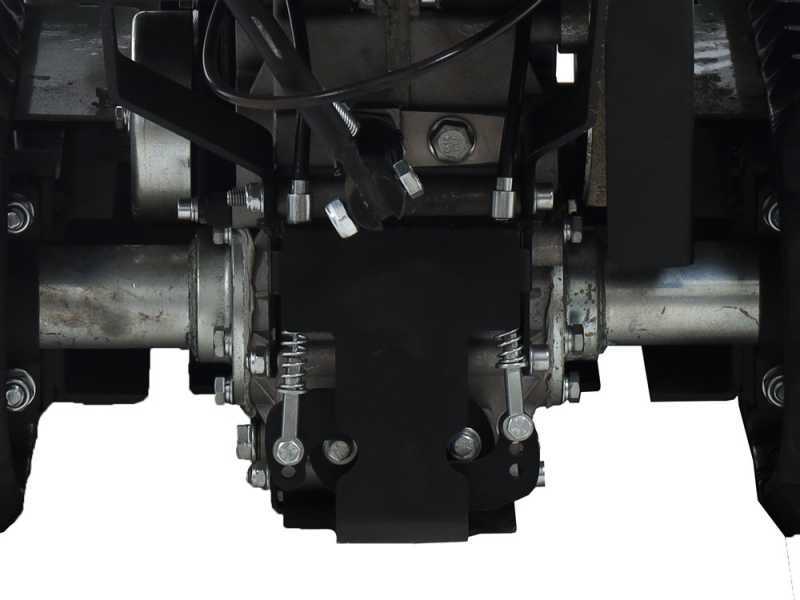

Gearbox: Large, reliable and accurate.

Speeds:
3 forward gears
1 reverse gear

Parking brakes:
connected to the gearbox, for greater stability and security.
These are automatically activated when the controls are released (if the machine is left in neutral position, even on a steep slope, it remains perfectly locked).

Transmission:
Sturdy and resistant, it allows managing the steering by acting on the single track, deactivating its rotation.

The machine is supplied by the manufacturer with transmission oil level. However, oil levels must ALWAYS be checked before switching on as specified in the instruction and maintenance booklet.

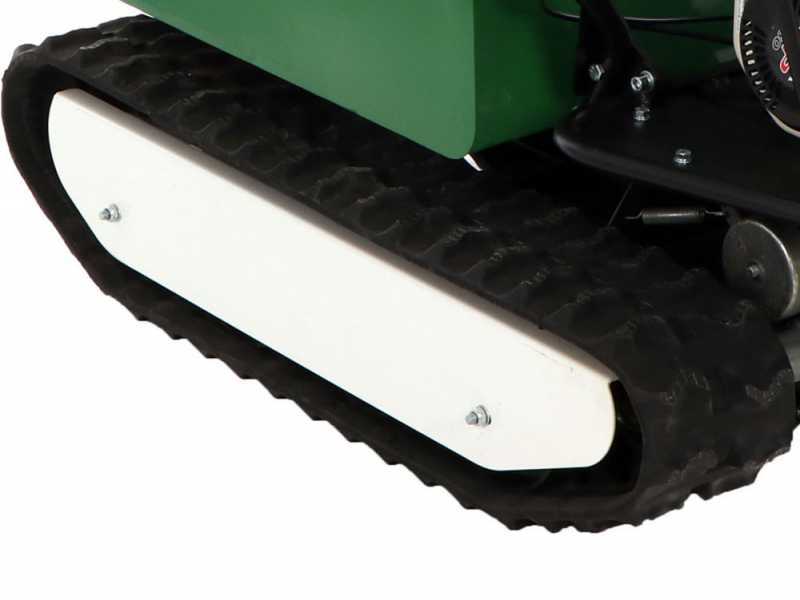

With their width and tread profile they guarantee perfect grip and stability on all types of terrain.

Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

Total track width: 95 cm

Thanks to the width and the tread configuration, they guarantee perfect grip and stability on all types of terrain.

Tracks made in high-density rubber to ensure a longer life and greater efficiency, with teeth designed to have a good adhesion on rough terrains, provided with 4 Rollers .

Rear side of the crawler track with a pointed 'tank-like' upper corner that allows it to climb steps or other obstacles with ease.

The robust frame with steel structure in high thickness which limits the vibrations and noise.

The low centre of gravity also ensures an optimal stability during the work the position of the engine and the transmission facilitates maintenance

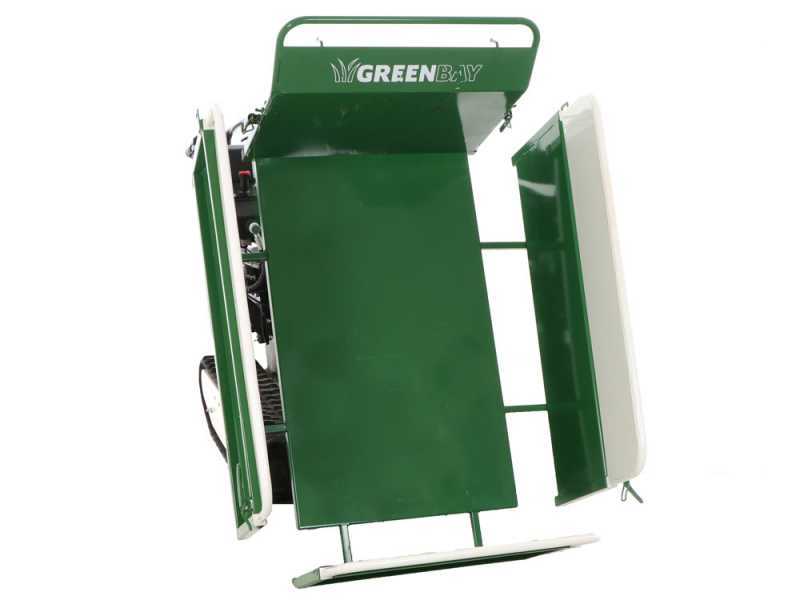

Body made in high-resistance steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress.

In addition, the body structure is completely welded and free of holes, making it watertight, which allows the transport of any material with a high liquid content.

The load floor is at the minimum distance from the ground both to facilitate the operations of loading / unloading that to keep low the center of gravity of the machine.

Barrow dimensions 950x680x465 mm

Hydraulic tipping: activated with the lifting lever.

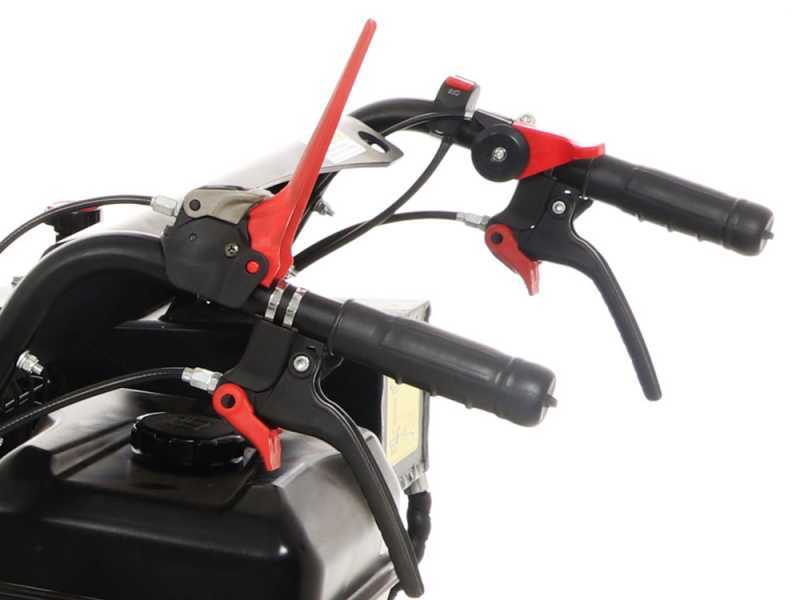

Controls: easy to operate and ergonomic, they offer precision and controllability in the work

Large red lever for motion activation.

The two lower levers are for the steering, respectively right and left.

The steering can be adjusted depending on the control lever and it allows moving smoothly. If either lever is partially pulled, the steering of the respective track, right or left, will also be partial.
This allows smoothly steering the power barrow.

Safety brake that allows immediately stop the machine.

Throttle lever and power switch
