Greenbay GB-HPWP 40 Petrol Water Pump - High Head Lift - with 40/25/25 mm Fittings

Questions & Answers (11)
ID: K603230

EAN: 8054141543645

MPN: GB-HPWP 40

8,9/10
After-sales assistance & Spare parts
Greenbay GB-HPWP 40 Petrol Water Pump - High Head Lift - with 40/25/25 mm Fittings
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Motor brand
Producer-manufactured
Motor Model
FC170F-1
Cubic capacity
212 cm³
Nominal power
7 HP
Power supply
Petrol
Double delivery mode
Yes
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
333 L/min
Fittings diameter
40 mm / 25 mm
Max. head lift
70 m
High delivery head
Yes
Max. suction height
6 m
Aluminium fittings
Yes
Product Features
Model:
GB-HPWP 40
Power supply:
Petrol
Fuel:
Petrol
Starting mode:
Recoil
Double delivery mode:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Greenbay
Motor Model:
FC170F-1
Cubic capacity:
212 cm³
No. of cylinders:
1
Nominal power:
7 HP
Fuel:
Petrol
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.6 L
Oil tank capacity:
0.6 L
Manufacturing country:
China
Pump data
Pump brand:
Greenbay
Water pump type:
Self-priming
Pump material:
Aluminium
Fittings diameter:
40 mm / 25 mm
Flow rate:
333 L/min
Max. head lift:
70 m
High delivery head:
Yes
Max. suction height:
6 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
China
Equipment
Recoil start system (with rope):
Yes
Aluminium fittings:
Yes
Free gifts/extra features
Oil bottle:
Yes
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics

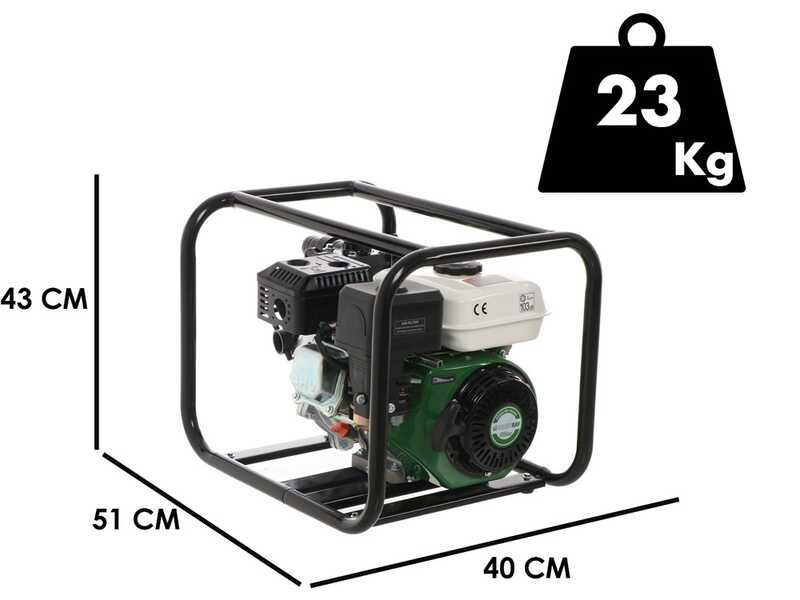

Product dimensions in cm (L x W x H):
51x40x43 cm
Net weight:
23 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
52x43x43 cm
Gross weight (packaging included) :
24.8 Kg
Assembly time:
5 minutes
Prompt Delivery
9 items in stock
Free Shipping
Estimated delivery: 13/09/2024 - 17/09/2024
€ 294,99
VAT Included
You're viewing:
Customers also viewed:
Description

Greenbay GB-HPWP 40 Petrol Water Pump

GB-HPWP 40 water pump is an ideal machine for pumping water at high pressure and push it over long distances.

This water pump features unparalleled structure and quality, with a high head lift of 70 m.

In particular, this product is very useful in the absence of electricity, or in the countryside when you need to extract water from a well, from a cistern or from ponds and tanks that are difficult to reach, or even when you have to drain a cellar or a garage that has been flooded.

This model is an excellent compromise between power and size, and it is easily transportable.

The pump is self-priming and you can start it by simply topping up the water through the dedicated cap in the pump body.

WARNING:

  • The engine does not contain oil, remember to refill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These water pumps are suitable for transferring water (for example form one cistern to another) of for furrow irrigation in fields and gardens.
We do not guarantee the suitability for the combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), and which may require more specific types of pumps for water systems.

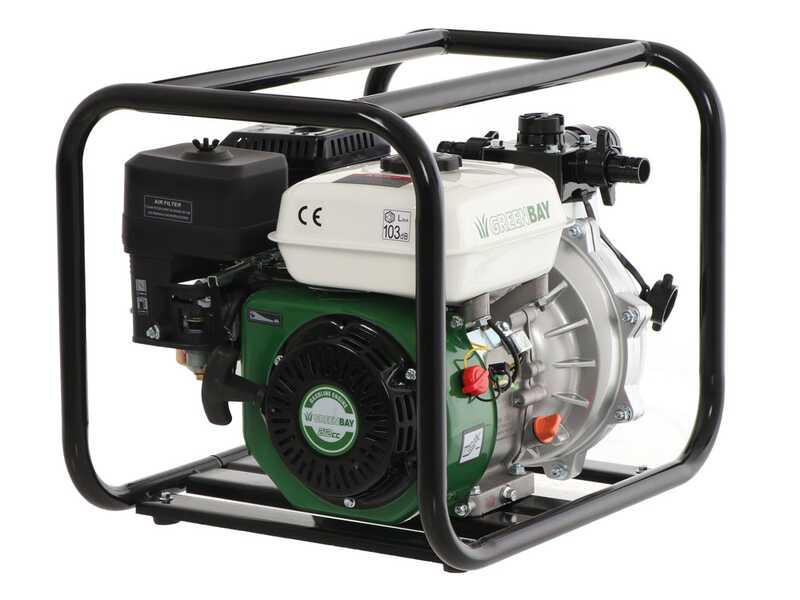

Engine Technical Features

Engine features:

Model: FC170F-1
Type:
4-stroke, single-cylinder, forced-cooled, OHV
Cubic capacity: 212 cc
Power: 7 Hp
Fuel: petrol
Tank: 3.6 L

The engine features recoil start system and a metal tank.

Focus on the engine adjustment controls that include air control and the regulation of the engine throttle.

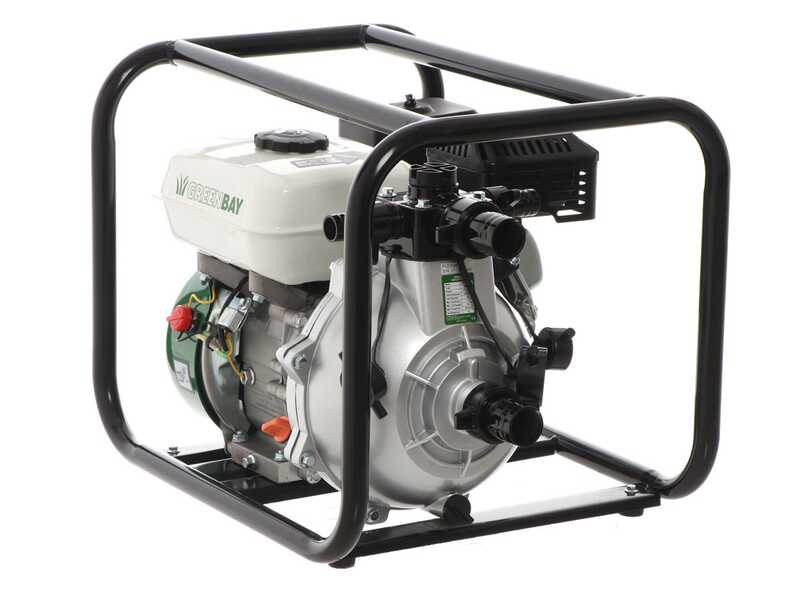

Water Pump Technical Features

The pump mounted on the GB-HPWP 40 is entirely made of cast aluminium alloy, which makes it very robust and lightweight at the same time, capable of withstanding prolonged pumping work.

Pump features:

Suction: 40 mm - 1.5 inches
Discharge: 40 mm - 1.5 inches
Side fittings: 2x25 mm - 1 inch
Max. suction height: 6 m
Max. flow rate: 333 L/min
Max. head lift: 70 m

Focus on the 40 mm - 1.5 inch suction and discharge fittings.

Focus on the 25 mm - 1 inch suction and discharge fittings.

Focus on the pump-engine fitting

Focus on the storage caps, to keep the pump clean when not in use

Utilisations Options

  1. Single 40 mm delivery: The use of a single 40 mm hose allows direct connection to the 40 mm central delivery fitting. This configuration ensures a powerful and constant flow of water, ideal for applications requiring a high water flow rate

  2. 25 mm dual outlet: Using two smaller 25 mm hoses, a water distribution to two separate points can be achieved. Special plugs close off unused delivery outlets, ensuring that there is no loss of pressure and that the water is directed correctly.

WARNING:

To achieve maximum suction height, the use of a bottom valve is recommended

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free Items Included

The water pump is shipped in its original packaging, equipped with tools for assembly and maintenance, 2 40 mm fittings, 2 25 mm fittings, metal clamps and 2 rubber gaskets for the fittings, as well as the suction filter.

Instructions manual included.
