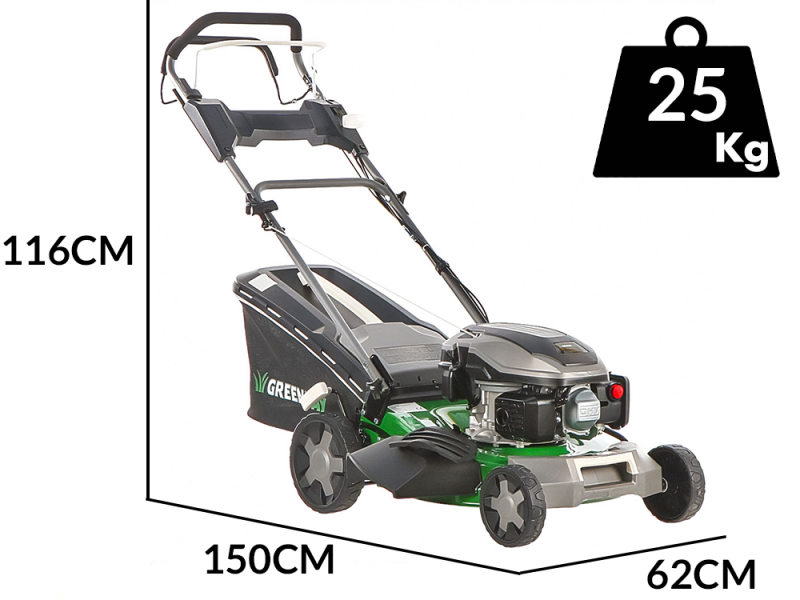

GreenBay GB-LM 46 S - Trailed mower - 4-in-1 - 170cc petrol engine

The GreenBay GB-LM 46 S mower, with 4-in-1 traction and functionality, offers unparalleled flexibility in lawn care, including:

• collection with 60 litre basket
• Mulching cutting system
• Side discharge
• Rear discharge

The oversized rear wheels facilitate fast work. Traction greatly improves mowing efficiency on various grass surfaces.

This model is characterised by a cutting width of 46 cm, adjustable via a central lever in 7 different settings, varying from 25 to 75 mm, for optimum adaptation to different cutting requirements.

Centralised height adjustment system: possibility to adjust the cutting height by means of a single lever. HIGH VERSATILITY. Possibility to collect the grass in the reinforced grass collector or select the mulching or rear discharge cutting system in order to drop the grass clippings directly from the back or the side of the lawn mower. The grass cutting system can be quickly changed without the need of any extra assembly tool. Capacious 60 L collection bag, with 230 mm rear wheels mounted on ball bearings. Mulching kit included.

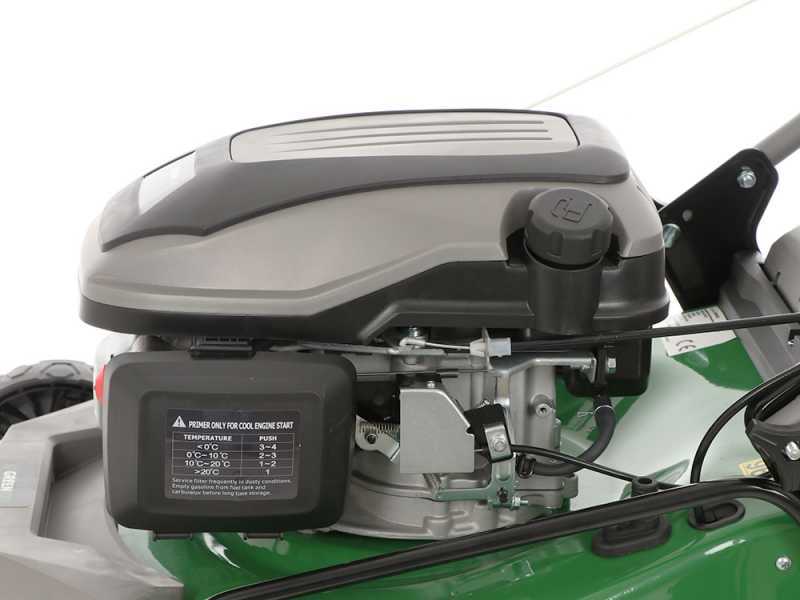

Equipped with the Y170V OHV engine with 170 cc and 6HP rated power, it guarantees high performance with low fuel consumption, meeting strict European standards in terms of emissions and noise.

The foldable handle facilitates transport and storage, reducing bulk when not in use. Ideal for areas up to 1200 square metres, this mower is an excellent solution for keeping your lawn in top condition.

The engine is suitable for works that require high reliability and durability thanks to its remarkable 170 cc.

Nominal Power: 6 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is, most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 3.88 Hp (at 2800 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Focus on air filter

Focus on the spark plug

Focus on the primer bulb

Real blade cutting width: 46 cm

Universal hardened steel blade suitable for 4 mowing options.

The high-thickness blade on this lawn mower is suitable for: mulching, rear discharge, side discharge and grass collection.

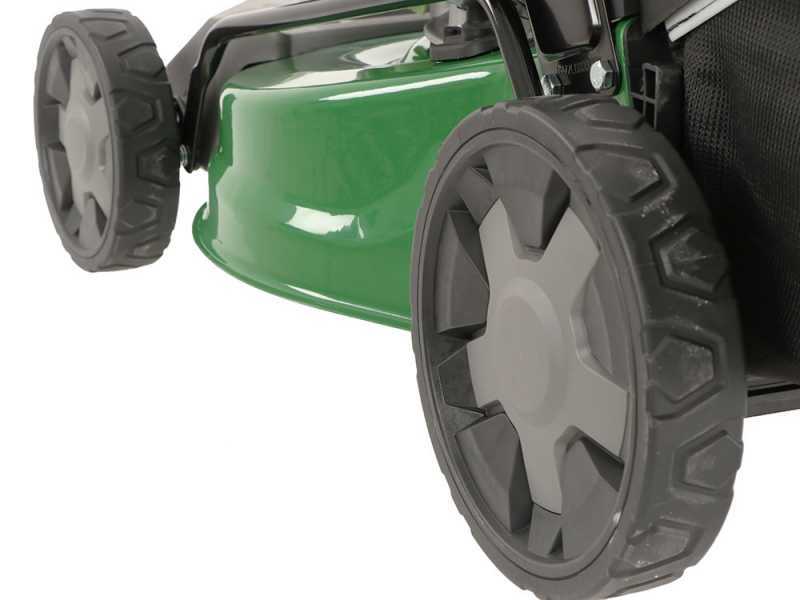

The 50 cm steel housing gives to this machine a high sturdiness, combined with an excellent lightness.

Focus on the washing joint.

This lawn mower is equipped with 7 cutting height adjustments, from 25 mm to 75 mm.

The centralised cutting height adjustment system by means a single lever is incredibly fast and intuitive.

Simply grab the proper lever, pull it and lift the machine until it reaches the desired height.

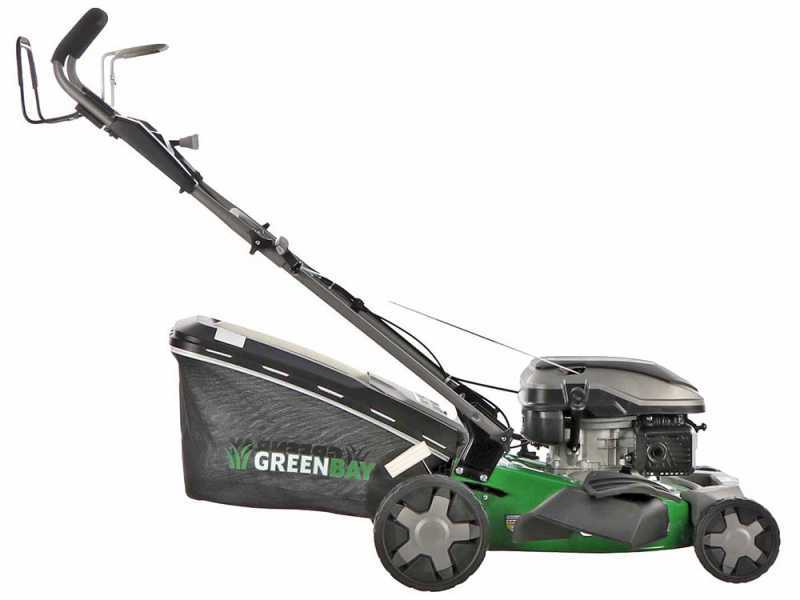

High-wheel system mounted on ball bearings, providing greater manoeuvrability and machine strength

Wheels size:

• Rear wheels: 23 cm (9")
• Front wheels: 18 cm (7")

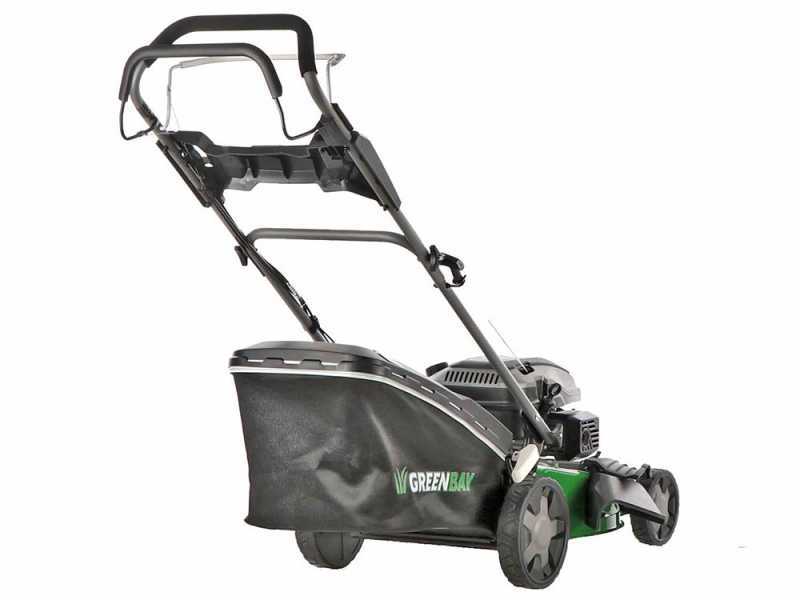

GRASS COLLECTION SYSTEM
It is equipped with a large 60 L hybrid grass collector, easy to remove and empty.

It is made of reinforced double layer plastic in its upper part, which makes it sturdy and resistant.

The lower part is made of mesh. The net flexibility allows easy emptying the grass collector when full.

Comfortable handle on the upper side of the grass collector in order to facilitate the collector removal.

Focus on the full-grass collector indicator.

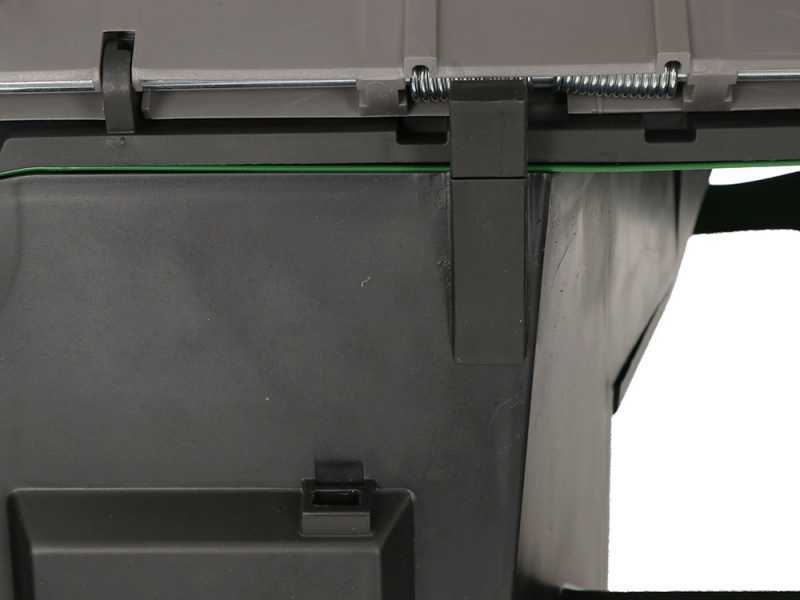

REAR DISCHARGE SYSTEM
This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply mount the locking device to keep the rear flap of the lawn mower opened.

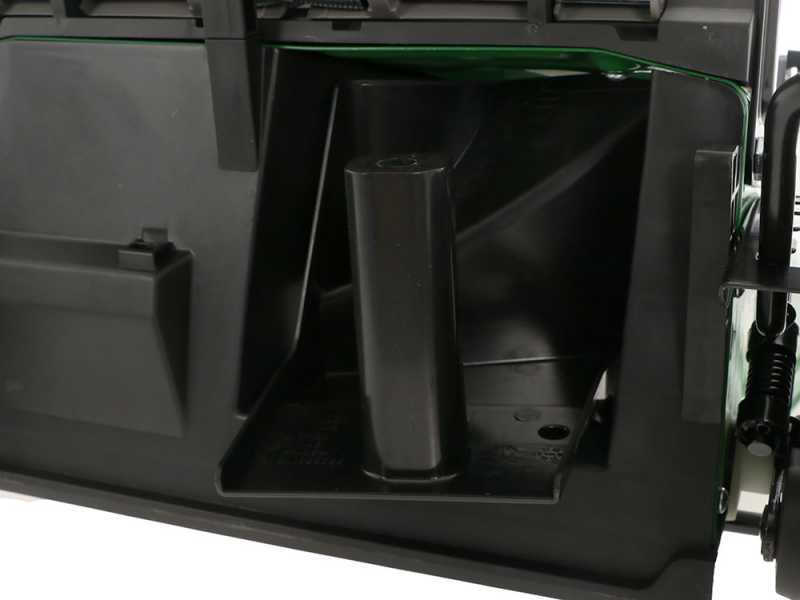

MULCHING CUTTING SYSTEM
for cutting grass without harvesting by pulverising it very finely before depositing it on the ground.

Immediate conversion: you will just need to pull out the grass collector, enter the standard-supplied mulching plug and lower the rear deflector in order to engage the mulching system

MAIN SPECIFICATIONS OF THE MULCHING CUTTING SYSTEM: This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated, and the grass needs cutting at least once a week.

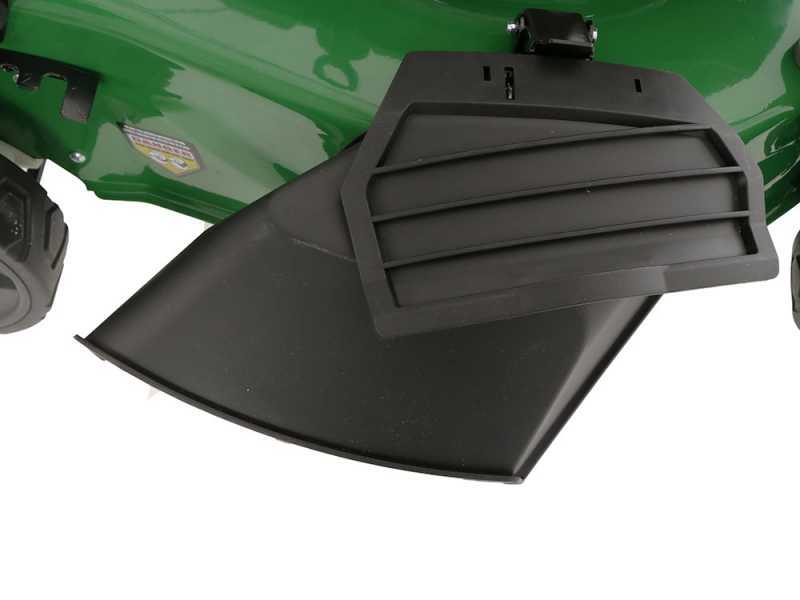

SIDE DISCHARGE SYSTEM
This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side discharge deflector).

Leaving the mulching cap in place, so that it occludes the grass discharge at the rear, simply lift the black casing on the side of the body and insert the side deflector with a simple movement.

Coated handlebar for optimal working comfort.

Simple and intuitive handlebar controls.

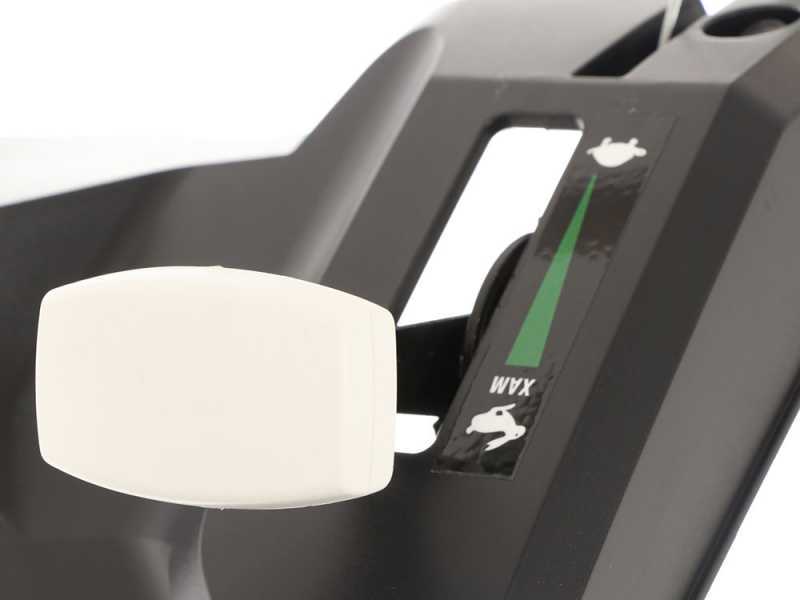

Provided with throttle lever of the engine rpm.

Blade brake lever - necessary to start the lawn mower, it must be pulled constantly for safety reasons; once released, it automatically switches the engine off and stops the blade.

Self-propulsion activation lever (lever behind the handlebar)

Detachable handlebar for easy storing.
