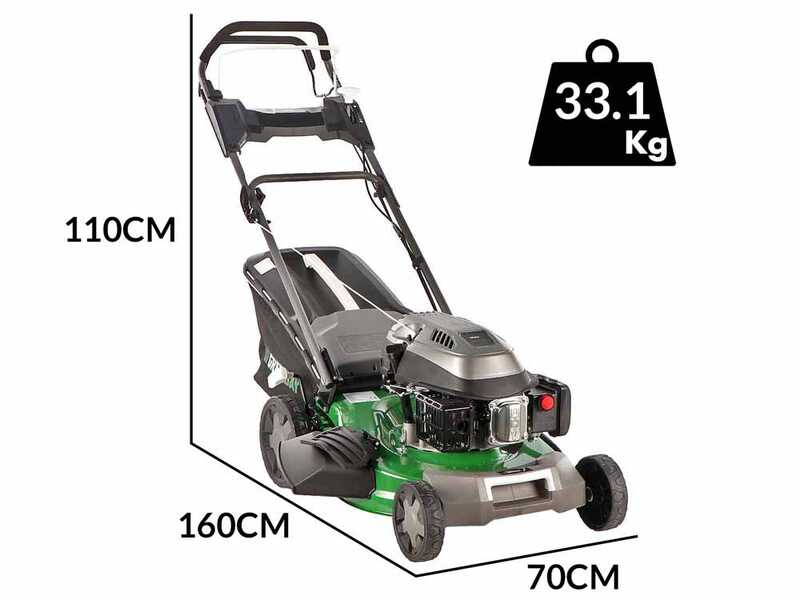

GreenBay GB-LM 51 - Self-propelled Lawn Mower - 4in1- 196 cc Petrol Engine

The GreenBay GB-LM 51 petrol lawn mower is a powerful and versatile machine that is ideal for maintaining your lawn.

This lawn mower is equipped with a 196cc internal combustion engine, which guarantees excellent performance and reliability over time.

This machine is a lawn mower equipped with all the cutting systems for satisfying every need:

• Grass collection system with 60 L grass collector
• Mulching plug
• Side discharge
• Rear discharge

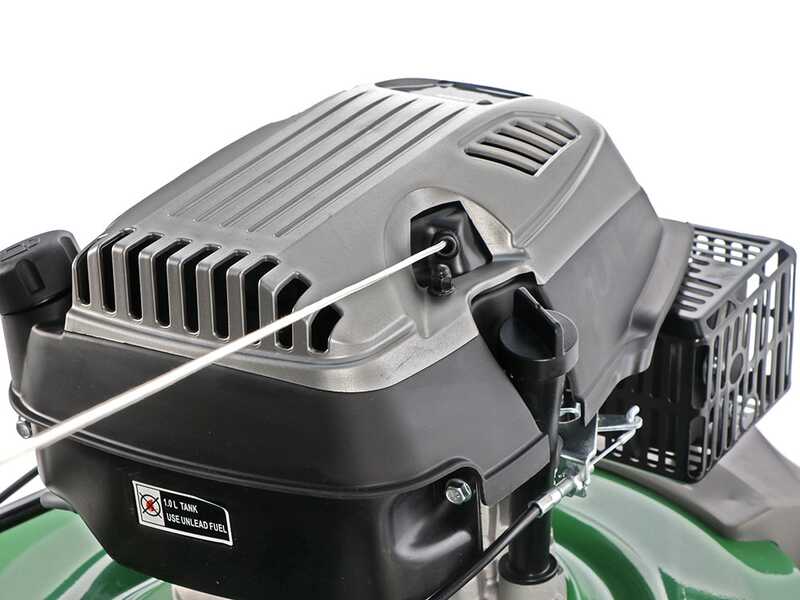

The lawn mower is powered by a good Y196V OHV engine that ensures power, reliability and versatility, also thanks to the rear-wheel drive, which minimises strain.

This machine is equipped with a foldable handlebar for an easy storage.

The GrenBay GB-LM 51 features a 51 cm blade and an adjustable cutting length in 7 different positions (25mm-75mm), rendering your lawn care satisfactory in every respect. This mower is perfect for lawns of up to 1400 s.q. m.

Possibility to collect the grass in the reinforced grass collector or select the mulching or rear discharge cutting system in order to drop the grass clippings directly from the back or the side of the lawn mower. The grass cutting system can be quickly changed without the need of any extra assembly tool. Large 60 L grass collector with high rear wheels.

The engine is suitable for work requiring reliability and durability thanks to its remarkable displacement of 196 cc.

Nominal Power: 6.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 5.63 Hp (at 2800 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Focus on air filter

Focus on the spark plug

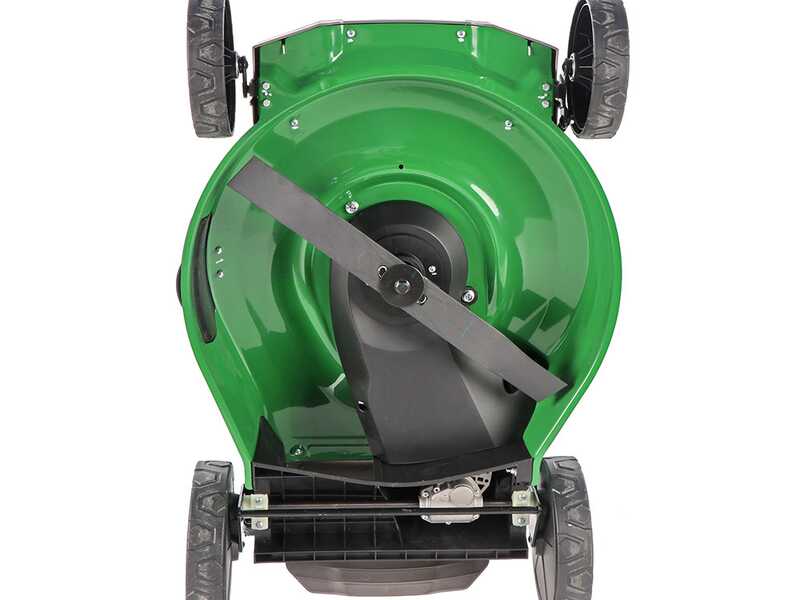

Real blade cutting width: 51cm

Universal tempered steel blade suitable for carrying out 4 mowing options.

The blade is designed to perform the four cutting functions provided by the machine: mulching, rear discharge, side discharge and bag collection.

The 54 cm steel housing gives this machine a high degree of sturdiness, combined with excellent lightness.

Focus on the washing joint.

Detail of rear-wheel drive gear transmission

This lawn mower is equipped with 7 cutting height adjustments, from 25 mm to 75 mm.

The centralised cutting height adjustment system via a single lever is incredibly fast and intuitive.

Simply grab the proper lever, pull it and lift the machine until it reaches the desired height.

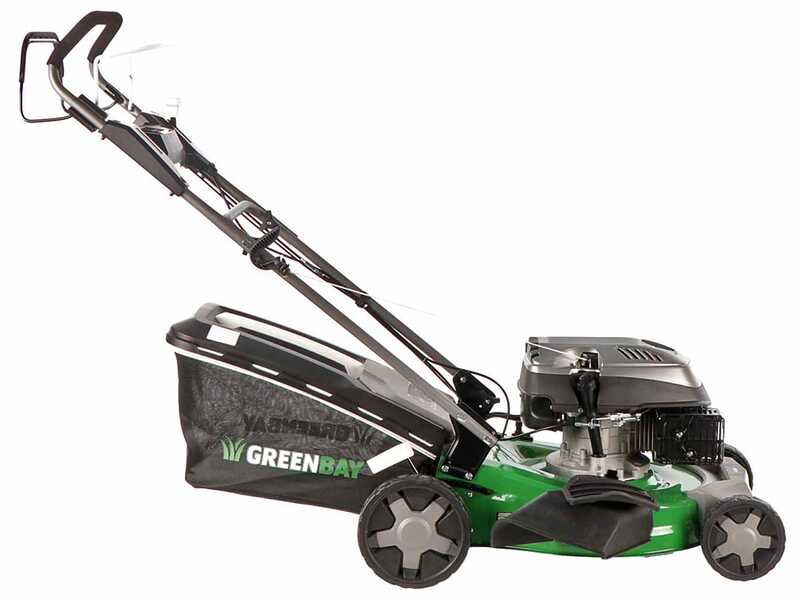

High-wheel system mounted on ball bearings, providing greater manoeuvrability and strength.

Wheels size:

• Rear wheels: 23 cm (9")
• Front wheels: 18 cm (7")

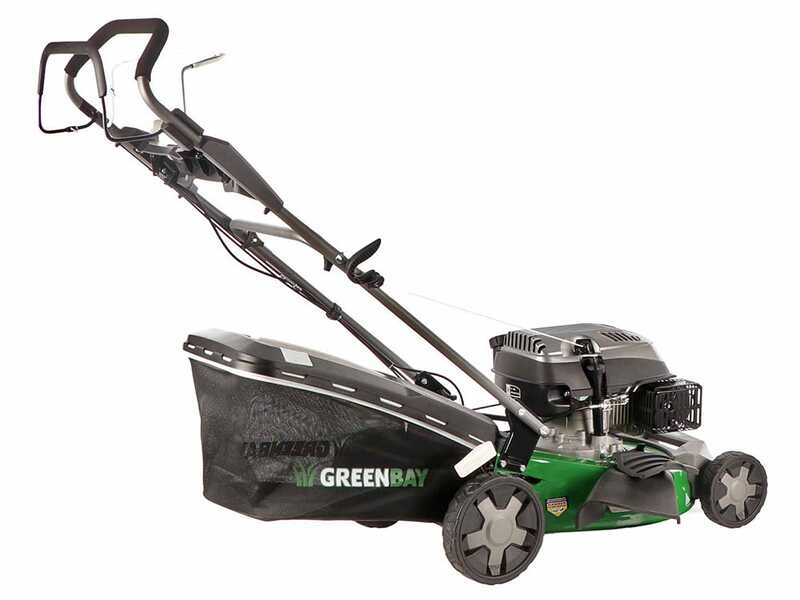

GRASS COLLECTION SYSTEM
It is equipped with a large 60 L hybrid grass collector, easy to remove and empty.

It is made of reinforced double layer plastic in its upper part, which makes it sturdy and resistant.

The lower part is made of mesh. The net flexibility allows easy emptying the grass collector when full.

Comfortable handle on the upper side of the grass collector in order to facilitate the collector removal.

Focus on the full-grass collector indicator.

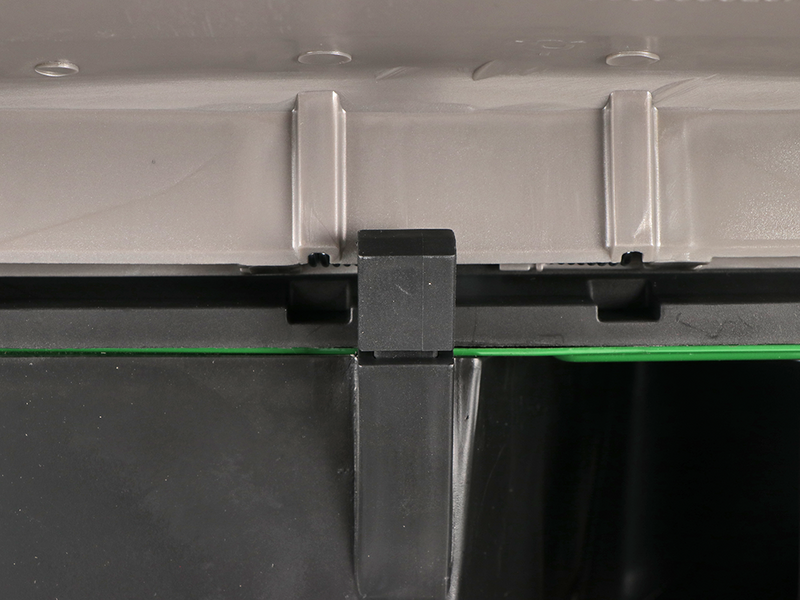

REAR DISCHARGE SYSTEM
This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply mount the locking device to keep the rear flap of the lawn mower opened.

MULCHING CUTTING SYSTEM
This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

Simply insert the mulching cap behind with the side cover closed

WHAT MULCHING IS:
This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated, and the grass needs cutting at least once a week.

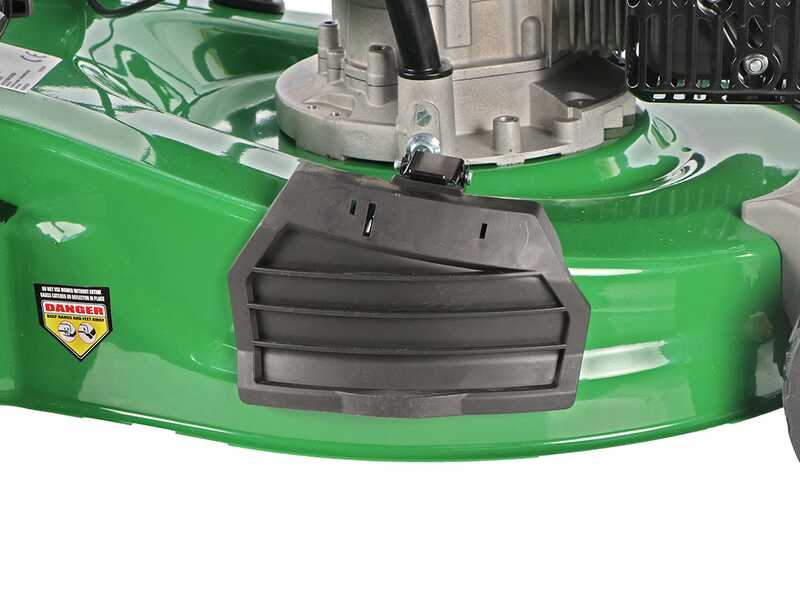

SIDE DISCHARGE SYSTEM
This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side discharge deflector).

Leave the rear deflector lowered, so that it occludes the grass outlet at the back, simply open the casing and insert the deflector.

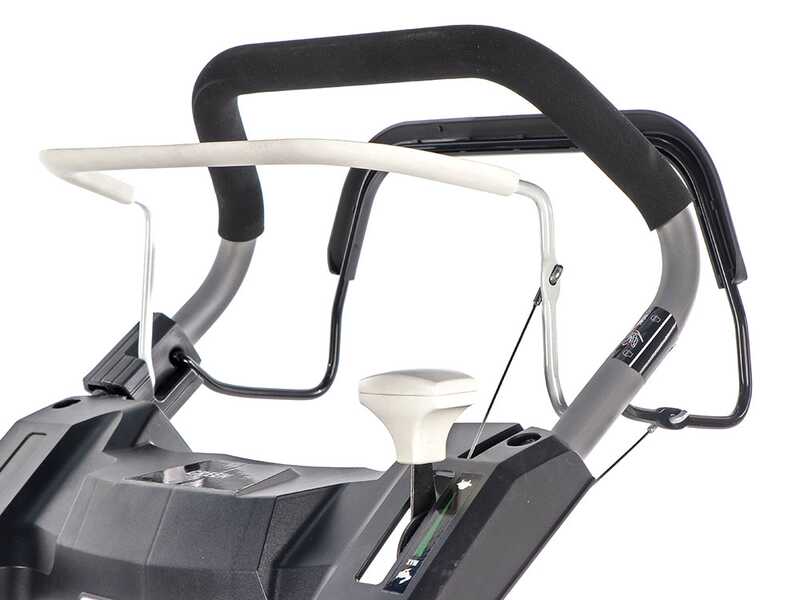

The handlebar is coated for maximum comfort.

Simple and intuitive handlebar controls.

Provided with throttle lever of the engine rpm.

1. Blade brake lever - necessary to start the lawn mower, it must be pulled constantly for safety reasons; once released, it automatically switches the engine off and stops the blade.
2. Self-propulsion activation lever (black lever behind the handlebar)

Detachable handlebar for easy storing.
