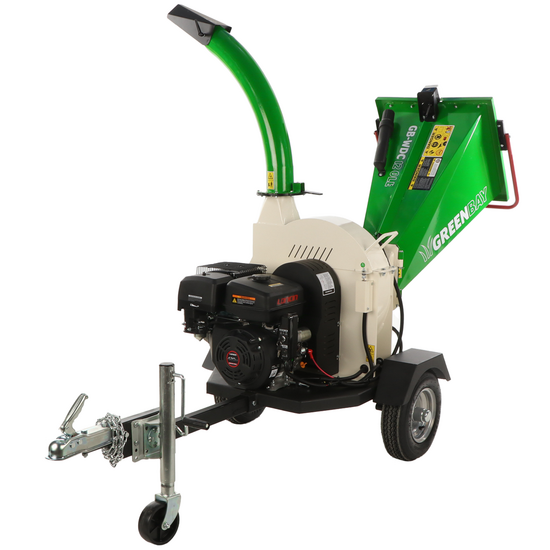

GreenBay GB-WDC 120 LE - Professional petrol wood chipper 15 HP Loncin G420FD engine

GreenBay GB-WDC 120 LE petrol garden shredder mounts a 15 HP Loncin G420FD, engine, powerful and reliable at the same time.

Garden shredders make weeds and twigs easy to handle and suitable for composting. The small size of the wood chips also reduces the time required to decompose.

Cutting diameter: 90mm. This garden shredder is equipped with a safety system that stops the machine in case of starting.

Equipped with adjustable counterblade.

The machine is equipped with a large steel hopper, which can process even very bulky branches and leaves without pre-shredding them. Also, its large capacity allows entering large amounts of material at a time.

This garden shredder has no road approval.

Thanks to the wheels, the machine is easy to transport and able to reduce the strain during manual displacement of the machine.

This petrol garden shredder has the same structure of large garden shredders, thus obtaining the best results in terms of cut, speed and reliability; it complies with CE regulations on work safety.

Warning: like all wood chippers and garden shredders, it is not suitable for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and other vegetation attached to them)

Intended use for garden shredders:
- The shredder must grind only green branches and not dry ones (which would limit its shredding capacity and lead to rapid deterioration of the blades);
- The branches must be preferably long, smooth and not knotty (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to wood type (e.g: oak, olive, plum and peach are hard woods and can reduce the cutting capacity of garden shredders)

Main features:

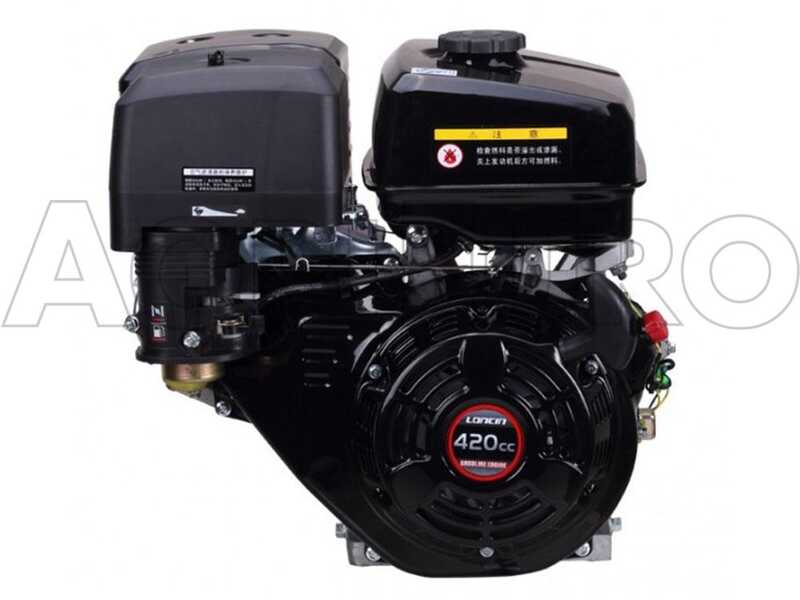

• Engine model and brand: Loncin G 420 FD
• Single-cylinder engine type: 4-Stroke - OHV
• Cylinder type: Aluminium
• Displacement: 420 cm³
• Power: 15 Hp
• Type of ignition: Electric with key

Thanks to the convenient electric start with key, starting the shredder has never been easier.

Nominal power: 15 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

*This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: 12.2 Hp
It corresponds to the real power expressed by the engine shaft. This is the power indicated as official in the manual or in the technical data by the engine manufacturer.

*This technical feature may vary for the same engine model depending on the engine speed provided by the manufacturer.

The engine is PROVIDED WITHOUT OIL.
Read the instruction manual carefully before starting it.

The machine is equipped with centrifugal clutch. The engine always needs to run at high revolutions in order to function properly.

WARNING: if you use it at less than full speed, the shredder won’t be able to grind large branches and perform a high-quality grinding, as well as having several problems:
- lowering speed or stopping the engine during its use;
- rapid deterioration of the transmission belts between the engine and the rotor;
- damage to the centrifugal clutch which, if the engine is not at full speed, does not fully expand, consumes itself until it burns out and needs to be replaced;

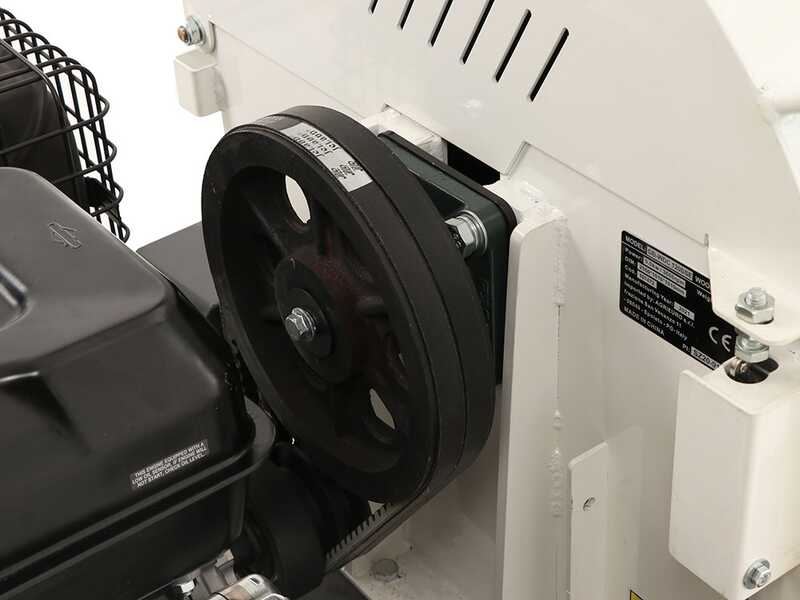

This is one of the few machines of this category with intermediate double belt drive transmission

This feature gives high sturdiness to the unit, protecting both the engine and all the shredding system from every possible internal shock or kickback.

Higher durability over time compared to the standard system used by other manufacturers, with the petrol engine directly connected to the shredding system.

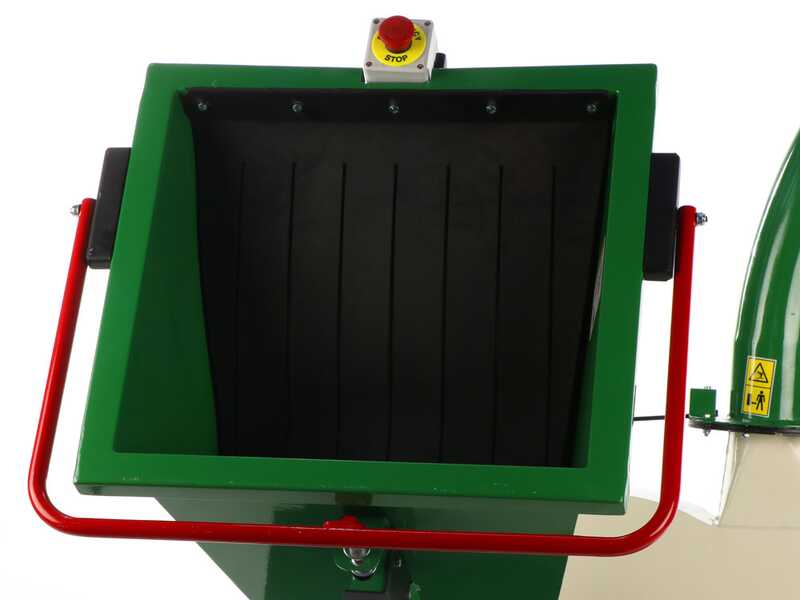

UNIFIED: considerably simplifies and speeds up the work.

You can easily open the hopper for checking.

The single hopper avoids separating (before grinding) the material between large and woody sections and smaller and green sections, each of which is inserted in its special hopper (operation required by all standard wood chippers equipped with 2 hoppers)

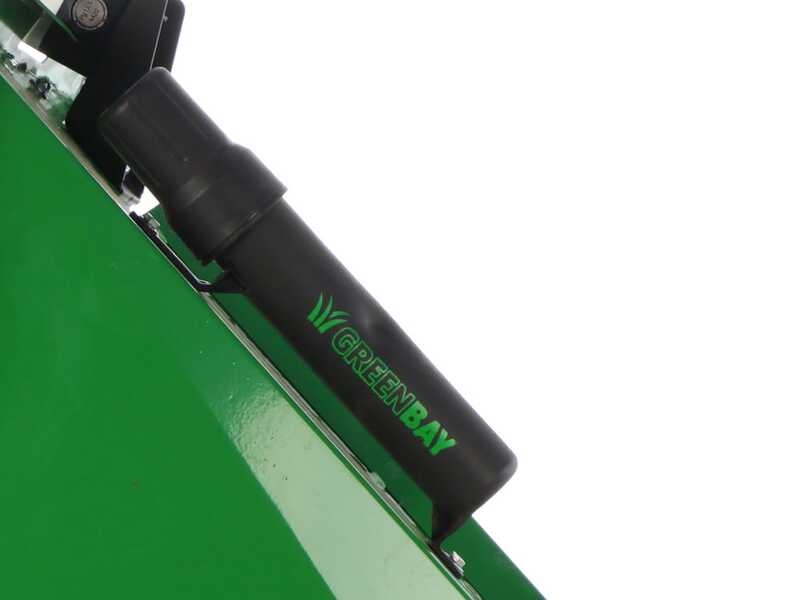

SAFETY DEVICE: it is possible to use the device placed around the hopper. In case of emergency it is possible to make a slight pressure with the hand on the device to immediately stop the garden shredder.

You can easily check the garden shredder.

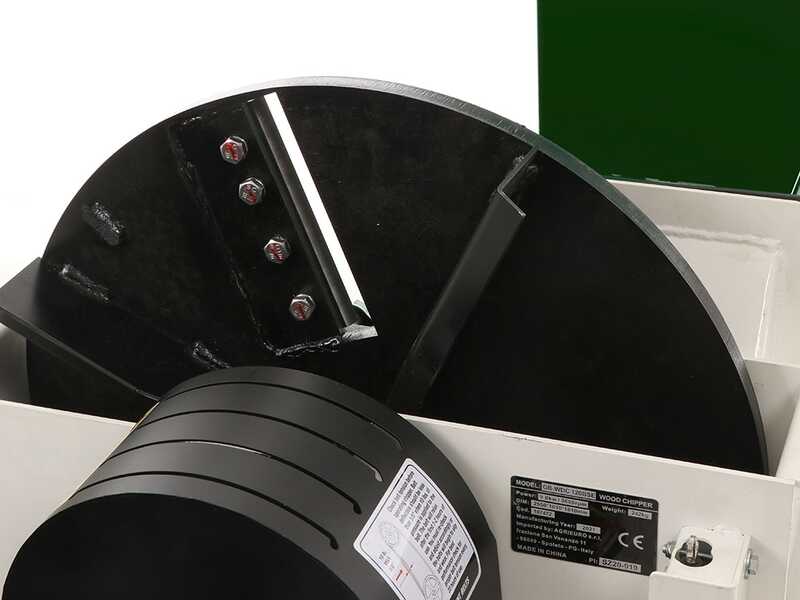

The cutting system consists of:

• 2 cutting blades, which are mounted on a swiveling steel plate placed at the end of the hopper.

The blades shred the material in the hopper into fragments of approx. 3-4 cm.

Equipped with large and sturdy shredding chamber. Its rounded shape ensures great productivity and long durability of the cutting system.

The discharge chute of this garden shredder rotates 360° and it is approximately 2 meters high.

Some examples:

• Position 1
• Position 2
• Position 3

Just press the lever and rotate it in the desired position.

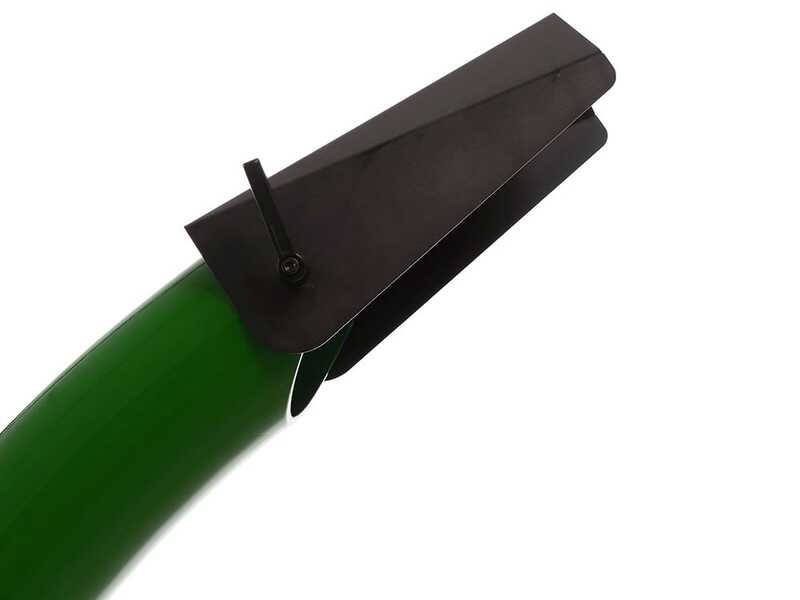

The discharge inclination is adjustable via two hooks placed at the end of the chute

Some examples to control the distance of the discharged shredded material:

• Position 1
• Position 2
• Position 3

Really high adjustable discharge chute, placed at 1.5 m from the ground, equipped with deflector with adjustable tilt.

It allows you to discharge vegetable waste into a box.

The discharge chute is adjustable too: it can rotate either to the right or left in many different positions by easily manually loosening and tightening the knob.

In the rear part of the hopper there is a convenient compartment to always keep the instruction manual handy

In the front part there is a third pivoting wheel.

The wood chipper is also equipped with large pneumatic wheels 16x8.00-7 that allow easy transport.

It features a convenient and practical trailer hitch.

This garden shredder has no road approval.
