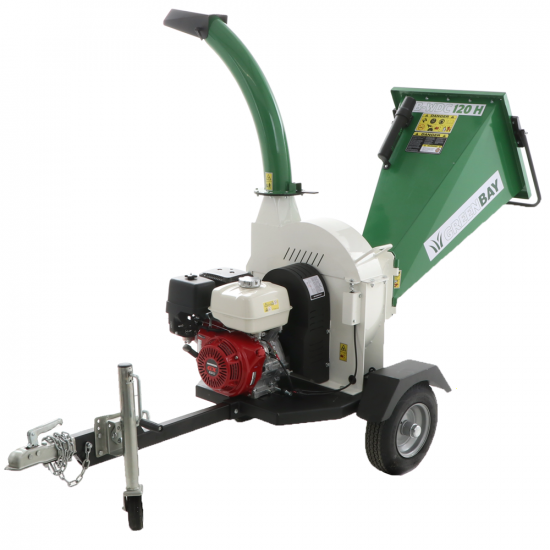

GreenBay GB-WDC 120 H - Professional Petrol wood chipper - 13 HP Honda GX390 engine

Questions & Answers (1)
ID: K603347

EAN: 8054141542846

MPN: GB-WDC 120 H

8,9/10
After-sales assistance & Spare parts
GreenBay GB-WDC 120 H - Professional Petrol wood chipper - 13 HP Honda GX390 engine
+100 sold
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Motor type
4-stroke
Motor brand
Honda
Motor Model
GX390
Cubic capacity
389 cm³
Nominal power
13 HP
Cutting Rotor Type
Disc
No. of blades
2
Max. Branch Diameter
90 mm
Wood Chip size
3 - 4 cm
N° of hoppers
1
Safety Lever
Yes
Upper discharge system
Discharge chute rotation
Manual with lever on the chute
Transmission type
Belt
Blade movement
Rotating
Tow hook
Yes
Weight
242 Kg
Product Features
Model:
GB-WDC 120 H
Operating mode:
Spark ignition
Hydraulic self-dragging:
No
Discharge chute:
High - rotating
N° of hoppers :
1
Hopper opening size (height):
50 cm
Hopper opening size (width):
45 cm
Self-propelling:
Towed
Electric start:
No
Safety Lever:
Yes
Tow hook:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Honda
Motor Model:
GX390
Motor type:
4-stroke
Cubic capacity:
389 cm³
No. of cylinders:
1
Nominal power:
13 HP
Rated power (HP):
11.7 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
Japan
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Enamelled steel
Max. Branch Diameter:
90 mm
Cutting Rotor Type:
Disc
No. of blades:
2
Blade movement:
Rotating
Counter blades:
1
Wood Chip size:
3 - 4 cm
Equipment
Discharge chute rotation:
Manual with lever on the chute
Recoil start system (with rope):
Yes
Front handle:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Spark plug wrench:
Yes
Instructions manual:
Yes

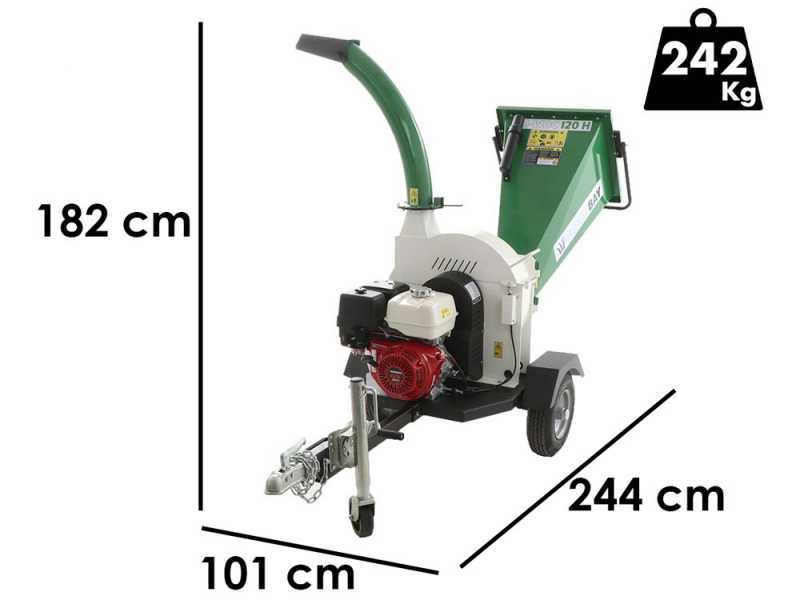

Dimensions and logistics
Product dimensions in cm (L x W x H):
244x101x182 cm
Net weight:
242 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
105x76x128 cm
Gross weight (packaging included) :
270 Kg
Assembly time:
over 90 minutes
Prompt Delivery
9 items in stock
Free Shipping
Estimated delivery: 11/04/2025 - 15/04/2025
Suggested price:
€ 3.039,81
€ 2.279,86
Vat included
You're viewing:
Customers also viewed:
Description

GreenBay GB-WDC 120 H Garden Shredder

The GreenBay GB-WDC 120 H petrol garden shredder is powered by a Honda GX390 (13 HP) engine, both powerful and reliable.

This shredder is equipped with a safety system which stops the machine in case of activation. This garden shredder is not approved for the road trip.

Thus, it also has a large capacity that allows entering large volumes of material at a time. Thanks to the wheels and handles placed at the ends of the hopper, the displacement of the machine is simple and able to reduce the strain during the manual movement of the machine.

The machine is able to process even very bulky branches and leaves, without having to pre-shred them. The cutting diameter is 90 mm. Garden shredders allow to reduce weeds and twigs in an easy to handle and suitable size for composting. The tiny wood chips crushing also reduces the time required for the decomposition of the latter.

This petrol shredder is built following the logic of the large wood chipper, thus obtaining the best results in terms of cut, speed and reliability; it complies with CE regulations on safety at work.

PRODUCT NOT HOMOLOGATED FOR ROAD USE.


Warning: Like all wood chippers and garden shredders, it is not suitable for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and other vegetation attached to them)

Intended use for garden shredders:
- The shredder must grind only green branches and not dry ones (which would limit its shredding capacity and lead to rapid deterioration of the blades);
- The branches must be preferably long, smooth and not knotty (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to wood type (e.g: oak, olive, plum and peach are hard woods and can reduce the cutting capacity of garden shredders)

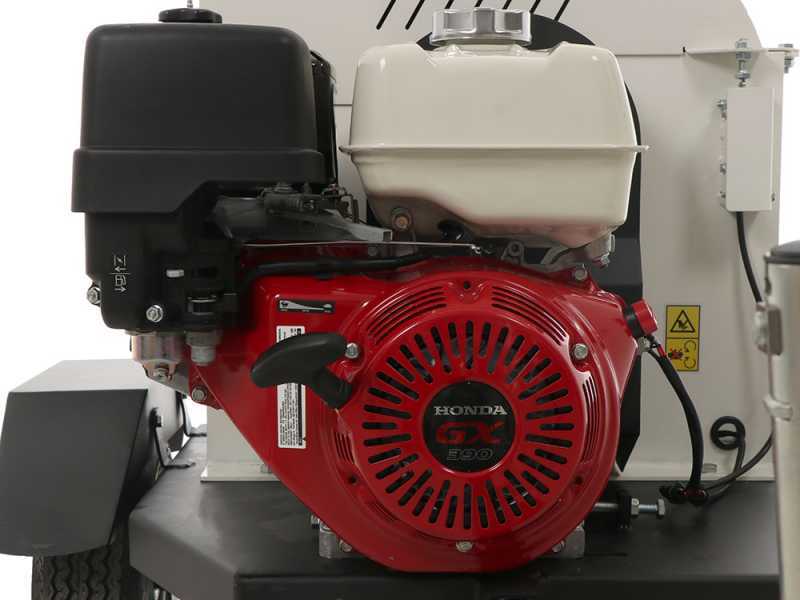

Honda Engine 389 cc

TheGarden Shredderhas a powerful Honda GX390 4-stroke air-cooled 420 cc engine, with overhead valves and aluminium cylinder.

Features:

Engine type
Single-cylinder 4-stroke - OHV
Cylinder type:
Aluminium
Engine cool-down
Air cooled
Cubic Capacity:
389 cm³
Fuel:
Petrol
Starting:
recoil starter
Tank capacity:
6.1 L


Nominal power: 13 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.


Rated power: 11.7 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

WARNING


The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.


The engine is started electrically by key.

CAUTION: using it at less than full speed can lead to several problems and the shredder won’t be able to grind large branches and perform a high-quality grinding.
- Lowering of engine speed or switching off the engine during use;
- rapid deterioration of drive belts between engine and rotor;
- damage to the centrifugal clutch which, if the engine is not at maximum speed, does not fully expand, leading the engine to wear out and irreparably damaging it

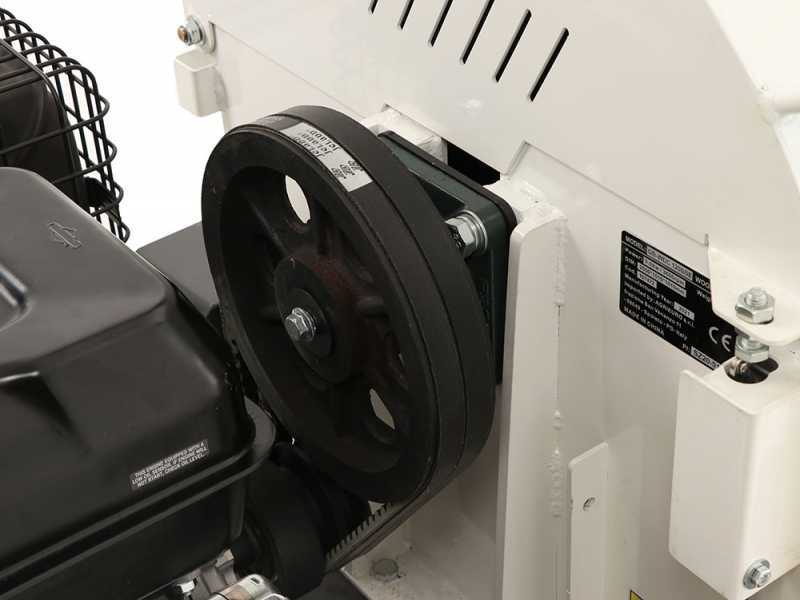

Belt Transmission

This is the only machine of its category with intermediate double belt drive transmission

This feature gives high sturdiness to the unit, protecting both the engine and all the shredding system from every possible internal hit or kickback.

Higher durability over time compared to the standard system of all the manufacturers of petrol-powered machineries, the transmission is directly connected to the shredding cutting system.

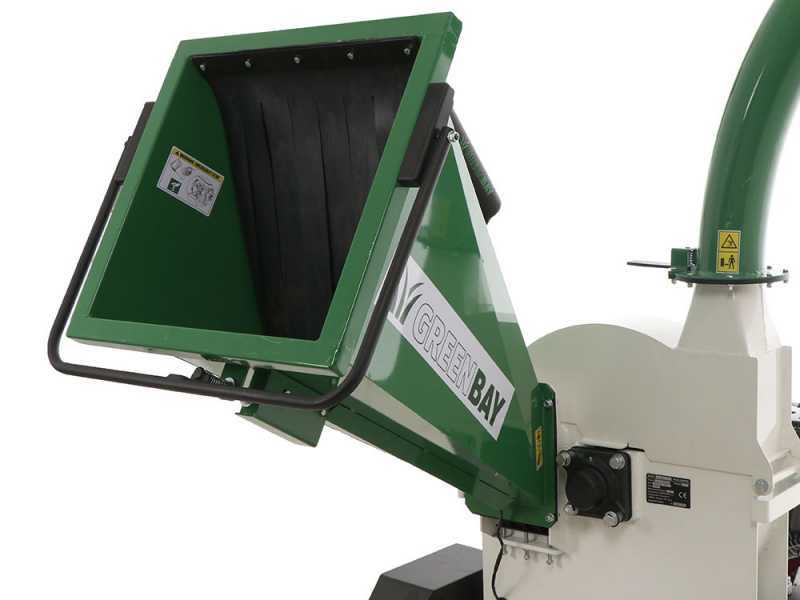

Unified Hopper

UNIFIED: considerably simplifies and speeds up the work.

The hopper is fully examinable thanks to the possibility of opening.

The single hopper considerably simplifies and speeds up the work. It eliminates the operation of separating (before grinding) the material between the major and woody sections and smaller and green sections, each of which is inserted in its special hopper (operation instead requested from all the classic wood chipper equipped with 2 hoppers)

SAFETY DEVICE : it is possible to use the device placed around the hopper . In case of emergency it is possible to make a slight pressure with the hand on the device to immediately block the functioning of the shredder.

The shredder is examinable.

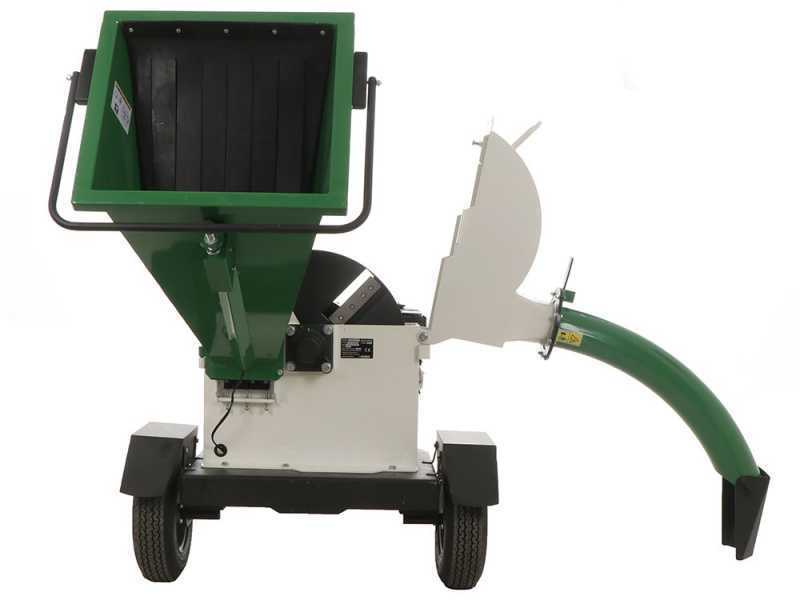

Central rotor and Shredding chamber

The cutting system consists of:

  • 2 large cutting blades, which are mounted on a swivelling steel plate located at the end of the hopper.

The blades carry out a sectioning of the material present in the hopper into shredded fragments of approx. 3-4 cm.

Equipped with large and sturdy shredding chamber. It features a rounded shape that ensures great productivity and long durability of the cutting system.

360° Rotating Discharge Chute

The discharge chute, of which the garden shredder is provided, rotates at 360° and it is approximately 2 meters tall.

Some examples:

  • Position 1
  • Position 2
  • Position 3

You’ll just need to simply press the lever and rotate it in the desired position.

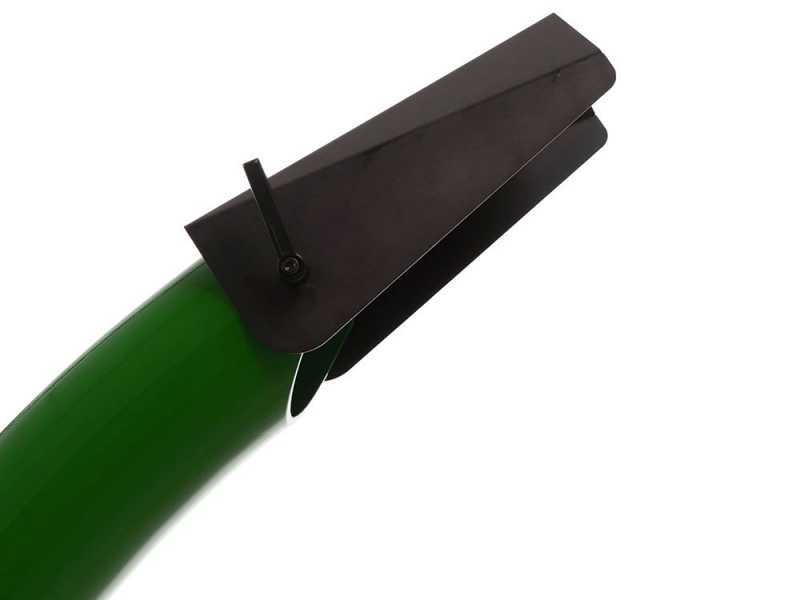

The discharge inclination is adjustable via a two hooks placed to end of the chute

Some examples to control the distance of the discharged shredded material:

  • Position 1
  • Position 2
  • Position 3

Main Features

Adjustable discharge chute, located at 1.5 m from the ground, equipped with adjustable-tilting deflector .

It allows vegetable waste to be discharged into a box.

The discharge chute is adjustable too: indeed it can rotate and easily manually loosening and tightening the knob, it can be oriented either to the right or left in many different positions.

In the rear part of the hopper there is a comfortablecompartment to always have at hand the instruction manual

In the front part there is a third pivoting wheel.

The wood chipper also has large pneumatic wheel 16x8.00-7 that allow easy transport.

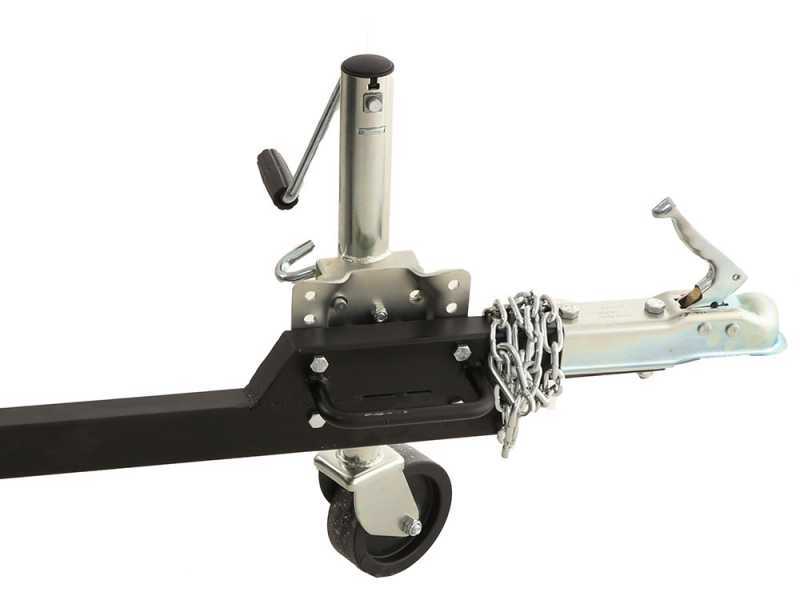

It features a comfortable and practical tow hitch.

The car is not approved for road transport.

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Free Items Included

------------------------------------------------------------------

The wood chipper is shipped in its original wood packaging on pallet

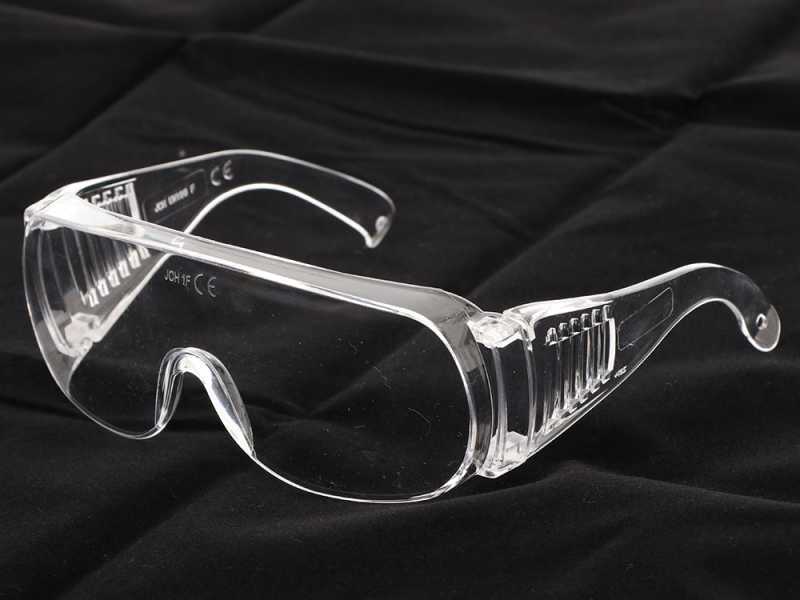

Conveniently supplied GreenBay bag with inside headphones and glasses As well as operating and maintenance instructions manual
