GreenBay GB-WRC 100 H - Professional petrol garden shredder - 6.5 HP Honda GX200 engine

GreenBay GB-WRC 100 H petrol garden shredder mounts a Honda GX200 6.5 HP engine, powerful and reliable at the same time.

Cutting diameter: 65 mm This garden shredder is equipped with a safety system that stops the machine in case of starting. Garden shredders make weeds and twigs easy to handle and suitable for composting. The small size of the wood chips also reduces the time required to decompose.

The machine is equipped with a large steel hopper, which can process even very bulky branches and leaves without pre-shredding them. Also, its large capacity allows entering large amounts of material at a time.

Thanks to the wheels, the machine is easy to transport and able to reduce the strain during manual displacement of the machine.

This petrol garden shredder has the same structure of large garden shredders, thus obtaining the best results in terms of cut, speed and reliability; it complies with CE regulations on work safety.

Warning: Like all wood chippers and garden shredders, it is not suitable for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and other vegetation attached to them)

Intended use for garden shredders:
- The shredder must grind only green branches and not dry ones (which would limit its shredding capacity and lead to rapid deterioration of the blades);
- The branches must be preferably long, smooth and not knotty (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to wood type (e.g: oak, olive, plum and peach are hard woods and can reduce the cutting capacity of garden shredders)

Main features:

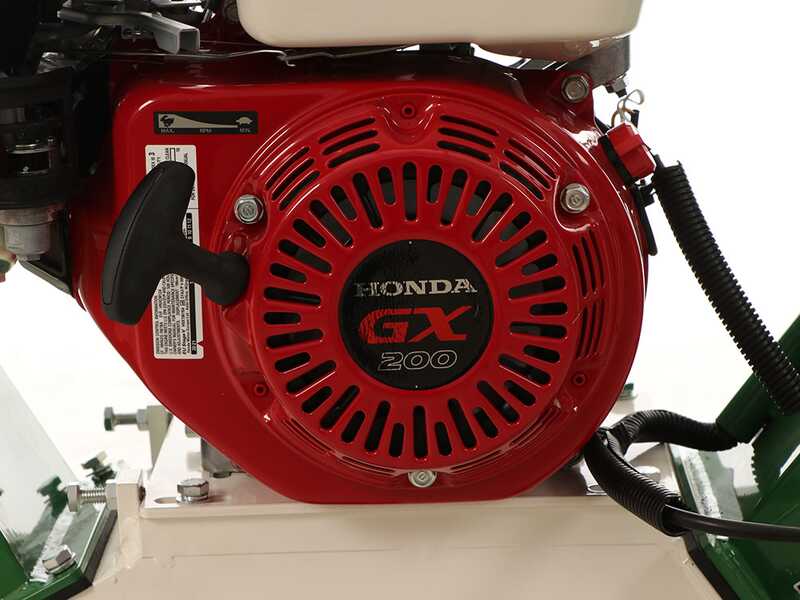

• Engine model and brand: Honda GX200
• Single-cylinder engine type: 4-Stroke - OHV
• Cylinder type: aluminium
• Displacement: 196 cm³
• Power: 6.5 Hp
• Starting: recoil

Thanks to the convenient electric start with key, starting the shredder has never been easier.

Nominal power: 6.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

*This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: 5.5 Hp
It corresponds to the real power expressed by the engine shaft. This is the power indicated as official in the manual or in the technical data by the engine manufacturer.

*This technical feature may vary for the same engine model depending on the engine speed provided by the manufacturer.

The engine is PROVIDED WITHOUT OIL.
Read the instruction manual carefully before starting it.

The machine is equipped with centrifugal clutch. The engine always needs to run at high revolutions in order to function properly.

This shredder, like all petrol shredders with roller rotor, must be strictly used to the maximum RPM of the engine; the grinding rotor has a very substantial mass and to give an effective result must reach the maximum rpm, thereby taking advantage of its own centrifugal force generated.

WARNING: if you use it at less than full speed, the shredder won’t be able to grind large branches and perform a high-quality grinding, as well as having several problems:
- lowering speed or stopping the engine during its use;
- rapid deterioration of the transmission belts between the engine and the rotor;
- damage to the centrifugal clutch which, if the engine is not at full speed, does not fully expand, consumes itself until it burns out and needs to be replaced;

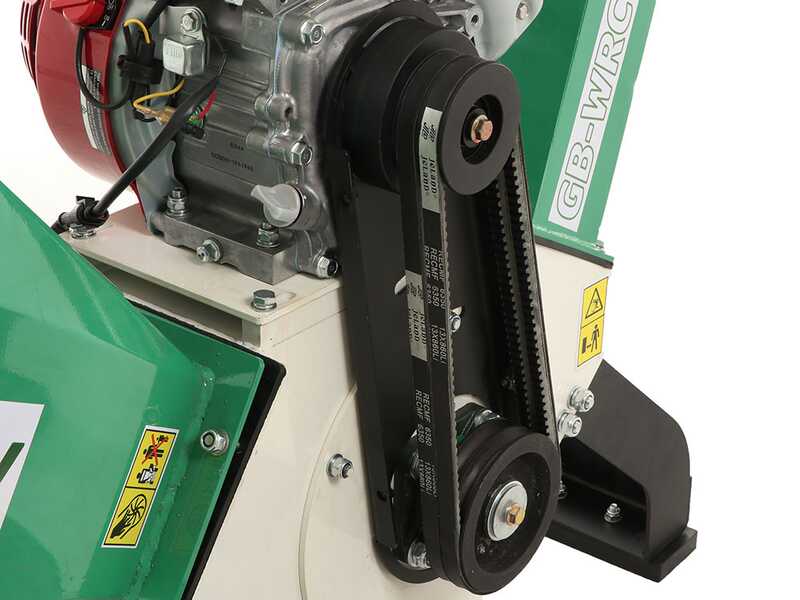

This is one of the few machines of this category with intermediate double belt drive transmission

This feature gives high sturdiness to the unit, protecting both the engine and all the shredding system from every possible internal shock or kickback.

Higher durability over time compared to the standard system used by other manufacturers, with the petrol engine directly connected to the shredding system.

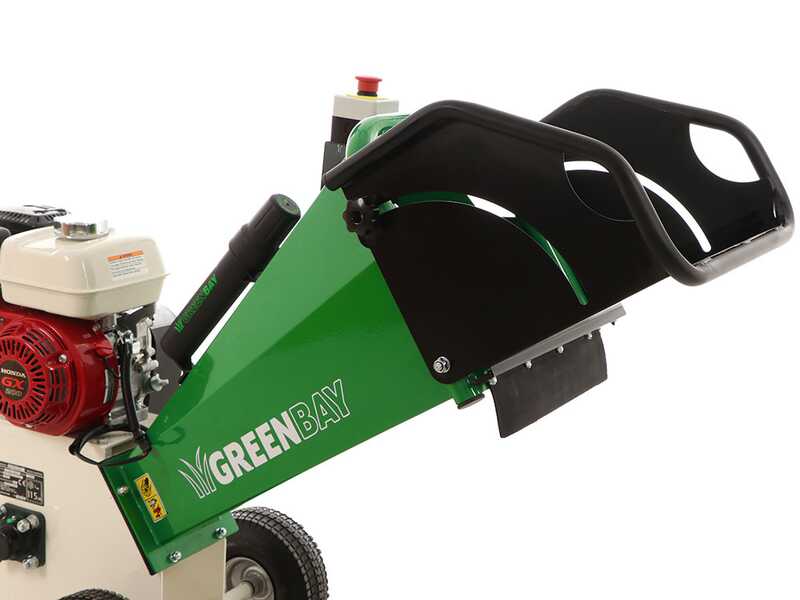

UNIFIED: considerably simplifies and speeds up the work.

You can easily open the hopper for checking.

The single hopper avoids separating (before grinding) the material between large and woody sections and smaller and green sections, each of which is inserted in its special hopper (operation required by all standard wood chippers equipped with 2 hoppers)

SAFETY DEVICE: it is possible to use the device placed around the hopper. In case of emergency, press the red button to immediately stop the wood chipper.

2 large and thick cutting blades are mounted on a rotating steel roller.

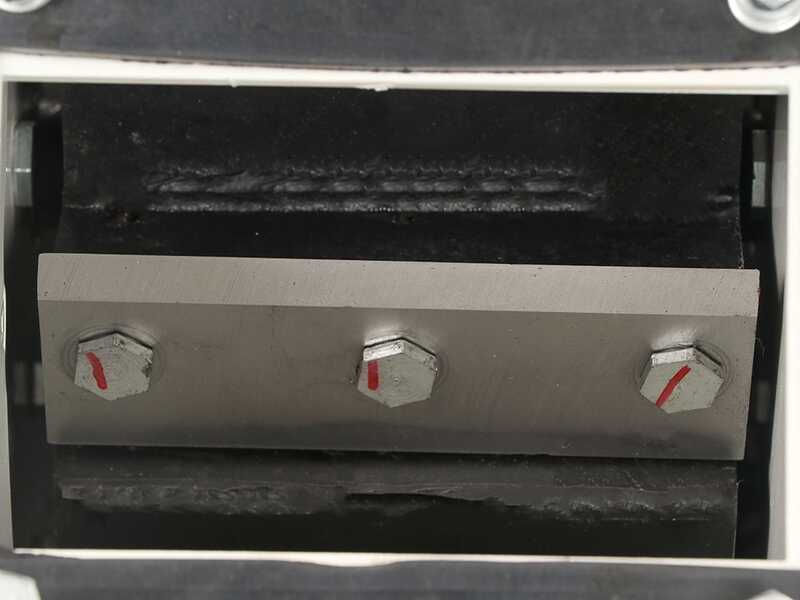

The double blade system is completed by the counter-blade placed on the shredding chamber.

The rotor is solid and robust, made of steel.

Focus on the the counter-blade adjustment: this is deliberately assembled inclined with respect to the frame and the direction of rotation of the rotor to increase the cutting capacity of the machine and obtain the best performance possible.

All wood chipper with roller system like this, carry out their work better by inserting branches already leafless and cleaned (not thick and with excessive branching);
And they are ideal for branches having a bit consistency and body, and not for thin and green branches, they are better thick or in high quantities; this is because the roller system is technically very suitable to grind small or minimum diameters, or green material in general, while really give the maximum with branches which have a bigger diameter and density.
This is related to their lower "centrifuge" power compared to the classical models and disc blades, and the "greater distance between the blade and counter-blade", designed for individual branches already well thinned but consistent diameter.

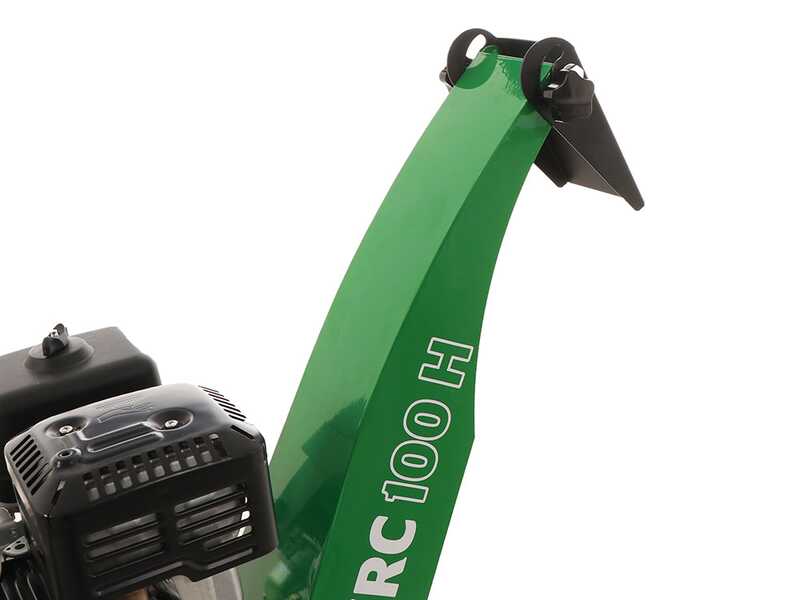

The height of the discharge chute is adjustable.

Some examples to control the distance of the discharged shredded material:

• Position 1
• Position 2
• Position 3

The discharge inclination is adjustable via two hooks placed at the end of the chute

Really high adjustable discharge chute, placed at 1.5 m from the ground, equipped with deflector with adjustable tilt.

It allows you to discharge vegetable waste into a box.

Front support

In the rear part of the hopper there is a convenient compartment to always keep the instruction manual handy

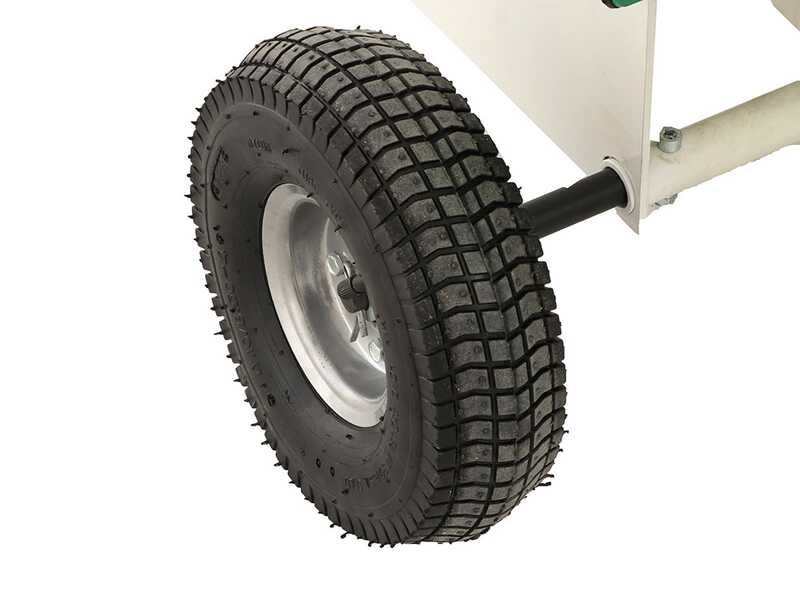

The wood chipper also has large tractor wheels 4.10/3.50-4 that allow easy transport.
