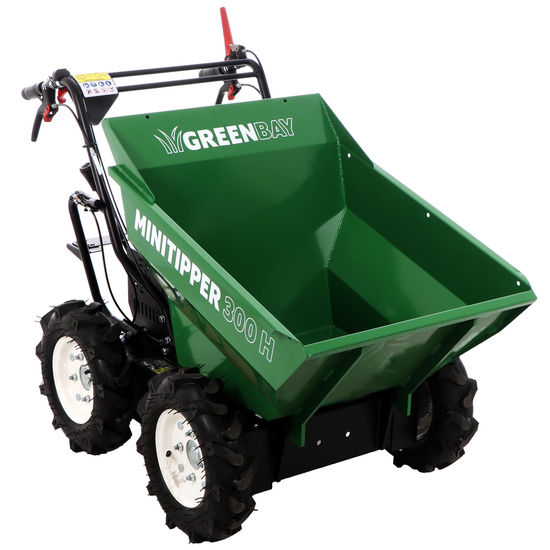

GreenBay MiniTipper 300 H Petrol Wheelbarrow 4x4 - Honda GP160 Engine

The GREENBAY MINITIPPER 300 H power barrow is a very sturdy machine suitable for transporting all types of material in agriculture, construction and forestry.

Thanks to its self-propelled wheels and powerful 4-stroke engine, dumper wheelbarrow with dumper body is capable of transporting loads of 300 kg, making it a tool that can be used in a wide variety of fields, from agriculture to animal husbandry to construction and gardening.

It provides stability and safety during use even with heavy loads and slopes that normal wheelbarrows cannot handle.

Wheeled power barrows are suitable for all users who have to carry out both demanding and less demanding work. For those who have to work in gardening or small-scale agriculture, making wheeled models exhaustive for the worker.

It has 4 drive wheels all of tracktor type, thus allowing it to maintain excellent grip with the ground even in the most complicated conditions.

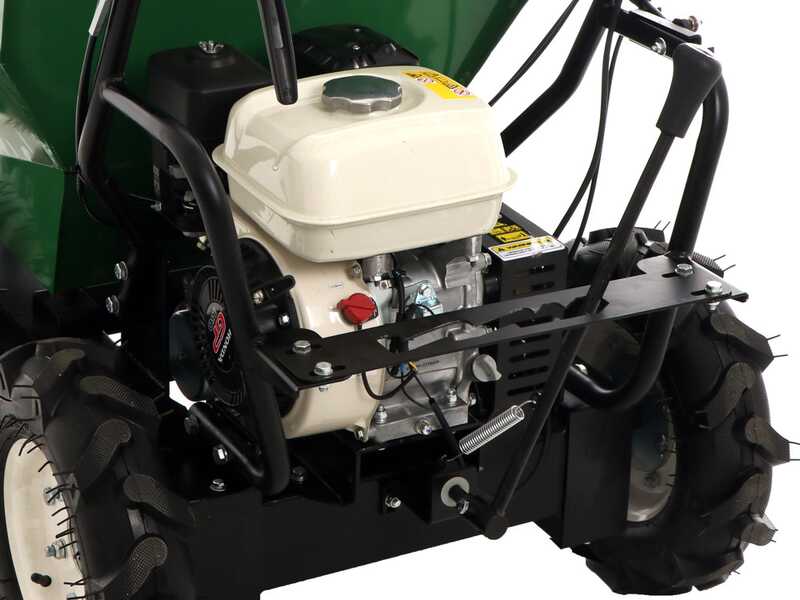

The machine is equipped with a powerful Honda GP160 petrol engine, capable of delivering:

• 5 HP Power

The HONDA GP160 engine guarantees high performances and it is suitable for works where high power is required, achieved thanks to the high displacement of 163 cc.

Features:

Brand new 4-stroke engine (overhead valve shaft OHV - recoil ignition)

Easy re-coil start thanks to the automatic fuel priming system.

WARNING!
The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting.

Nominal Power: 5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: HP 4 (3600 rpm rotation speed)
It is the real power of the engine shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the speed of rotation provided.

Gearbox: large, easily the most robust and reliable on the market.
But nevertheless very smooth and precise Entirely made in Italy

Speed:
3 forward
1 reverse

Parking brakes:

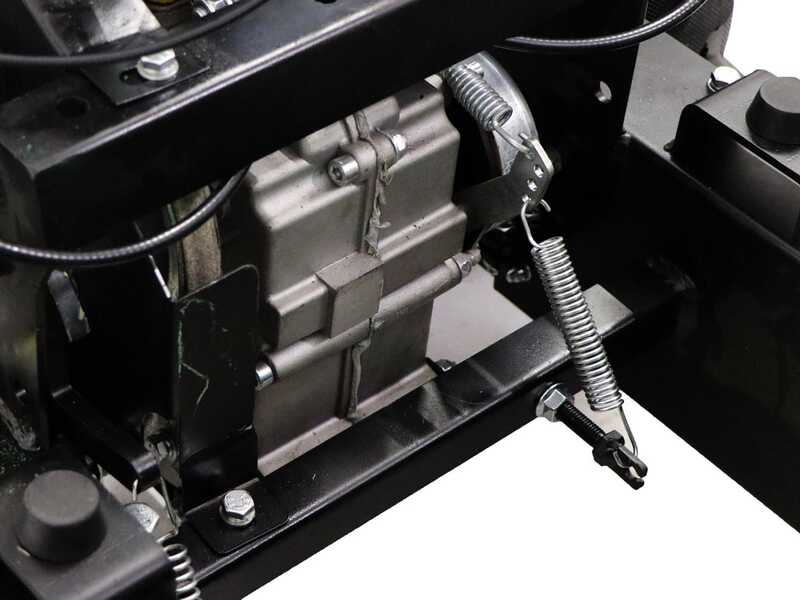

attached to the gearbox, increased internal expansion type, for greater stability and safety.
These are automatically activated when the controls are released (if the machine is left in neutral position, even on a steep slope, it remains perfectly locked).

Transmission:
Sturdy and resistant, it allows managing the steering by acting on the single track, deactivating its rotation.

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

This wheelbarrow is self-propelled to facilitate the operator's work

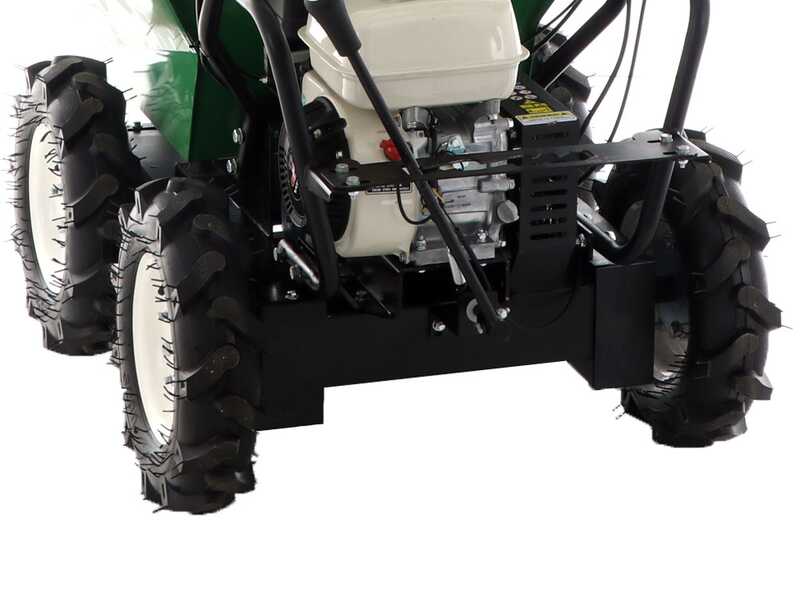

All four wheels are traktor type to provide greater grip and traction on muddy and more uneven terrain.

Having available 4 drivewheels will make very simple to move the wheelbarrow even in tight spaces while maintaining always a great adherence to the ground.

To turn the wheels, you will need to press one of the two levers on the handlebars according to the direction in which it needs to turn.

Body in high-strength steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The wheelbarrow has an effective capacity of 300 Kg, even on sloping grounds.

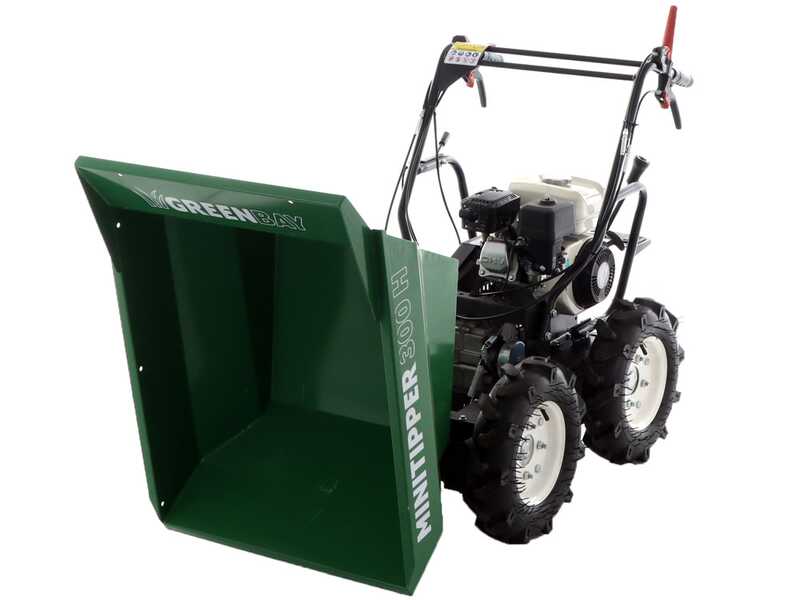

The barrow tilting operation is very simple, just press the lever in fact placed on the right of the machine. It will disengage the safe of the barrow and make it possible for the operator to overturn the same with extreme simplicity.

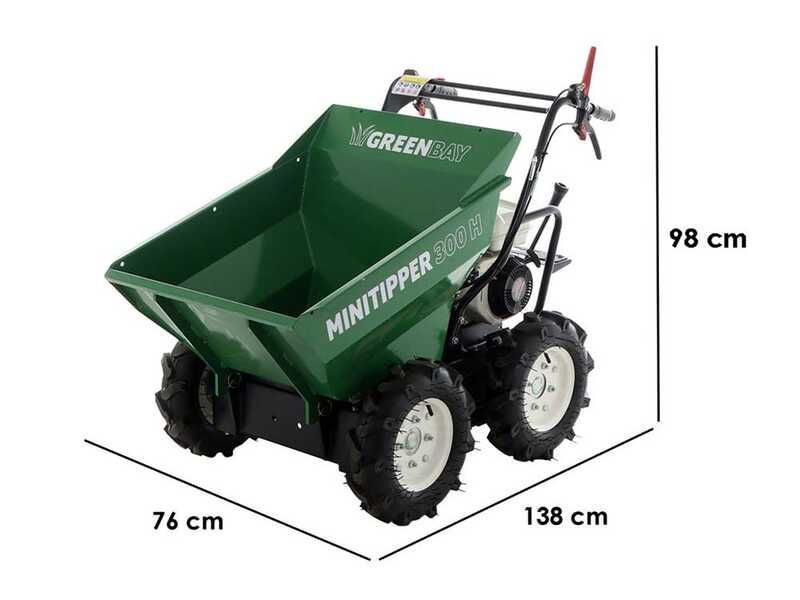

Barrow dimensions: 940x635x330 mm

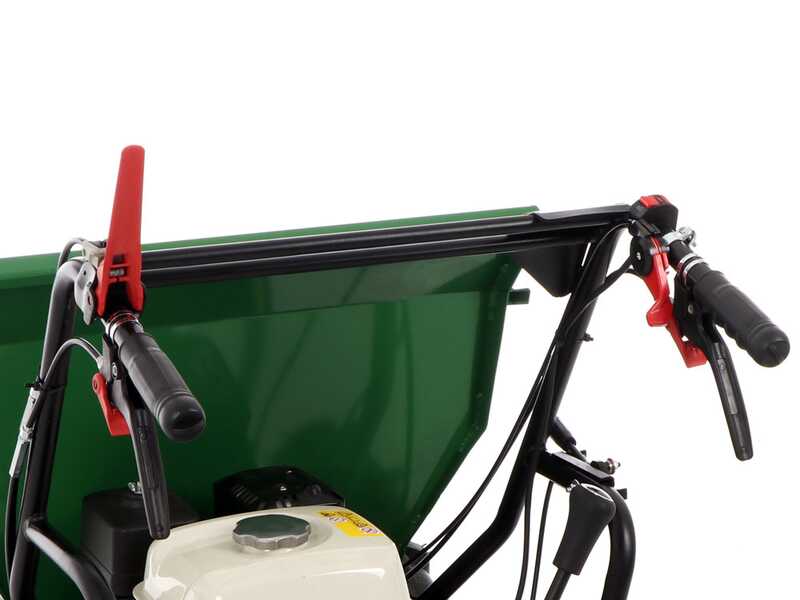

Controls: easy to operate and ergonomic, they offer precision and controllability in the work

Large red lever for motion activation.

The machine is provided with two lower levers for steering, respectively on the right and on the left.

The steering can be adjusted depending on the control lever and it allows moving smoothly. By partially pulling either lever, the steering of the track concerned, right or left, will also be partial.
This allows the wheelbarrow to be steered extremely smoothly, without causing abrupt movements.

Safety brake allowing immediate stop.

Throttle lever

Gear lever

Lever for disengagin the barrow
