GreenBay PS 700-25 - Petrol-driven scarifier with fixed blades

The GreenBay PS 700-25 Lawn Aerator and Scarifier positions itself as an essential tool for maintaining and caring for green spaces.

Its effectiveness is manifested through a series of technically advanced features and a construction designed to maximise both ease of use and durability.

• Cleaning moss from lawns.
• Scarifies weeds with ease.
• Collection of grass cuttings.

Equipped with blade rotor and spring rotor

The technical equipment of this model includes a 208 cc proprietary 170 F engine that delivers up to 7 Hp, thus guaranteeing great power and reliability.

The rotor with specialised blades allows effective action on the soil, improving oxygenation, drainage and nutrient absorption.

• It acts vertically for deep scarification.
• It promotes oxygenation and drainage of the soil.

The spring-loaded rotor combs the lawn, pinching away the layer of Velcro and moss that has formed and preventing regrowth.

The use of the scarifier is recommended to prevent the formation of the felt layer that restricts the oxygenation of the soil, with negative consequences for the health of the lawn. Removing this layer facilitates air contact, which is essential for proper fertilisation and turf thickening.

• Removing the felt layer.
• Creation of furrows that improve soil-air interaction.

The GreenBay PS 700-25 scarifier offers a working width of 40 cm and adjustable working depth from 0 to 15 mm, making it extraordinarily versatile and able to adapt to various types of soil and working conditions.

• 45-litre collection bag for greater working autonomy.
• Ideal width and working depth for different types of lawn.

The 4-stroke petrol engine is suitable for works where a great power is required, and which is ensured by the high 208 cc.

Features:

• Engine type: 4-Stroke - OHV - single cylinder
• Cylinder type: Aluminium
• Displacement: 208 cm³
• Nominal Power: 7 Hp
• Rated power: 5.6 Hp
• Engine revolutions: 3600 rpm
• Tank capacity: 3.6 L
• Oil tank capacity: 0.6 L

4-stroke petrol engines with OHV (overhead valve) feature many advantages, including:

• This system allows the cylinder head to take up less space.
• Easier system: compared to the DOHC system, it is easier to design due to its smaller size.
• Reduced maintenance times: this is due to the structure and control of the system, which allows gaskets or other components to be replaced without having to disassemble the transmission.

Focus on the air filter

Focus on the recoil start and spark plug.

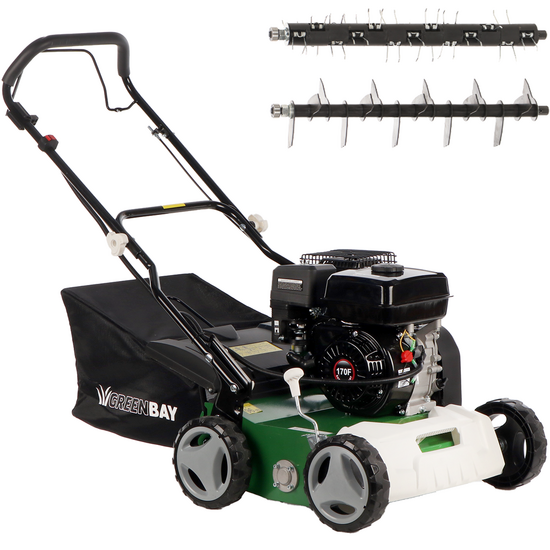

This lawn scarifier is equipped with 2 different types of rotors, easily interchangeable.

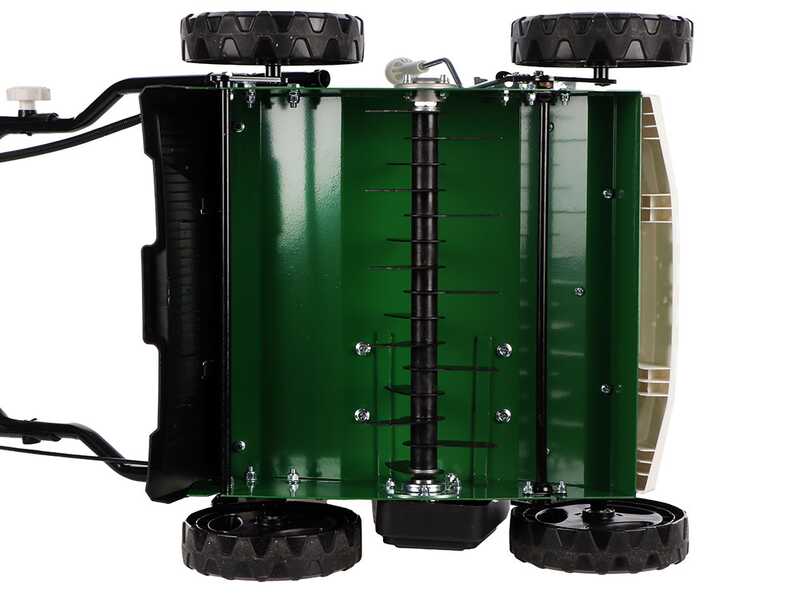

Spring rotor:

Suitable for the 'aeration' operation, it consists of a robust roller.

With this rotor, the turf is combed lightly thanks to its steel spring design, which pinches and pulls away the felt and moss (also preventing regrowth).

Rotor with blades:

Recommended for the “scarifying process”. It consists of a steel roller with 14 fixed blades.

This rotor type allows a more intensive lawn care thanks to the possibility to work the soil in depth. The 14 sharp blades penetrate the turf vertically: moss, felt and weeds are thus radically removed.
Result: the lawn regenerates itself by improving oxygenation, drainage and nutrient uptake.

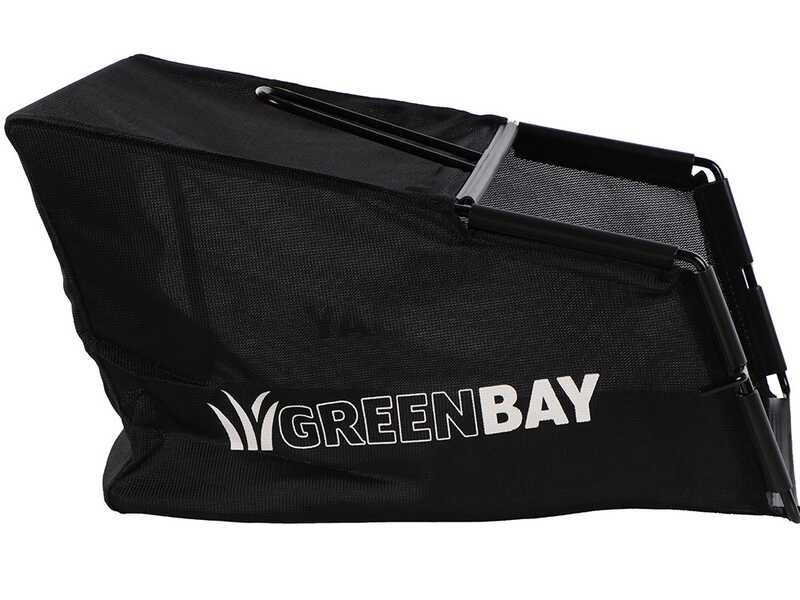

The machine comes with a high-capacity basket.

ATTENTION:

Aeration must be performed STRICTLY, with the garden previously and abundantly watered.

* The right time for this is spring, after the very first shave and depending on the area and type of climate (generally around March/April). For a perfect lawn care, it is highly recommended to repeat the operation in Autumn as well, thus removing the harder moss.

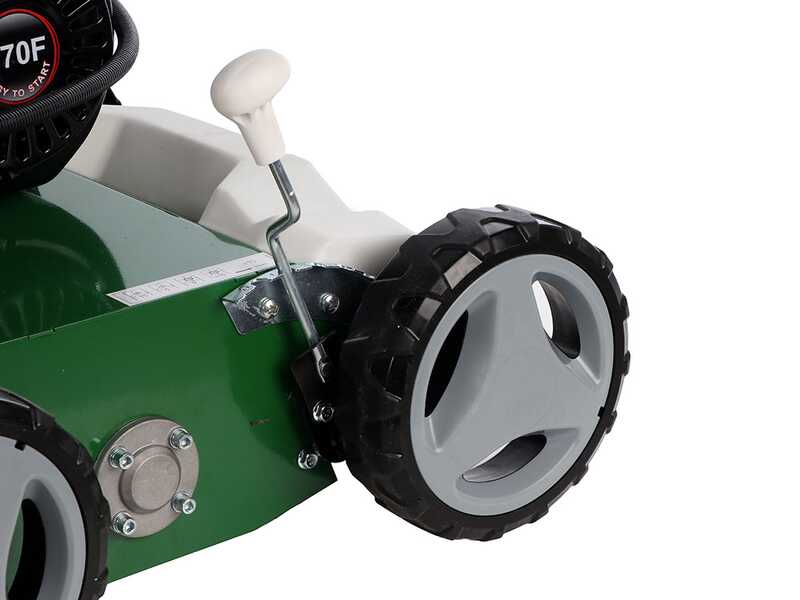

The centralised working depth adjustment makes this machine extremely easy to use and intuitive.

The machine is equipped with a working depth adjustment lever, offering many working positions:

• 1
• 2
• 3
• 4
• 5

The wheels are 20 cm in diameter.

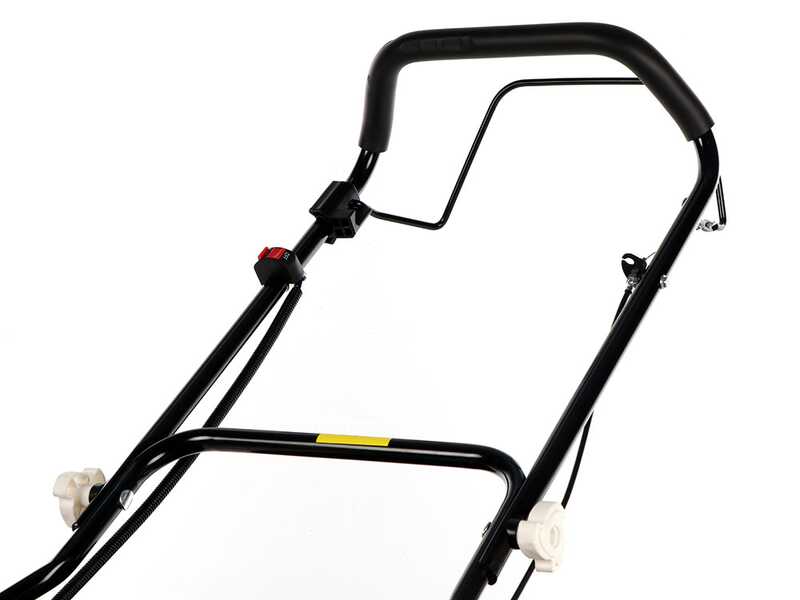

The controls are easy and handy.

Safety lever and engine brake. By releasing the lever, the engine turns off.

Thanks to the knob screws, folding the handlebar will be easy and fast, making the machine compact for easy storage.
