Name: GreenBay TL 125 - Light Series Tractor Rotary Tiller - Fixed Hitch
Brand: GreenBay
SKU: 110753
Price: 1327.17 EUR
Availability: InStock
Rating: 5 (3 reviews)

Description

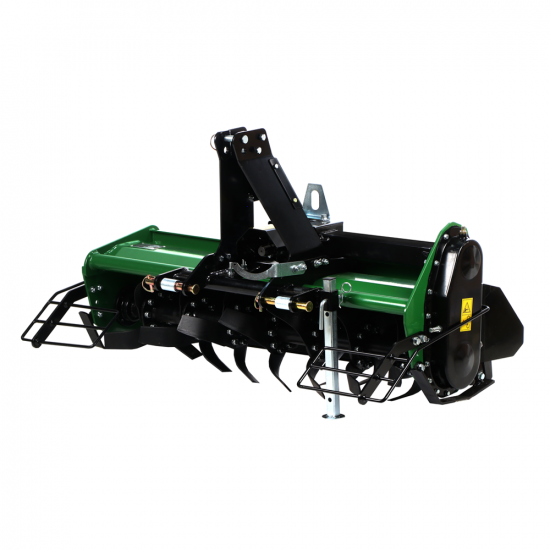

GreenBay TL 125 tractor-mounted rotary tiller

The GreenBay TL 125 tractor-mounted rotary tiller is a tool for soil tillage, by preparing it for sowing, shredding it after ploughing or to remove weeds.

It is an agricultural tool that is used to till the soil surface, remove weeds and unwanted vegetation. Equipped with a series of V-shaped blades mounted on a metal frame.

Designed to be handy and easy to use, it is often used for soil preparation in vegetable gardens and small crops. The lightweight rotary tiller is also easy to transport and store when not in use.

Composed by a box frame and a gearbox with chain drive in oil bath at 540 rpm.

It is a light-weight (235 kg) machine designed to be connected to medium and small sized tractors of up to 25 HP.

Suitable for a hobby use on medium to small sized areas.

Warning: the machine is shipped already filled with oil in the transmission. Assemble all parts and check bolt tightness.

GreenBay TL 125 - Light Series Tractor Rotary Tiller - Fixed Hitch

Transmission and technical features

TECHNICAL DATA (brief overview):

Total width: 142 cm
Operating width: 120 cm
Weight: 235 kg
Required power: up to 25 HP
Working depth: 9 cm
Hoes per flange: 4
Total Hoes no.: 28
Disc Hoes no.: 7
3-point Hitch
Gearbox 540 rpm
Chain drive in oil bath

Focus on the side support with inner locking bearing of the rotor with hammers.

View of the side support from the outside.

Height adjustable side support skids.

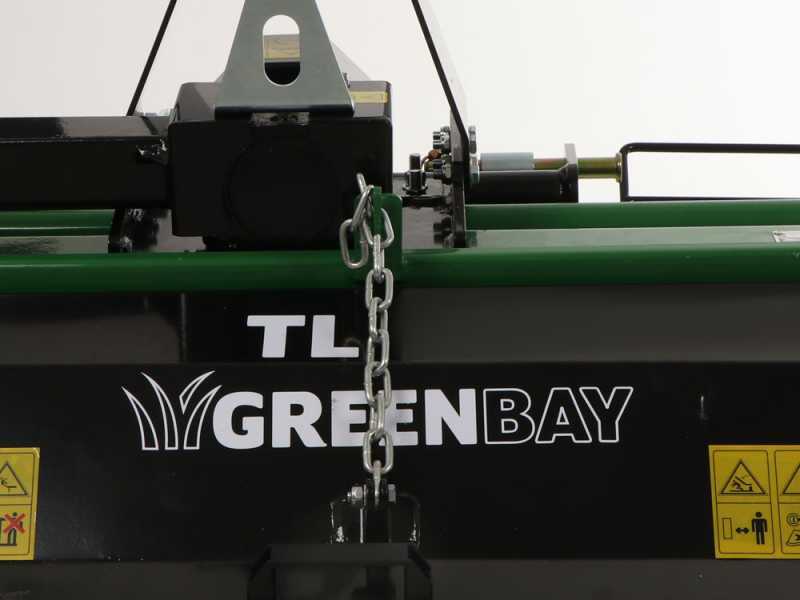

Movable rear housing that can be adjusted to various positions by means of a chain with levelling action on the tilled soil.

Side drive with large, sturdy chain in oil bath.

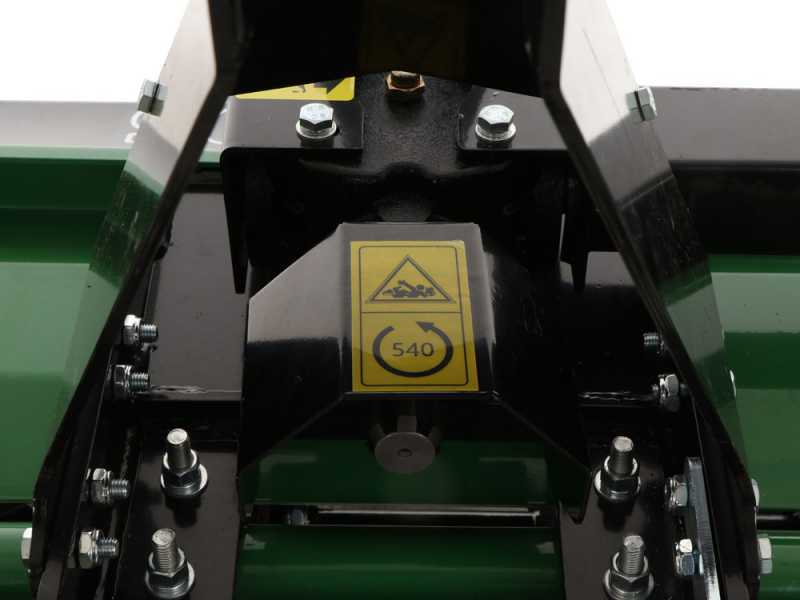

Focus on the sturdy cast iron gearbox with oil-bath gears.

Universal standard power take-off ( 1 3/8" Z6 ).

Universal linkage pins (with double attachment diameter, adaptable to all tractors on the market).

Focus on the front guard.

Hoes

Steel hoes: no. 7 discs with 4 hoes each for a total of 20 hoes.
Each flange is equipped with 4 hoes

What are the advantages?

There are several advantages with the use of a light rotary tiller compared to other agricultural tools, including:

1. Manoeuvrability: the lightweight rotary tiller is designed to be manoeuvrable and easy to use, making it ideal for working the soil in tight spaces or in small and vegetable gardens.

2. Efficiency: thanks to its V-shaped blades, the lightweight rotary tiller is able to remove quickly and efficiently weeds and unwanted vegetation, without damaging nearby plants.

3. Time saving: the use of the light rotary tiller can significantly reduce the time needed for soil preparation, compared to other heavier or more complex agricultural tools.

5. Versatility: the light rotary tiller can be used on different types of soil, including those with a softer texture or less compact soil structure.

The effective working width is 120 cm with a depth of 9 cm.

It is possible to adjust the side skids in order to decide the working depth of the cutter.

This allows working close to obstacles without the risk of hitting them with the tractor wheels.

Universal three-point hitch that can be adapted to all tractors on the market.

Focus on the sturdy 3-point hitch.

The rear housing is movable by means of a chain, in order to achieve a levelling action on the milled soil.

WARNING:

All tillers must be used on "clean" soils, i.e. free of stones and stones of a great size, which can damage to the milling hoes and, in the worst cases, damage the rotor, the frame, or the transmission components (oil seals, bearings, etc.).

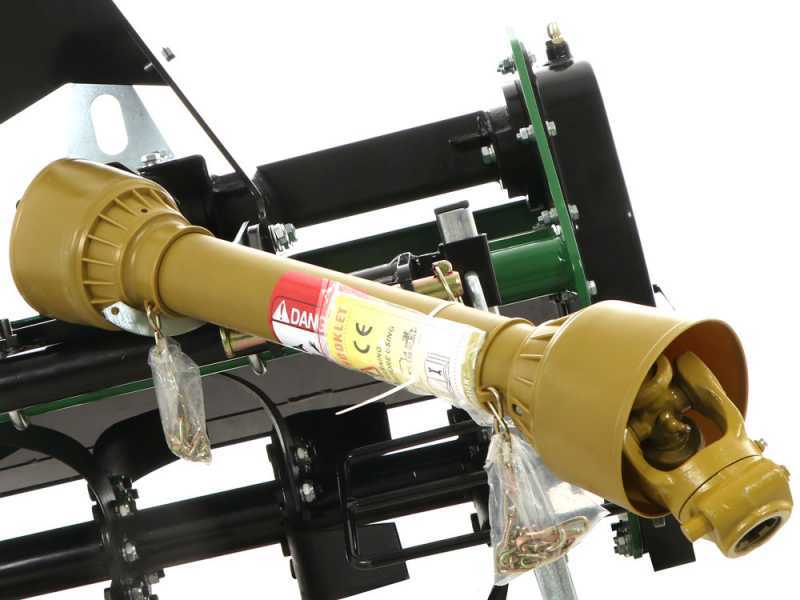

Cardan shaft included

Oil-bath gearbox, the housing is made of cast iron, the inner gears of hardened steel.
Focus on the external rotor, with central opening provided with greaser.

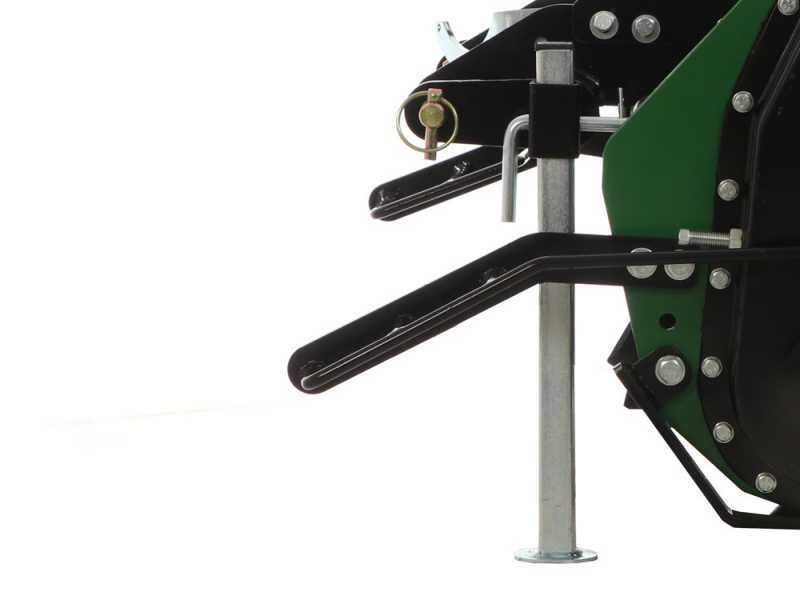

Support stand
Focus on the 3-point hitch.
PTO shaft support
Lubricated extension
Side skids
