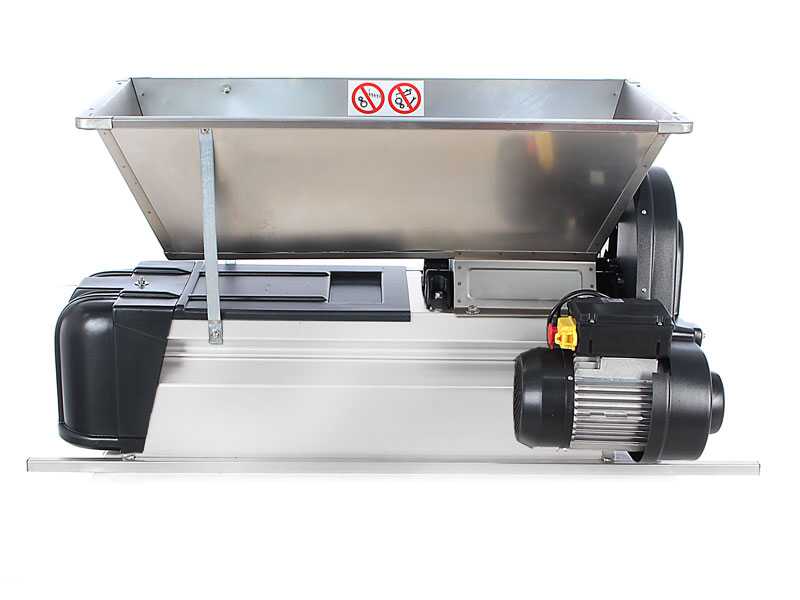

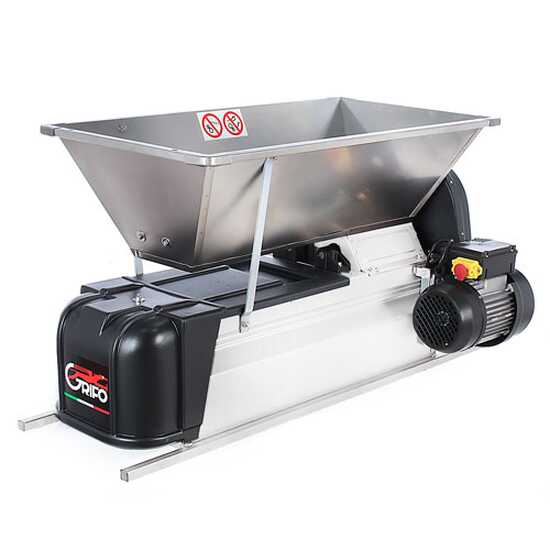

The Grifo DMCSI.18 is equipped with a 1 HP motor, making it easy to use.
It is a large machine with excellent output. The frame is made of enamelled steel, while the hopper is made entirely of stainless steel, and its size facilitates the tipping of grapes inside the crusher.
It features a simple, classic design, a carefully crafted frame built with techniques that make it practical and easy to operate.
Entirely made in Italy.
The output is approximately 1500 kg/hour.
90 x 50 cm stainless steel hopper
This width makes it user-friendly, facilitating the operations of tipping grapes inside it.
The crusher is equipped with a pair of counter-rotating pre-processing rollers.
They carry out an initial processing of the grape berries, performing an ‘initial crushing’ action that generates small cracks that facilitate the outflow of the initial must.
Special supports allow the rollers to be adjusted by a few millimetres.

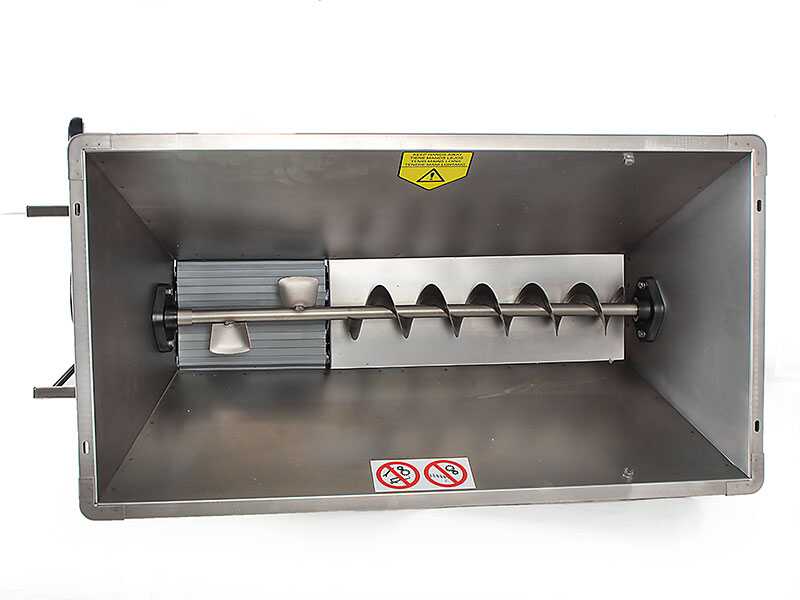

Detail of the stainless steel grape drive auger inside the processing machine.
Many electric grape crusher- destemmers are not equipped with an auger and instead have just a hopper with a simple funnel shape for channelling the bunches, making them much less efficient in feeding the rollers and thus in the overall smooth running of the machine.
Side protecting case made of plastic.
The belt drive offers the advantage of a slight friction effect in the event of a clogging in the machine itself.
It conveys the rotary motion from the motor to:
- the upper auger
- the upper rollers
- the intermediate rotor

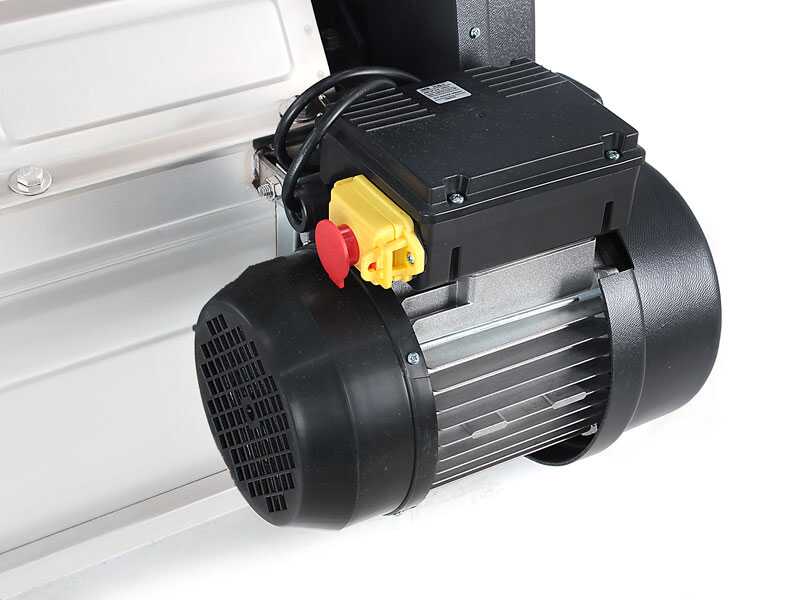

Powerful 1 HP electric induction motor, which drives all the various mechanisms, from the shaker to the rollers, to the gears for crushing the grapes.
Equipped with a red emergency STOP button, complying with CE safety regulations.

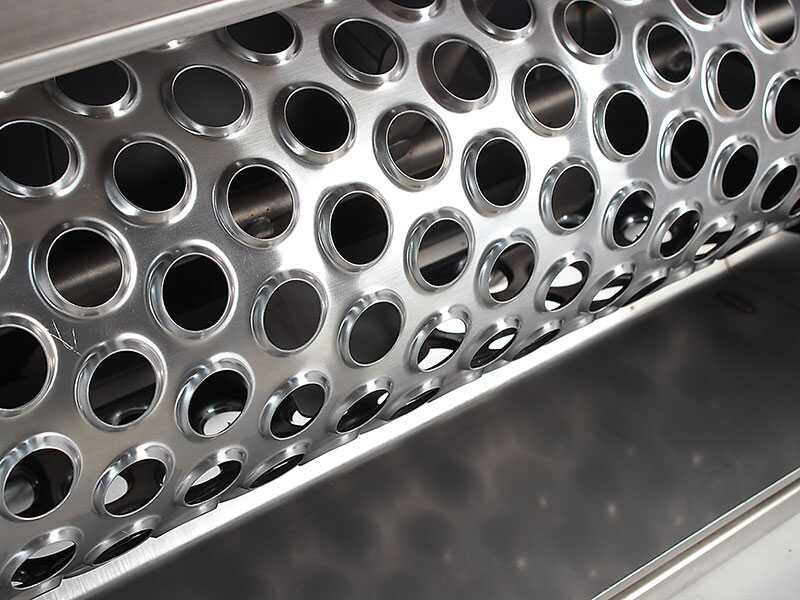

The sieve can be easily removed for cleaning operations, thanks to the guides that also serve as protection for the sieve itself.
Detail of the rotor with enamelled steel paddles that carries out the destemming process (by pressing the grapes onto the sieve).
The frame is equipped with two guides on which the sieve is fixed and on which it slides when pulled out.
Above this is a removable plastic platform that is usually detached for cleaning and maintenance, and which closes the sieve at the top, ensuring that all the grapes that enter are perfectly processed, remaining well concentrated inside and consequently pushed towards it via the rotating vane rotor.
The product is shipped in its original packaging, already assembled.
