GYS Easymig 110 - Inverter Welding Machine (MIG/MAG: GAS, NO GAS and MMA) - direct current (DC)

Add a question
ID: K609007

EAN: 3154020013599

MPN: 013599

GYS Easymig 110 - Inverter Welding Machine (MIG/MAG: GAS, NO GAS and MMA) - direct current (DC)
FREE
GeoTech Welding gloves provided on standard equipment!GeoTech Welding gloves provided on standard equipment!
Type
Wire transformer
Gas / no gas wire (MIG-MAG)
Welding current range (A)
30-100 A
Open circuit voltage
62 Volt
Suitable MMA electrodes
1.6 - 2.5
40°C duty cycle
30 %
Aluminium Welding (optional)
Yes
Wire welding type
MIG - MAG - NO GAS
Generator +/- 15%
Product Features
Model:
Easymig 110
Type:
Wire transformer
Gas / no gas wire (MIG-MAG):
Power supply:
Single-phase electric
Fuse:
16 Amp
Suitable MMA electrodes:
1.6 - 2.5
IP:
21
Open circuit voltage:
62 Volt
220 V max absorbed power:
2.3 KW
Min. required generator power:
3.5 KW
40°C duty cycle:
30 %
40°C duty cycle:
30%@100 A
Welding current range (A):
30-100 A
Suitable cored wire:
0.9
Suitable steel wire:
0.6 - 0.8
Suitable stainless steel wire:
0.8
Wire welding type:
MIG - MAG - NO GAS
Generator +/- 15%:
Aluminium Welding (optional):
Yes
Synergic welding:
No
Manufacturing country:
China
Free gifts/extra features
Welding machine equipment:
Standard supplied accessories
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
38x16x35 cm
Net weight:
7.6 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
42x41x19 cm
Gross weight (packaging included) :
10 Kg
Assembly time:
5 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 05/05/2025 - 07/05/2025
€ 420,84
Vat included
You're viewing:
Customers also viewed:
Description

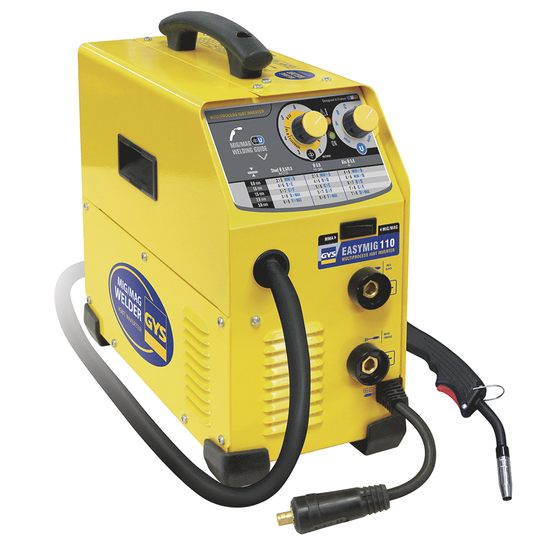

Inverter wire welding machine (MIG/MAG: GAS, NO GAS and MMA) GYS Easymig 110

The GYS SMARTMIG 110 gas-free wire welding machine is a semi-automatic welding machine , ideal for craftsmen and individuals who need a practical and easy-to-use device.

This model is designed to weld steel using NON-GAS technology, which uses a 0.9 mm cored wire, eliminating the need for external gas.

The SMARTMIG 110 stands out for its portability and ease of use.

Weighing only 14 kg, it is extremely handy and can be easily transported for maintenance work in different locations.

The 230V - 13A single phase power supply allows the soldering machine to be used on a common domestic socket, ensuring low power consumption without compromising on performance.

The device is compatible with 100 mm diameter wire spools, offering a compact yet effective solution for soldering operations.

Power Regulation , which has two positions, and wire speed are made easily made thanks to the integrated SMART table.

This feature allows you to easily set ideal parameters based on the thickness of the material being welded, eliminating complex adjustments and optimizing the welding process.

Key features of the GYS SMARTMIG 110:

  • Semi-automatic welding machine with 110A of power.
  • NO GAS technology with 0.9 mm cored wire .
  • Power supply 230V – 13A for low power consumption.
  • Portable and lightweight, it weighs only 14 kg.
  • Compatible with 100 mm reels .
  • Easy adjustment with the SMART Table.

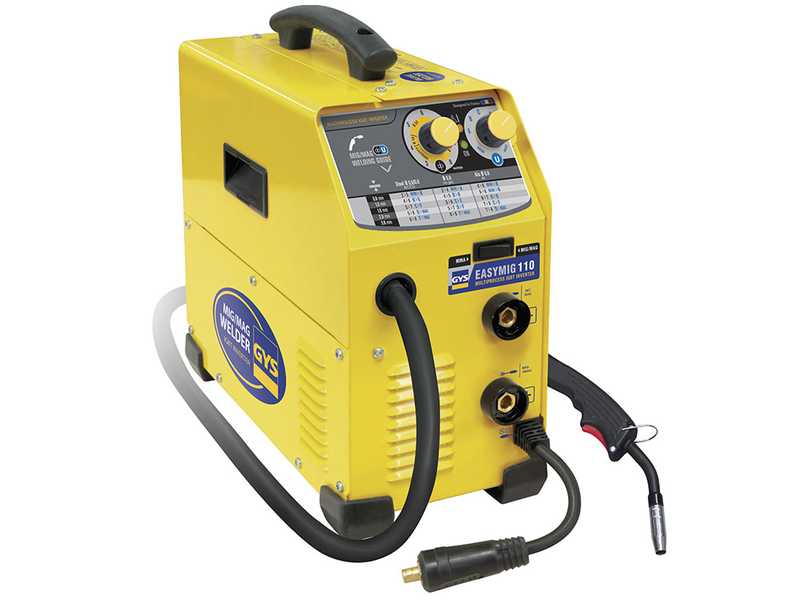

Technical Features and Details

The GYS EASYMIG 110 is distinguished by a set of technical features that make it extremely efficient and versatile.

Thanks to its robust construction, lightweight design and state-of-the-art technology, this welder is suitable for both hobby and semi-professional use.

Below, let's take a closer look at the key technical specifications:

  1. Inverter technology : Inverter technology significantly improves energy efficiency, enabling precise control of welding current and providing lower power consumption than traditional transformer welders. This system enables a high quality weld with a stable duty cycle.

  2. Welding current :

    • Supply voltage: Single-phase motor 230 V
    • Welding current : variable from 30 to 100 A for MIG/MAG and from 20 to 80 A for MMA, providing the flexibility to work on different thicknesses of material.
    • Frequency: 50/60 Hz with a 16 A fuse
  3. Wire Capacity and Electrode Diameter :

    • For MIG/MAG welding : uses wire diameter from 0.6 to 0.8 mm.
    • MMA soldering : supports electrodes with a diameter of 1.6 to 2.5 mm, allowing a wide range of applications on different types of metal.
  4. Working cycle The duty cycle will vary depending on the chosen amperage. For example, at maximum power of 100A in MIG/MAG, the cycle is 15% at 40°C, ensuring work continuity for less demanding applications.

  5. Size and weight:

    • Size: 38 x 16 x 35 cm, making it extremely compact and easy to position in tight spaces.
    • Weight: only 7.6 kg, ideal for mobile work or frequent travel.
Free items & Standard equipment

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

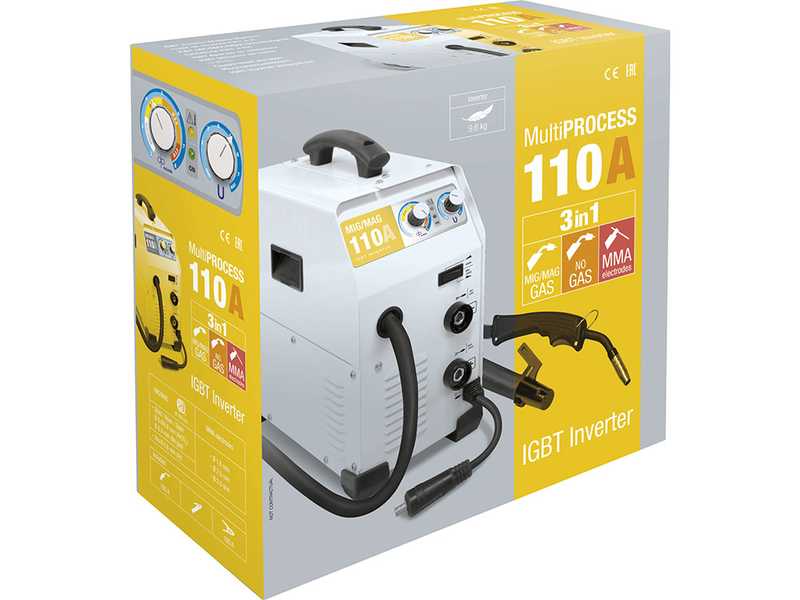

Standard Equipment

The product is shipped in its original packaging along with the instruction manual.

Standard equipment:

  • mag torch connected to machine
  • ground clamp with cable
  • Electrode holder clamp
  • bag of accessories
    • 0.9mm bit
    • gas line
    • bit tightening wrench
    • 1 m gas hose
    • 2 gas pipe clamps
