Description

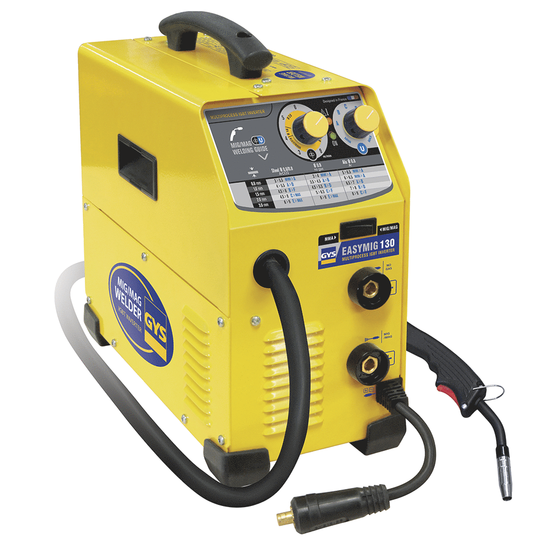

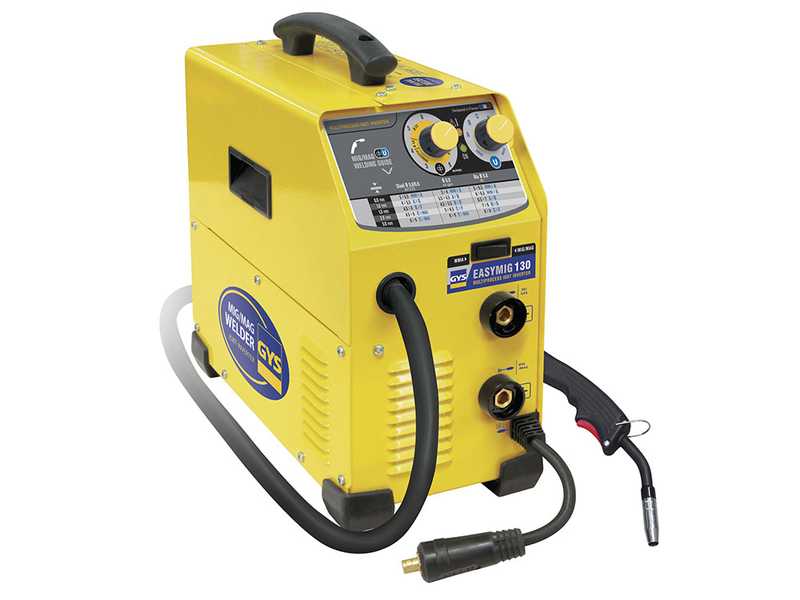

Inverter wire welding machine (MIG/MAG: GAS, NO GAS and MMA) GYS Easymig 130

The GYS Easymig 130 wire welder is a multi-functional device capable of MIG/MAG, solid wire, and MMA welding.

This model is designed for versatility and performance, thanks to the use of inverter technology and the ability to operate in GAS or NON-GAS mode.

With precise adjustment of wire tension and speed, it is suitable for work on steel, stainless steel and aluminum.

Its compact and robust design makes it ideal for domestic, professional and maintenance applications, with a weight of just 8.6 kg making it easy to transport.

Thanks to the intuitive interface , the operator can easily adjust the voltage with a selector switch from 15 to 20 V and the wire speed between 3 and 9 m/min, resulting in precise and reliable soldering .

The GYS Easymig 130 is also equipped with an integrated wire feed system that supports 100 mm coils , with specific rollers for welding with both steel wire and cored wire for NON-GAS operation .

The MAG fixed torch , with a length of 2.20 meters, allows you to work with great freedom of movement.

The GYS Easymig 130 welder also includes safety LEDs for monitoring temperature and thermal protection, ensuring maximum safety during use.

The polarity reversal cable allows a quick switch from GAS to NO GAS mode , providing maximum operational flexibility .

Distinctive features:

Lightweight and portable: weighs only 8.6 kg, with ergonomic handle.
Intuitive adjustment : voltage selection between 15 and 20 V, wire speed adjustable from 3 to 9 m/min.
Compatible with MMA and MIG/MAG: uses 0.6 to 0.9 mm wires and 1.6 to 3.2 mm electrodes.
GAS-free system : ready for gas-free welding with cored wire.

GYS Easymig 130 - Inverter Welding Machine (MIG/MAG: GAS, NO GAS and MMA) - direct current (DC)

Technical Features and Details

The GYS Easymig 130 is distinguished by a set of technical features that make it extremely efficient and versatile.

Thanks to its robust construction, lightweight design and state-of-the-art technology , this welding machine is suitable for both hobby and semi-professional use. The versatility between MIG/MAG, NO GAS and MMA modes ensures optimum performance on a variety of materials, such as steel, stainless steel and aluminum.

Below, let's take a closer look at the key technical specifications:

Inverter technology : Inverter technology significantly improves energy efficiency, enabling precise control of welding current and providing lower power consumption than traditional transformer welders. This system enables a high quality weld with a stable duty cycle.

Welding current :

Supply voltage: Single-phase motor, 230 V
Welding current : variable from 30 to 120 A for MIG/MAG and from 10 to 130 A for MMA, providing the flexibility to work on different thicknesses of material.
Frequency: 50/60 Hz with a 16 A fuse .

Wire Capacity and Electrode Diameter :

For MIG/MAG welding : uses wire with a diameter of 0.6 to 0.9 mm.
For MMA soldering : supports electrodes with a diameter of 1.6 to 3.2 mm, allowing a wide range of applications on different types of metal.

Working cycle: The duty cycle will vary depending on the amperage chosen. For example, at maximum power of 120A in MIG/MAG, the cycle is 15% at 40°C, ensuring work continuity for less demanding applications.

Size and weight:

Size: 38.6 x 16.5 x 36.5 cm, making it extremely compact and easily positioned in small spaces.
Weight: only 8.6 kg, ideal for mobile work or frequent travel.

Free items & Standard equipment

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Standard Equipment

The product is shipped in its original packaging along with the instruction manual.

Standard equipment:

mag torch connected to machine
ground clamp with cable
Electrode holder clamp
bag of accessories
- 0.9mm bit
- gas line
- bit tightening wrench
- 1 m gas hose
- 2 gas pipe clamps
