Description

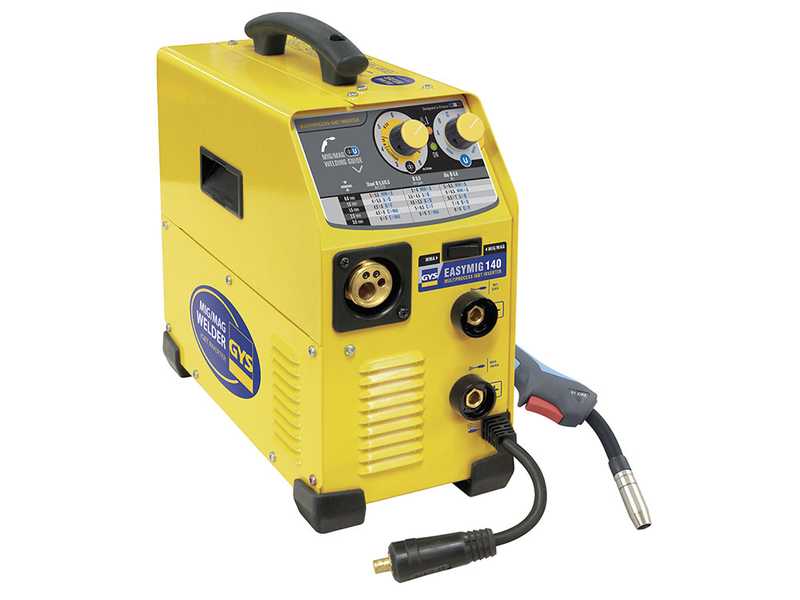

Inverter wire welding machine (MIG/MAG: GAS, NO GAS and MMA) GYS Easymig 140

The GYS EASYMIG 140 Multi-process GAS/NO-GAS wire Inverter Welder is a semi-automatic device designed for MIG/MAG , MMA and solid wire welding.

Thanks to its inverter technology , it offers an optimized power management, ensuring a superior welding quality on steel, stainless steel and aluminum.

This compact soldering machine is designed for versatile use, suitable for professionals and hobbyists alike, thanks to its ability to solder with or without gas.

Weighing only 7.8 kg, the GYS EASYMIG 140 is easy to transport and can be used even in confined spaces.

Intuitive voltage Regulation, ranging from 15 to 22 V, and wire speed, varying from 3 to 9 m/min, ensure precise control and suitable for different applications.

In addition, it has a simplified display system thanks to two LEDs, which indicate the thermal safety status and the power supply.

The integrated wire feed system supports 100 mm reels with a 2-roller motor for precise and stable wire feeding.

The wire diameter ranges from 0.6 to 0.8 mm for MIG/MAG and 1.6 to 3.2 mm for MMA.

The welder includes a MIG/MAG torch with a quick and detachable connection, designed to operate up to 140 A, with a cable length of 2.20 m.

Main features:

Inverter technology : reduces power consumption and improves welding quality.
MIG/MAG and MMA MFPs : welding with or without gas.
Lightweight and portable: weight of 7.8 kg with ergonomic handle.
Intuitive adjustment : voltage from 15 to 22 V, wire speed 3-9 m/min.
Detachable torch : solder capacity up to 140 A with 2.2 m cable.

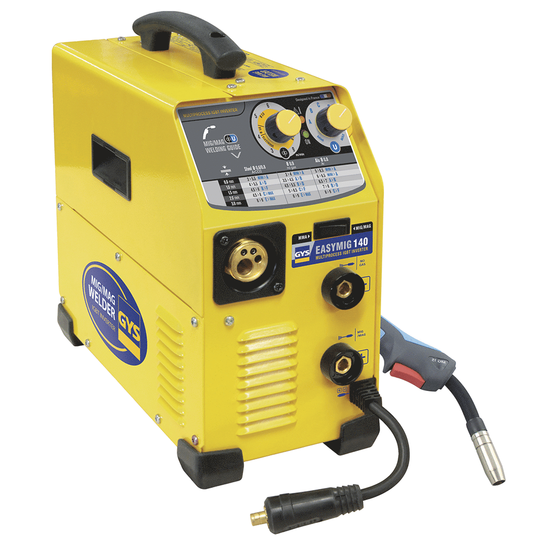

GYS Easymig 140 - Inverter Welding Machine (MIG/MAG: GAS, NO GAS and MMA) - direct current (DC)

Technical Features and Details

The GYS EASYMIG 140 is distinguished by a set of technical features that make it extremely efficient and versatile.

Thanks to its robust construction, lightweight design and state-of-the-art technology, this welding machine is suitable for both hobby and semi-professional use.

The versatility between MIG/MAG, NO GAS and MMA modes ensures optimal performance on different materials, such as steel, stainless steel and aluminum.

Below, let's take a closer look at the main technical specifications:

Inverter technology : Inverter technology significantly improves energy efficiency, allowing precise control of welding current and providing lower power consumption compared to traditional transformer welding machines. This system enables a high quality weld with a stable duty cycle.
Welding current:
- Supply voltage: Single-phase motor, 230 V
- Welding current: variable from 30 to 140 A for MIG/MAG and from 10 to 80 A for MMA, providing the flexibility to work on different thicknesses of material.
- Frequency: 50/60 Hz with a 16 a fuse
Wire Capacity and Electrode Diameter :
- For MIG/MAG welding : uses wire with a diameter of 0.6 to 0.8 mm.
- For MMA soldering : supports electrodes with a diameter of 1.6 to 3.2 mm, allowing a wide range of applications on different types of metal.
Working cycle at 40: The duty cycle will vary depending on the amperage chosen. At maximum power of 140 A in MIG/MAG, the cycle is 10% at 40°C, while at power of 60 A the duty cycle is 60%, ensuring optimum work continuity even at low to medium power.
Size and weight:
- Size: 38 x 16 x 35.5 cm, making it extremely compact and easily positioned in small spaces.
- Weight: only 7.8 kg, ideal for mobile work or frequent travel.

Free items & Standard equipment

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Standard Equipment

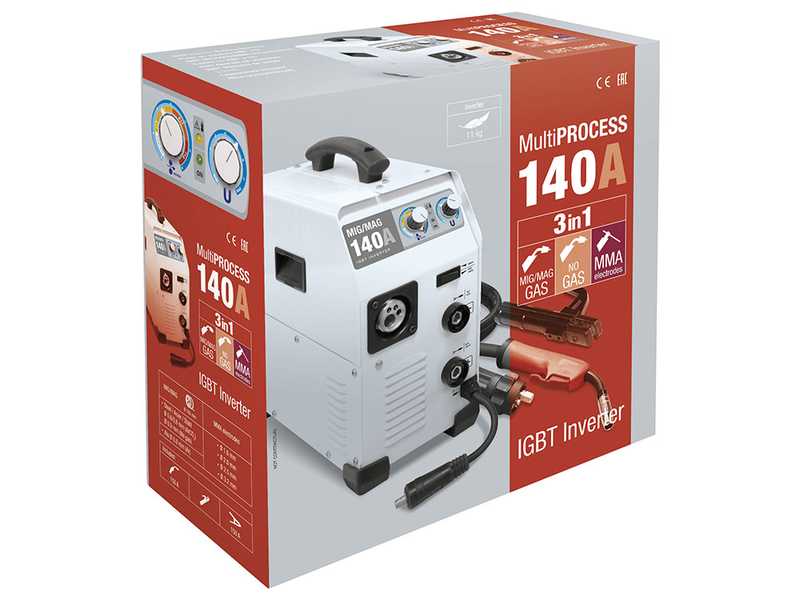

The product is shipped in its original packaging along with the instruction manual.

Standard equipment:

mag torch connected to machine
ground clamp with cable
Electrode holder
bag of accessories
- 0.9mm bit
- gas line
- bit tightening wrench
- 1 m gas hose
- 2 gas pipe clamps
