Description

Gys GYSMI 160P inverter welder

The GYS Easymig 160 wire welding machine is a semi-automatic inverter device, ideal for craft work or for home use.

Designed for MIG/MAG welding, both gas and gas-free, it also supports the MMA (coated electrode) process.

Due to its versatility, it is recommended for welding materials such as steel, stainless steel and aluminum, making it suitable for different applications.

Equipped with a 2-roller wire feeder that accommodates 100 mm (1 kg) and 200 mm (5 kg) reels, the machine ensures a constant feed of the wire.

The intuitive adjustment makes it easy to select the voltage (15 to 21 V) and wire feed speed (3 to 10 m/min).

In addition, inverter technology ensures a stable and quality welding arc, improving energy efficiency.

Its compact design and low weight (10.1 kg) make it ultra-light and easy to carry, ideal for work on the go.

The device is powered from a single-phase 230 V – 16 A socket, making it compatible with normal home networks.

It comes with included accessories such as earthing clamp, MIG/MAG torch and electrode holder for immediate use.

Distinctive features:

Multi-process: MIG/MAG with and without gas, MMA.
Material compatibility : Welding of steel, stainless steel and aluminum.
Lightweight and portable: it weighs only 9.6 kg.
Integrated wire Trailer : supports 100 and 200 mm coils .
Single-phase power supply 230 V – 16 A.
Accessories included: MIG/MAG torch, earthing clamp and electrode holder.

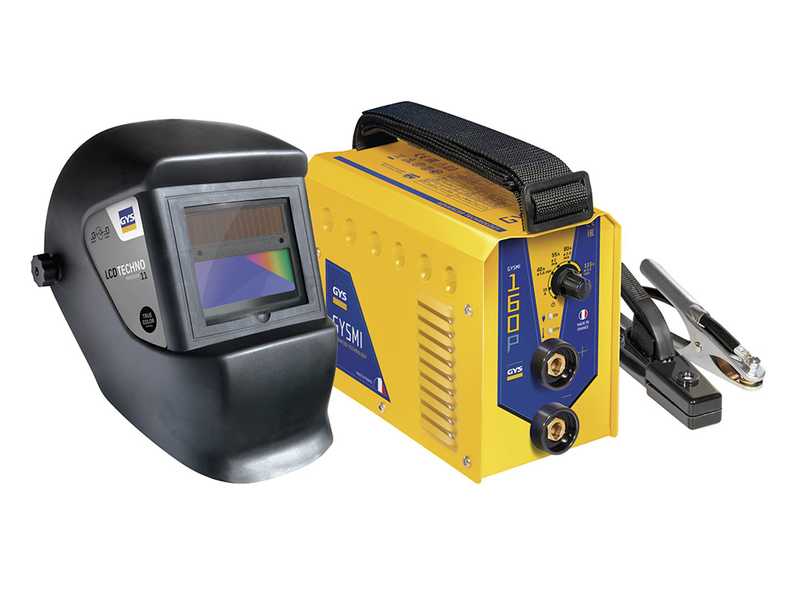

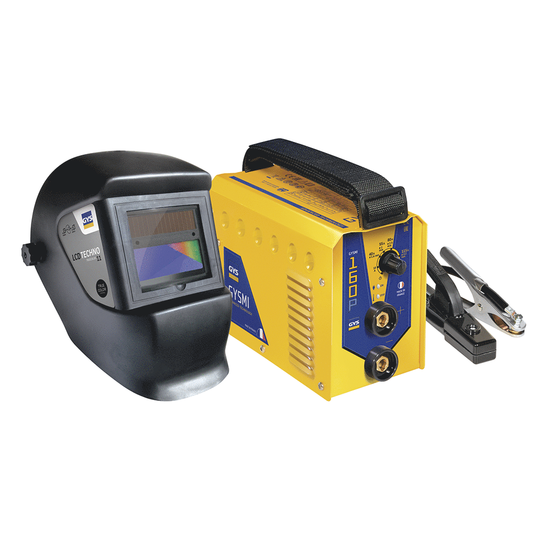

GYS GYSMI 160P - Inverter Welding Machine (MMA) - direct current (DC) - Mask

Technical features

The GYS Easymig 160 stands out for its advanced technical features, making it a versatile tool suitable for different soldering applications.

This inverter welder combines three different welding modes into one device: MIG/MAG with gas, MIG/MAG without gas and MMA (coated electrode).

This flexibility allows you to work with a wide range of materials, including steel, stainless steel and aluminum.

Key technical specifications:

Welding processes : supports MIG/MAG (gas and gas free) and MMA.
Welding current : adjustable from 30 to 160 A, ensuring the right power to work on different thicknesses of metal.
Inverter technology: improves the quality of the welding arc, optimizing efficiency and reducing energy consumption.
Supported reels : compatible with Ø 100 mm (1 kg) and Ø 200 mm (5 kg) wire reels , offering flexibility to suit your work needs.
Compatible wire thicknesses: Ø 0.6 to 0.8 mm for MIG/MAG with gas and Ø 0.9 mm for MIG/MAG without gas.
Supported electrodes: Ø 1.6 to 3.2 mm, with anti-sticking function to prevent electrode sticking.
Weight and size: 10.1 kg in weight, in compact dimensions.

Functional Details:

The Easymig 160 welder has an intuitive control panel that allows you to fine-tune the welding voltage (15 to 22 V) and wire speed (3 to 10 m/min).

Two control LEDs indicate thermal and voltage safe status, ensuring safe operation.

In addition, the polarity reversal cable allows you to easily switch between gas-filled and gas-free soldering.

Key features:

Intuitive wire speed and voltage adjustment.
Inverter technology for quality welding.
Compatible with different thicknesses of wires and electrodes .
Compact design for easy portability.
Anti-sticking function to avoid electrode sticking.

Free items & Standard equipment

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

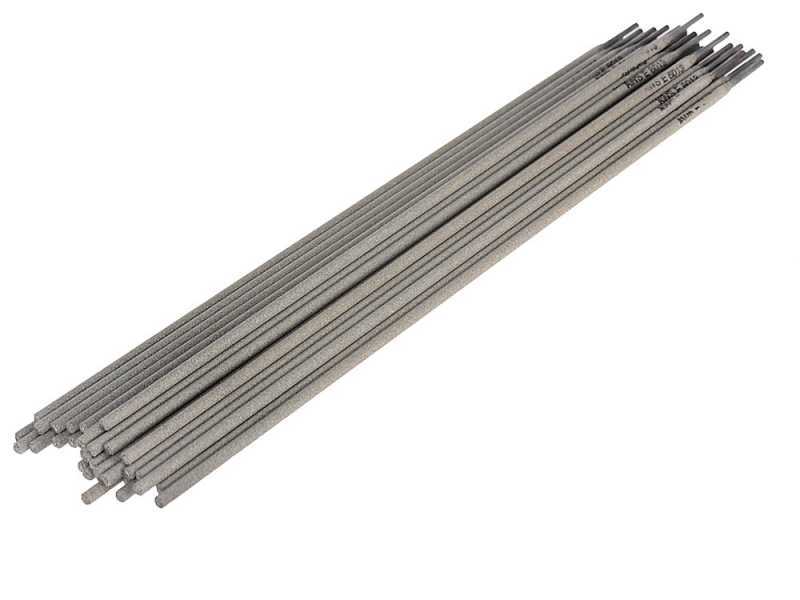

FOR FREE: 230 AWS 2.0 mm electrodes

FOR FREE: Pack of 230 AWS 2.0 mm electrodes. This kit offers a wide range of options for precise, quality welds. Suitable for various applications, it guarantees excellent adhesion and good results.
