Description

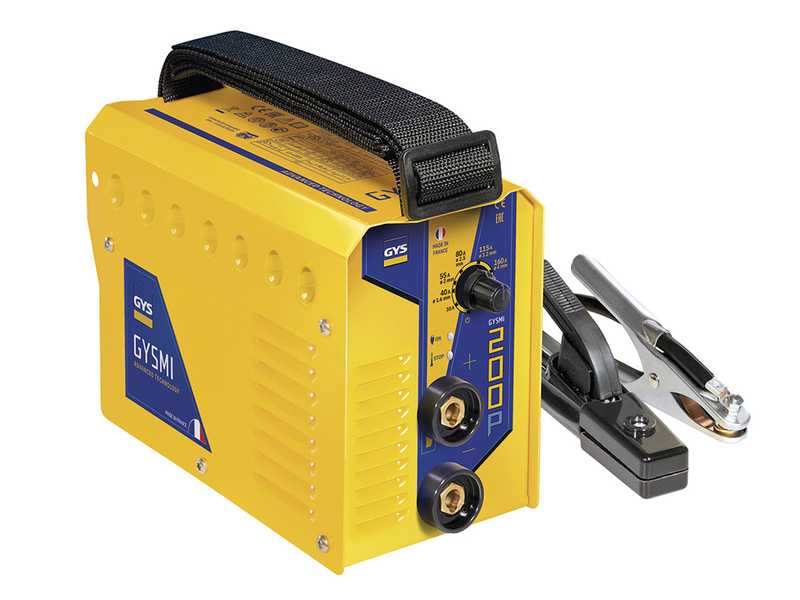

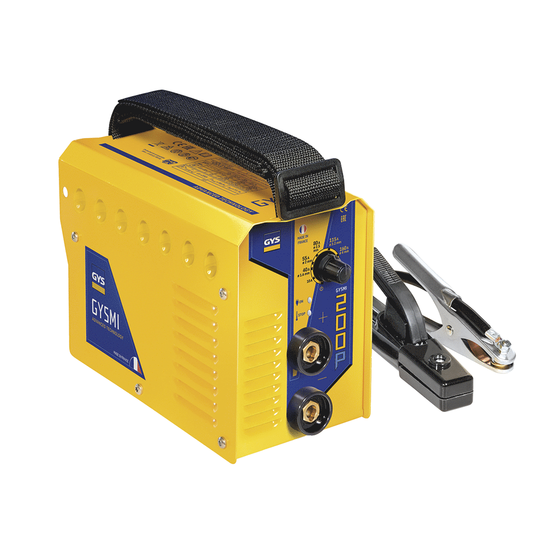

Gys GYSMI 200P inverter welder

The GYS GYSMI 200P electrode welding inverter is a professional solution for welding on steel, cast iron and stainless steel up to 10 mm thick.

Equipped with microprocessor-controlled inverter technology, this machine guarantees high and consistent performance , making it suitable for both advanced hobby and professional applications.

Thanks to its modulating welding current from 10 to 200 A, the device is able to work with electrodes with a diameter of between 1.6 mm and 5 mm, thus covering a wide range of applications.

The GYS GYSMI 200P incorporates several features that facilitate the soldering process.

The Hot Start system makes it easier to prime the electrode, improving the weld quality from the start.

The Anti Sticking function reduces the risk of the electrode sticking to the workpiece, while Arc Force technology automatically adjusts the current according to the arc length, ensuring smooth and consistent fusion.

These features make the GYSMI 200P particularly versatile and easy to use.

In addition to its advanced features, the welder is extremely practical.

With a weight of only 5 kg and compact dimensions (14x18x27 cm), it is easily transportable and suitable for operations in confined spaces.

The device also features surge protection up to 400 V (PROTEC 400), ensuring safety during use.

It comes with a handy case containing the ground cable and electrode holder for immediate use.

Distinctive features:

Microprocessor inverter technology
Modulating current from 10 to 200 A
Advanced functions : Adjustable Hot Start, Anti-sticking, Arc Force.
Light and compact: 5 kg (14x18x27 cm)
Surge protection : up to 400 V

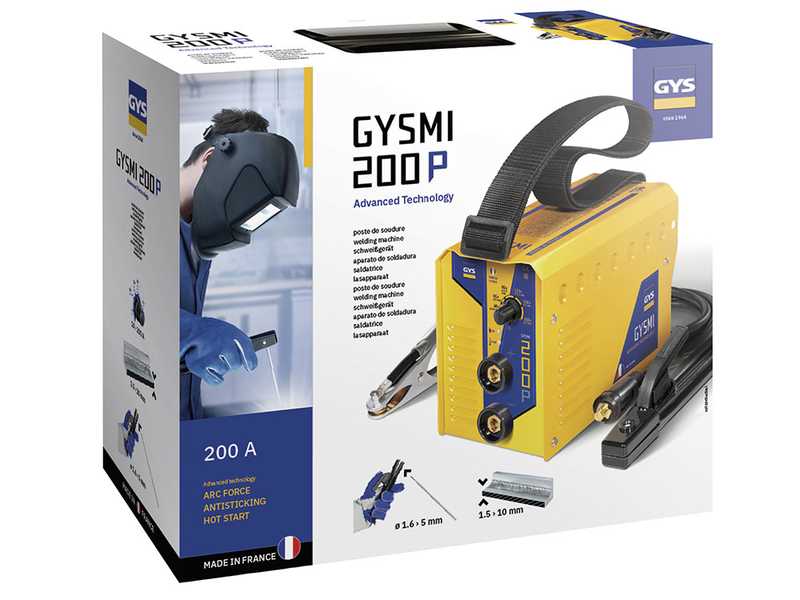

GYS GYSMI 200P - Inverter (MMA) welding machine - direct current (DC) - Case

Technical features

The GYS GYSMI 200P FV inverter welding machine is designed to deliver high performance in a compact, lightweight package, combining advanced technology and ease of use for a wide range of welding applications on steel, cast iron and stainless steel .

Here are the key technical data and details that highlight the capabilities of the device:

Welding current: Adjustable from 10 to 200 A, suitable for various electrode types and thicknesses.
No-load voltage: 72V, for quick and safe arc initiation.
Power supply: Single-phase 230 V – 32 A, compatible with standard electrical installations and with integrated surge protection up to 400 V (PROTEC 400).
Diameter of electrodes: Supports electrodes from Ø 1.6 mm to Ø 5 mm, including rutile, basic, stainless and cast iron.
Power consumption: 7 kW, also suitable for use with compatible generators.
Weight: 5 kg, extremely light and easy to carry.
Size: 14 x 18 x 27 cm, compact and ideal for transport and storage in confined spaces.

Functionality and security:

HOT START Increased power on ignition to facilitate arc ignition.
Arc force: Automatic current adjustment to maintain arc stability in difficult welding situations, ensuring a homogeneous bead.
Anti sticking: Prevents the electrode from sticking to the workpiece, protecting the device and the processed material.
Insensitivity to current fluctuations : Ensures constant welding power even under unstable voltage conditions.

Included accessories:

Ground cable with clamp (1.6m / Ø10mm²).
Electrode holder with cable (1.6m / Ø10mm²).
Transport handle

Free items & Standard equipment

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

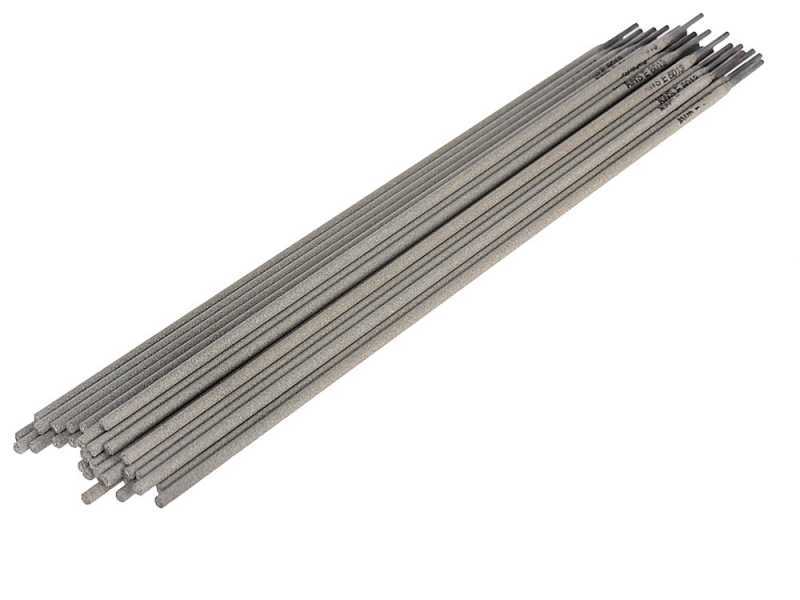

FOR FREE: 230 AWS 2.0 mm electrodes

FOR FREE: Pack of 230 AWS 2.0 mm electrodes. This kit offers a wide range of options for precise, quality welds. Suitable for various applications, it guarantees excellent adhesion and good results.
