GYS GYSMI 80P - Inverter (MMA) welding machine - direct current (DC) - Case

Add a question
ID: K608970

EAN: 3154020029941

MPN: 029941

GYS GYSMI 80P - Inverter (MMA) welding machine - direct current (DC) - Case
FREE
Pack of 140 AWS 2.5 mm electrodesPack of 140 AWS 2.5 mm electrodes
GeoTech Welding gloves provided on standard equipment!GeoTech Welding gloves provided on standard equipment!
Type
Inverter MMA
MMA electrode
Welding current range (A)
10 - 80
Open circuit voltage
83 Volt
Suitable MMA electrodes
1.6 - 2.5
40°C duty cycle
5 %
Generator +/- 15%
Ultra-compact size
Yes
Manufacturing country
France
Product Features
Model:
GYSMI 80P
Type:
Inverter MMA
MMA electrode:
Power supply:
Single-phase electric
Fuse:
10 Amp
Suitable MMA electrodes:
1.6 - 2.5
IP:
21S
Open circuit voltage:
83 Volt
220 V max absorbed power:
2.3 KW
Min. required generator power:
3 KW
40°C duty cycle:
5 %
40°C duty cycle:
5%@80A
Welding current range (A):
10 - 80
Generator +/- 15%:
Synergic welding:
No
Manufacturing country:
France
Free gifts/extra features
Welding machine equipment:
Standard supplied accessories
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
10x14x23 cm
Net weight:
2.3 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
30x19x18 cm
Gross weight (packaging included) :
3.2 Kg
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 14/04/2025 - 16/04/2025
€ 229,83
Vat included
You're viewing:
Customers also viewed:
Description

Gys GYSMI 80P inverter welder

The Gys GYSMI 80P inverter welding machine is an advanced device designed to deliver superior performance in an extremely compact form factor.

Thanks to the microprocessor-controlled inverter technology, this welding machine guarantees a revolutionary arc dynamics, unique in its kind.

It is able to weld a wide range of electrodes, including rutile electrodes, cast iron and stainless steel, using direct current (DC), ensuring a smooth and constant fusion.

Its small size (10x14x23 cm) and weight of only 2.5 kg make it easy to carry and handle, ideal for both professional and hobby use.

The GYSMI 80P also stands out for its low power consumption, which makes it efficient and cost-effective to use under various operating conditions.

Its main technical features include HOT start, ANTI STICKING and ARC FORCE.

The HOT start function temporarily increases the power at start-up, making it easier to ignite the arc.

ANTI STICKING reduces the risk of electrode sticking during work contact, while ARC FORCE instantaneously increases the current in difficult welding situations, ensuring excellent penetration and flawless arc stability.

The device is designed to be insensitive to local current fluctuations or arc length, offering constant welding power and optimum penetration.

The very high no-load voltage allows for immediate triggering, simplifying the entire soldering process.

Key features of the Gys GYSMI 80P Inverter Welder:

  • Microprocessor inverter technology for advanced arc dynamics.
  • HOT start, ANTI STICKING and ARC FORCE functions for optimal performance.
  • Compact, lightweight design (2.5 kg) with low power consumption.
  • Ability to weld with rutile electrodes, cast iron and stainless steel in direct current .
  • Insensitivity to current fluctuations and quick start.

Technical features

The GYS GYSMI 80P FV inverter welding machine is designed to deliver high performance in a compact, lightweight package, combining advanced technology and ease of use for a wide range of welding applications on steel, cast iron and stainless steel .

Here are the key technical data and details that highlight the capabilities of the device:

  • Welding current: Adjustable from 10 to 80 A, suitable for various electrode types and thicknesses.
  • No-load voltage: 85V, for quick and safe arc initiation.
  • Power supply: Single phase 230V – 10A, compatible with standard electrical systems
  • Diameter of electrodes: Electrode diameter: Accepts electrodes from Ø 1.6 mm to Ø 4.0 mm, including rutile, basic, stainless steel and cast iron.
  • Power consumption: 3 kW, also suitable for use with compatible generators.
  • Weight: 2.5 kg, extremely light and easy to carry.
  • Size: 10 x 14 x 23 cm, compact and ideal for transport and storage in confined spaces.

Functionality and security:

  • Hot start Increased power on ignition to facilitate arc ignition.
  • Arc force: Automatic current adjustment to maintain arc stability in difficult welding situations, ensuring a homogeneous bead.
  • Anti sticking: Prevents the electrode from sticking to the workpiece, protecting the device and the processed material.
  • Insensitivity to current fluctuations : Ensures constant welding power even under unstable voltage conditions.
  • EN60974-1 compliant: Safety standard that ensures safe operation even at high temperatures (40°C)

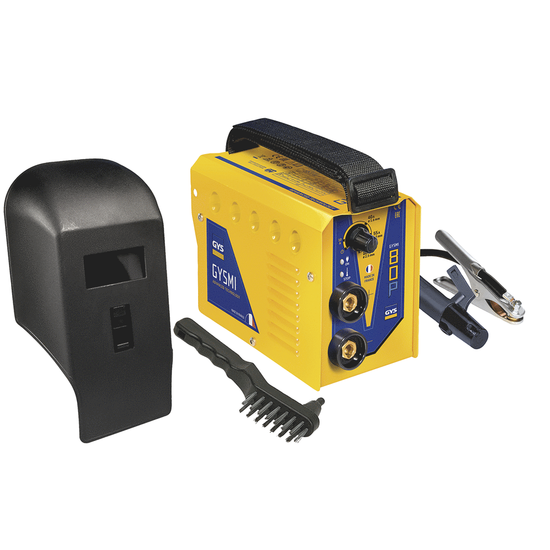

Accessories included:

  • Earth cable with clamp (1.6m / Ø10mm²).
  • Electrode holder with cable (1.6m / Ø10mm²).
  • Welding mask
  • Brush hammer
  • Box for transport and storage.
Free items & Standard equipment

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Free items included

The product is shipped in its original packaging along with the instruction manual.

Wide range of accessories provided on standard equipment:

Earth clamp with 1.6 m power cable ø10 mm

Electrode holder clamp with 2 m cable ø10 mm
