Description

Inverter welder Gys Gysmi E163

The GYS GYSMI E200 FV inverter welding machine is a professional electrode welding machine (MMA) with direct current, ideal for machining on steel, cast iron and stainless steel up to 10 mm thick.

Thanks to its advanced technology , the GYSMI E200 FV is designed to offer high performance under various operating conditions, even with unstable power supply or with prolonged use of extension cords or generator sets .

This inverter welding machine is equipped with flexible Voltage (PV) technology, which allows you to work with voltages ranging from 85 to 265V, giving you maximum flexibility on the job site.

In addition, Power Factor Correction (PFC) improves energy efficiency by reducing power consumption by up to 30%.

Integrated surge protection up to 400V (PROTEC 400) further increases operational safety.

The GYSMI E200 FV also supports TIG lift (DC) welding, ideal for obtaining precise finishes on thin sheets from 1 to 5 mm.

Its advanced features include Adjustable Hot Start , Anti-Sticking and Arc Force, which facilitate priming, reduce the risk of electrode binding and improve arc penetration.

The device is equipped with a digital interface with clear display, which allows the welding current to be adjusted from 10 to 200A.

It is compatible with electrodes from 1.6 to 5 mmin diameter, offering great versatility for a variety of applications.

Main features:

Flexible Voltage (PV) technology: Operates with voltages from 85 to 265V.
Power Factor Correction (PFC): 30% reduction in energy consumption.
PROTEC 400 protection: Surge protection up to 400V.
Advanced Features: Adjustable Hot Start , Anti-sticking , Arc Force.
TIG lift (DC) compatibility: Precise welding on thin sheet metal.

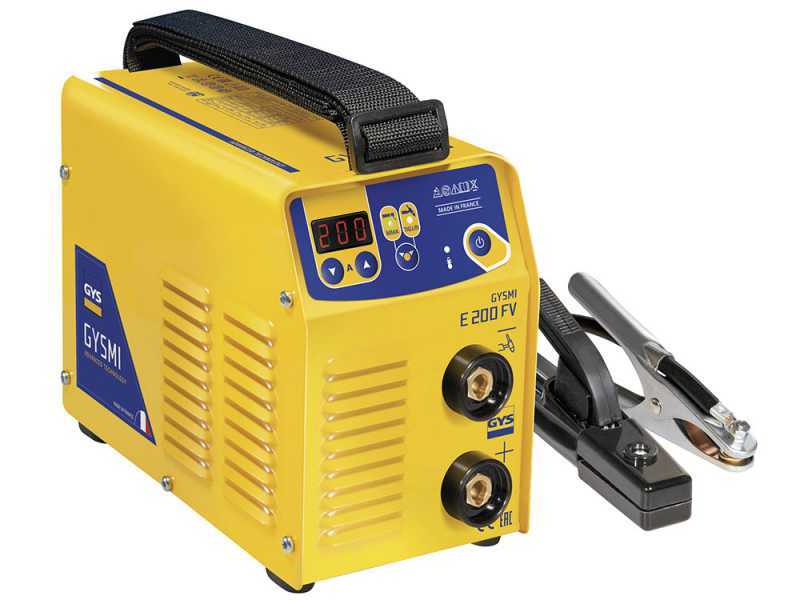

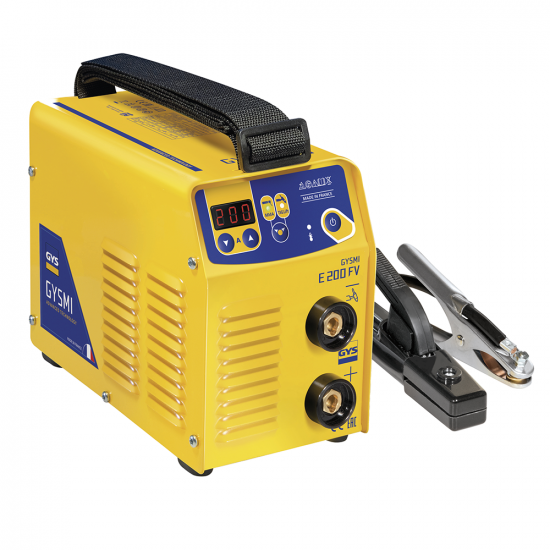

GYS Gysmi E200 FV - Inverter Welding Machine (MMA, TIG Lift) + Case, Direct Current (DC)

Technical features

The GYS GYSMI E200 FV inverter welding machine is designed to deliver high performance in a compact, lightweight package, combining advanced technology and ease of use for a wide range of welding applications on steel, cast iron and stainless steel .

This model stands out for its versatility, thanks to the possibility to use both the MMA (coated electrode) mode and the TIG lift DC mode , which allow you to successfully tackle both precision welding jobs and more complex applications.

Here are the key technical data and details that highlight the capabilities of the device:

Welding current: Adjustable from 10 to 200 A, suitable for various types and thicknesses of electrodes, including those for steel, stainless steel and cast iron.
Open circuit voltage: 96V, for quick and safe arc initiation.
Power supply: Single-phase 110-230 V, compatible with standard electrical systems, with PV technology to operate on variable voltages from 85 V to 265 V and integrated protection against surges up to 400 V (PROTEC 400).
Electrode diameter: Accepts electrodes from Ø 1.6 mm to Ø 5 mm, including rutile, basic, stainless steel and cast iron.
Weight: Portability: easy to carry, ideal for use on the move.
Overall size: 27.5 x 14 x 21.5 cm, compact and ideal for transport and storage in confined spaces.

Functionality and security:

Adjustable HOT start: Increased power on ignition to facilitate arc ignition and prevent initial problems, with the possibility to adjust the intensity to suit different materials.
ARC FORCE: Automatic current adjustment to maintain arc stability in difficult welding situations, ensuring a homogeneous bead.
ANTI STICKING: Prevents the electrode from sticking to the workpiece, protecting the device and the processed material.
TIG lift DC: A tear-free function during the arc-off phase for a quality finish.

Accessories included:

Earth cable with clamp (1.6m / Ø16mm²).
Electrode holder with cable (2m / Ø16mm²).
Rugged carrying case for easy carrying of the device.

Free items & Standard equipment

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

FOR FREE: 230 AWS 2.0 mm electrodes

FOR FREE: Pack of 230 AWS 2.0 mm electrodes. This kit offers a wide range of options for precise, quality welds. Suitable for various applications, it guarantees excellent adhesion and good results.
