Description

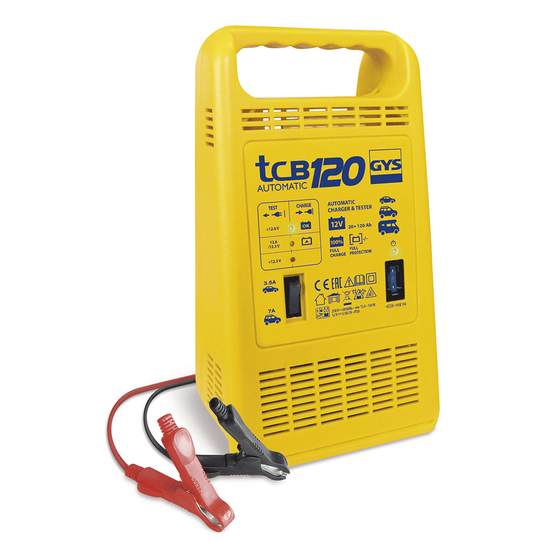

GYS TCB 120 - Automatic Charger - 12V Batteries 20 to 120Ah

The GYS TCB 120 AUTOMATIC charger is an advanced device designed for automatic charging of 12V batteries with capacities between 20 and 120 Ah.

Ideal for lighter vehicles, campers and other vehicles with petrol or diesel engines, the charger provides safe and supervision-free charging.

Thanks to the Floating Process technology, it keeps the battery at 100% automatically, extending battery service life and optimising efficiency.

The device features two charging speeds, adjustable between 3.5A and 7A, allowing the process to be adapted to the specific needs of the battery.

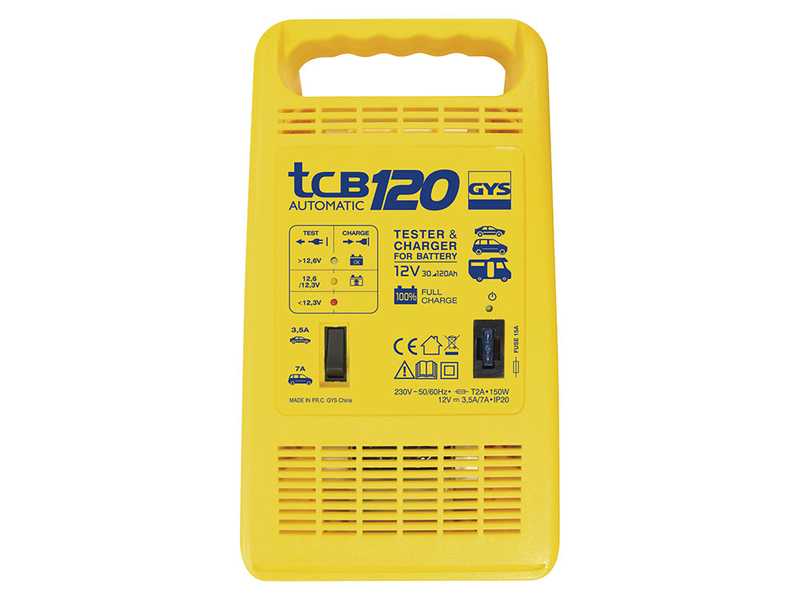

The three indicator lights allow clear and immediate monitoring of the charging status.

Additionally, the automatic surge limiter protects the vehicle's on-board electronics, making charging possible without having to unplug the battery from the vehicle.

The charger is equipped with advanced protections, including reverse polarity, overload and short-circuit protection.

An acoustic alarm warns in case of faulty connections. The compact design, with insulated charging clamps and a practical cable management system, ensures safe and convenient use in every situation.

Distinctive features:

Floating process: automatically maintains 100% charge, extending battery life.
Dual charging speed: adjustable between 3.5A and 7A, for fast or standard charging.
Easy monitoring: display of charging status via three indicator lights.
Universal compatibility: for batteries from 15 to 120 Ah, without the need to unplug the battery from the vehicle.
Electronic protection: automatic surge limiter and acoustic warning for polarity reversals.

GYS TCB 120 - Automatic Charger - 12V Batteries 20 to 120Ah

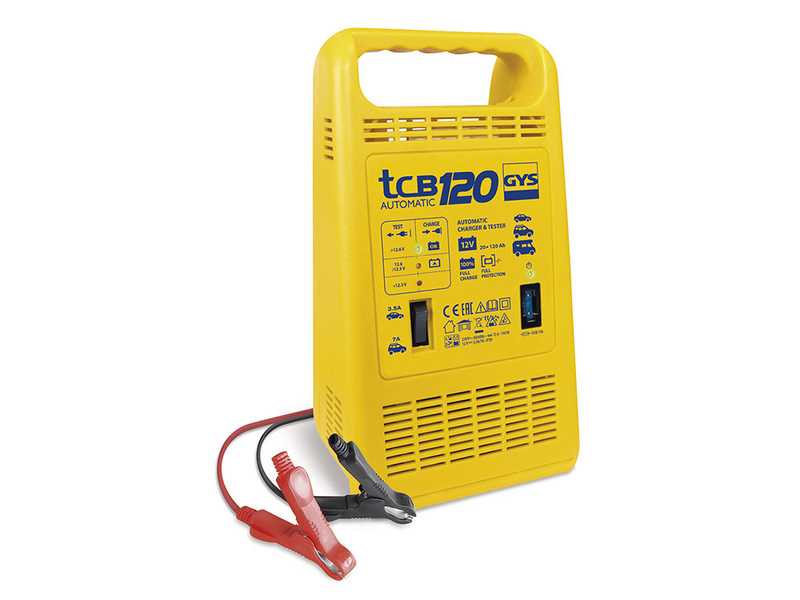

Technical Features

The GYS TCB 120 AUTOMATIC charger offers an efficient and safe solution for charging 12V batteries with capacities ranging from 20 to 120 Ah.

Thanks to its compact and lightweight design, it is ideal for light vehicles, campers and starter batteries.

This automatic device ensures high reliability by protecting the battery and the vehicle's on-board electronics.

The main technical specifications of the charger include:

Power supply: it operates with an input voltage of 230V and a frequency of 50-60Hz, with a maximum power of 150W. This ensures stable use and is suitable for most domestic or professional applications.
Battery compatibility: designed for batteries from 20 to 120 Ah, the charger is compatible with maintenance-free or liquid batteries, common in lighter vehicles and campers.
Output voltage: provides a voltage of 12V, making it suitable for most lighter vehicles and starter batteries.
Charging current: the charger has two adjustable charging modes, with a current ranging from 3.5A to 7A, adapting to different battery requirements.
Protection and safety: equipped with a 15A fuse, reverse polarity, overload and short-circuit protection, as well as an automatic surge limiter for maximum safety during charging
Protection rating: certified with IP20, it protects against dust and moisture, ensuring a long product life.
Size and weight: compact and handy, measuring 12 x 17 x 29 cm and weighing 3.2 kg, easy to transport.
