Description

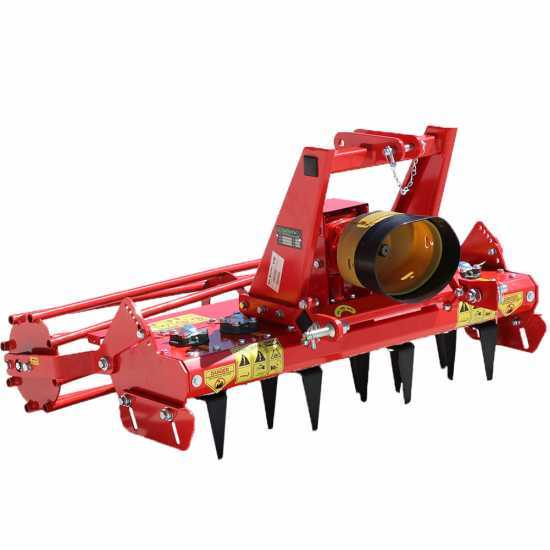

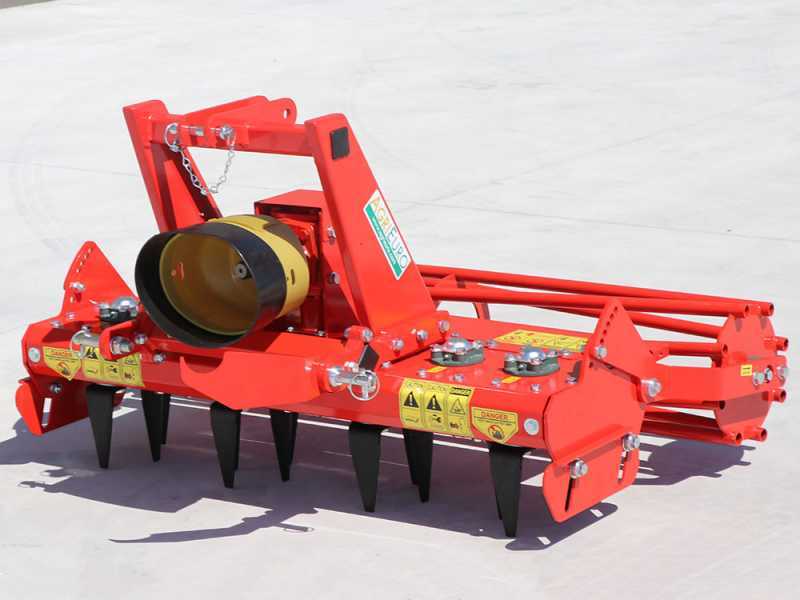

RO 120 rolling harrow

CAUTION: THE MACHINE IS DESIGNED ONLY FOR THOSE TRACTORS HAVING A COUNTERWISE PTO (that rotates left).

LIGHT series

Useful working width: 120 cm. Suitable for tractors from 12-25 HP

The RO120 rolling harrow is a sturdy and professional tool for soil refining.

Used to prepare the seed bed thanks to the knives with rotary and vertical movement with respect to the ground. They make the ground porous and extremely permeable.

Moreover, thanks to the blades action, this tool is able at uprooting the turf instead of cutting it, thus impeding its growth for a prolonged period of time.

The well sealed transmission unit, the sturdy cast iron reducer and the rotors with a round body prevent the machine from frequently blocking and enable to work even on hard or stony grounds.

WARNING!

Warning: this machine is shipped ready for use. After the assembly, check for bolts loosening and fasten.
Before using this product, please carefully read the instructions manual.

Attention: this product is not available for prompt delivery but will be custom-made according to the order. Therefore, it is excluded from the Right of Withdrawal and the 30-day Return policy, as per Legislative Decree no. 206/2005, Article 59, paragraph 1, letter c.

Heavy-duty RO 120 Power Harrow - 120 cm working width - 14 blades - light size - Counterclockwise PTO (left-hand rotation)

Technical features

Harrow technical features:

Outer dimension: 142 cm
Real working width: 120 cm
Weight: 172 kg
Indicated demand: 12-25 HP
Working height: 16 cm
No. of knives per rotor: 2
Number of knives: 14
Numer of rotors: 7

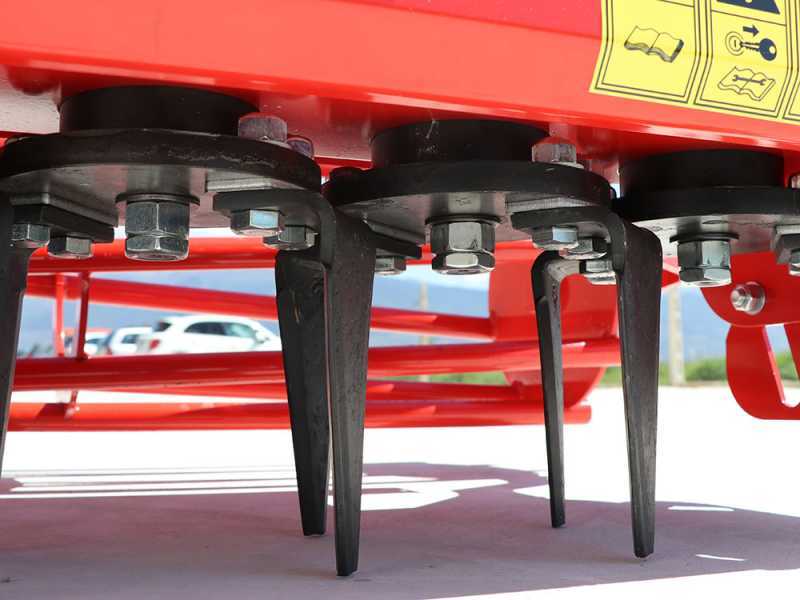

Knives and transmission

Steel knives:

no. 7 discs
2 hoes each (14 in total)

Reversible double-edged knives:

Given the opposite rotor movement, it is possible to switch them on the still sharpened side of the blade among the various rotors. They are universal and can therefore be used both clock and counterclockwise.

Focus on the single greasing point of each rotor, each one with its own bearing.

Gearbox with cast iron reducer.

Transmission with gears in oil bath.

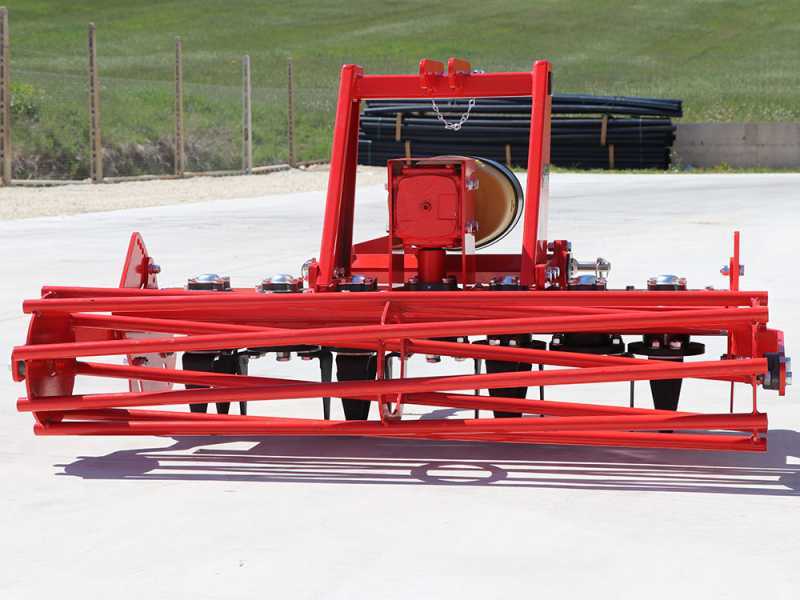

Hydraulic side shift and 3 points hitch

The harrow is equipped with manual adjustment for the roller.

Focus on the adjusting screws.

The cage roller slightly compacts the just tilled soil by the blades by making it airy on more levels.

The swivelling side carters enable a uniform soil tilling by preventing the clumps from moving beyond the working surface but adapting to the imperfections of the area.

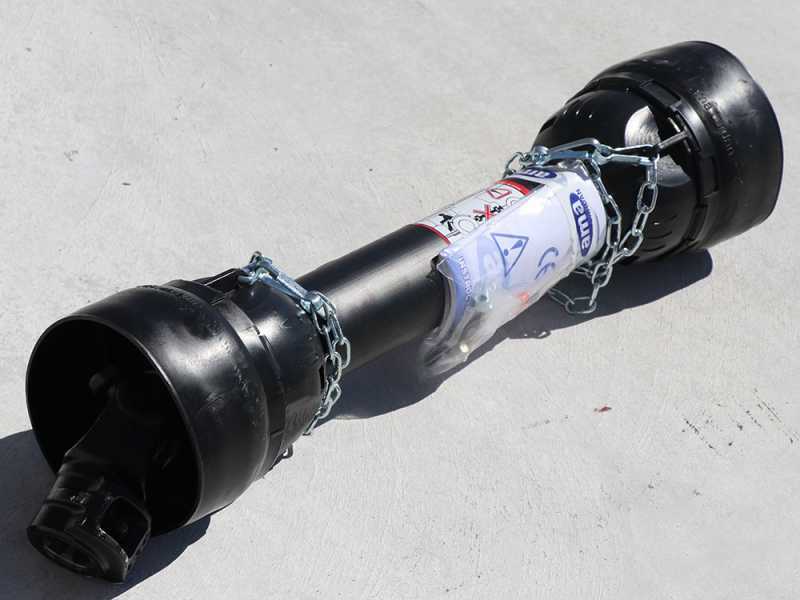

Support for the cardan joint for long storages.

3-point hitch, first category.
