Honda ADG 35 HC-Z - Backpack brush cutter with 4-stroke gasoline engine - Attila rod

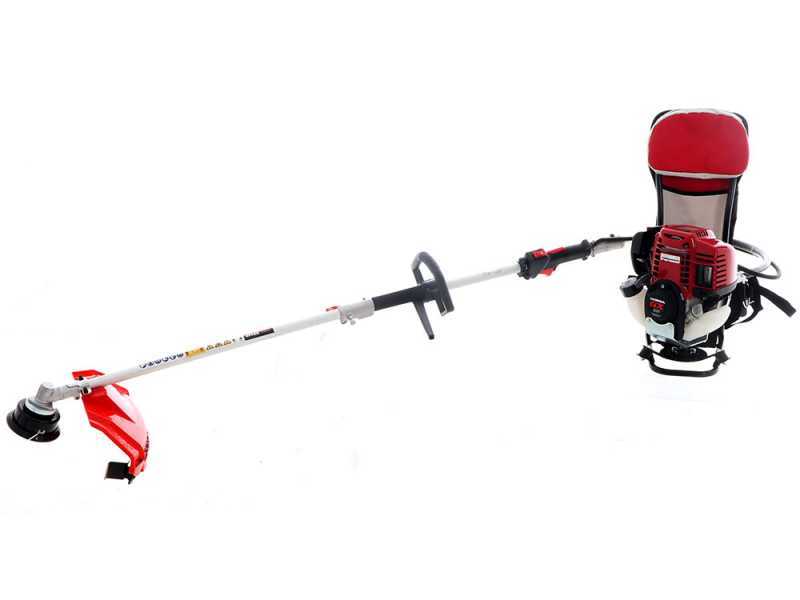

A ATTILA ATH35Z backpack brush cutter powered by Hon da GX 35 petrol engine is a professional machine that combines power, efficiency and reliability and proves out to be an extremely versatile model.

Perfect for long tasks: featuring a comfortable backpack for correct motions without burdening the Operator’s back.

Moreover, the backpack offers comfortable padded shoulders and belt for an unbeatable working comfort compared to the traditional brush cutters.

Equipped with 4-stroke petrol HONDA GX 35 engine.

Why selecting a Honda-powered brush cutter? Original four-stroke Honda engine brush cutters are the most advanced machines on the market, offering the highest performance levels:

• High rpm rate
• High level of delivered power
• Famous Honda reliability
• Extremely handy
• Petrol-powered, does not require preparing fuel-oil mix
• 50% consumption reduction compared to 2-stroke engines
• 70% polluting emissions reduction compared to 2-stroke engines
• 30% noise reduction compared to 2-stroke models
• 40% vibration reduction compared to 2-stroke models
• Quick and handy start
• Reduced recoil compression

HONDA GX35 powered brush cutters are particularly innovating products thanks to their 4-stroke petrol engines. That results in lower consumption, less polluting emissions, less noise and increased comfort because they require petrol:

• POLLUTNG EMISSIONS: - 70% approx.
• CONSUMPTION: - 50% approx.
• NOISE LEVELS: - 30% approx.
• VIBRATIONS: - 40% approx.

Moreover, thanks to technological research, Honda has invented the first ever 4-stroke engine that works from any angle. This configuration is called “any side up”.

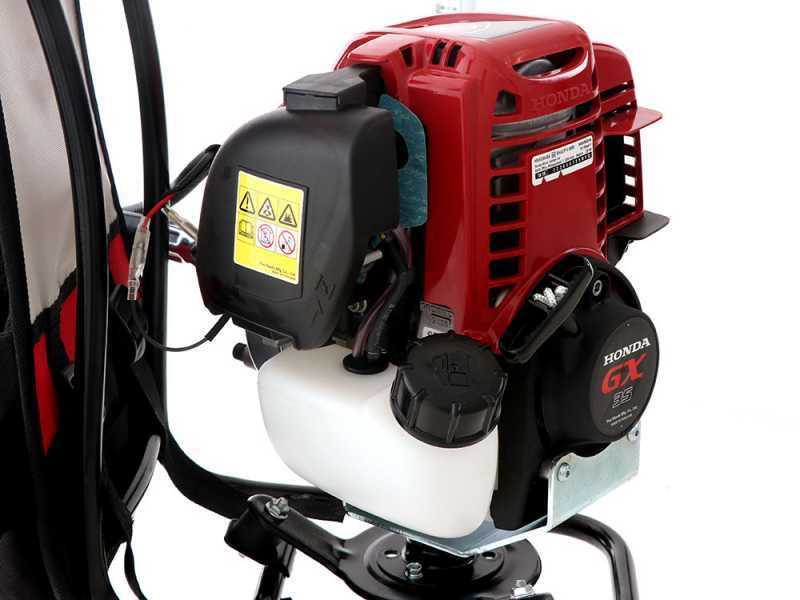

The Honda GX35 is a 35.8 cc, 4-stroke, air cooled engine. It is equipped with single cylinder, and it develops a maximum power of 1.30 HP at 7000 rev/min and a 1.60 Nm torque at 5500 rev/min.

Reduced weight and size: only 3.3 kg of dry weight in as little as 20x23x23 cm.

The Honda GX35 engine is equipped with 0.63 L tank and runs on unleaded petrol. It also features a 100 ml oil tank for the lubrication system that Honda developed exclusively for these engines.

No more fuel issues and no need to prepare the fuel-oil mix or worry about having fresh mix supplies. Eco-friendly engine: one of the least polluting models in the field.

Focus on the carburettor and the air choke.

Focus on a detail of the recoil start system.

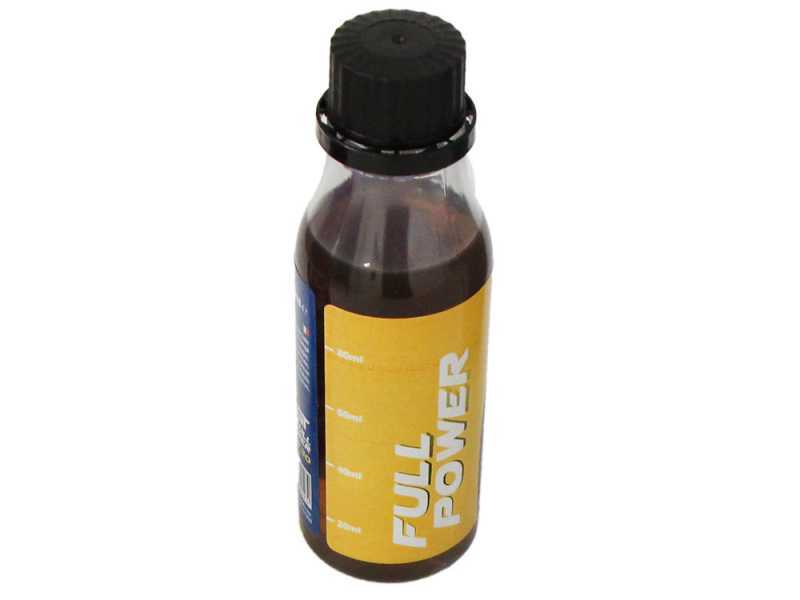

WARNING: the engine does not contain oil (read the instructions manual before use)

Attila transmission consisting of two different components and designed for backpack brush cutters:

1- 26 mm diameter aluminium tube containing an 8 mm highly-resistant steel transmission shaft.

2- flexible connection tube, between the engine and the transmission shaft, containing a highly-resistant flexible steel cord.

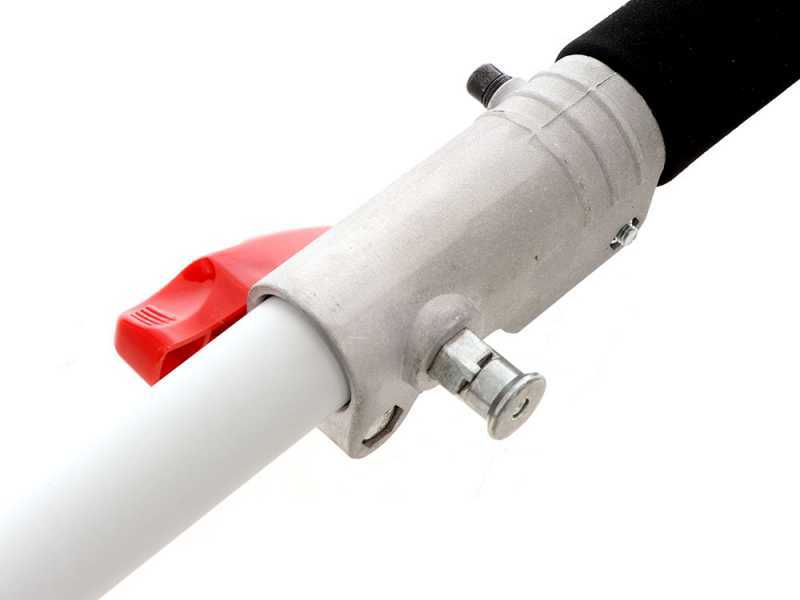

Focus on a detail of the fast release system between the flexible connection tube and the shaft. It only takes a moment to split for transport or storage.

The Attila bevel gear is entirely made with light alloy and contains self-lubricating bearings.

This big and solid bevel gear is the largest in its category.

The crown and the pinion are made of high-quality long-lasting steel, which makes them fit for heavy mechanical stress.

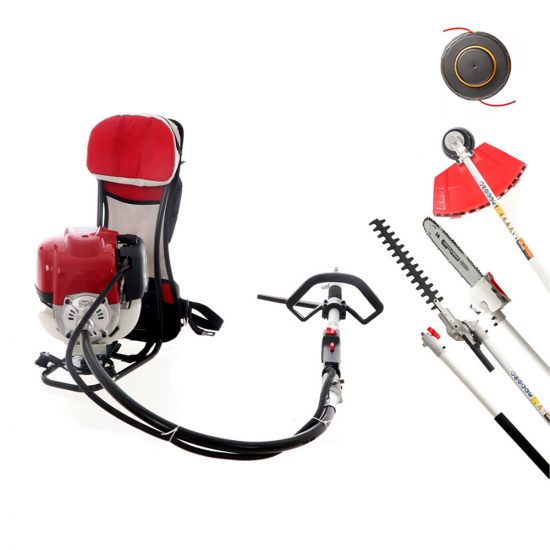

Suitable to several head types.

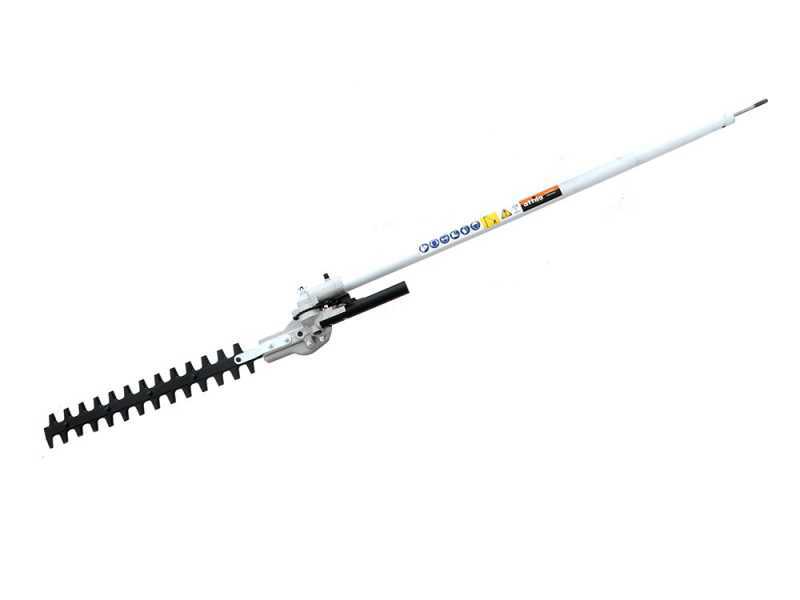

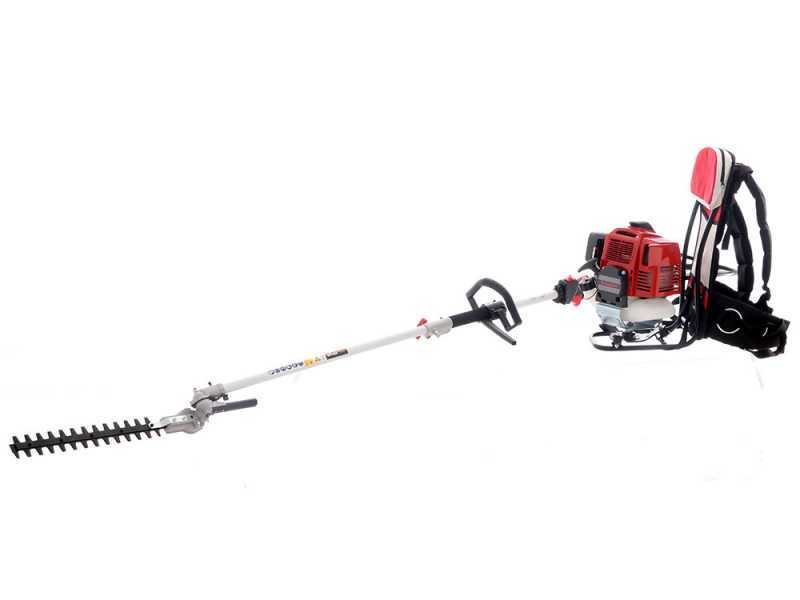

It is equipped with 41 cm double blade with up to 190° rotating device in order to ease any type of hedge trimming.

In order to reach the highest branches we suggest you to purchase the extension pole that allows to increase by 1 meter more the maximum cutting height.

The hedge trimmer with 26 mm shaft can reach up to 3 m cutting height by using the extension pole.

It is equipped with double protection bar for a safe storage and transport.

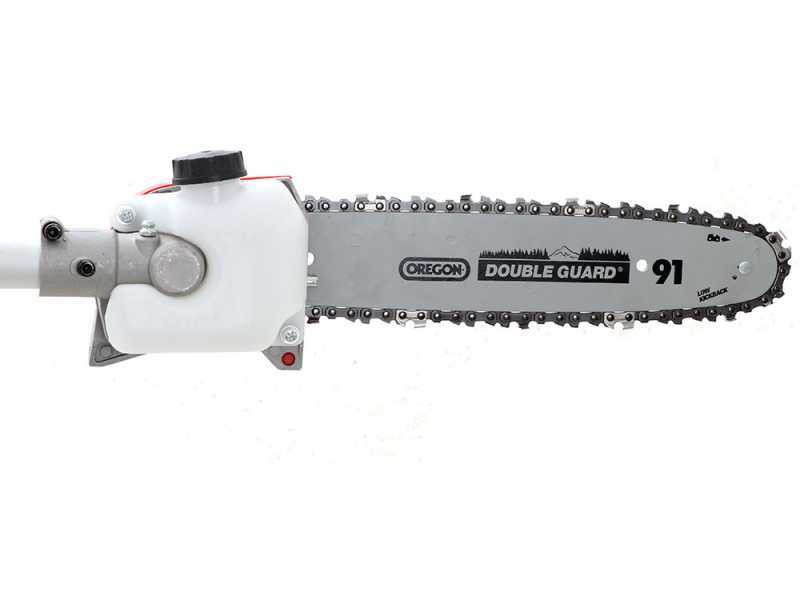

The pruner attachment is designed with 30 cm bar that allows easy cutting operations of branches of small diameter (25 mm).

The chain oil tank is assembled to the head with reinforced tubes in iron spirals that improve the lubrication without sharp angles.

It is equipped with 30 cm cutting bar that enhances the cutting of branches and logs of small diameter.

3/8" chain pitch, chain 40

Extension pole provided on standard equipment.

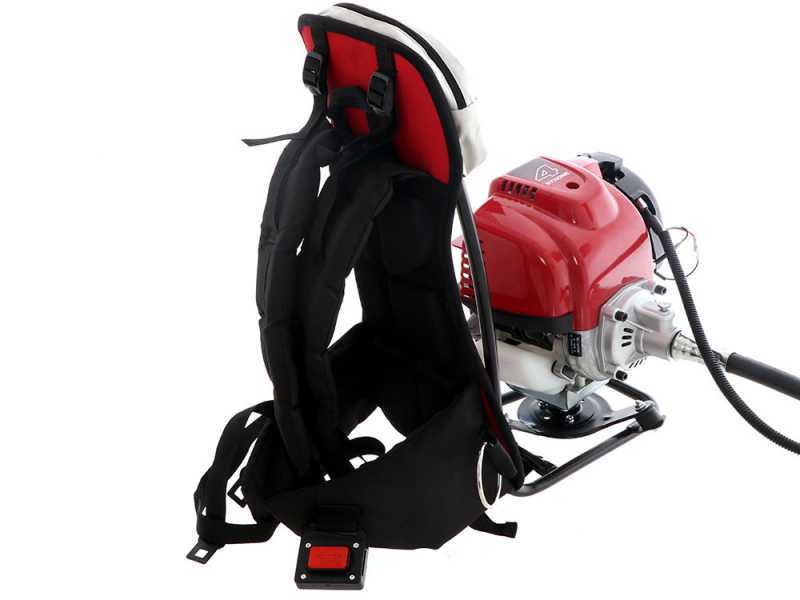

The Honda GX 35 engine brush cutter is equipped with professional padded backpack featuring a tall backrest and adjustable straps.

Main characteristics of the backpack:

• Tall padded backrest for maximum comfort
• Back protection
• Super-comfortable and wide straps
• Adjustable padded harness
• Rotating engine support system on 3 anti-vibration springs
• Handy tool pouch

Focus on the controls grip. The throttle control, the power switch and the safety switch are placed on the handle.
