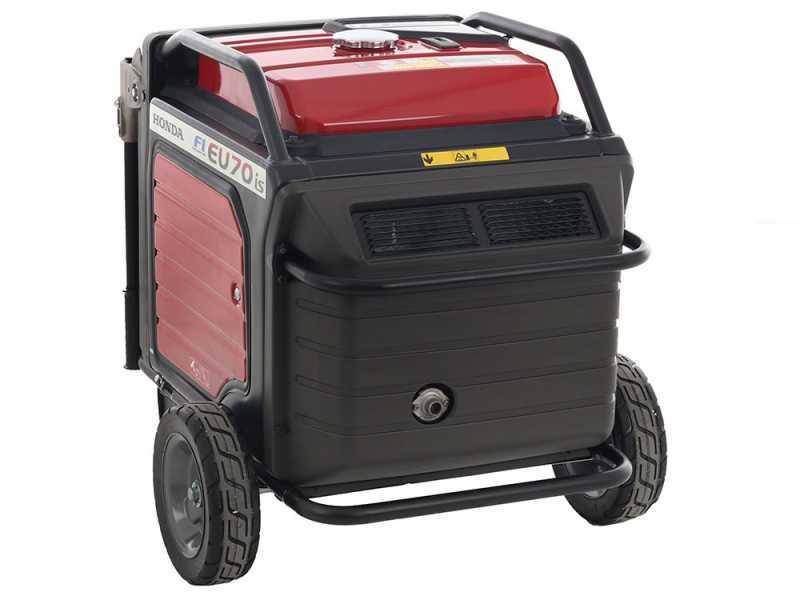

Honda EU70is - 7 kW Wheeled Petrol Inverter Power Generator - DC 5.5 kW Single-phase + ATS

The Honda EU70is is apt at supplying stable and clean energy, suitable to power the most sophisticated technologies. Provided with the exclusive inverter technology, it proves to be sensitive to voltage variations so granting an always stable energy.

This generator is provided with an electronic fuel injection system that enhances the performances and starting and reduces the emissions.

Thanks to the use of light materials and the handy wheels, it is very easy to move around and can be used almost everywhere.

It ensures from 6 to 8 working hours. With reduced absorption it reaches 12 working hours.

On both generator sides there are rubber shock absorbers that significantly reduce vibrations and the noise level of the machine.

Additionally, the ATS panel provided on standard kit with the generator allows to automatically operate the unit whenever needed.

Inverter technology:

The inverter generator we are focusing on is able to produce electric power at a constant and convenient voltage and frequency thanks to a power converter used to adapt any input voltage to a different output voltage without being related to sudden changes in load and to the engine speed.

Compared to all the standard generators, this model features a number of specific characteristics as the use of a permanent magnet generator and an engine revolutions control device based on its effective power. These main features allow considerably reducing fuel consumption, running costs and avoiding noise emissions in case of low or medium loads.

Main applications:

The high quality and reliability of the electric power generated through the use of the system mentioned above make it a very flexible generator, suitable for many applications. Indeed, it is easy understandable how this generator is usually used for electronic equipment like TVs, for powering computers, battery charging and for each kind of electronic device particularly sensitive to voltage and frequency changes.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

Max power output: 7.0 KW

Continuous output (COP): 5.5 KW

This last feature represents the technical data to take into account as effective when you are going to purchase a generator

Secondary output: 16 V - 16 A

Voltage: 230 V

Operating frequency: 50 Hz

Fuel tank capacity: 19.2 L

Oil tank capacity: 11.1 L

Running time (at 100% load): 6-8 hours

Running time with reduced absorption: up to 12 hours

Weight: 118 kg

Sound intensity: 90 dB[A]

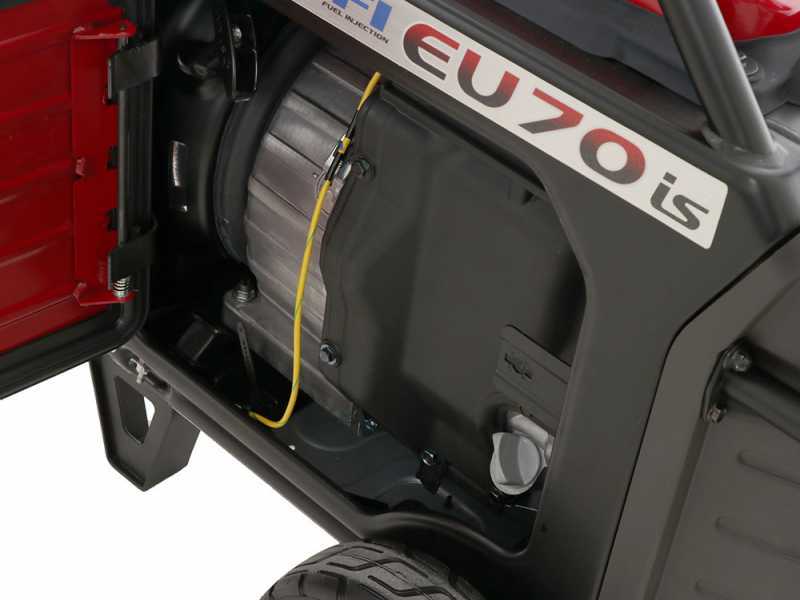

Engine type: Honda GX390T2 4-stroke single-cylinder engine

Displacement: 389 cc

Petrol tank capacity: 19.2 L

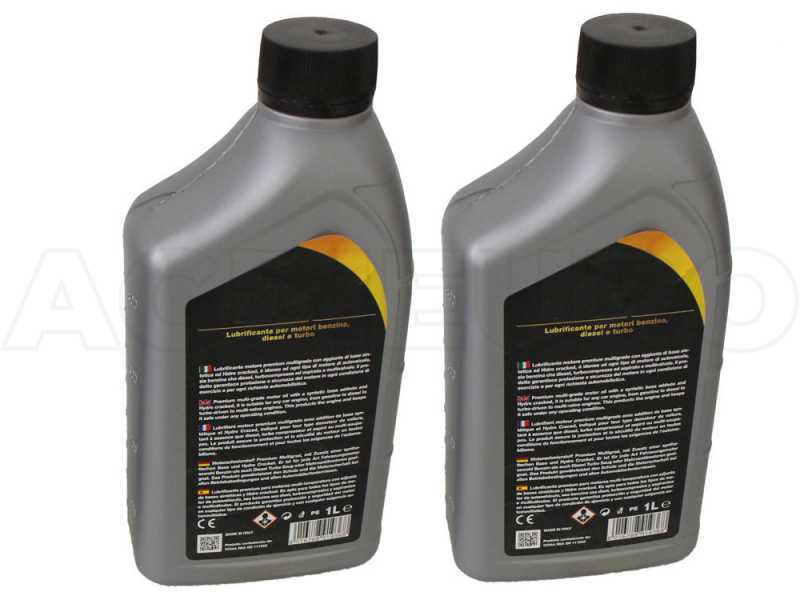

WARNING: the engine does not provide oil (please, ensure to fill the tank with oil specific for 4-stroke engines before starting it).

A 4-stroke petrol engine shows a higher number of positive aspects compared to the standard 2-stroke motors. It is possible to describe them as follows:

• Higher reliability;
• Longer durability over time;
• Far easier to use engine (especially when it has been sitting unused for a long time);
• Lower problems related to the fuel preparation and to preserve its quality keeping it fresher longer;
• Considerably reduced fuel consumption;
• Low maintenance requirements.

Silent generator:

The engine exhaust noise is controlled through the use of silencers, which allow decreasing the amount of noise emitted, providing high performance evaluation for all the generator applications in public and private areas like camping, open markets, row houses, apartment buildings, mansion hauses, caravans and for all those applications requiring silent electricity generators.

Sound intensity: 90 db(A)

Smart-Throttle push button ECO:

Whenever there are no electric appliances connected to the generator or they are turned off, the generator does not provide energy and power consumption because it works in fuel saver mode. This device is specifically used in order to considerably reduce fuel consumption and to ensure low noise running when there is no load connected to the generator. On the opposite side, whether it is restored the energy consumption by connecting or turning on the electrical supplies, our generator automatically establishes its proper running speed in order to ensure constant average output voltage and to generate the proper amount of electricity. * This solution can just be used by generating 220 v power outputs (it cannot work with battery chargers).

Warning lamps

- Current flow: its starting comes immediately after the power switch has been turned on (it normally provides the green light on).

- Overload signal: a common problem is that a generator can be overloaded, there can be power quality problems resulting in malfunction and equipment failure or in case of short-circuits of one of the appliance powered by the generator: on this occasion, the machine consists of a red light that comes on as a overload sensor. The generator stops powering the operating loads letting the green light turning off in a very short time. To solve the problem, it is necessary shutting the engine off trying to find out the reason why the generator is not able to produce enough power due to its overload conditions.

- Engine oil warning system: it has been specifically designed to avoid damaging the engine when the oil level drops too low. Whenever the engine is not running properly, the red oil warning light comes on before the oil drops below the safety level. On this occasion, the oil warning system immediately stops the engine. * Warning: the engine does not provide oil.

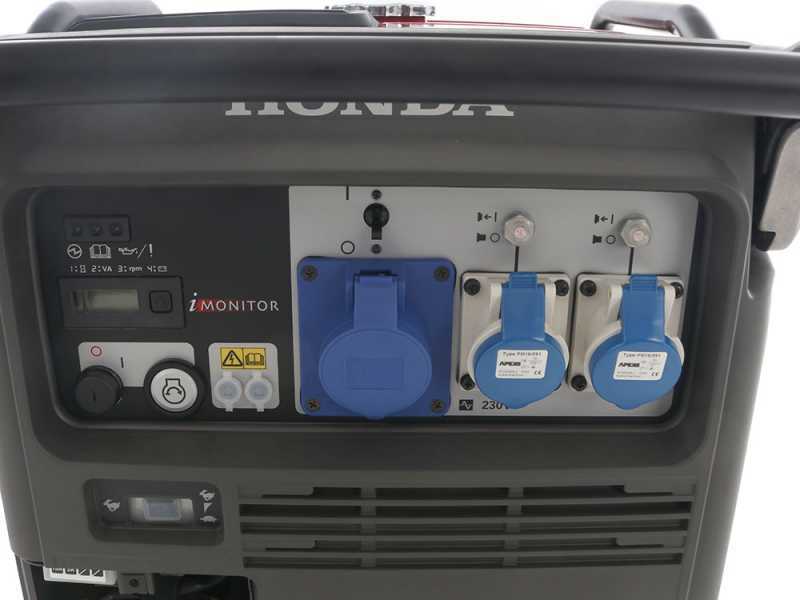

Power outlets:

- 2 Schuko power outlets CE 16A

- 1 Power outlet CE 230V

Starting by key

LCD display

Speed regulator

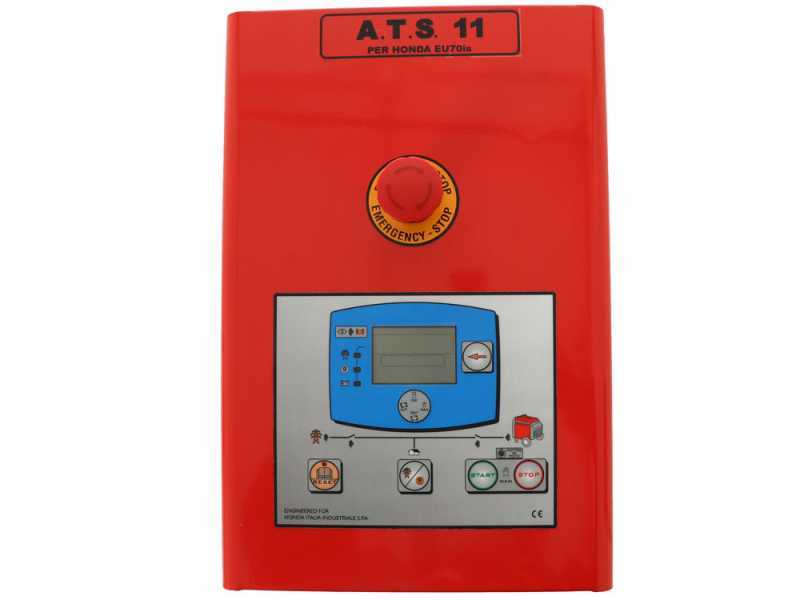

The ATS (Automatic Transfer Switch) panel is suitable for the Honda EU70is generator.

The Automatic Transfer Switch device needs to be connected to the main supply and to the generator.

This device is intended to automatically operate the generator in case of mains interruptions.

The ATS proves to be an essential device in case of outages and black-outs that may result in serious damages and economic loss.

It is highly recommended connecting the AUTOMATIC TRANSFER SWITCH to your main supply by means of a qualified electrician of your trust.

The ATS panel is provided with 6 different control solutions:

• Main supply voltmeter, for single-phase output power up to 254V~
• VGenerator voltmeter, for single-phase output power up to 254V~
• Generator frequency meter: from 0 Hz to 85 Hz, designed for alternating voltage rated over 20V~
• Totalizing counting meter: 5-digit with 99999 maximum counting
• Partial counting meter: 4-digit with 9999 maximum counting; min can be read up to 99 hours
• Battery voltmeter, for rated voltage within 9 and 38V=

Focus on the fuel tank plug

Focus on the fuel level indicator

Focus on the wheels

Focus on the battery

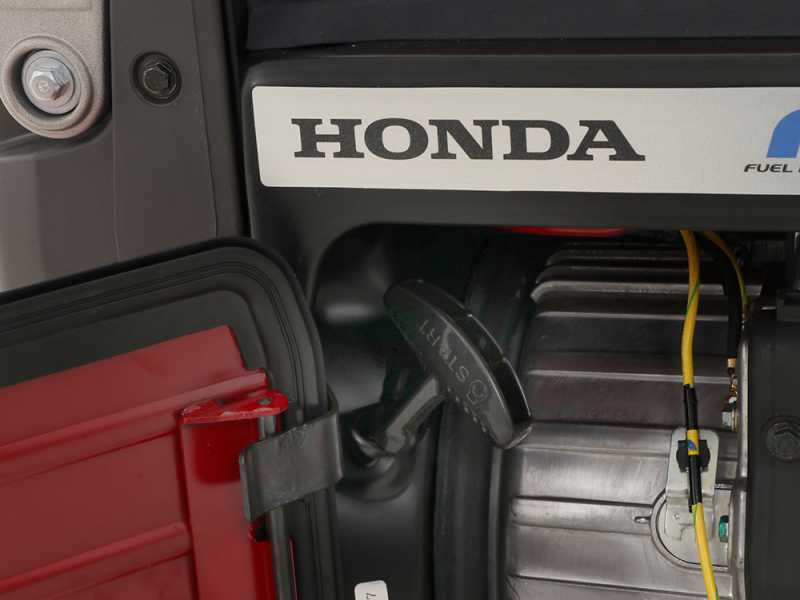

Focus on the starting cord

Focus on the muffler

Focus on the air filter

Focus on the transport handles

Focus on the rubber feet

As regards the power needed referring to the use you will make of your generator, here below an extremely useful table to guide you among consumptions, starting coefficient and watt. Firstly, the highest-quality method is to identify which are the electric appliances we need to power with the generator and then perform a simple calculation to identify the necessary power that the generator must supply, as explained below.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient represents a fundamental feature for all the electric equipment as it indicates how much the consumption of the electric appliance increases. Therefore, it allows to concretely determine how many WATTs are necessary during the start-up operations.

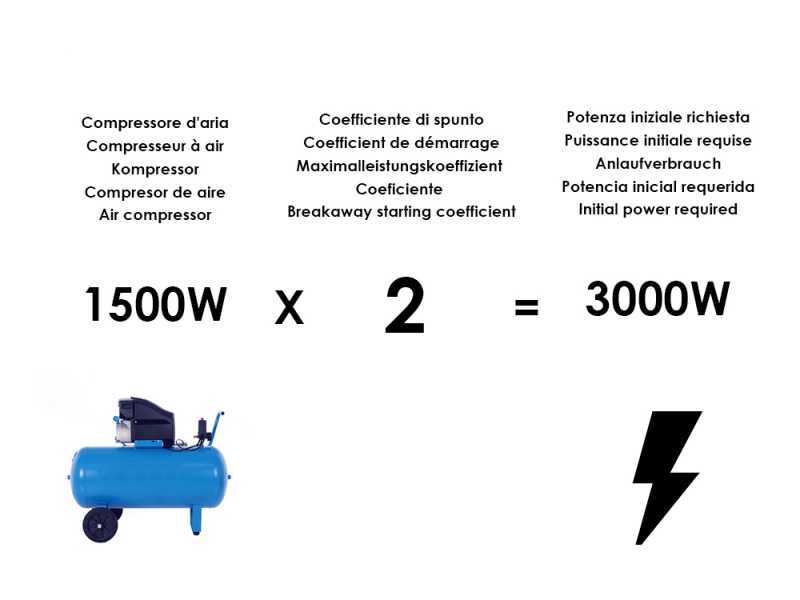

Example: Air compressor ( 1500 Watt ) X Starting coefficient ( 2 ) = 3000 Watt

Hence, it is important to address your choice on a generator featuring equal or higher WATT-rated electric power than the result obtained from the calculation made.

( * ) Check the consumption of the electric appliance on the operator’s use and maintenance manual or on the plate attached to the machine.

WARNING! Purely indicative table. Thanks to the formula indicated above you can easily calculate the electric power that the generator has to supply in order and connect to the generator specific electric appliances and select the model of generator which best suits your needs. We remind you that to operate electric equipment (computers, TVs and all the other electric appliances provided with electronic card) you need to focus the attention on inverter generators (which allows stabilizing the electric current supplied).

• This inverter generator is equipped with an electronic card in order to stabilize the output current, generating an almost perfect wave.
  This makes it particularly suitable for application in certain uses, but also suitable for other.

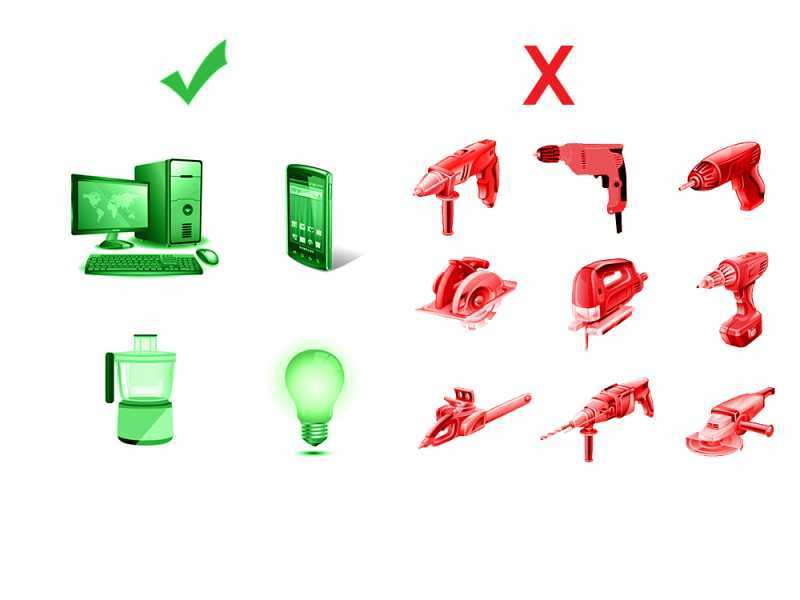

  Some examples of FIELD OF APPLICATION : Feeding of all kinds of electronic equipment (being equipped with electronic card which consequently require a very stable power to avoid the risk of damaging such cards), appliances, equipment and kitchen and domestic equipment, lights and lamps; In conclusion they are specific to a strictly domestic use or for vacation and leisure use (in a camper, boat, etc ...)

  Some examples of NON APPLICATIONFIELDS : Construction equipment, workshop equipment, do-it-yourself, welding machines, equipment of any kind equipped with brush motors (which in the event of wear on the brushes can move back towards the generator some power surges that can damage the the generator electronic card); basically, for all this list of working, construction or artisan equipment, an inverter generator is too delicate and therefore inadequate, therefore it is necessary to focus on a classic generator, not with inverter card, but equipped with the classic alternator with stator and heavy rotor, most suitable for powering this equipment.

  The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
