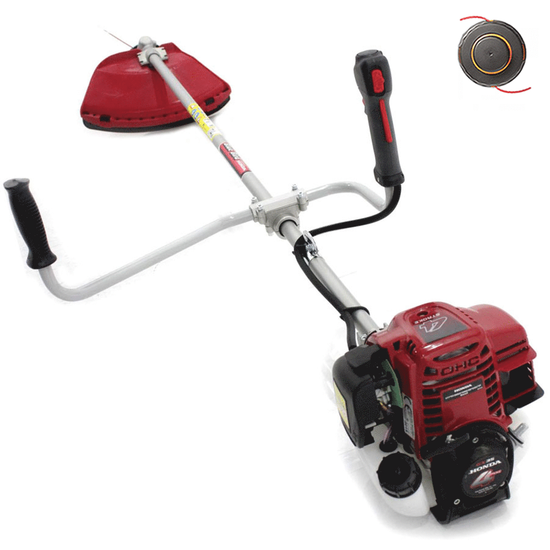

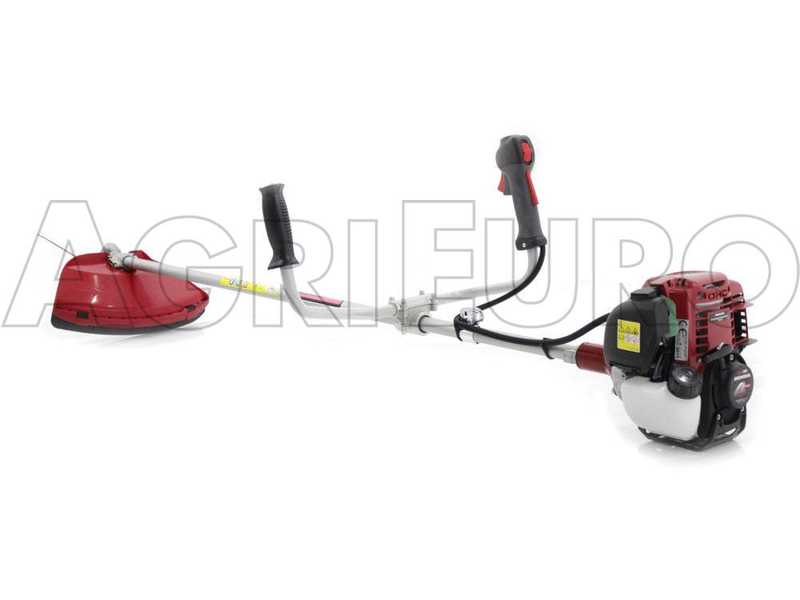

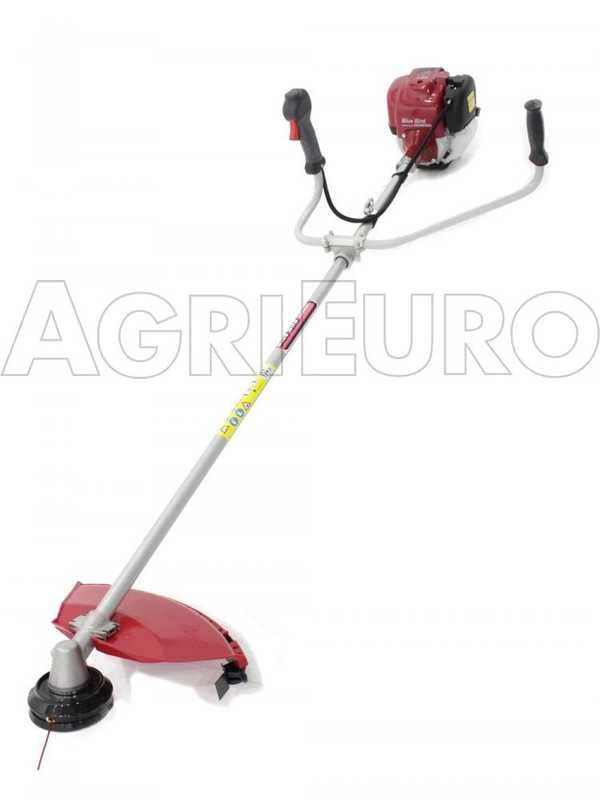

Honda HO-35 PLUS - 4-stroke gasoline brush cutter - Blue Bird shaft

The brush cutter with Honda HO-35 PLUS engine is a heavy-duty tool which combines power, efficiency, reliability and versatility at the same time. This brush cutter is the ideal tool for demanding operations such as trimming tall grass and shrubs. The adjustable handlebar ensures correct movements while working, which helps avoiding the typical pains of prolonged work sessions.

Why choose a Honda brush cutter? 4-stroke brush cutters are the most advanced machines on the market thanks to their absolute efficiency in every aspect:

• High engine rpm
• High power output
• Renowned Honda reliability
• Extremely lightweight, only 7.6 kg
• Powered by petrol, no need to prepare mixture
• 50% lower consumption than 2-stroke engines
• 70% less polluting emissions than 2-stroke engines
• 30% noise reduction compared to 2-stroke models
• 40% less vibration than 2-stroke models
• Quick and efficient start
• Reduced starting compression
• Extremely durable made in Italy transmission

The brush cutter is shipped already ASSEMBLED and ready for use (it is only necessary to tighten 4 screws on the stone guard)

Brush cutters with HONDA HO-35 PLUS engine are particularly innovative thanks to the new 4-stroke engines. Lower consumption, less polluting emissions, less noise and increased comfort thanks to the use of petrol:

• POLLUTING EMISSIONS: - 70% approx.
• CONSUMPTION: - 50% approx.
• NOISE: - 30% approx.
• VIBRATION: - 40% approx.

Moreover, thanks to technological research, Honda invented the first 4-stroke engine which operates at any inclination. This configuration is called "any-side-up".

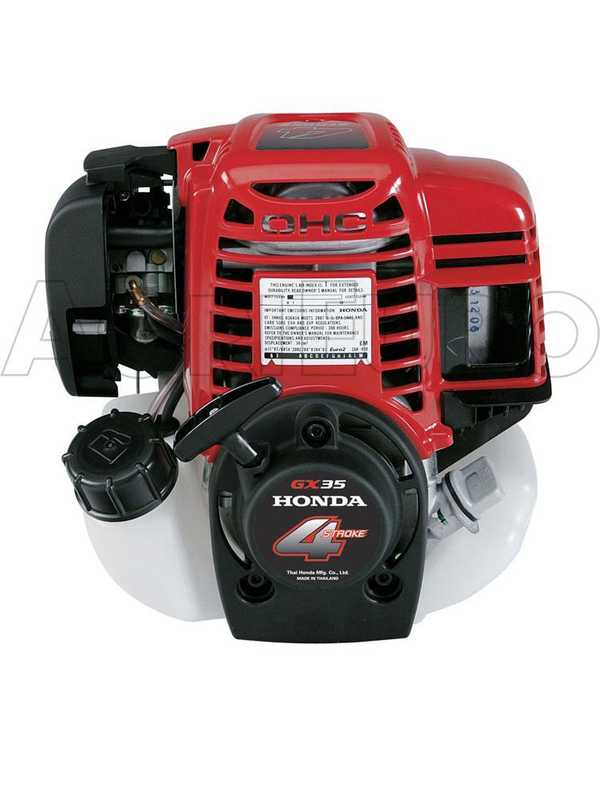

Honda HO-35 PLUS is a 35.8 cc, air-cooled, 4-stroke engine. It is equipped with a single cylinder and it develops a max. power of 1.30 Hp at 7000 rpm, and a torque of 1.60 Nm at 5500 revolutions per minute.

The engine is lightweight and is compact. Its dry weight is 3.3 kg, its dimensions are 20x23x23 cm³.

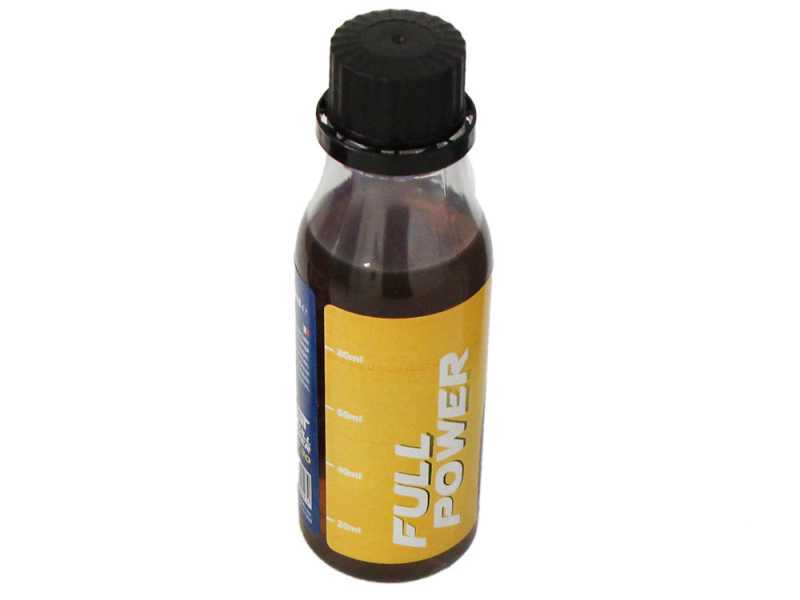

Equipped with 0.63 L fuel tank, the Honda HO-35 PLUS engine runs on unleaded petrol. Also equipped with 100 ml oil tank, which powers the unique lubrication system that Honda has developed for these engines.

No more fuel issues and no need to prepare the mixture or worry about having fresh mixture supplies. Eco-friendly engine: one of the least polluting models of this sector.

Focus on the carburetor and the choke lever.

Focus on the recoil start system.

WARNING: the engine does not contain oil (read the instructions manual before use)

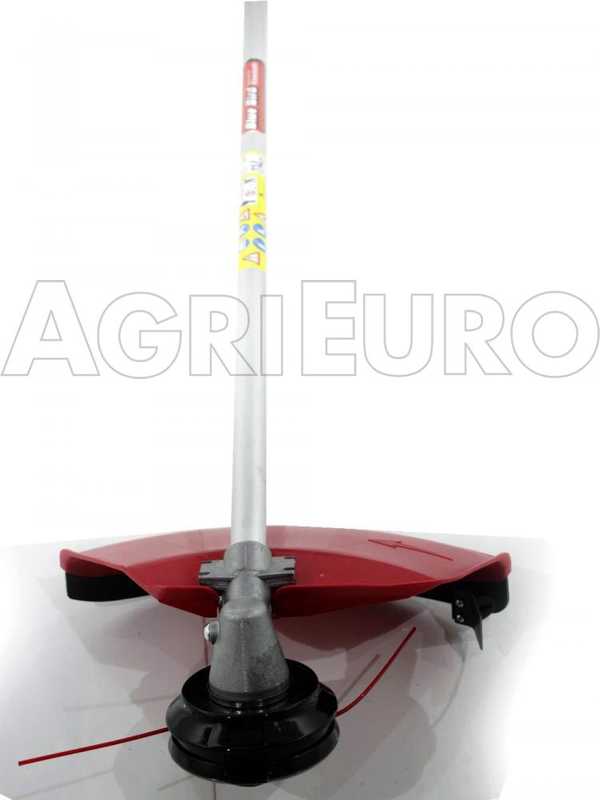

The Blue Bird Industries transmission shaft consists of an aluminium tube with a diameter of 28 mm which contains an 8 mm inner shaft made of high-strength steel.

It is equipped with 6 professional self-lubricating bushings to ensure long durability even under heavy and demanding use.

The materials used for both the shaft and inner shaft are of the highest quality and made in Italy.

Increasingly, brush cutters with Honda engines and Chinese transmission systems are being introduced onto the market. When subjected to normal working stresses, these units deteriorate very quickly due to the low quality, low hardness and low thickness of the material used. In addition, the very high performance of the Honda engine would require a transmission of the same quality to enable the shaft to withstand the high level of power and performance of the engine.

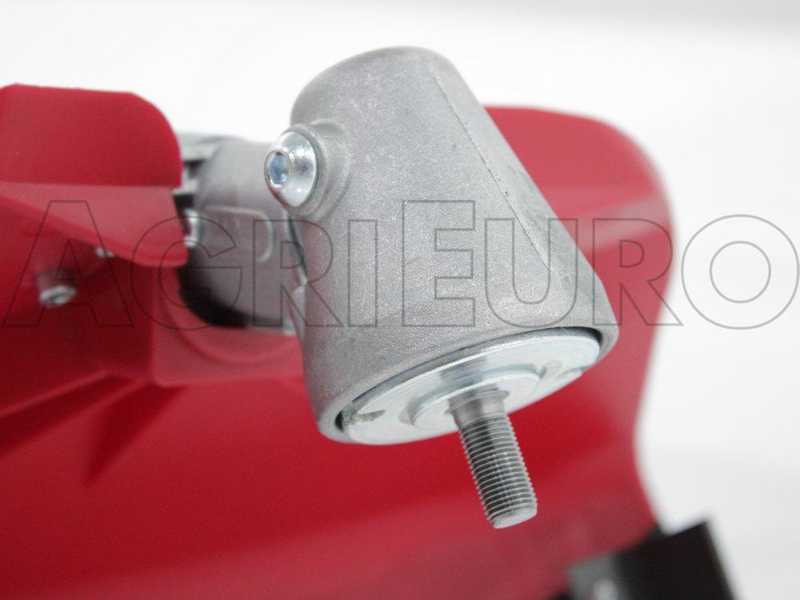

The Blue Bird Industries bevel gear is entirely made of light alloy and inside it features 4self-lubricating bearings, 2 for the pinion and 2 for the crown gear. It is the biggest bevel gear of this category, as you can tell from its massive and voluminous size.

The crown gear and pinion are made of high-strength steel of the highest quality, extremely suitable to withstand mechanical strain.

Furthermore, the crown and pinion are entirely designed and moulded in Italy.

Increasingly, brush cutters with Honda engines and transmission systems with Chinese bevel gear are being introduced onto the market. When subjected to normal working stresses, these units deteriorate very quickly due to the low quality, low hardness and low thickness of the material used. In addition, the very high performance of the Honda engine would require a transmission of the same quality to enable the shaft to withstand the high level of power and performance of the engine.

Focus on the large stone guard with additional protective band equipped with removable counter blade. Apply it to work with line heads and remove it for operating with the discs or any other attachment.

The brush cutter with Honda HO-35 PLUS engine is equipped with ergonomic anti-vibration handlebar with adjustable inclination: just loosen the 4 screws and it can be adjusted by turning it forwards or backwards.

The handlebar is asymmetrical, the left arm is extended and away from the shaft, while the right arm, the one with the control knob, is closer to the shaft. This configuration allows the operator to maintain a correct position of the arms, not off-centre towards the brush cutter, working in total comfort even for several hours.

Focus on the controls handle, with the throttle control, power switch and safety switch.

Engine air opening valve
