Honda WMP 20 Petrol Water Pump for Chemicals with 50 mm Fittings - 2 inches

Questions & Answers (2)
ID: K502150

EAN: 9999237536028

MPN: WMP 20

7,6/10
After-sales assistance & Spare parts
Honda WMP 20 Petrol Water Pump for Chemicals with 50 mm Fittings - 2 inches
+90 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Motor brand
Honda
Motor Model
GX160
Cubic capacity
163 cm³
Nominal power
4.8 HP
Power supply
Petrol
Reinforced square tubular frame
Yes
Anti-corrosion pump
For chemicals
Water pump type
Self-priming
Pump material
Thermoplastics
Flow rate
833 L/min
Fittings diameter
50 mm
Max. head lift
32 m
Max. suction height
8 m
Engine speed
3600 RPM
Product Features
Model:
WMP 20
Power supply:
Petrol
Starting mode:
Recoil
Reinforced square tubular frame:
Yes
Anti-corrosion pump:
For chemicals
Manufacturing country:
China
Motor data
Motor brand:
Honda
Motor Model:
GX160
Cubic capacity:
163 cm³
No. of cylinders:
1
Nominal power:
4.8 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
2 L
Manufacturing country:
Thailandia
Pump data
Pump brand:
Honda
Water pump type:
Self-priming
Pump material:
Thermoplastics
Engine speed:
3600 RPM
Fittings diameter:
50 mm
Flow rate:
833 L/min
Max. head lift:
32 m
Max. suction height:
8 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
Thailandia
Equipment
Recoil start system (with rope):
Yes
Free gifts/extra features
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
52x40x45 cm
Net weight:
27 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
52x40x45 cm
Gross weight (packaging included) :
27 Kg
Assembly time:
5 minutes
Prompt Delivery
15 items in stock
Free Shipping
Estimated delivery: 06/01/2025 - 10/01/2025
Suggested price:
€ 907,25
€ 861,89
Vat included

You're viewing:
Customers also viewed:
Description

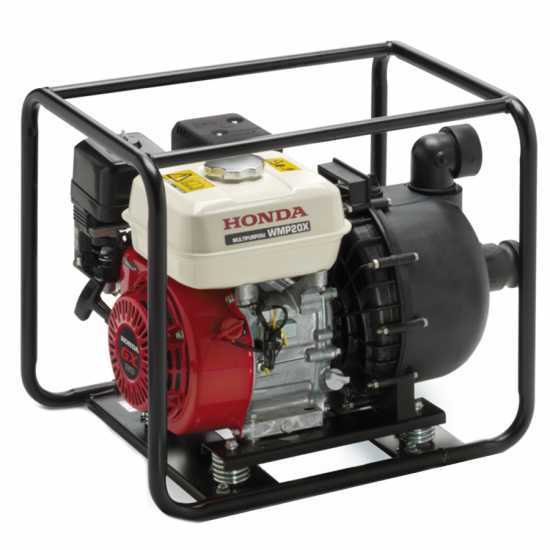

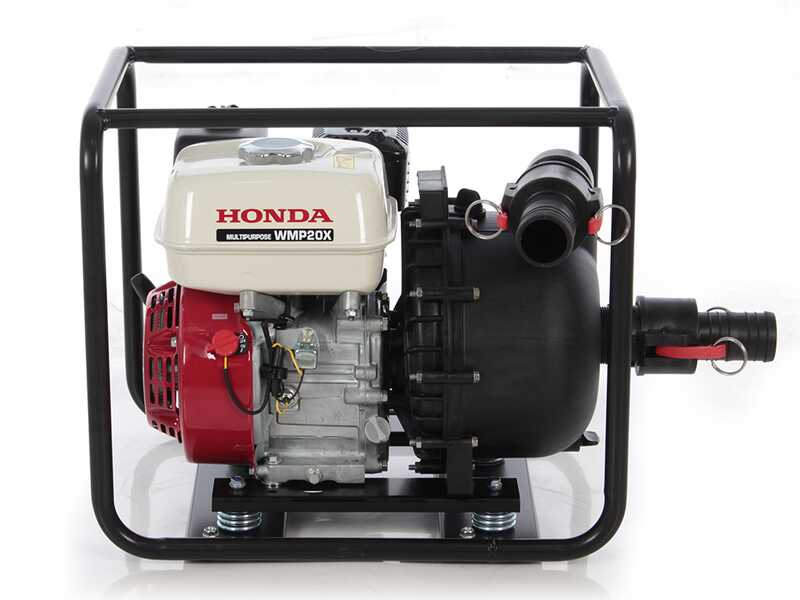

Honda WMP 20 Water Pump

Honda WMP 20 high-head lift water pump for chemicals is an ideal tool for pumping water mixed with agricultural fertilizers or difficult industrial waste at high pressure and pushing them over long distances.

This pump has unparalleled structure and quality since it is entirely manufactured by Honda, leading company in engine production.

Particularly useful when transferring substances such as sulfates, nitrates, chlorides and corrosive compounds. For commercial and agricultural use. The pump body is suitable for chemicals, the stator housing and the impeller are made of reinforced thermoplastic material in order to guarantee maximum resistance to chemicals. The gaskets are made of EPDM (ethylene-propylene diene monomer), a special rubber that is resistant to a wide range of chemicals.

This model is an excellent compromise between power and size and it is easy to transport. It also comes with a sturdy wraparound frame made with a high-strength tubular

The pump is self-priming and you can start it by simply topping up the water through the dedicated cap in the pump body.

WARNING:

  • The engine is provided without oil, remember to fill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These water pumps are suitable for transferring water (for example from a cistern to another) of for furrow irrigation in fields and gardens.
We do not guarantee the suitability for combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), and which may require more specific types of pumps for water systems.

Engine Technical Features

Engine features:

Model: GX160 with Oil Alert
Type: 4-stroke, single-cylinder, forced-cooled, OHV
Cubic capacity: 163 cc
Power: 4.8 Hp
Fuel: petrol
Tank: 1.9 L

The engine features recoil start system and a metal tank with fuel shut-off valve.

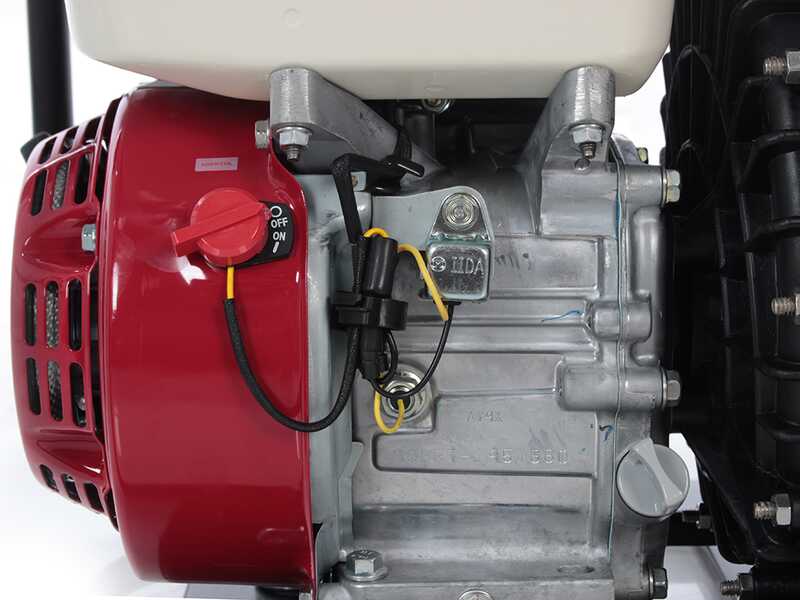

Focus on the engine adjustment controls that adjust the air control and engine throttle.

Equipped with transistorized ignition for easy and immediate starting.

Water Pump Technical Features

The pump mounted on the WMP20 is made for chemicals and can handle water containing solids up to 5 mm in diameter, while a filter prevents larger substances and materials from entering. It is also capable of transferring large amounts of water, up to 833 L per minute.

Pump features:

Suction: 50 mm - 2 inches
Discharge: 50 mm - 2 inches
Maximum suction height: 8 m
Max. flow rate: 833 L/min
Max. head lift: 32 m

Focus on the 50 mm - 2 inch suction and discharge fittings, equipped with quick coupling

Focus on the fitting housing: thanks to their thread, the pump fittings can be quickly unscrewed and/or replaced.

Focus on the pump filling cap

Focus on the pump emptying cap

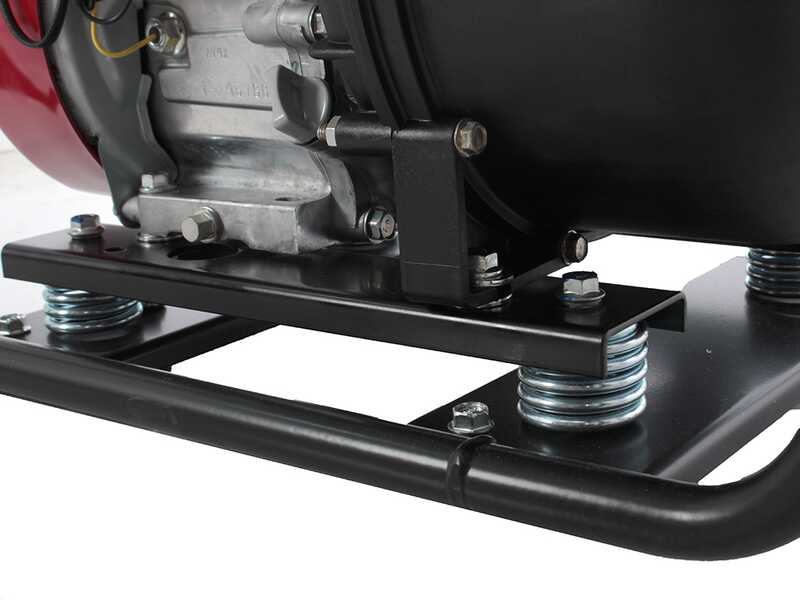

The pump and the engine are equipped with a anti-vibration spring system

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free Items Included

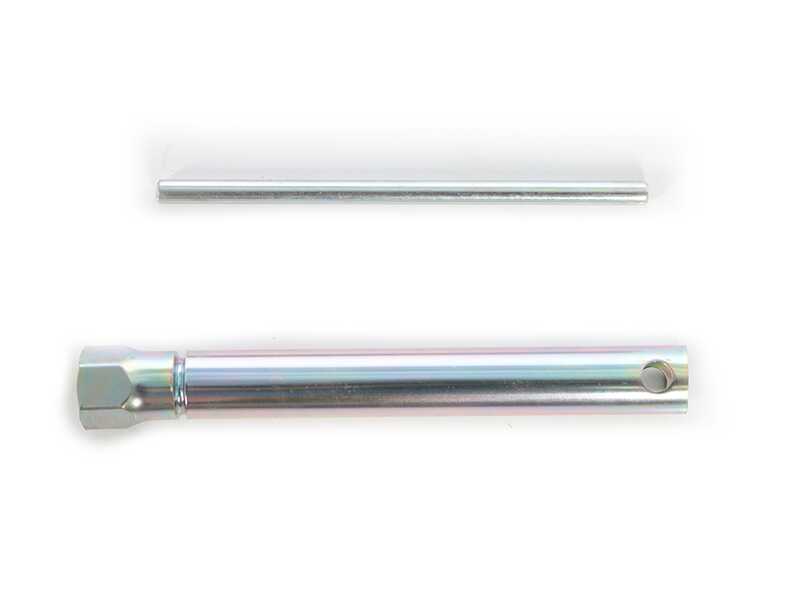

The pump is shipped in its original packaging, equipped with tools for assembly and maintenance, 2 50 mm fittings, rubber insulation tape for fittings, as well as the suction filter.

Also equipped with 4 rubber feet to screw to the frame.

Instructions manual included.
