Honda WT 40 Petrol Water Pump for Dirty Water with 100 mm Fittings

Questions & Answers (1)
ID: K502154

EAN: 9999237536011

MPN: WT 40

7,6/10
After-sales assistance & Spare parts
Honda WT 40 Petrol Water Pump for Dirty Water with 100 mm Fittings
+60 sold
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Motor brand
Honda
Motor Model
GX390
Cubic capacity
389 cm³
Nominal power
9.5 HP
Power supply
Petrol
For dirty waters
Yes
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
1600 L/min
Fittings diameter
100 mm
Max. head lift
26 m
Max. suction height
8 m
Contrifugal pump with cast iron pump
cast iron
Aluminium fittings
Yes
Engine speed
3600 RPM
Manufacturing country
Japan
Product Features
Model:
WT 40
Power supply:
Petrol
Starting mode:
Recoil
For dirty waters:
Yes
Silicon carbide mechanical seals:
Yes
Manufacturing country:
Japan
Motor data
Motor brand:
Honda
Motor Model:
GX390
Cubic capacity:
389 cm³
No. of cylinders:
1
Nominal power:
9.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
6.1 L
Manufacturing country:
Japan
Pump data
Pump brand:
Honda
Water pump type:
Self-priming
Pump material:
Aluminium
Engine speed:
3600 RPM
Fittings diameter:
100 mm
Flow rate:
1600 L/min
Max. head lift:
26 m
Max. suction height:
8 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
Japan
Equipment
Anti-vibrating system:
Yes
Recoil start system (with rope):
Yes
Aluminium fittings:
Yes
Contrifugal pump with cast iron pump:
cast iron
Free gifts/extra features
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
73x53x76 cm
Net weight:
78 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
77x57x60 cm
Gross weight (packaging included) :
90 Kg
Assembly time:
5 minutes
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 04/03/2025 - 06/03/2025
€ 2.817,90
Vat included

You're viewing:
Customers also viewed:
Description

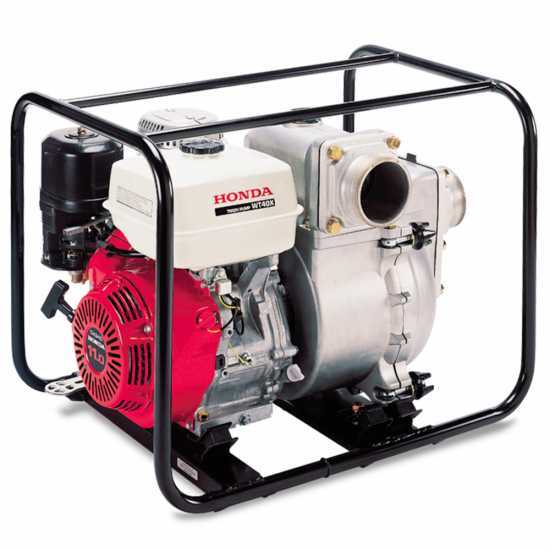

Honda WT 40 Water Pump

Honda WT 40 water pump is a specific machine to drain dirty water.

This pump has unparalleled structure and quality since it is entirely manufactured by Honda, leading company in engine production.

This pump can also operate with liquids which may contain solid parts, such as stones and sand, and it is ideal for emptying muddy excavations of construction sites, muddy bottom ponds, cesspits and so on. It is also equipped with a specific metal filter, resistant to shocks and wear due to debris that dirty waters contain.

Made with abrasion resistant cast iron stator housing and impeller, Honda high-head lift pumps feature vanes specifically designed for improved discharge capacity.

This model is an excellent compromise between power and size and it is easy to transport. It also comes with a sturdy wraparound frame made with high-strength tubular which protects it from unwanted shocks.

The pump is self-priming and you can start it by simply topping up the water through the dedicated cap in the pump body.

WARNING:

  • The engine is provided without oil, remember to fill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These pumps are suitable for transferring water (e.g. from a cistern to another) or for furrow irrigation in fields and gardens.
We do not guarantee the suitability for the combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), which may require more specific types of pumps for water systems.

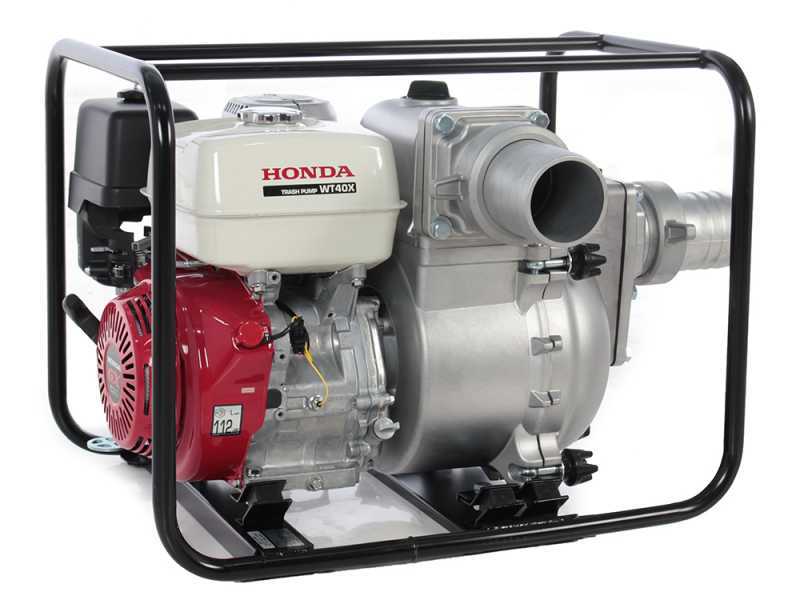

Engine Technical Features

Engine features:

Model: GX390 with Oil Alert
Type: 4-stroke, single-cylinder, forced-cooled, OHV
Cubic capacity: 389 cc
Power: 9.5 Hp
Fuel: petrol
Tank: 6.1 L

The engine features recoil start system and a metal tank with fuel shut-off valve.

Focus on the engine adjustment controls that adjust the air control and engine throttle.

Equipped with transistorized ignition for easy and immediate start.

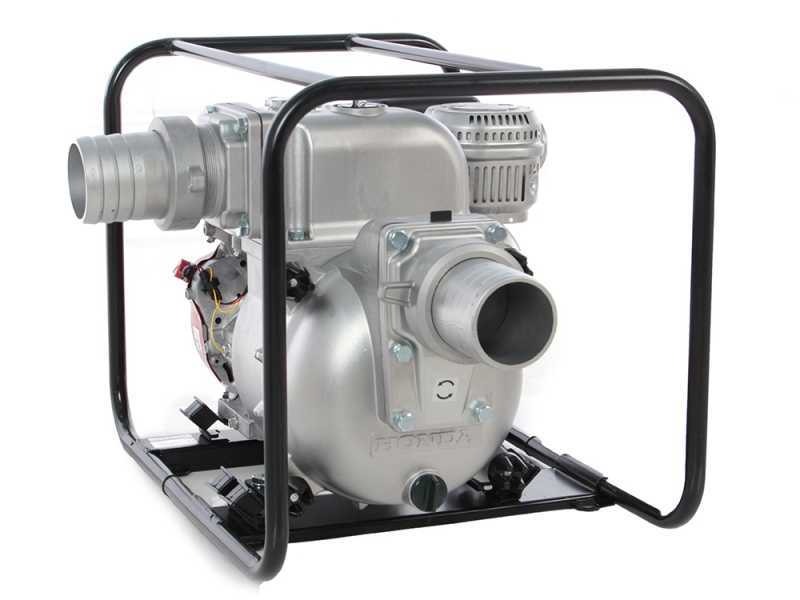

Water Pump Technical Features

The pump mounted on the WT40 features a cast iron impeller, resistant to abrasion and prolonged pumping works. It can handle debris of max. 31mm diameter

Pump features:

Suction: 100 mm - 4 inches
Discharge: 100 mm - 4 inches
Maximum suction height: 8 m
Max. flow rate: 1600 L/min
Max. head lift: 26 m

Focus on the 100 mm - 4 inch suction and discharge fittings

Focus on the pump-engine fitting

Focus on the pump filling cap

Focus on the pump emptying cap

Sealing pins of the lid with tightening tool. They allow you to quickly resolve any blockages that dirty water could cause.

Free items & Standard equipment

Free Items Included

The pump is shipped in its original packaging, equipped with tools for assembly and maintenance, 2 100 mm fittings, metal clamps and 2 rubber gaskets for the fittings, as well as the suction filter.

Instructions manual included.
