Honda WX10T Self-priming Petrol Water Pump 25 mm Fittings

Questions & Answers (6)
ID: K601276

EAN: 9999237535946

MPN: WX 10

7,6/10
After-sales assistance & Spare parts
Honda WX10T Self-priming Petrol Water Pump 25 mm Fittings
+400 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Motor brand
Honda
Motor Model
GX25
Cubic capacity
25 cm³
Nominal power
1 HP
Nominal power (W)
0.75 W
Power supply
Petrol
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
120 L/min
Fittings diameter
25 mm
Max. head lift
37 m
Max. suction height
8 m
Product Features
Model:
WX10T
Power supply:
Petrol
Handheld:
Operating mode:
Spark ignition
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
Honda
Motor Model:
GX25
Cubic capacity:
25 cm³
No. of cylinders:
1
Nominal power:
1 HP
Nominal power (W):
0.75 W
Fuel:
Petrol
Engine lubrication system:
Oil bath
Tank capacity:
0.55 L
Oil tank capacity:
0.08 L
Manufacturing country:
Thailandia
Pump data
Pump brand:
Honda
Water pump type:
Self-priming
Pump material:
Aluminium
Fittings diameter:
25 mm
Flow rate:
120 L/min
Max. head lift:
37 m
Max. suction height:
8 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
Thailandia
Equipment
Recoil start system (with rope):
Yes
Free gifts/extra features
Tank for mixture preparation:
Yes
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics

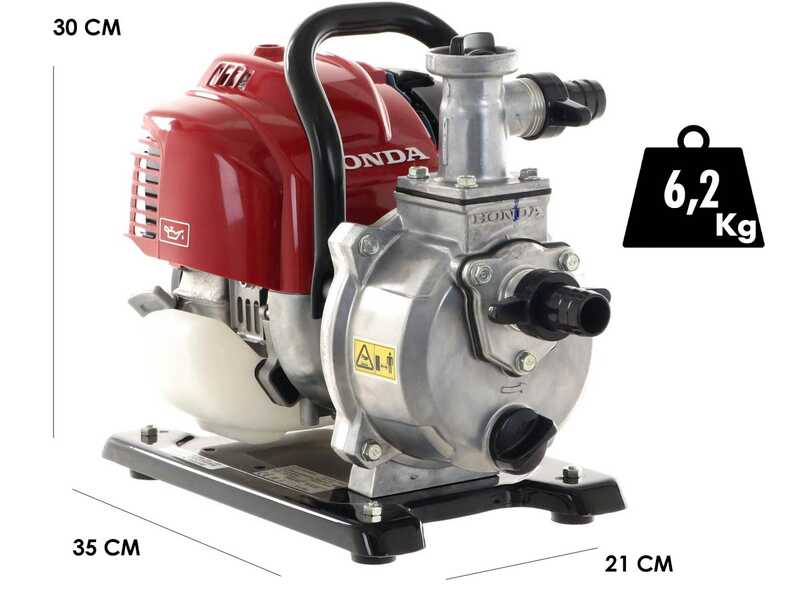

Product dimensions in cm (L x W x H):
34x22x29cm
Net weight:
6 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
34x22x29cm
Gross weight (packaging included) :
7 Kg
Assembly time:
Assembled
Prompt Delivery
28 items in stock
Free Shipping
Estimated delivery: 13/09/2024 - 17/09/2024
€ 521,95
VAT Included

You're viewing:
Customers also viewed:
Description

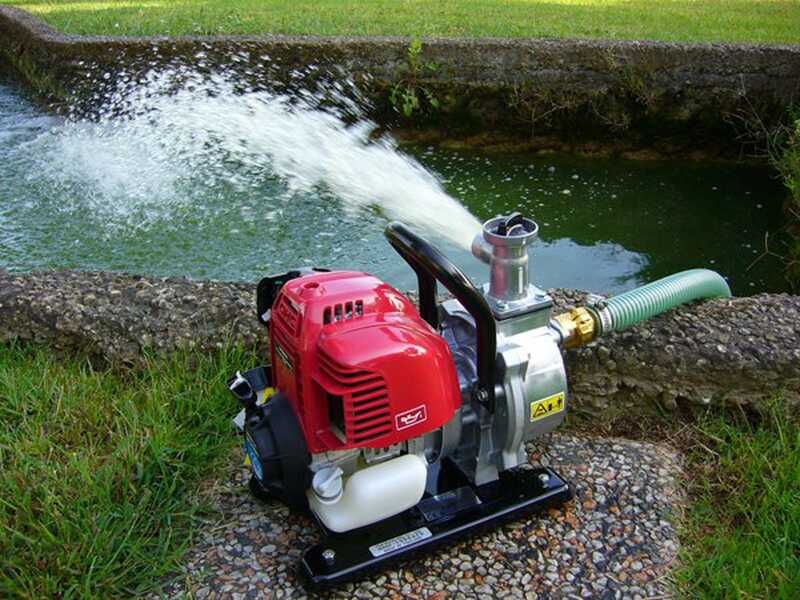

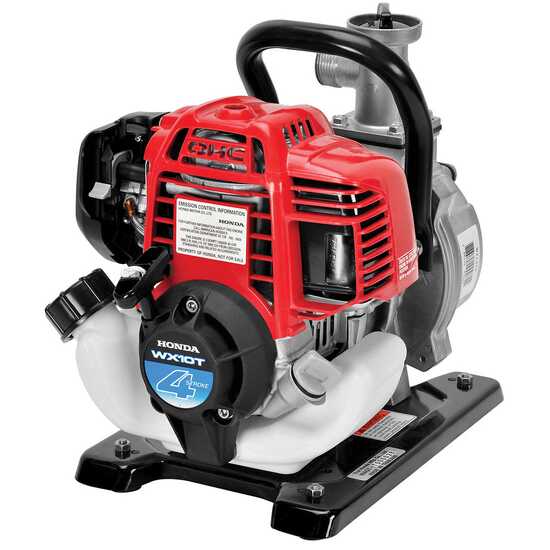

Honda WX10T Water Pump

The new Honda WX10T water pump is the perfect machine for draining water from any type of irrigation system through a hose or sprinklers. This pump has unparalleled structure and quality since it is entirely manufactured by Honda, leading company in engine production.

In particular, this product is very useful in the absence of electricity, or in the countryside when you need to extract water from a well, from a cistern or from ponds and tanks that are difficult to reach, or even when you have to drain a flooded cellar or garage.

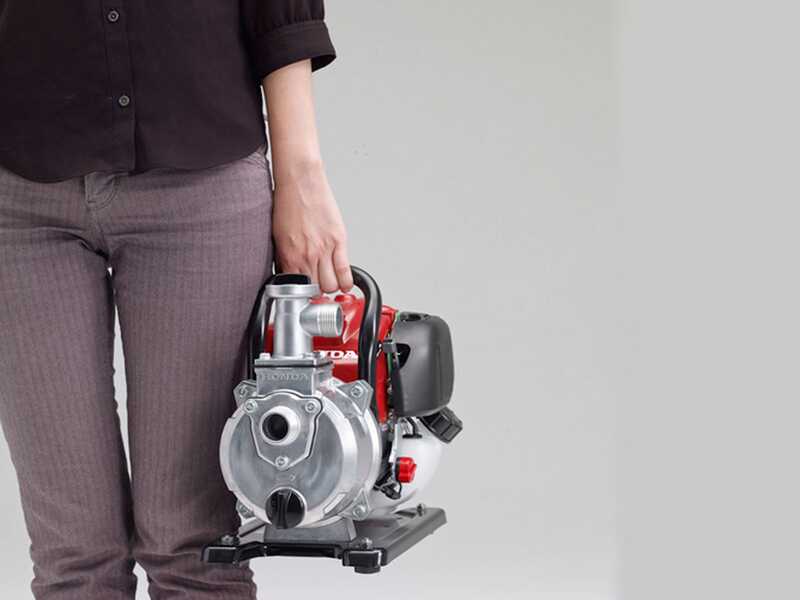

Honda WX10T is easy to transport thanks to its weight of only 6.2 kg. However, this does not affect the high performance of this machine. In fact, the 25 cc engine can develop up to 0.75 KW (equivalent to 1 Hp).

The pump is self-priming and you can start it by simply topping up the water through the dedicated cap in the pump body.

WARNING:

  • The engine is provided without oil, remember to fill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These water pumps are suitable for transferring water (for example from a cistern to another) of for furrow irrigation in fields and gardens.
We do not guarantee the suitability for combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), and which may require more specific types of pumps for water systems.

Engine Technical Features

GX25 engine is especially powerful on portable machines like this water pump. This type of engine is capable of replacing 2-stroke engines in various applications.

Below are all the most relevant advantages and notes:

  • The first 4-stroke engines in the whole world capable of running at an angle of 360° in all positions.
  • OHC configuration makes the engine compact, lightweight and thanks to the oil bath timing belt it is compact and silent.
  • Easy to start, silent, prompt and effective acceleration.
  • High-quality materials used, designed and built for long lasting performance.
  • The engines comply with all the strictest regulations in the world.
  • Very low fuel consumption.

Engine features:

  • Model: Honda GX25
  • Type: 4-stroke - single cylinder- forced-cooling - OHV
  • Cubic capacity: 25 cc
  • Power: 0,72 Kw/1 Hp
  • Fuel: petrol
  • Petrol tank: 0.53 L
  • Oil tank: 0.08

The engine is equipped with recoil start system

Focus on the engine setting controls that include the air control and the regulation of the engine throttle.

Water Pump Technical Features

The pump mounted on the WX10 is made of cast aluminium alloy, which makes it very robust and lightweight at the same time, capable of withstanding prolonged pumping work.

Pump features:

  • Suction: 25 mm - 1 inches
  • Discharge: 25 mm - 1 inches
  • Maximum suction height: 8 m
  • Maximum flow rate: 120 L/min
  • Maximum head lift: 37 m

Focus on the 25 mm - 1 inch suction and discharge fittings

Frame with supporting feet.

Focus on the pump-engine fitting

Focus on the pump filling cap

Focus on the pump emptying cap

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free Items Included

The pump is shipped in its original packaging complete with the instructions manual.

The packaging also includes:

  • 2 25 mm fittings, metal clamps and 2 gaskets
  • Suction filter
