Honda WX15T Self-priming Petrol Water Pump 40 mm Fittings

Questions & Answers (4)
ID: K601266

EAN: 9999991090613

MPN: WX 15 new 2020

7,6/10
After-sales assistance & Spare parts
Honda WX15T Self-priming Petrol Water Pump 40 mm Fittings
+400 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Motor brand
Honda
Motor Model
GXH50T
Cubic capacity
49.4 cm³
Nominal power
2.2 HP
Nominal power (W)
1.6 W
Power supply
Petrol
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
280 L/min
Fittings diameter
40 mm
Max. head lift
37 m
Max. suction height
8 m
Product Features
Model:
WX15T
Power supply:
Petrol
Handheld:
Operating mode:
Spark ignition
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
Honda
Motor Model:
GXH50T
Cubic capacity:
49.4 cm³
No. of cylinders:
1
Nominal power:
2.2 HP
Nominal power (W):
1.6 W
Fuel:
Petrol
Engine lubrication system:
Oil bath
Decompression system:
Tank capacity:
0.77 L
Oil tank capacity:
0.25 L
Manufacturing country:
Thailandia
Pump data
Pump brand:
Honda
Water pump type:
Self-priming
Pump material:
Aluminium
Fittings diameter:
40 mm
Flow rate:
280 L/min
Max. head lift:
37 m
Max. suction height:
8 m
Manufacturing country:
Thailandia
Equipment
Recoil start system (with rope):
Yes
Free gifts/extra features
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes

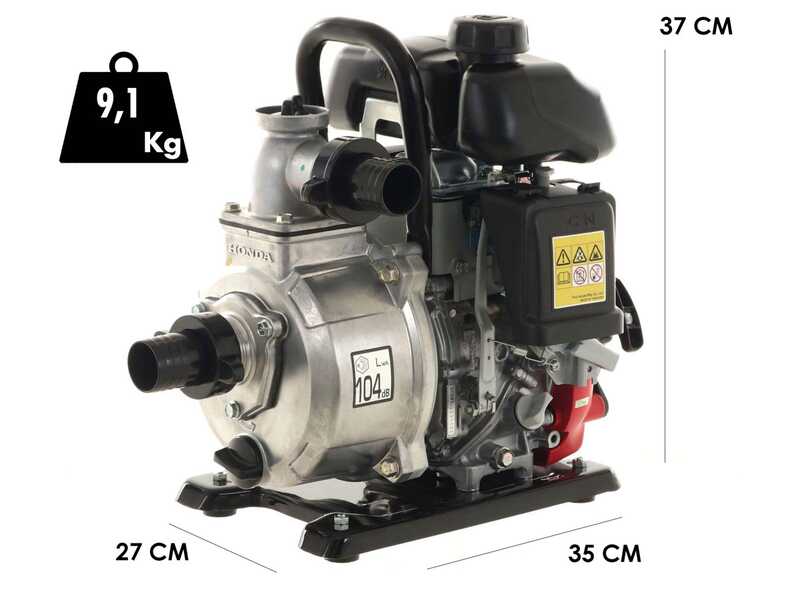

Dimensions and logistics
Product dimensions in cm (L x W x H):
35×27×37 cm
Net weight:
9 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
40x34,5x42,5 cm
Gross weight (packaging included) :
11.7 Kg
Assembly time:
Assembled
Prompt Delivery
37 items in stock
Free Shipping
Estimated delivery: 13/09/2024 - 17/09/2024
€ 625,67
VAT Included
You're viewing:
Customers also viewed:
Description

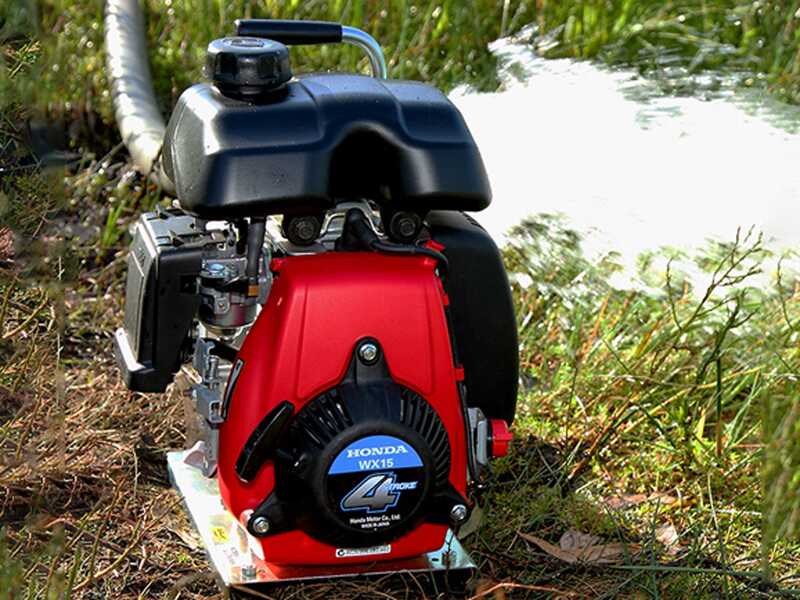

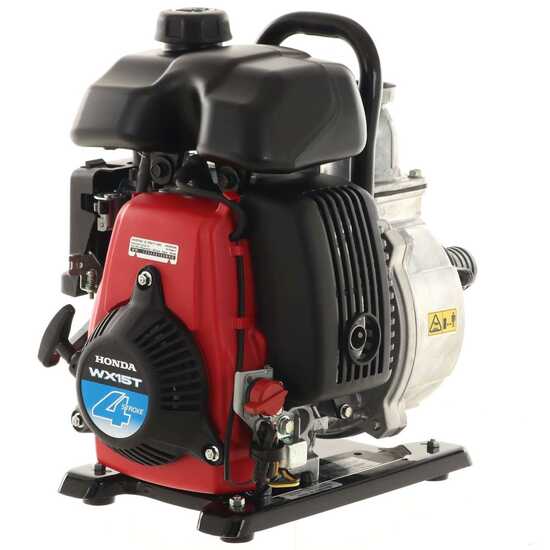

Honda WX15T Water Pump

The new Honda WX15T water pump is the perfect machine for draining water from any type of irrigation system through a hose or sprinklers. This pump has unparalleled structure and quality since it is entirely manufactured by Honda, leading company in engine production.

In particular, this product is very useful in the absence of electricity, or in the countryside when you need to extract water from a well, from a cistern or from ponds and tanks that are difficult to reach, or even when you have to drain a flooded cellar or garage.

Honda WX15T is easy to transport thanks to its weight of only 9 kg. However, this does not affect the high performance of this machine. In fact, the 49.4 cc engine can develop up to 1.6 KW power (equal to 2.2 Hp).

The pump is self-priming and you can start it by simply topping up the water through the dedicated cap in the pump body.

WARNING:

  • The engine is provided without oil, remember to fill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These water pumps are suitable for transferring water (for example from a cistern to another) of for furrow irrigation in fields and gardens.
We do not guarantee the suitability for combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), and which may require more specific types of pumps for water systems.

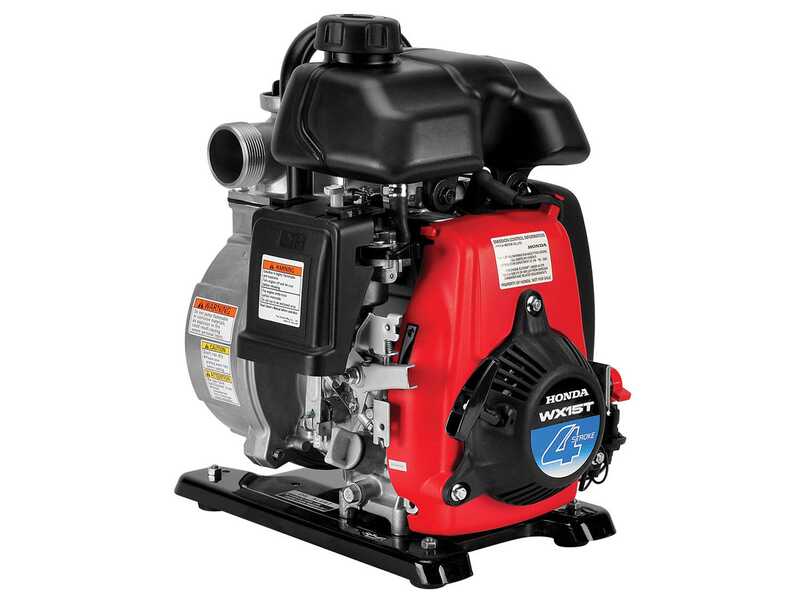

Engine Technical Features

Engine features:

  • Model: Honda GXH50T
  • Type: 4-Stroke - Single cylinder- Forced-cooling - OHV
  • Cubi capacity: 49.4 cc
  • Power: 2.2 HP
  • Fuel: Petrol
  • Fuel tank: 0.77 L
  • Oil tank: 0.25 L

The engine is equipped with recoil start system

Focus on the engine setting controls that include the air control and the regulation of the engine throttle.

Water Pump Technical Features

The pump mounted on the WX15T is made of cast aluminium alloy, which makes it very robust and lightweight at the same time, capable of withstanding prolonged pumping work.

Pump features:

  • Suction: 40 mm - 1.5 inches
  • Discharge: 40 mm - 1.5 inches
  • Maximum suction height: 8 m
  • Maximum flow rate: 280 L/min
  • Maximum head lift: 37 m

Focus on the 40 mm - 1.5 inch suction and discharge fittings

Frame with supporting feet.

Focus on the pump-engine fitting

Focus on the pump filling cap

Focus on the pump emptying cap

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

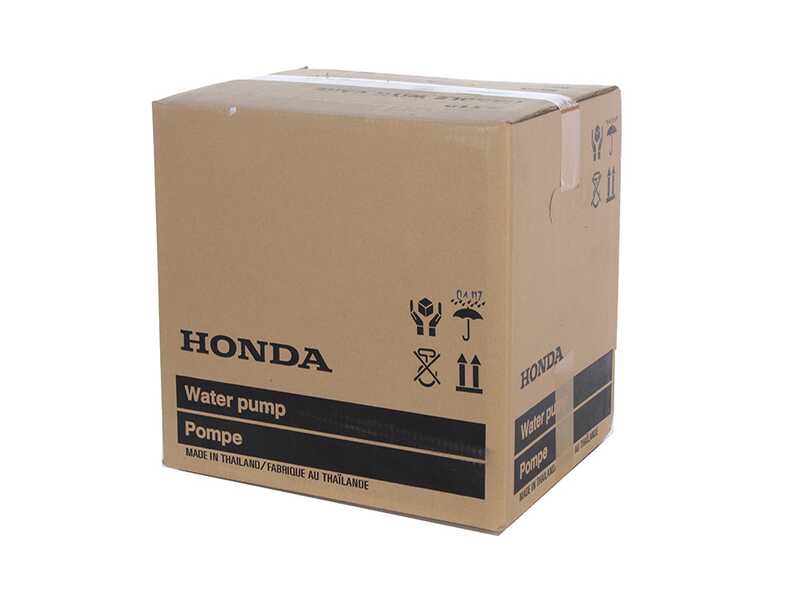

Free Items Included

The water pump is shipped in its original packaging with the instructions manual.

The packaging also includes:

  • 2 40 mm fittings with 2 rubber gaskets for the fittings and 3 metal clamps
  • Suction filter
