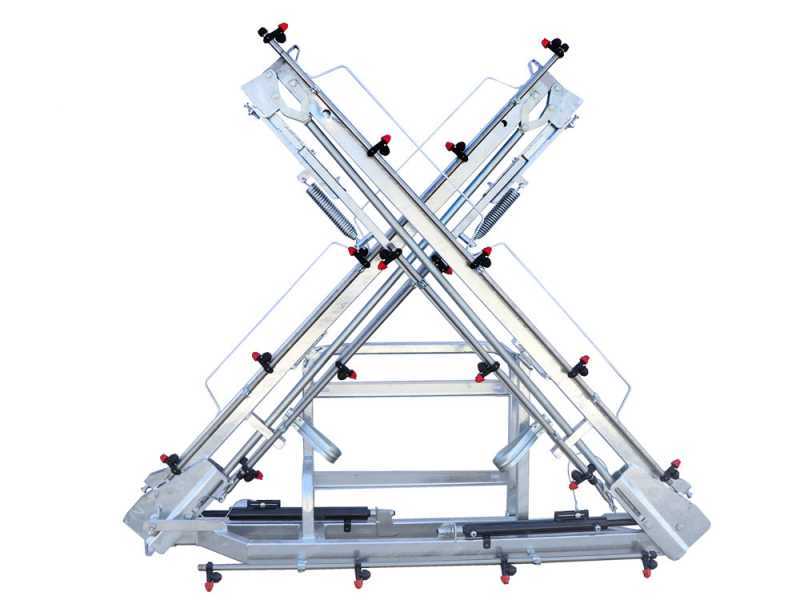

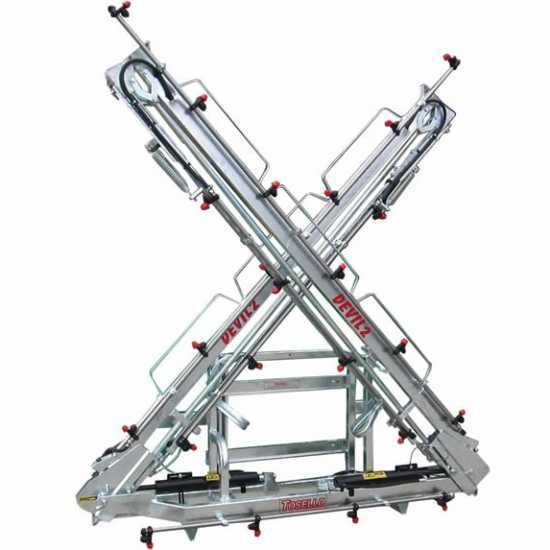

Hydraulic zinc-coated weed killing boom, 10 Mt, 20 membrane nozzles
Composed by 5 sections:
1 Central sustaining frame with 4 nozzles (membrane no drip)
2 Side middle arms with 4 nozzles each (membrane no drip)
2 Outer side middle arms with 4 nozzles each (membrane no drip)
Arms locking by means of a spring lock device
GENERAL FEATURES:
- Hot galvanized heavy-duty tubular steel frame
- 2 Hydraulic cylinders for the boom opening
- Spring loaded breakaway at the boom’s end
- Objects holder Aisi 304 stainless steel tubes
- Fully protected nozzles - Different kind of nozzles assembly possibility (on request)
- Weight: 133 kg
- Outer width: 210 cm
- Outer height: 190 cm
- Thickness: 40 cm
Equipped with double perforation, which makes it applicable to most barrels on the market, without drilling additional holes.
Features and composition of jets:
- Nozzle holder with bayonet quick coupling
- Membrane anti-drip filter
- Standard fan nozzle type SF 110° of Derlin with high chemical stability, for herbicide, fungicide and insecticide treatments
Technical characteristics:
- Spray angle: 110°
- Working Pressure:1/5/7 bar
- Max. Pressure: 15 bar
Possibility of applying jets with TRIGET system with 3 nozzles at extra charge
Generic example of a barrel with heavy hydraulic boom mounted
Equipped with protective guards along the enter length of the outer elements
ATTENTION:
hydraulic hoses for connecting the pistons to the tractor, not included
For transport reasons, the boom will be shipped with some components to be assembled
