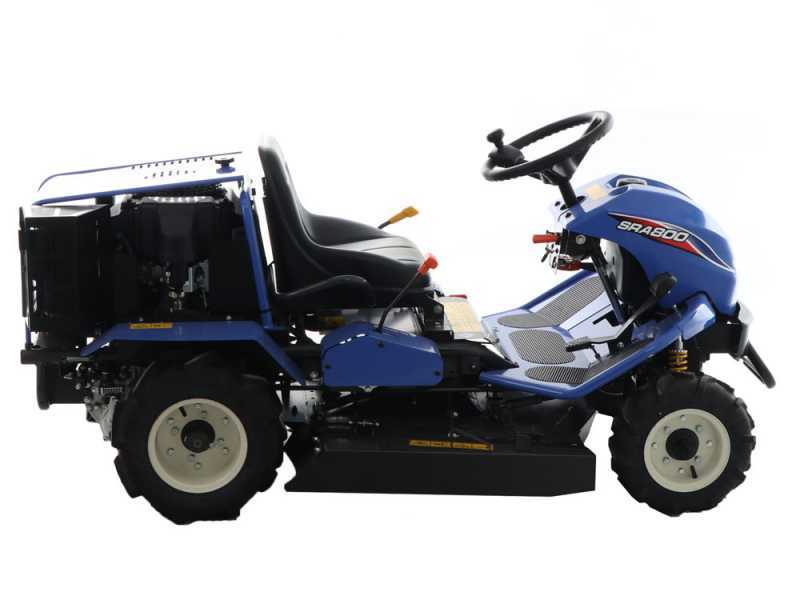

Iseki SRA 800A 2wd Riding-on Mower - 603 cc Kawasaki Engine - 80 cm Cutting Deck

The Iseki SRA 800A 2wd riding-on mower is the perfect machine for the most demanding cutting operations in areas where little or no maintenance has been carried out.

This model is equipped with a 80 cm cutting deck fitted with a large steel blade that can cut small and medium-sized brambles and shrubs.

Front suspension for maximum damping on uneven ground.

The brakes act directly on the differential for maximum stability and safety.

Equipped with large agricultural wheels that ensure safe driving even on the roughest and steepest terrain.

The machine is equipped with a powerful 603 cc Kawasaki FS481Vengine which can develop 9.8 Kw of power at max. rpm. The engine housing is protected by a sturdy steel cage, which can be opened without the need for special tools, simply unscrewing a small rear wheel and lifting the protective cage.

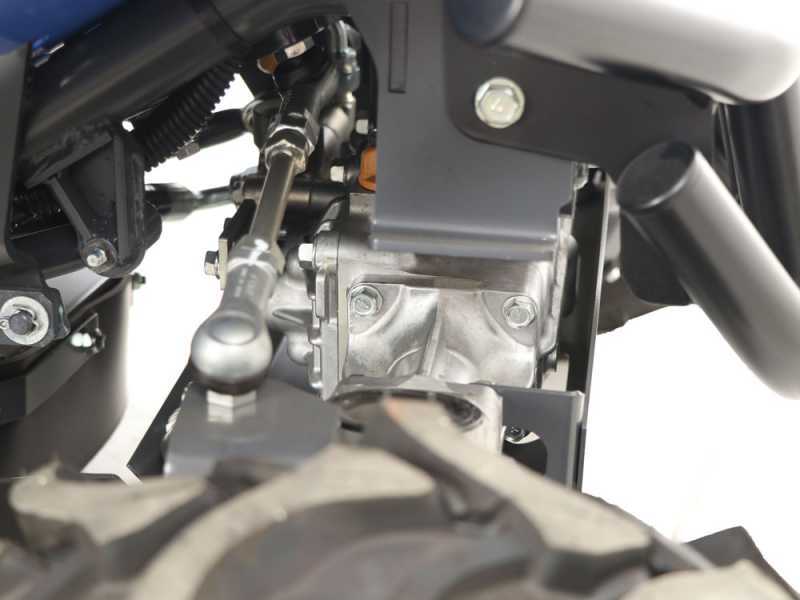

Easy and quick to use, thanks to the two-stage hydrostatic transmission, which allows you to move forward or reverse by simply pressing the proper pedal.

Adjustable cutting height via a lever placed near the Operator's seat, that can vary from 20 mm to 90 mm.

Manual blade engagement by means a yellow lever placed under the Operator’s seat.

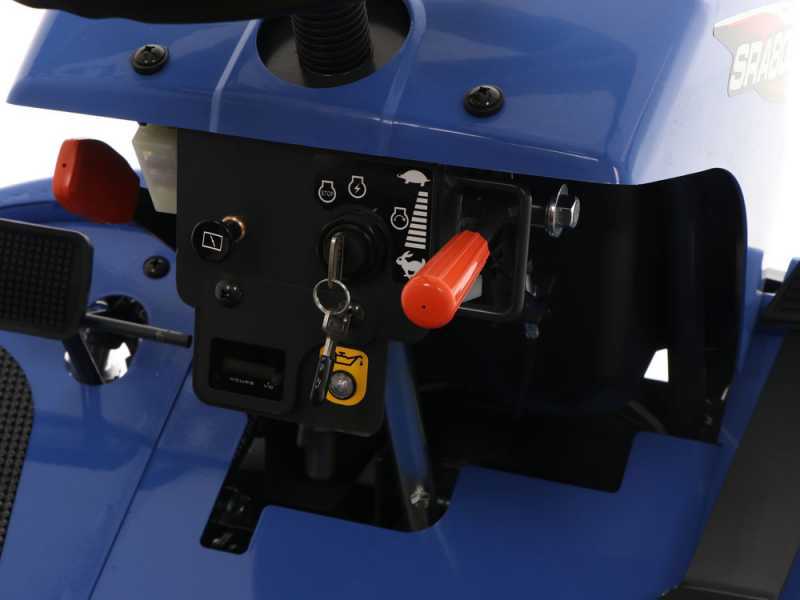

Ergonomic steering wheel equipped with a knob for a greater comfort during use. The dashboard under the steeing wheels includes:

• Ignition lock
• Speed variator
• Hour meter
• Handbrake
• Oil light

The ideal machine for professional-level maintenance operations.

The cutting deck is fitted with a large floating blade which can easily cut brushwood, brambles and small shrubs.

The entire deck is protected by a rigid rubber guard in the front part and on both sides by a steel plate, thus preventing debris from getting caught between the blade and damaging it, and preventing debris from being accidentally thrown out during use.

The steel floating blades are highly sturdy thanks to their ultrasound-assisted processing which always ensures great results.

Cutting width: 80 cm.

The blade is engaged manually, via a large side lever, to ensure maximum safety both during work and transport or maintenance.

The machine is equipped with 8 cutting heights positions, from 20 mm to 90 mm.

- Focus on the cutting deck

- Focus on the floating

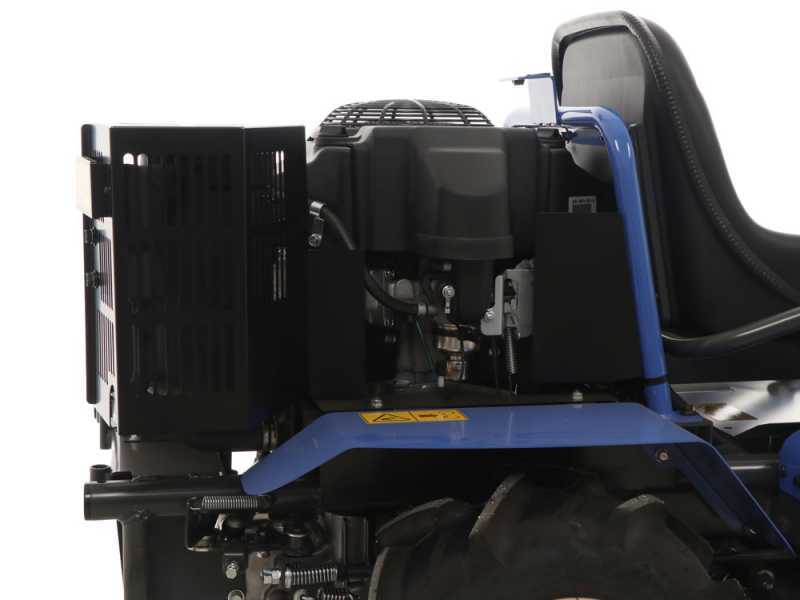

The riding-on mower is powered by the Kawasaki FS481V twin-cylinder engine that ensures versatility of use and flawless performance.

The 603 cc petrol engine can develop a power of 9.8 kW at max. rpm.

This engine also features OHV technology, where the valves are placed above the combustion chamber.

Fuel tank capacity: 14 L.

This valve arrangement allows a smoother intake of fuel. This higher combustion efficiency, in turn, allows using a higher compression ratio. This makes it possible to achieve greater efficiency.

This design also ensures greater thermal equilibrium, which prevents cylinder deformation and increases the engine service life.

The engine compartment is easily accessible without the need of any extra tool. You’ll only have to fold down the Operator's seat and unscrew the small knob placed there to open the sheet metal cage that contains the engine.

- Focus on the knob to reach the engine

Nominal power: 16 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 11.2 Hp
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

ISEKI SRA 800A main controls:

• Parking brake
• Forward (F), neutral (N) and reverse (R) speed lever
• Hydrostatic transmission with pedal for forward and reverse speed
• Brake pedal
• Cutting height adjustment lever
• Fuel level indicator
• Dashboard
• Blade engagement lever (yellow lever)

Main features of the riding-on mower:

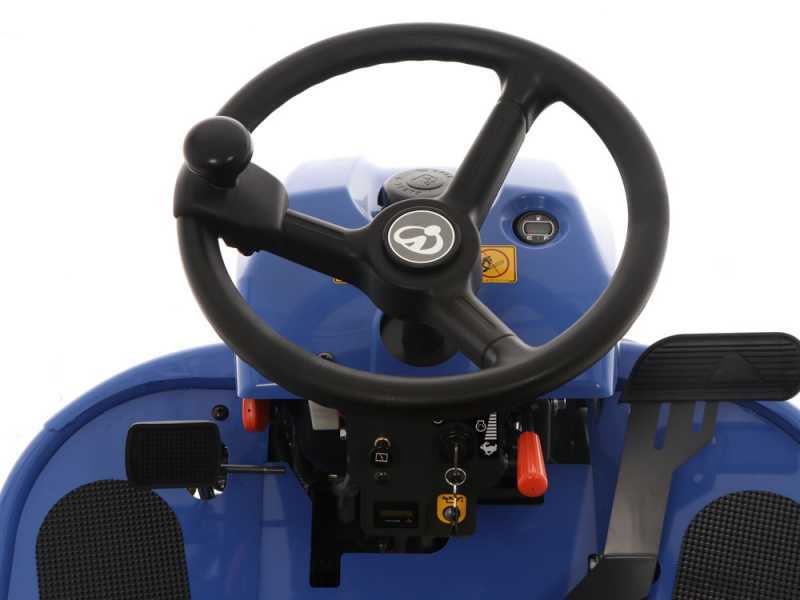

• Ergonomic steering wheel with proper knob
• Sturdy front bull bar
• Large front and rear agricultural wheels
• Front agricultural wheels
• Rear wheels
• Adjustable Operator’s seat
• Front suspension
• Fuel tank cap

- Focus on the suspensions
