Iseki SRA 950A 2WD - Riding-on Mower - 726 cc Kawasaki Engine - Two-stage Hydrostatic Transmission

An efficient and heavy-duty riding-on mower suitable for the most demanding operations, designed for grass cutting on rough terrain and featuring low maintenance.

The Iseki SRA 950A is equipped with a 95 cm wide cutting deck, featuring a large floating blade, capable of cutting and shredding even the toughest shrubs and vegetation.

The drum brakes acting directly on the differential provide a more stable and safe operating condition, as well as greater comfort when working.

Front and rear suspension for maximum damping on uneven ground.

Equipped with large agricultural wheels that ensure good forward speed even on the roughest and steepest terrain.

This riding-on mower is equipped with a powerful Kawasaki FS691V petrol engine featuring a max. of 12.9 kW power. The engine is protected by a sturdy sheet metal cage that can be easily opened for convenient maintenance.

Easy and quick to use, thanks to the two-stage hydrostatic transmission, which allows you to move forward or reverse by simply pressing the proper pedal.

Adjustable cutting height via a lever placed near the Operator's seat, that can vary from 35 mm to 125 mm.

Comfortable Operator's seat adjustable in different positions, with built-in armrests, for even greater comfort in use.

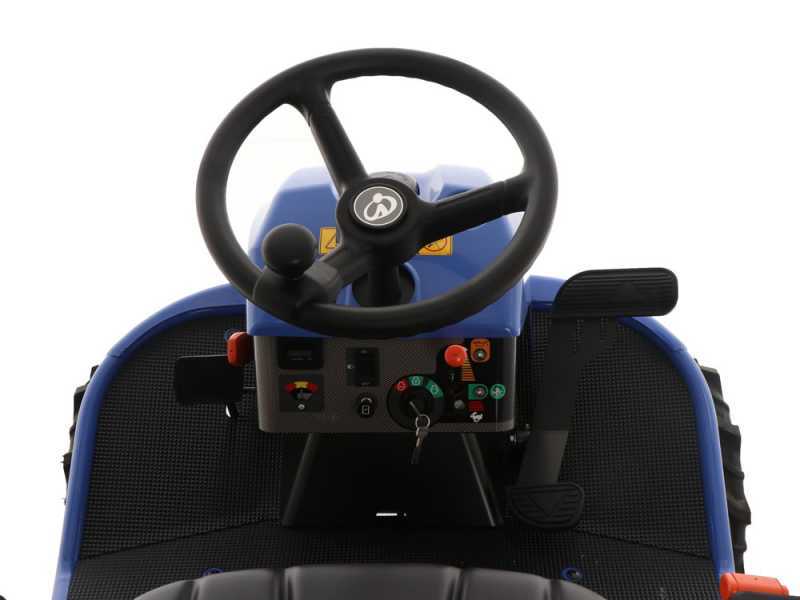

Underneath the ergonomic steering wheel is the control panel where the following are positioned:

• Ignition lock
• Front headlights switch
• Tilt indicator
• ECO Drive mode
• Speed variator

Manual blade engagement by means a yellow lever placed under the Operator’s seat.

The ideal equipment for the most demanding operations.

The cutting deck is equipped with a large steel floating blade with movable ends, that can easily cut brushwood, brambles and small shrubs, thanks to its special ultrasound-assisted processing.

Cutting width: 95 cm.

The blade is engaged manually, via a large side lever, to ensure maximum safety both during work and transport or maintenance.

The machine is equipped with 6 cutting heights positions, from 35 mm to 125 mm.

- Focus on the cutting deck

- Focus on the floating

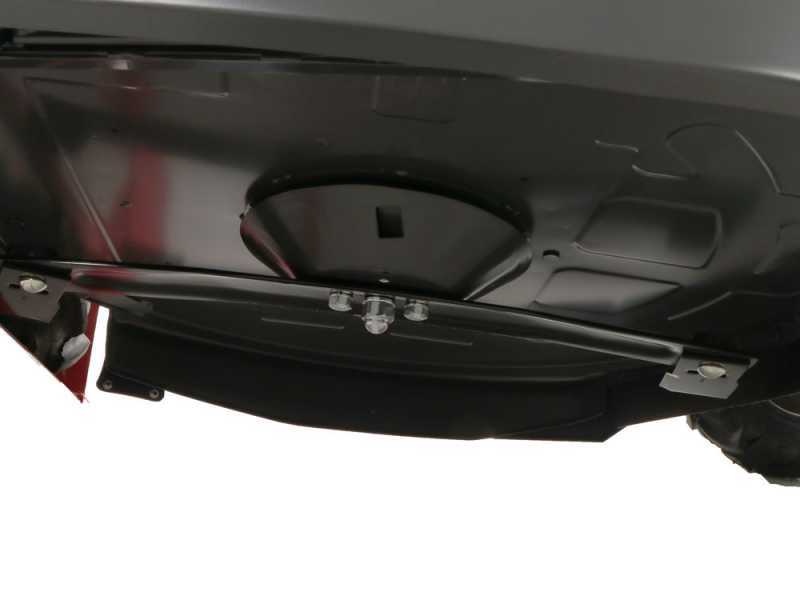

The cutting deck is fitted with a large floating blade with movable ends, which can easily cut brushwood, brambles and small shrubs.

The entire deck is protected by a rigid rubber guard in the front part and on both sides by a steel plate, thus preventing debris from getting caught between the blade and damaging it, and preventing debris from being accidentally thrown out during use.

The steel floating blades are highly sturdy thanks to their ultrasound-assisted processing which always ensures great results.

Cutting width: 95 cm.

The blade is engaged manually, via a large side lever, to ensure maximum safety both during work and transport or maintenance.

The machine is equipped with 6 cutting heights positions, from 35 mm to 125 mm.

- Focus on the cutting deck

- Focus on the floating

- Focus on the front differential lock

The riding-on mower is fitted with a powerful Kawasaki FS691V twin-cylinder engine, ensuring reliable performance over time and constant power.

The 726 cc petrol engine can develop a power of 12.9 kW at max. rpm.

The tank features 14 L capacity.

This engine also features OHV technology, where the valves are placed above the combustion chamber.

This valve arrangement allows a smoother intake of fuel. This higher combustion efficiency, in turn, allows using a higher compression ratio. This makes it possible to achieve greater efficiency.

This design also ensures greater thermal equilibrium, which prevents cylinder deformation and increases the engine service life.

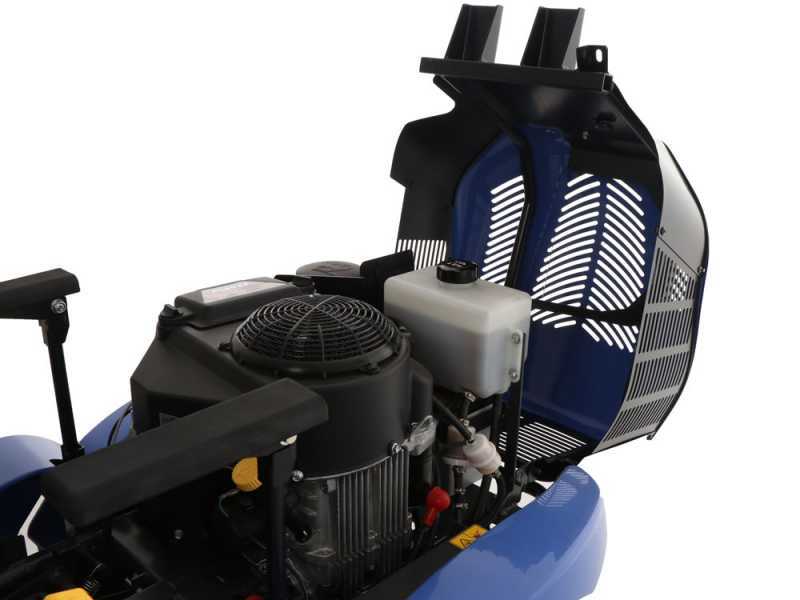

The engine compartment is easily accessible without the need of any extra tool. You’ll only have to fold down the Operator's seat and unscrew the small knob placed there to open the sheet metal cage that contains the engine.

- Focus on the knob to reach the engine

- Focus on the OHV technology

Nominal power: 23 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 17.30 Hp
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

ISEKI SRA 950A main controls:

• Parking brake
• Forward (F), neutral (N) and reverse (R) speed lever
• Hydrostatic transmission with pedal for forward and reverse speed
• Brake pedal
• Cutting height adjustment lever
• Fuel level indicator
• Dashboard
• Blade engagement lever (yellow lever)

Main features of the riding-on mower:

• Ergonomic steering wheel with proper knob

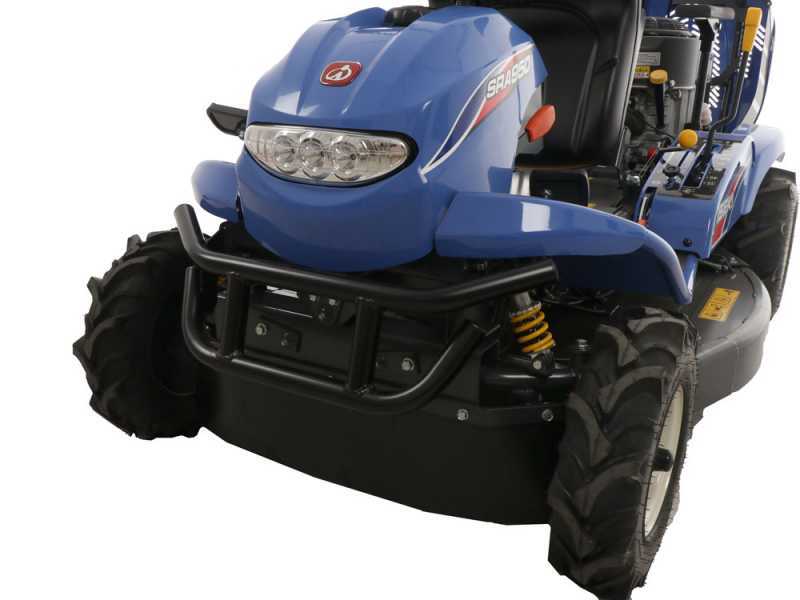

• Sturdy front bull bar
• Large front and rear agricultural wheels
• Front agricultural wheels size: 4.00- 7
• Rear wheels size: 17x8.00-8
• Adjustable Operator’s seat
• Front headlights
• Rear and front suspensions
• Tow hitch
• Fuel tank cap

Focus on the fuel tank cap

- Focus on the suspensions
