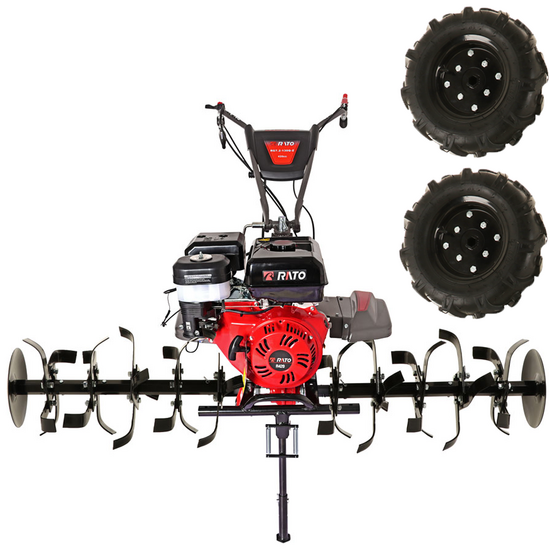

Italian Power RG 7.2-130Q-Z - 15 HP Petrol Garden Tiller - Rato R420 Engine

The Rato Italian Power RG 7.2-130Q-Z garden tiller is designed to guarantee excellent performance on all types of hard soil, including never-worked soil.

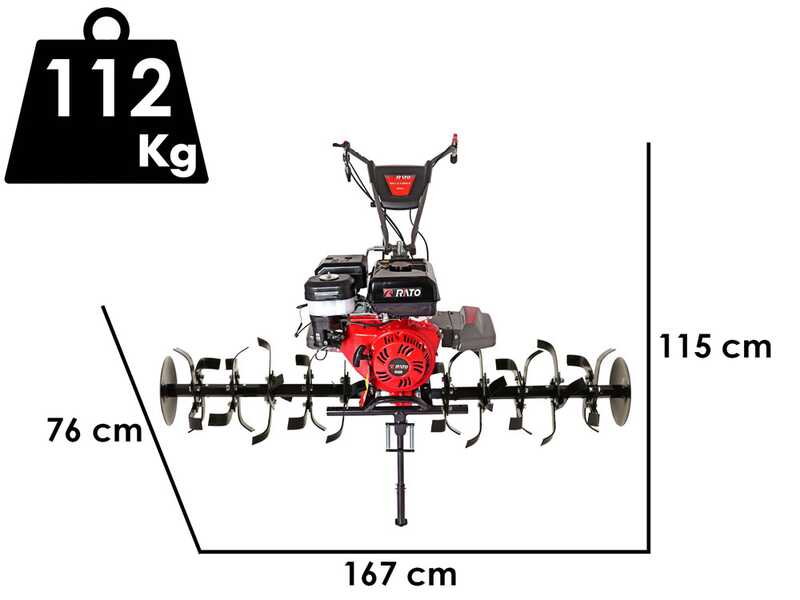

Its sturdiness and 112 kg weight improve soil penetration, favouring deep and precise tillage even on demanding surfaces.

The tiller is equipped with a 10-star blade with a diameter of 36 cm, which allows a working width of 150 cm and a depth of 30 cm.

These features make it ideal for intensive work on large surfaces. User-friendliness is ensured by the height-adjustable ergonomic handle and controls fitted on the handle, which improve operator comfort and control.

The oil-bath gear transmission guarantees reliability and durability, with 2 forward and 1 reverse gear, allowing power to be modulated according to the type of soil and the work to be carried out.

The Rato R420 4-stroke engine, with a displacement of 420 cc and a maximum power of 7.2 kW, offers high performance, durability and reliability. Designed to reduce emissions, fuel consumption and noise levels, it is an ideal choice for those seeking efficiency and sustainability.

Finally, the wheel kit with hub facilitates moving and storage, making the garden tiller practical to use and manoeuvre.

Main features:

• Weight: 112 kg, ideal for improving soil penetration.
• Tiller: 10 stars, 36 cm diameter, 150 cm width, 30 cm depth.
• Transmission: oil-bath gears with 2 forward and 1 reverse gear.
• Engine: Rato R420, 4-stroke, 420 cc, 7.2 kW.
• Accessories: Wheel and hub kit for easy mobility.

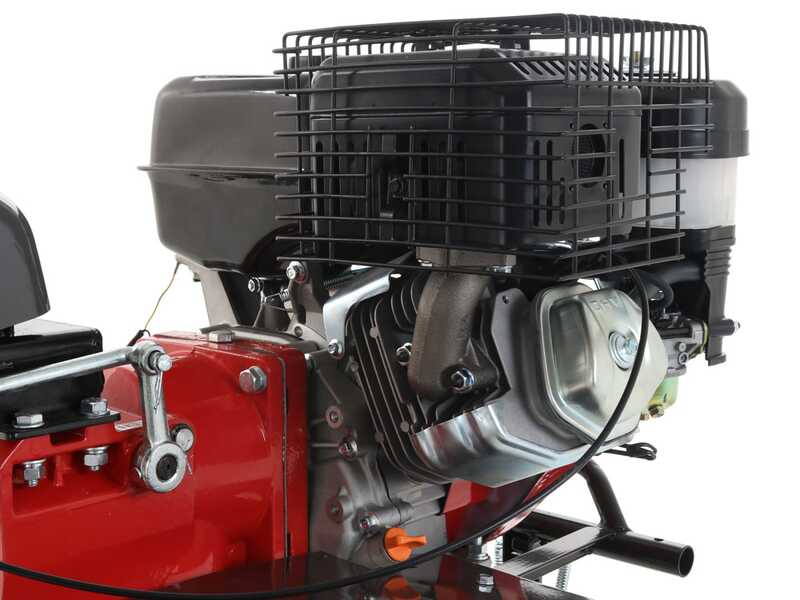

Main features:

• Model: RATO R420
• Engine type: Single cylinder 4-stroke - OHV
• Cylinder type: Aluminium
• Cylinder capacity: 420 cm³
• Power: 15 HP
• Max. rpm: 3600 rpm
• Tank capacity: 6.5 L
• Engine oil capacity: 1.1 L

Filter detail.

6.5 L tank

Nominal Power: 15 HP

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: 9.7 HP

It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

WARNING!

The engine is PROVIDED WITHOUT OIL. Read the instruction manual carefully before starting it up.

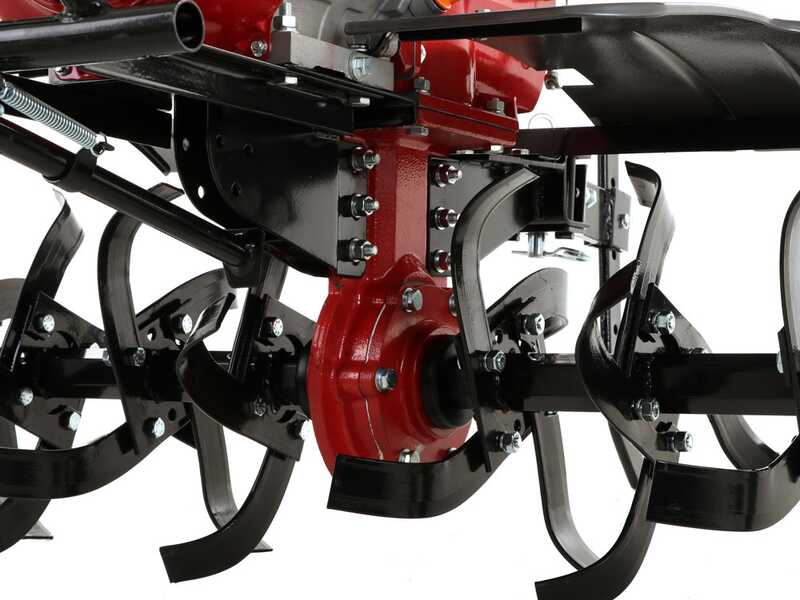

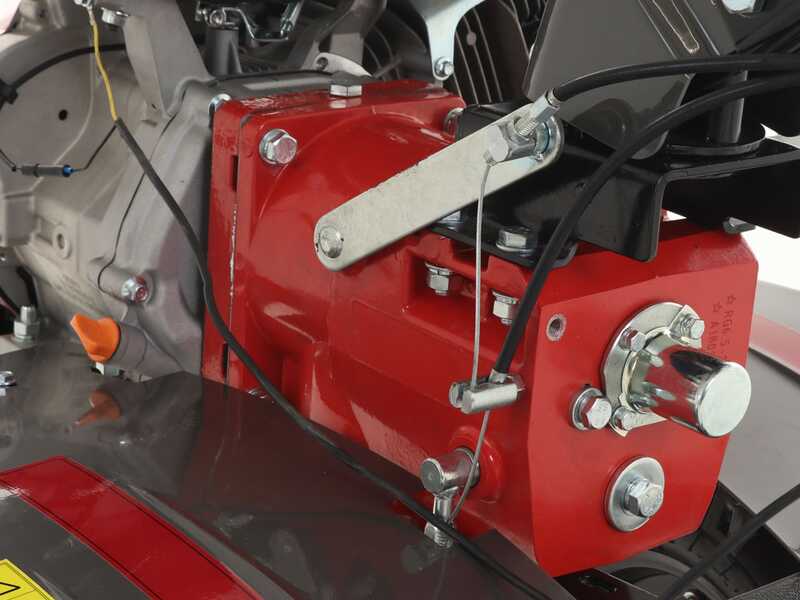

The direct gear drive (in oil bath) on the drive shaft requires very little maintenance and provides maximum resistance to stress when working in hard terrain.

A gear-driven transmission is much more solid and reliable than a belt-driven one, because the components are already all in contact with each other and as soon as one moves, all the others move too and the motion from motor to cutter is immediate.

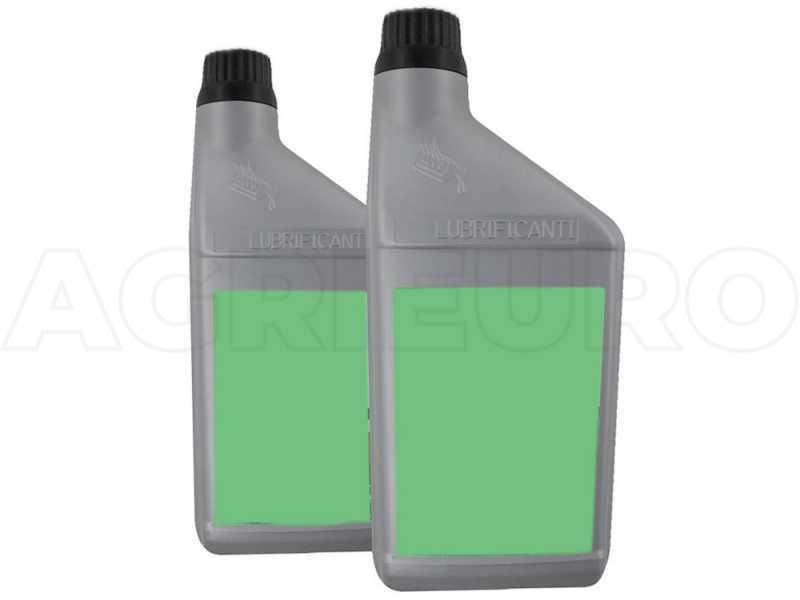

WARNING!

The transmission is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

The standard-supplied gearbox that comes together with this garden tiller stands out to be an excellent 2+1 gearbox.

Gearbox main specifications:

• Overall size and sturdiness, which are two of the main characteristics of this garden tiller model.
• Upper gear tempering
• Accuracy gear shifting engagement
• Accuracy in the gear manufacturing
• Gearbox oil quantity: 750 ml;

The presence of 2 forward gears allows the operator to carry out more efficient milling. Indeed, all this will facilitate the penetration in hard soils by increasing the control over the machinery.

While the presence of 1 reverse gear will facilitate moving and manoeuvring.

The long gear shifting lever allows shifting gears comfortably from just below the handlebar.

Detail of the oil cap.

Focus on the PTO

The Italian Power garden tiller is equipped with 10 star blades with a 36 cm diameter tiller, which ensures a working width of 150 cm and 30 cm working depth. It is easy to manoeuvre thanks to the height-adjustable ergonomic handle and controls on the handle.

It is also possible to adjust the width to a narrower setting by disassembling one row of blades per side.

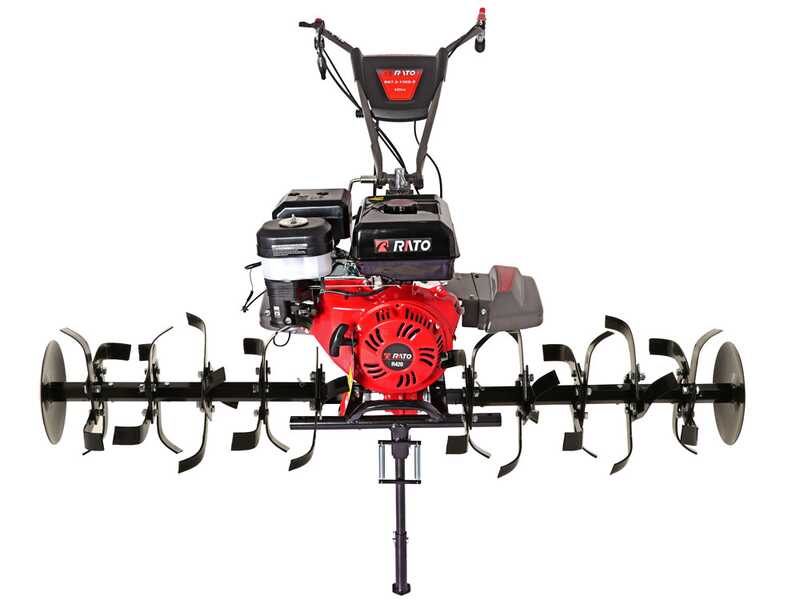

Thanks to the two robust pneumatic wheels and tiller holder, moving the tiller over different types of terrain is extremely easy. Just remove the wheels and install the tillers in one simple operation (where no tools are required) and you can start working the soil.

Hex shaft diameter: 32 mm

WARNING!

The transmission is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

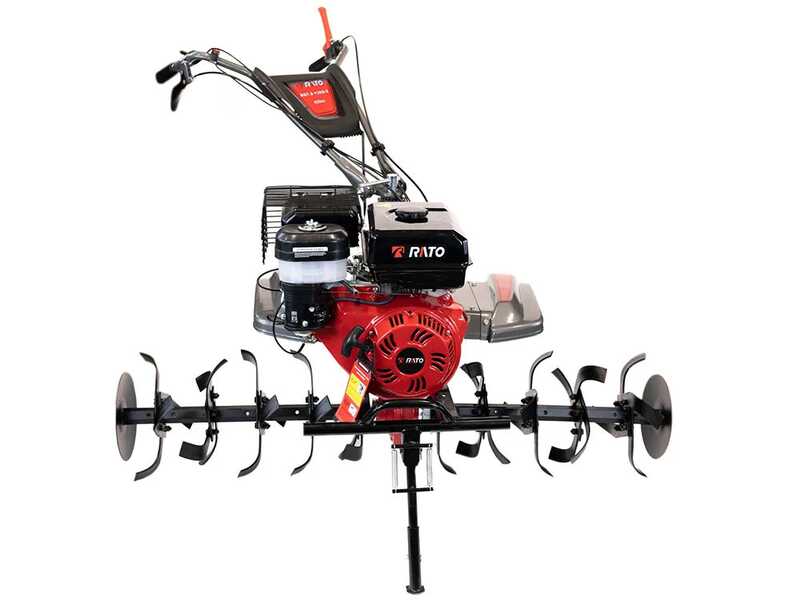

The handlebars are adjustable in height and laterally thanks to the double cast steel adjuster.

Operating controls:

• red lever operates the motion of the tillers. Black lever: clutch that operates the machine according to the gear that is set, press the button before operating the lever
• lower lever on the right: reverse gear operation
• throttle handle
• On/Off switch.

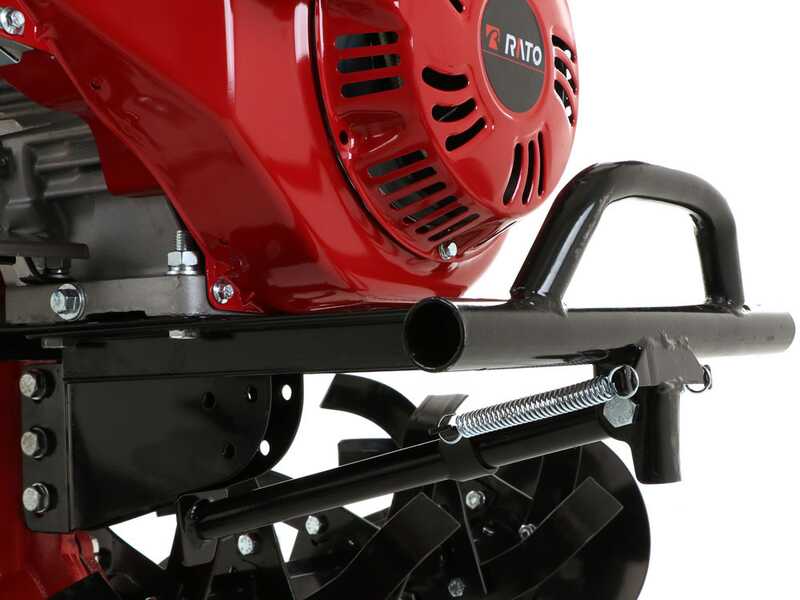

There is a front bumper on this tiller model, which is convenient for avoiding engine shocks. In addition, it is possible to position the support foot when not working. The latter is easily retractable so as not to get in the way.

Detail of the cutter covers and adjustable spur.

The number of hoes can be reduced, thus reducing the width of the tiller
