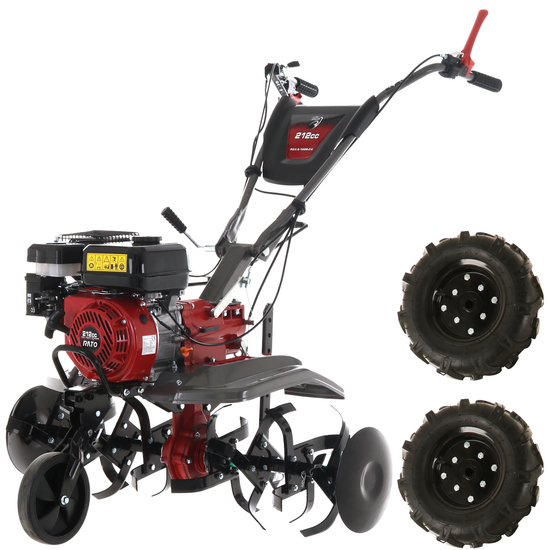

Italian Power RG3.6-100 - 212cc 7 HP Petrol Garden Tiller

The Italian Power RG3.6-100 2+1 garden tiller is a sturdy and easy-to-use machine, intended for a semi-professional use. Highly-recommended for tilling medium and large-sized hard soils difficult to work.

The garden tiller is equipped with 6-blade cutting unit with 33 cm diameter, for a working width of 97 cm and a depth of 30 cm. Easy handling thanks to the height-adjustable ergonomic steering handles and to the controls, which are located on them.

The machine is equipped with 2 forward and 1 reverse gear, giving the operator a greater power control. Equipped with a gear transmission with gears in oil bath.

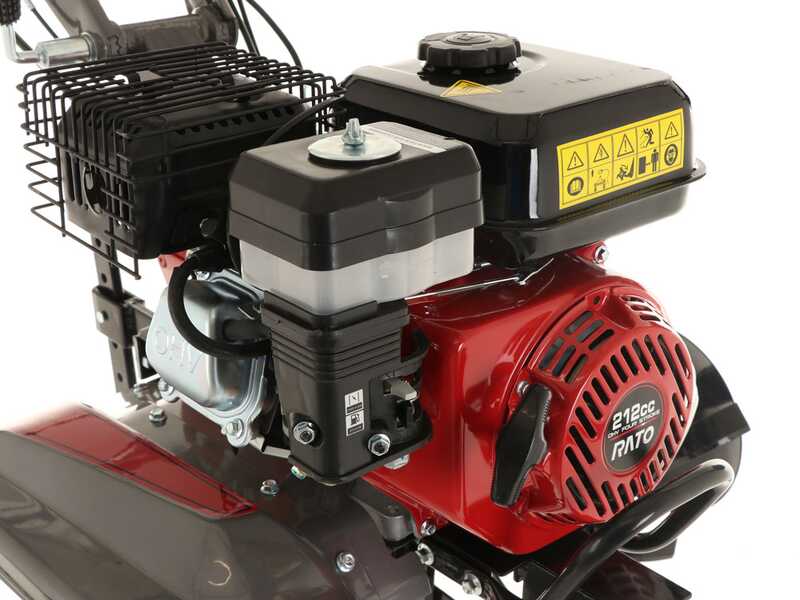

Fitted with a Rato R210 212 cc 4-stroke engine with 4.4 kW (7 Hp) of power which ensures a long service life, low noise emissions and low consumption.

The garden tiller is equipped with wheel kit, which is complete with hub for easy transport and storage, engine and gearbox oil included.

WARNING!

Engine and transmission provided without oil. Make sure to add oil before the first use.

Main features:

• Model: RATO R210
• Engine type: Single cylinder 4-stroke - OHV
• Cylinder type: Aluminium
• Cubic capacity: 212 cm³
• Power: 7 Hp
• Max. rpm: 3600 rpm
• Fuel tank capacity: 3.6 L
• Engine oil: 0.55 L

Focus on the filter

3.6 L tank

Nominal Power: 7 Hp

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine. Rated power:

Rated power: 6 Hp

It corresponds to the real power expressed by the crankshaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

WARNING!

The engine is PROVIDED WITHOUT OIL. Please carefully read the instruction manual before starting the unit.

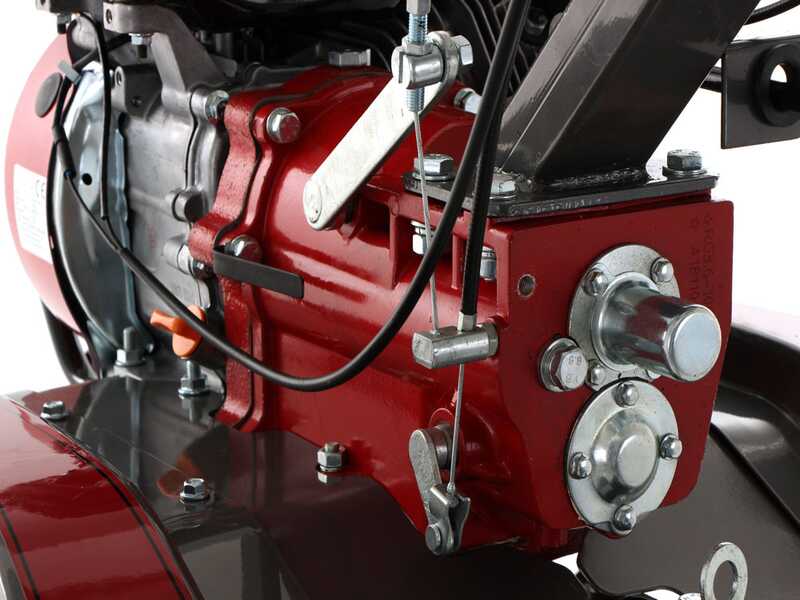

The direct drive with gears in oil bath is very low maintenance and provides maximum resistance to stress when working in hard soil.

A gear drive is much more solid and reliable than a belt drive, because all components are already in contact with each other and as soon as one moves, all the others move as well and the movement from engine to tine is immediate.

WARNING!

The transmission is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

The gearbox features 2+1 gear.

Its main features are:

• overall size and sturdiness.
• upper gear tempering
• precise gear shifting engagement
• accuracy in gear manufacturing

The presence of 2 forward gears allows the operator to carry out more efficient milling and facilitate the penetration in hard soils by increasing the control over the machine.

The presence of 1 reverse gear makes handling and transporting the machine easier.

The long gear lever allows shifting gears comfortably from just below the steering handles.

Focus on the PTO

The Italian Power garden tiller comes with a 8-blade cutting unit with 33 cm diameter for a working width of 97 cm and a depth of 30 cm. Easy handling thanks to the height-adjustable ergonomic steering handles where the controls are placed.

The working width can be easily adjusted at 75 cm, by simply removing one row of hoes on each side.

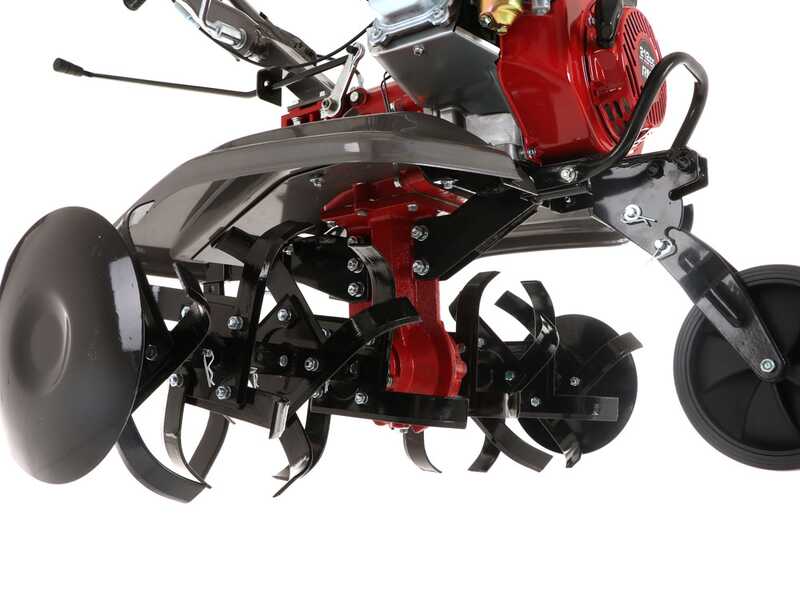

Thanks to the two sturdy pneumatic wheels provided on standard equipment, and to the tine housing, moving the machine over different types of terrain is extremely easy. Just remove the wheels and insert the tines with a simple operation (no assembly tools required) in order to start working.

WARNING!

The transmission is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

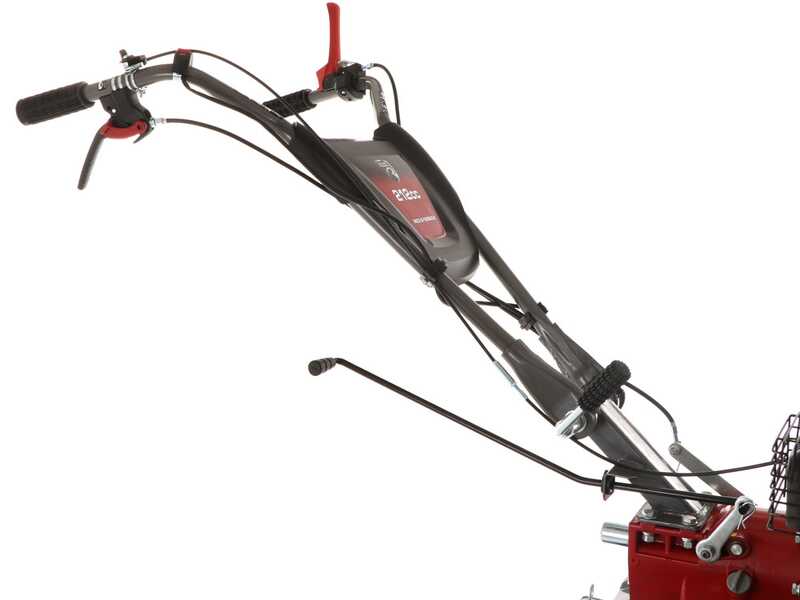

The steering handles, where all the main controls of the garden tiller are located, are adjustable in 3 different positions:

• High position
• Low position

All the user-friendly controls are located on the steering handles:

• Clutch lever: it operates the forward motion of the tine and the machine.
• Throttle Lever

Focus on the rear adjustable stake.

Focus on the steel side crop protection discs.
