Italyco KV 10/270 - Rotary screw compressor - Max. pressure 10 bar

Add a question
ID: K607954

EAN: 8055773342262

MPN: V270OC059R501

Italyco KV 10/270 - Rotary screw compressor - Max. pressure 10 bar
Special offer
FREE
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
Universal cover for storageUniversal cover for storage
Air compressor tank
270 L
Max. operating pressure
10 bar
Air intake flow
900 L/min
Pumping unit
Screw
Cylinder head rpm
2930 RPM
Silenced
Yes
Nominal power
10 HP
Operating mode
Three-phase 400 V
Manufacturing country
Italy
Product Features
Model:
KV 10/270
Air compressor type 2:
Screw
Air compressor type:
Horizontal
Operating mode:
Three-phase 400 V
Operating mode:
Electric 400V
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
270 L
Noise level:
69 dB(A)
Manufacturing country:
Italy
Motor data
Motor type:
Electric three-phase
Nominal power:
10 HP
Silenced:
Yes
Power supply:
400 V electric
Pump data
Pump brand:
Italyco
Air intake flow:
900 L/min
Pumping unit:
Screw
Transmission data
Screw:
Cylinder head rpm:
2930 RPM
Equipment
No. of outlet couplings:
1
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Dimensions and logistics

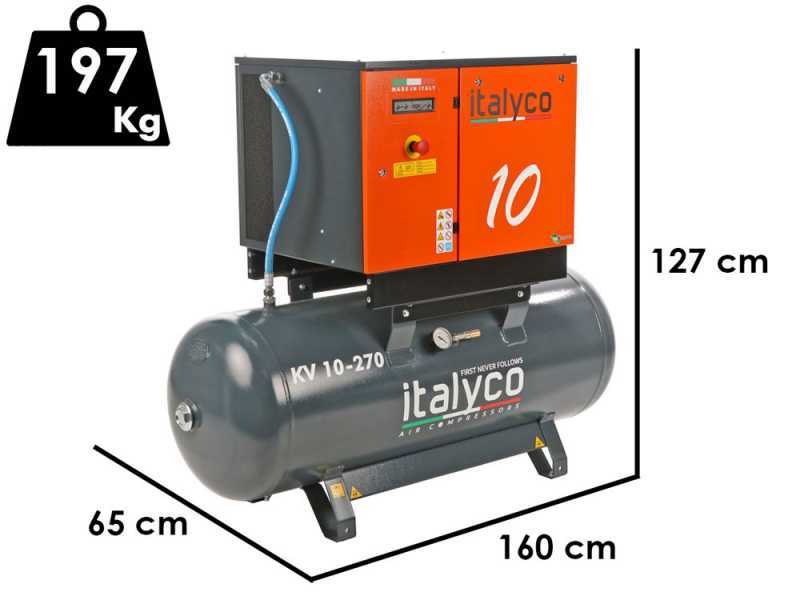

Product dimensions in cm (L x W x H):
160x65x127 cm
Net weight:
197 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
154x75x180 cm
Gross weight (packaging included) :
210 Kg
Assembly time:
5 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 07/05/2025 - 09/05/2025
Lowest price:
€ 4.248,61
-13 %
€ 3.667,22
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

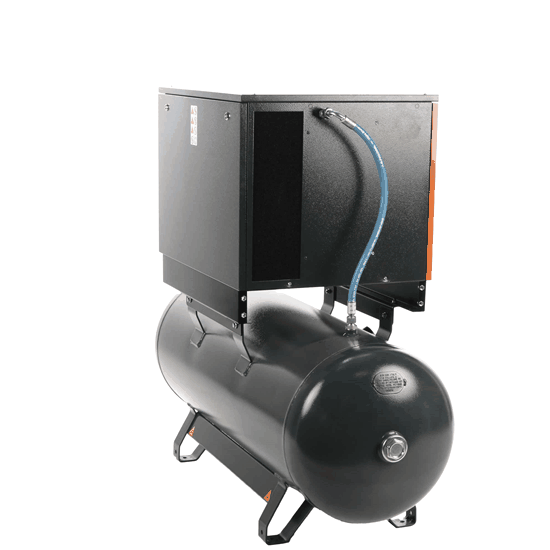

Italyco KV 10/270 - Rotary screw compressor - Max. pressure 10 bar

The Italyco KV 10/270 screw compressor establishes itself as an excellent choice in the industrial compressor market due to its superior performance and unrivalled reliability.

Equipped with a cutting-edge rotary screw system , this model ensures operational efficiency and quietness, keeping noise levels below 69 dB(A). This aspect is particularly appreciated in working areas that aim for a quieter and more productive environment.

Designed to provide a constant and clean air flow, this compressor emerges as the optimal choice for industrial applications where compressed air quality is critical.

Its excellence in producing superior quality air makes it indispensable in sectors where compromising on air purity is not an option, ensuring efficient production processes and high quality end products.

The cutting-edge design of this compressor focuses on efficiency and reliability, with cutting-edge rotors optimising air compression.

This ensures a constant supply of high quality compressed air, making the Italyco KV 10/270 particularly suitable for continuous use in industrial settings, where it is essential to maintain a constant performance.

With a 270-litre tank and the capacity to suck in 900 litres of air per minute, the compressor is characterised by its 7.5 kW power output and a maximum operating pressure of 10 bar. These characteristics make it extremely effective in meeting the demands of the industrial sector.

The versatility of this compressor makes it ideal for various work environments, including machine shops and different industries, ensuring uninterrupted operation and minimising the need for cooling breaks.

The intuitive design facilitates maintenance, allowing quick interventions that minimise downtime, thus improving productivity.

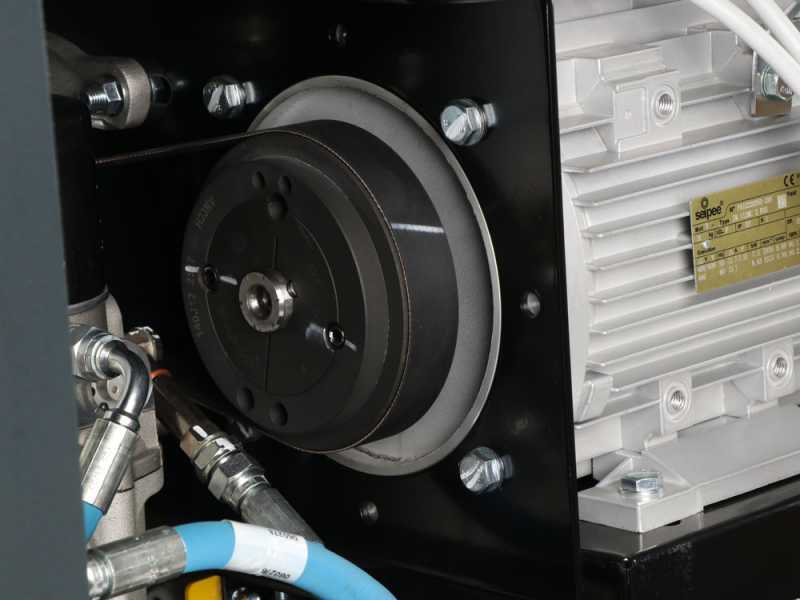

Main features of the screw unit

The rotary-screw air compressors are particularly suitable for those environments that require a greater air flow rate and longer operating times. Unlike piston models, they do not require a rest period, but only an initial phase during which the air compressor must reach a suitable temperature to be able to deliver the maximum pressure and flow rate.

The new screw unit in the range guarantees high efficiency and reliability. These models feature a single-stage compression unit cooled by fluid injection, designed to achieve a greater accessibility during maintenance operations.

The components subject to wear have been reduced to allow maintenance to be carried out in total autonomy and avoid unnecessary interventions that could damage the machine.

The screw unit and electric motor are fixed on an anti-vibration base that tends to eliminate the transmission of vibrations to the compressor structure, thus considerably reducing noise and mechanical stress on the fixed parts of the machine.

Sound emission level: 69 dB

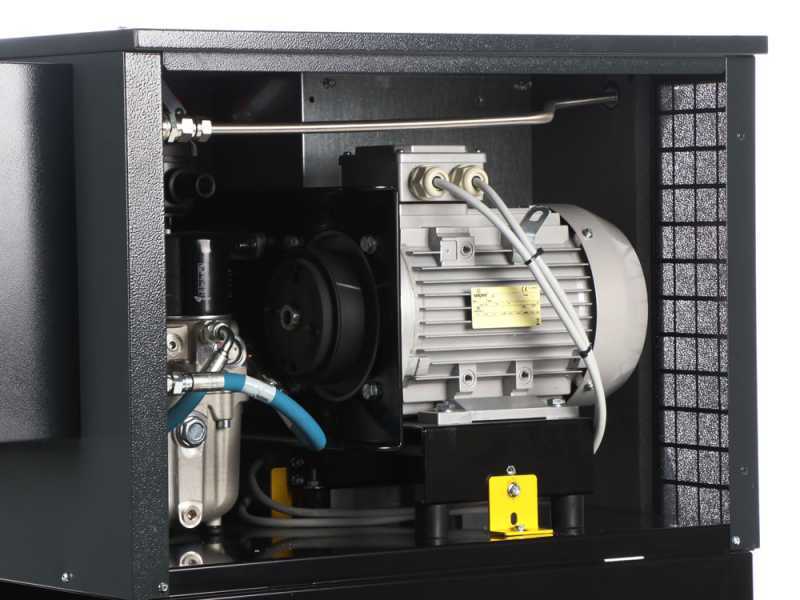

Motor technical features

The compressor has a three-phase electric motor. The induction motor is characterised by its very long service life (it is almost eternal) and low maintenance requirements.

This motor is in fact brushless, the main component subject to wear in electric motors. It is precisely the absence of this component that gives the engine its proverbial durability. It is to be considered the top in reliability, quietness, durability, energy efficiency and maintenance.

The compressor is connected via a geared motor to the pumping unit

  • Type: Three-phase electric
  • Voltage: 400 V
  • Power: 10 Hp
  • Frequency: 50 HZ

Air filter detail

Controls and adjustments

The compressor is equipped with an electronic board that manages, optimises and monitors all phases of operation. Thanks to an efficient run/stop regulation, fuel consumption is also reduced.

Reading the data is simple and straightforward:

  • Pressure adjustment screen

Detail of the oil bleeding tap

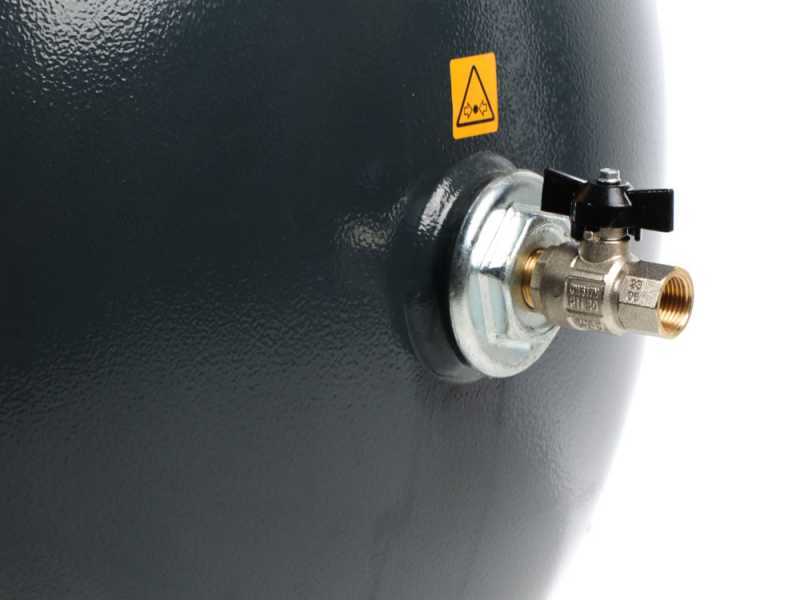

Detail of the outlet connection.

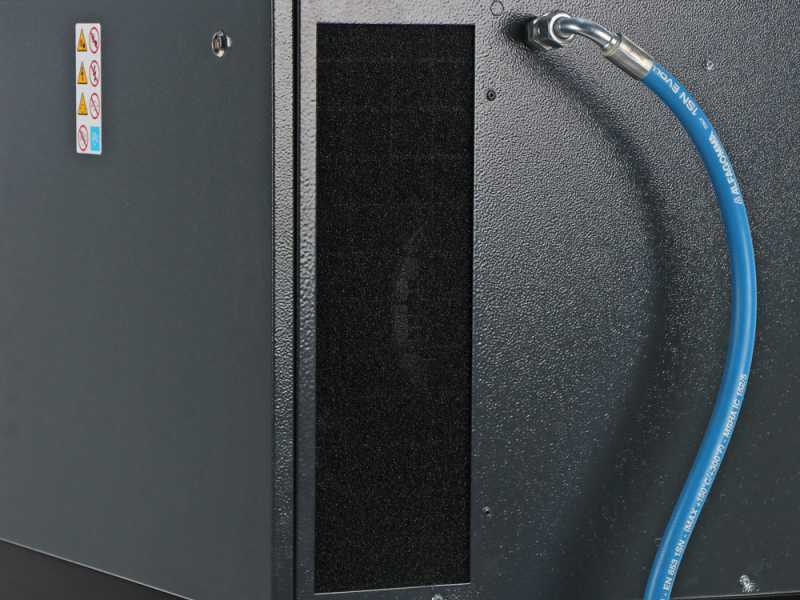

Additional features

Other features include:

Outlet valve

270-litre tank

Cooling fan

Control panel.

Lifting point.

Emergency stop button.

Dust filter

Free items & Standard equipment

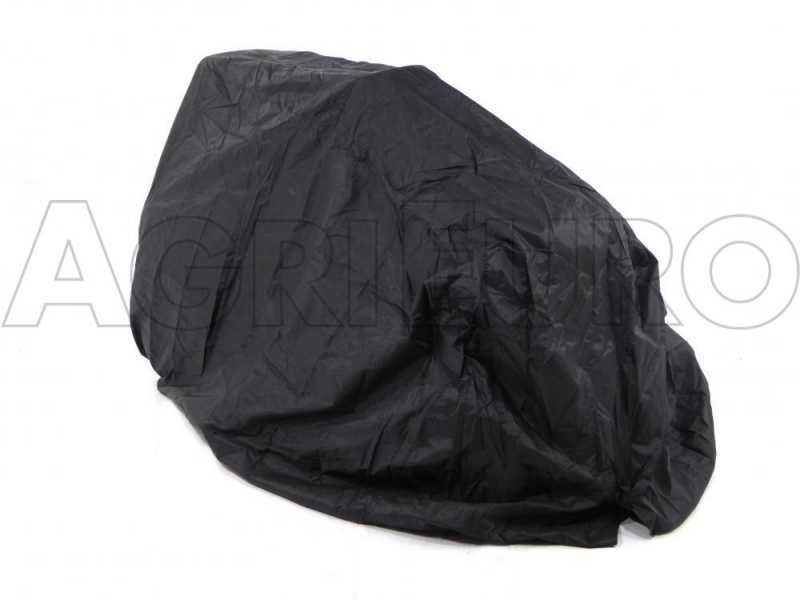

COMPLIMENTARYProfessional cover and XXL storage

It is essential for protecting your riding-on mower when stored.

This cloth is fast and easy to apply; within seconds your machine is protected from dust and moisture.

It is equipped with elastic on the lower edge to perfectly adhere to the bottom shape of the riding-on mower.

It is provided with a ventilation system.

Easy to fold and store in its box, it is really space-saving!

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

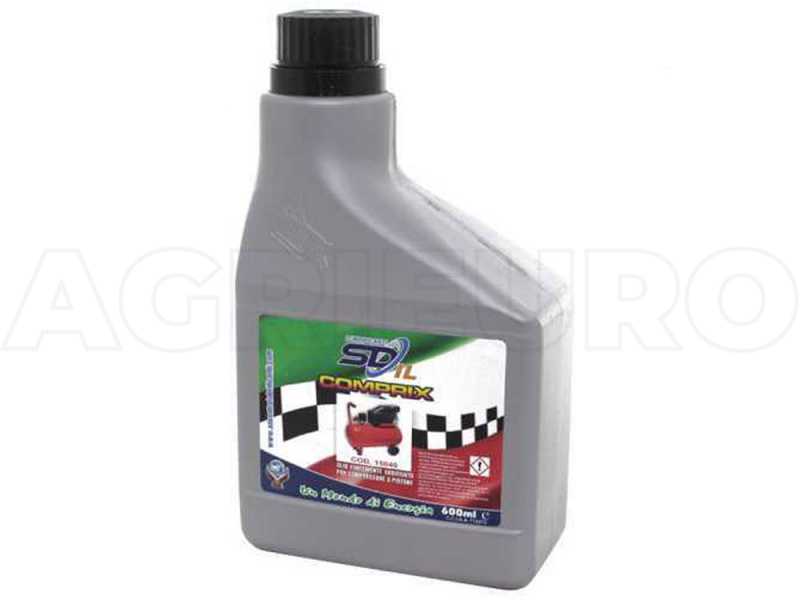

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Standard equipment

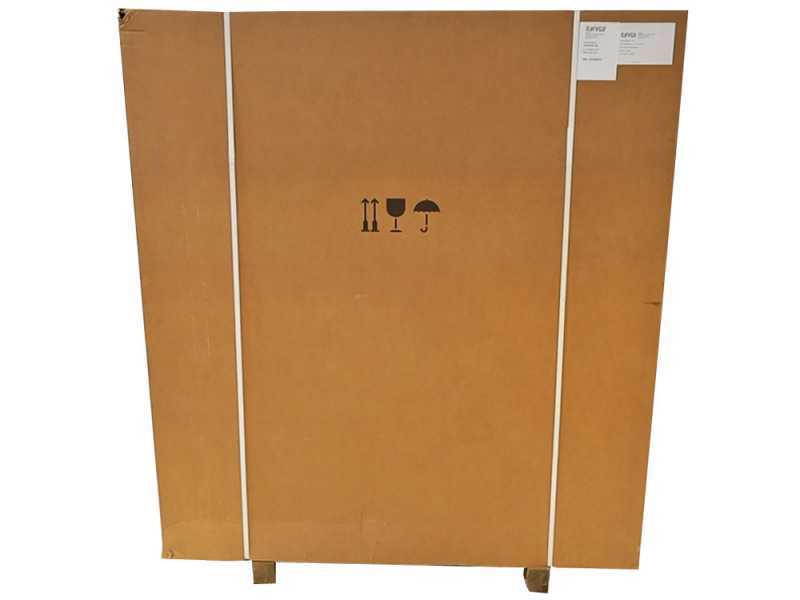

The compressor is supplied in its original packaging with a pallet.

Instruction manual included in the package.
