Jolly V12 BASE Electric Olive Harvester -170/310cm

Questions & Answers (2)
ID: K601292

EAN: 805917310006

MPN: V12BASE

7,5/10
After-sales assistance & Spare parts
Jolly V12 BASE  Electric Olive Harvester -170/310cm
+200 sold
FREE
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Cotton glovesCotton gloves
Noise-canceling earmuffsNoise-canceling earmuffs
Protective gogglesProtective goggles
AgriEuro BandanaAgriEuro Bandana
Head material
Technopolymer / Carbon
Motion
Double side
Speed (bpm)
1150 bpm
Max. prongs opening
34 cm
Telescopic pole
Max. length
310 cm
Motor type
Brush
Voltage
12 V
Motor speed levels
1
Motor type
Battery-powered
Battery type
Car type
Carbon prongs
Manufacturing country
Italy
Product Features
Model:
V12 BASE
Use:
For olive harvester only
Power supply:
Lead-acid battery 12 V
Head material:
Technopolymer / Carbon
Type:
12 V battery-powered
Operating mode:
12 V battery-powered
Motor position:
Up - on the head
Motion:
Double side
Speed (bpm):
1150 bpm
"Wave" prongs:
No
No. of prongs:
4+4
Prongs length:
35 cm
Prongs material:
Carbon
Carbon prongs:
Max. prongs opening:
34 cm
Min. length:
170 cm
Max. length:
310 cm
Pole material:
Aluminium
Removable harvesting head for direct use:
No
Induction motor (brushless):
Max. power even with low battery:
No
Energy Saving System:
No
Pole type:
Telescopic
Manufacturing country:
Italy
Motor data
Motor position:
On the head
Motor type:
Battery-powered
Motor type :
Brush
Battery type:
Car type
Motor speed levels:
1
Power supply:
12 V battery-powered
Fuse:
Yes
Voltage:
12 V
Recommended battery:
60 Ah
Motor power:
12 V
Manufacturing country:
Italy
Equipment
Extension pole :
170 / 310 cm - telescopica
Telescopic pole:
Extension power cable:
14 m
Free gifts/extra features
Maintenance tool kit:
Yes
Prongs/rods:
8
Instructions manual:
Yes
Dimensions and logistics
Net weight:
1.65 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
176x21.5x5.5cm
Gross weight (packaging included) :
3.7 Kg
Assembly time:
15 minutes
Out of stock
Free Shipping
Suggested price:
€ 556,74
€ 523,24
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

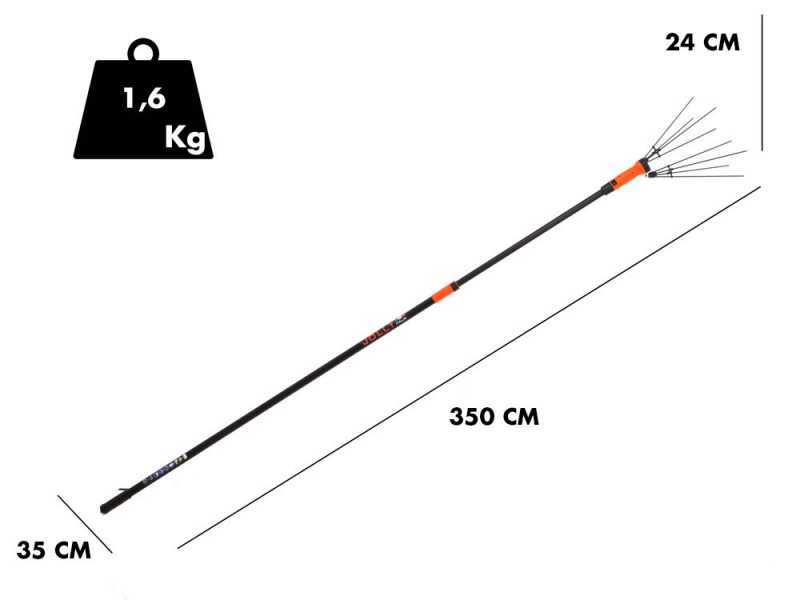

Jolly V12 BASE Olive Harvester

After years of important achievements in the design and construction of equipment for the facilitated collection of fruits V12 is born:

The ideal tool thanks to its lightness and high collection capacity.

Thebattery powered V12 Base olive harvesterby Jolly Italia is a truly innovative product in the field of olive harvesting. Collecting olives has never been easier, thanks to the very low weight, it is one of the lightest harvesters category, just 1.65 kg with a length of 3,10m.

The motor delivers 1150bpm.

Designed and built for anyone but especially for those who prefer mobility and ergonomics to raw power.

In addition, despite its power being electric, it has a purely mechanical operation, and thus being easy in conception and difficult to break.

The carbon rods are interchangeable and the comb has a circular shape. This narrow and elongated shape allows to also penetrate into the thicker foliage to greatly increase productivity.

The on / off switch button tool only takes a few seconds after pressing; this system allows a better control of the tool, avoiding accidental extinguishing

In the event of impact against the branches in the use phase.

This model is equipped with a 1.4m telescopic rod which extending guarantees a rod length from 1.7 m to 3.10m.

This model comes bundled with 14mt cable.

BATTERY NOT INCLUDED

Main Features

High capacity of penetration in the foliage of plants: thanks to the minimum thickness and the considerable distance of the rods.

The particular position of the motor and of the off-axis and slightly tilted rods increase efficiency.

The best deep penetration in the market, thanks to its long rods of 34 cm. It harvests up to a considerable depth.

The special tapered shape also facilitates harvesting of trees not properly pruned.

  • 1150 Beats per minute
  • Power supply: 12v
  • Electric motor Made in Italy
  • Telescopic aluminum rod of 170/310 cm
  • Consumption 3-6 Amp/h
  • 76.7db Noise

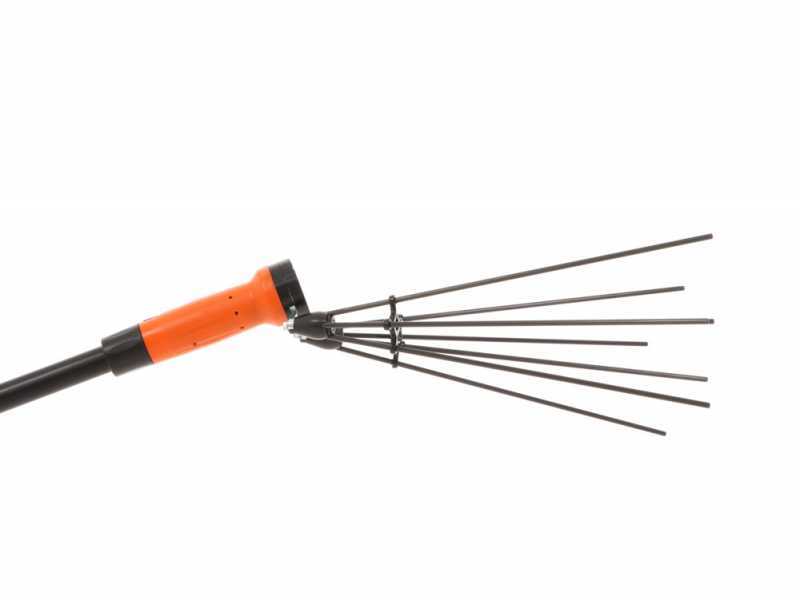

Harvesting Comb

The big news of this comb is the peculiar round shape slightly inclined axis and not perpendicular, with respect to the classic havesters with a rectangular shape to support the rods which makes this product:

  • Less bulky
  • more agile in the thick of the plant
  • Higher working width

The special design of the comb and its movement make the collection work even more effective. The movement and conformation ensure a correct separation of the olives causing them to fall perpendicularly to the branches of the plant, directly on the collecting cloth.

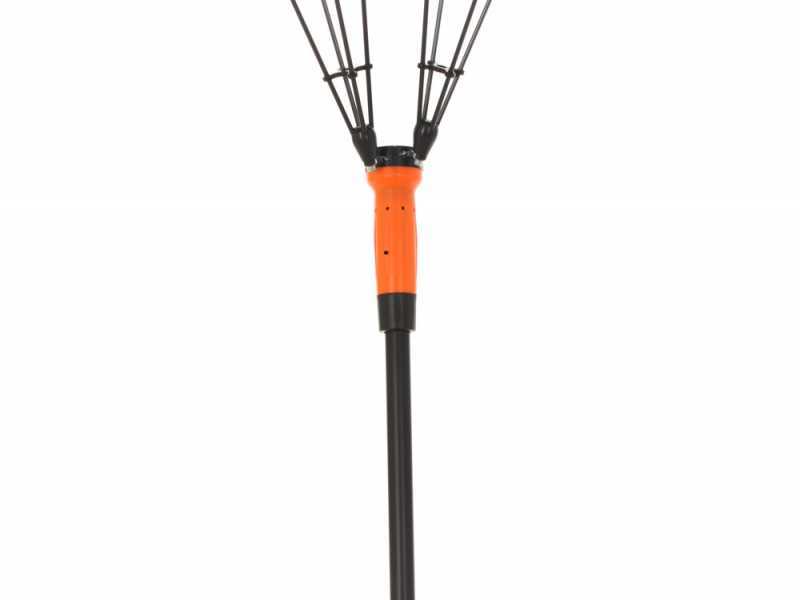

Harvester Body

The body, which contains the electric motor made in Italy, is made of resin and nylon, ensuring strength and lightness.

Between the seat of the teeth and the motor is present a steel pole to ensure greater robustness. The motor 12 v ensures 1150 cycles per minute for an absorption of 3-6 amp / h.

For the power supply, a battery of at least 50 A is enough.

That guarantees an autonomy of 8h of daily work.

Focus on the ignition switch.

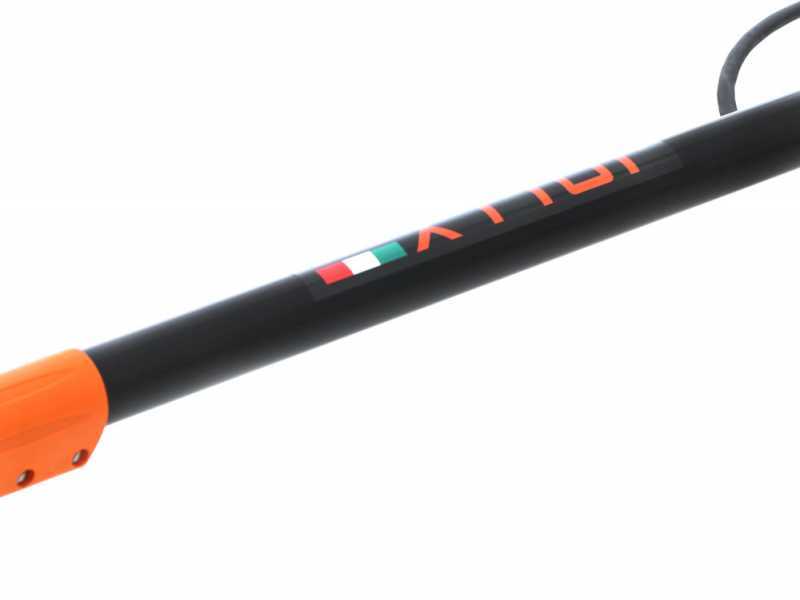

Extension Pole

The aluminum extension pole has a telescopic length of excursion from 170 cm up to 310 cm. The elongation action can be made with the hook system and quick release.

At the end of the pole there is the extension of 14m and the pliers for the connection, to connect the harvester to the battery (not supplied).

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

AgriEuro Headscarf

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

Standard Equipment

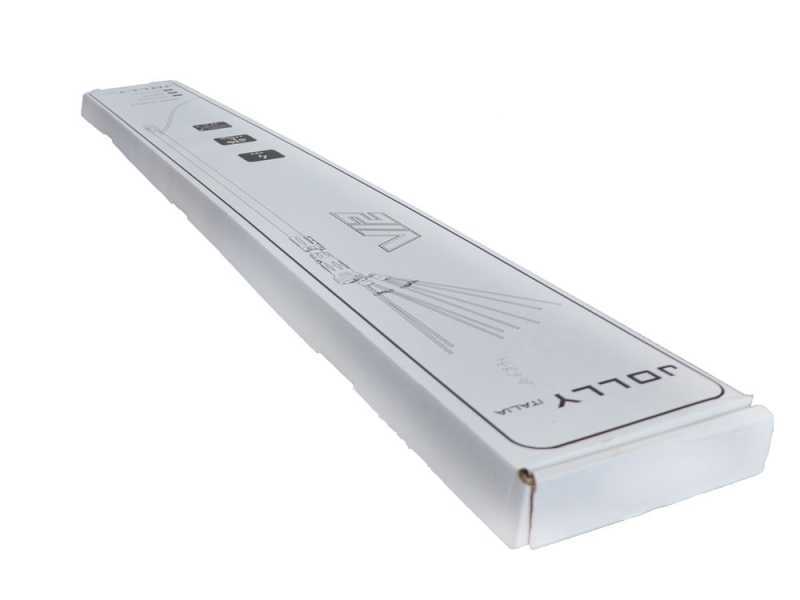

The machine is shipped in its original packaging

Professional cable with terminals for connection to the battery

Instructions Manual
