Description

Jolly V34 olive harvester

Latest-technology V34 olive picker resulted from years of important tool manufacturing, specifically designed for the olive harvesting:

Optimal solution thanks to the light configuration and high harvesting performance.

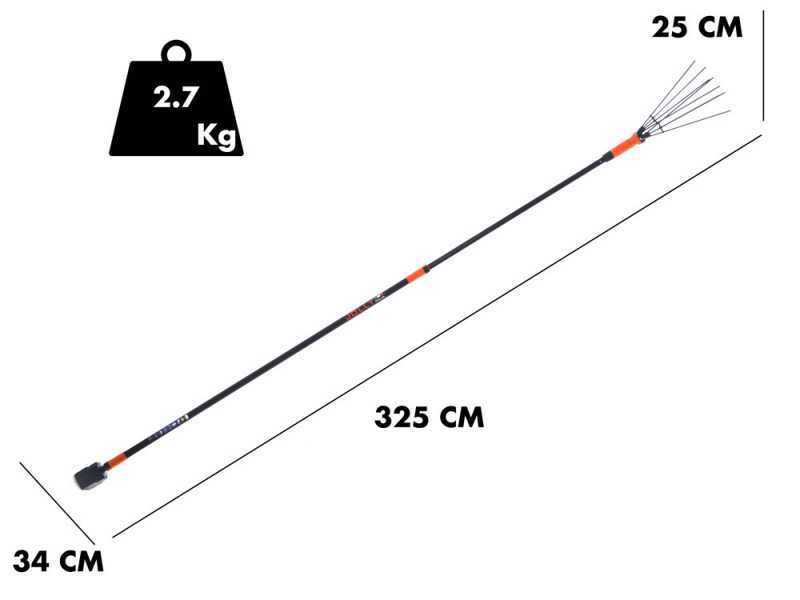

The V34 battery-powered olive harvester manufactured by Jolly is renowned to be an extremely innovative product in terms of olive harvesting treatments. The olive harvesting has never been so easy and comfortable even thanks to the 2.7 Kg weight and a telescopic pole, which can be extended up to 3.10 m.

The electric motor ensures 1350 rev/min.

This olive harvester is designed for all of you, but it is mostly suited for those who address their choice on the ease of use and ergonomics instead of exclusive power.

The easy portability on the Operator's hand and lightness allow the olive harvesting even on the lowest branches always ensuring high level of manageability.

The standard-supplied kit includes the 15 m extension cord, fuse and transformer designed to convert the battery voltage from 18 V to 36V.

It is lighter than any other olive harvesters out there. The harvesting head weighs 850gr and the total product weight (including the pole) is 1.5 kg - and this is a record which makes Adrian amazing.

Thus, although powered by electric motor, this olive harvester mostly features a mechanics functioning, which means easy use and high sturdiness.

Provided with interchangeable carbon prongs and circular-shaped harvesting rake. The tight and extended shape allows deep access into the tree crown, which result in improved harvesting performances.

The push-button prevents the unit from stopping whenever the olive picker hit a branch accidentally while working.

This olive shaker model comes with telescopic pole of 1.7 m up to 3.10 m Max extension.

This specific model is provided with specific kit consisting of 2 18V 9 Ah batteries and quick charger.

This version designed with the latest electronic technologies ensure a number of additional advantages:

Improved rev/min: 1350
Improved harvesting treatment
Contrast the tree resistance and increase the power while harvesting
Absorption: 5 amp

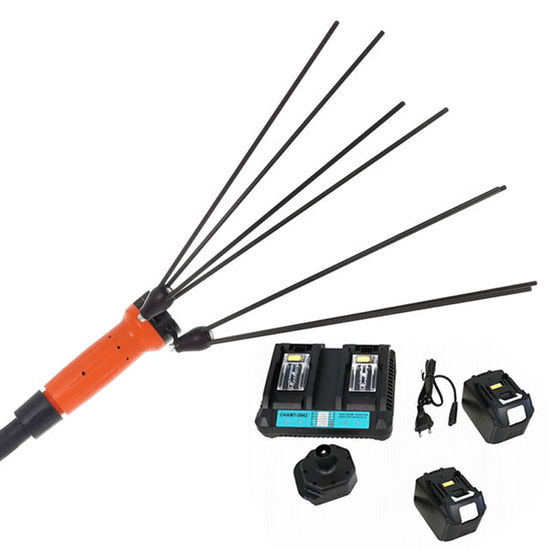

Jolly V34 - Olive Harvester with Lithium Batteries- 170/310cm

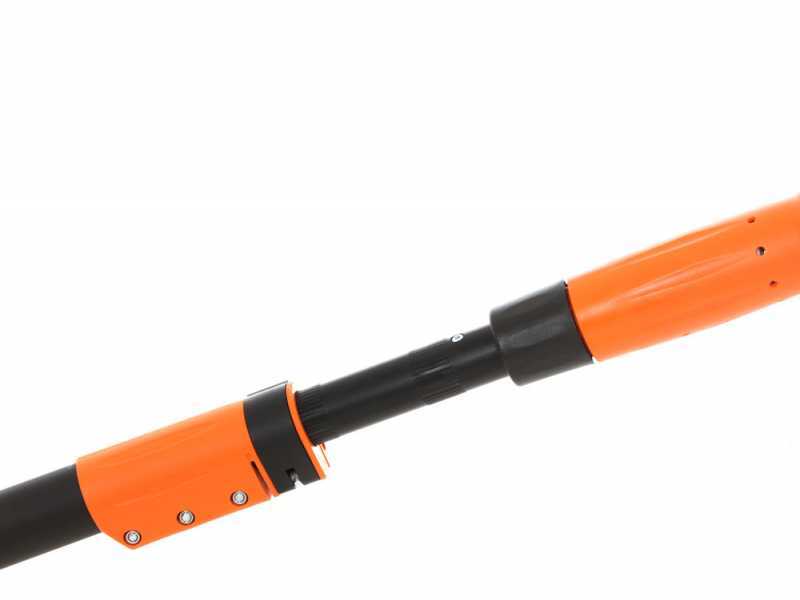

Main features

This olive shaker can easily reach into tree foliage thanks to the minimal thickness and large tooth distance from each other.

Thus, the particular motor and tooth positions, that are located out of the main axle and slightly tipped from the telescopic pole, increased the item efficiency.

The best penetration into tree foliage on the market thanks to the 34 cm long prongs. It ensures optimal penetration for the olive harvesting.

The olive shaker also stands out for the detachable head.

The tapered shape facilitates the harvesting treatments even in case of olive trees that are not properly pruned.

1350 rev/min
Power supply: 18 V
5-speed motor
Motor power: 36V
Electric motor, Made in Italy
Aluminium telescopic pole: 170-310 cm
Absorption: 5 amp

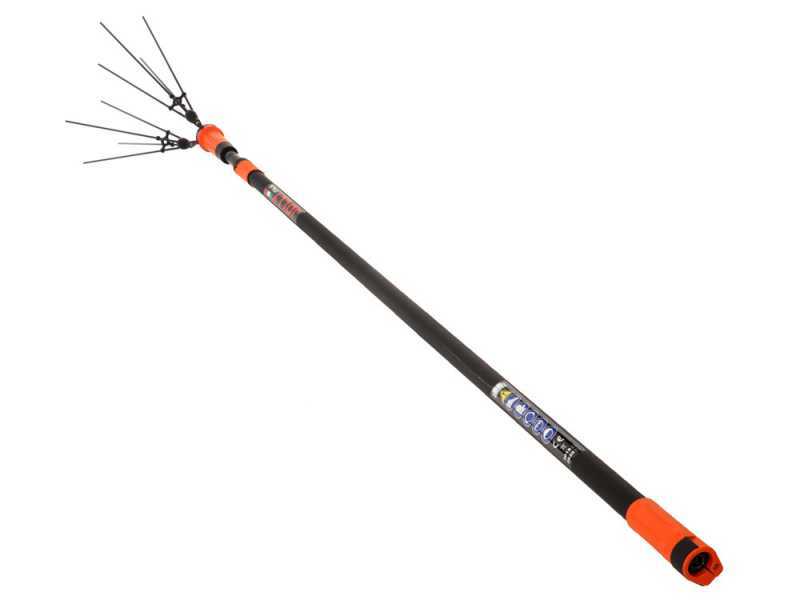

Harvesting rake

The greatest innovative feature of the harvesting rake is its special circular shape, which is slightly tipped and the prongs are not perpendicular differently from the standard olive harvesters consisting of square head. Advantages of this configuration:

Minimal amount of space
Increased agility while working
Larger harvesting area

The special rake design and motion ensure high-levels of harvesting. The rake and prong configuration ensure a clean and proper harvesting action and making the olives fall perpendicularly to the branches, directly on the olive catching net.

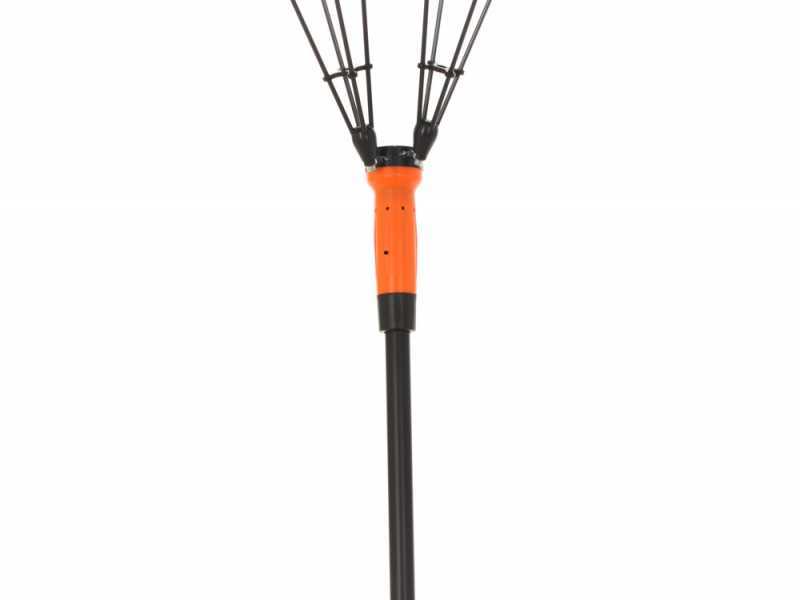

Machine body

The machine body, containing the electric motor and which is fully manufactured in Italy, is made of resin and nylon. The result s a sturdy and lightweight item ensuring the highest level in terms of sturdiness.

Provided with steel plate between the tooth holder and the motor for higher resistance. The 12 V electric motor ensures 1350 cycles per minute with 5 amp/h absorption.

It is recommended a 8V 9amp Lithium battery (please note that the unit is shipped with 2 batteries and charger included) to operate the olive harvester

Focus on the ON switch button.

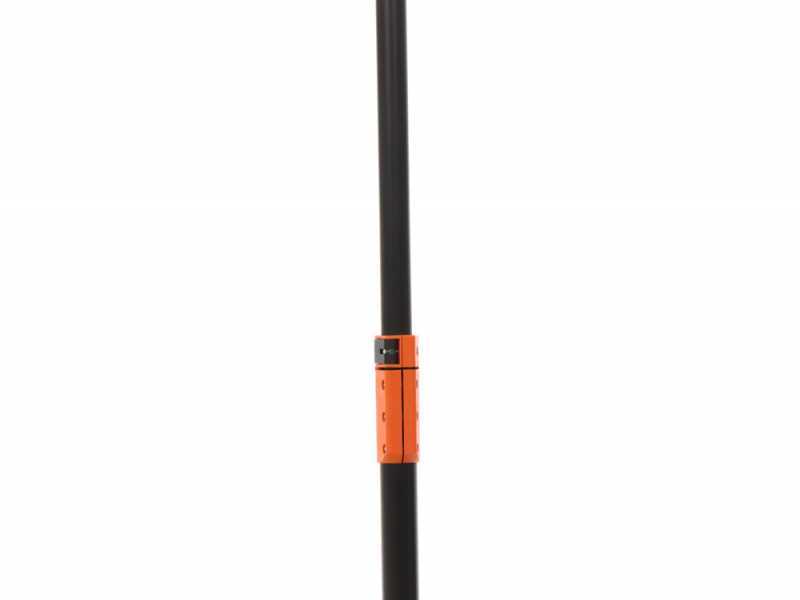

Telescopic pole

The aluminium pole can be extended from 170 cm up to 310 cm. It is designed with quick connect-release system for easy extension.

The hole designed for the connection of the battery or additional accessories is located on the pole end.

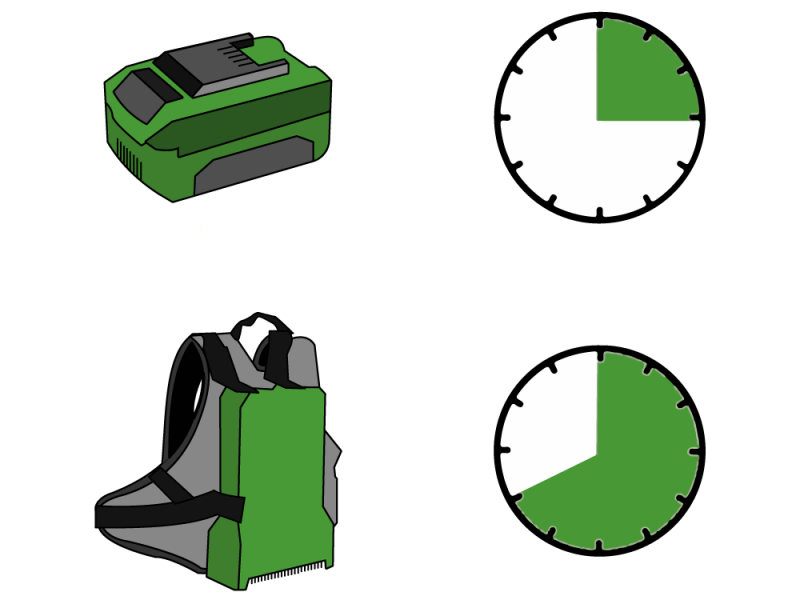

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.

Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.

On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.

However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.
