Name: Jolly V34 - Olive Harvester with Lithium Batteries - Fixed Pole
Brand: JOLLY ITALIA
SKU: K604655
Price: 1062.55 EUR
Availability: InStock

Description

Jolly V34 Olive Harvester

The battery-powered V34 olive harvester by Jolly Italia is a truly innovative product in the field of olive harvesting. Harvesting olives has never been easier, with a weight of 1290 kg and a pole length of up to 1.86 m.

The motor allows reaching 1350 bpm.

Designed and built for anyone but especially for those who prefer manoeuvrability and ergonomics to raw power.

Thanks to its portable one-handed configuration and lightweight 18 V 9Ah lithium-ion battery, it allows you to rake even the lowest branches ergonomically and conveniently.

The inserted locking slide has a handy transformer inside that changes the battery voltage from 18 V to 34 V.

Furthermore, despite it is an electric-powered machine, it has a purely mechanical operation and it is easy to use and shockproof.

The carbon rods are interchangeable and the comb has a circular shape. This narrow and elongated shape allows also penetrating into the thickest foliage to greatly increase productivity.

The push button prevents the tool from being switched off during work by accidentally hitting a branch.

After pressing the button, it only takes a few seconds to start the machine, so this system allows you a better control of the tool.

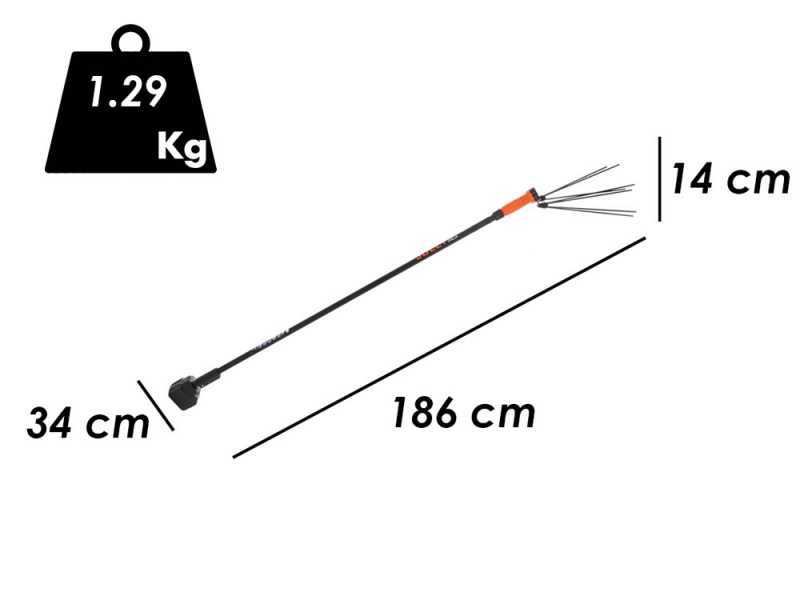

This model is constructed with a fixed pole that reaches a maximum length of 186 cm.

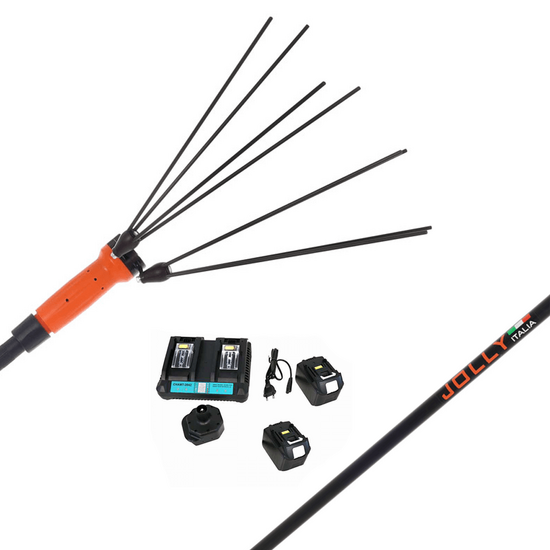

This model comes together with a kit of 2 batteries and 18 V 9Ah rapid charger.

The version with the most advanced electronics offers the following advantages:

More beats per minute 1350
More stable beats
Counteracts pole resistance and increases power during harvesting
Working absorption 0.7 - 1.7 Ah

Jolly V34 - Olive Harvester with Lithium Batteries - Fixed Pole

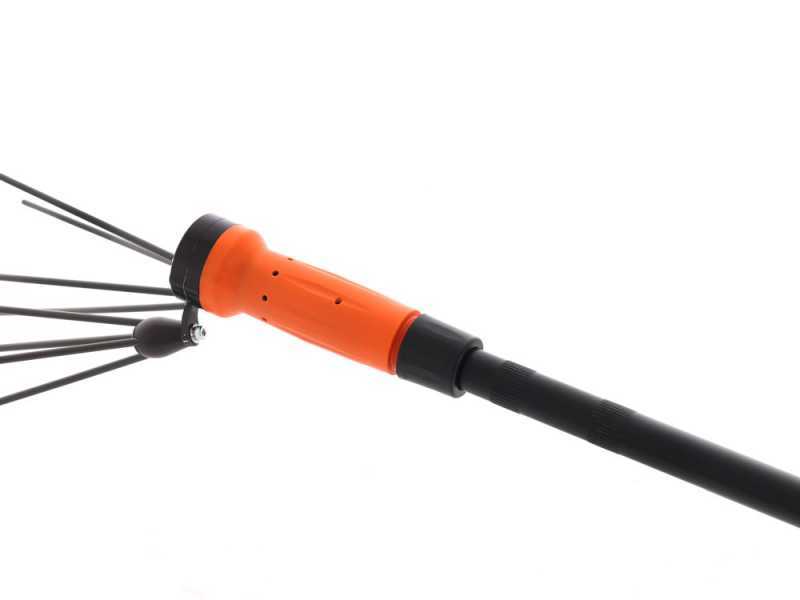

Main Features

High capacity of penetration in the foliage of plants: thanks to the minimum thickness and the considerable distance of the rods.

The position of the motors and of the off-axis and slightly tilted prongs increase its efficiency.

Among all the olive harvesters on the market, the V50X is the one that best deeply penetrates into the olive tree foliage, thanks to its 32.5 cm prongs. It harvests up to a considerable depth.

One of the special features of this olive harvester is that it has a removable head.

The special tapered shape also facilitates harvesting on trees not properly pruned.

1350 bpm
Power supply: 18v
Motor power: 36 V
Made in Italy Electric Motor
Aluminium fixed pole
Absorption 0.7 - 1.7 Ah

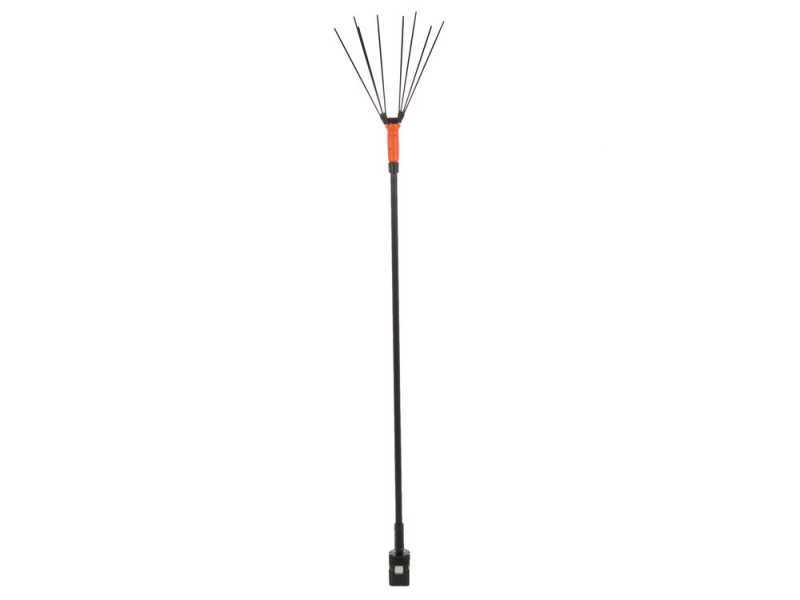

Harvesting rake

The greatest innovative feature of the harvesting rake is its peculiar round shape slightly inclined axis and not perpendicular, with respect to the classic harvesters with a rectangular shape to support the rods which makes this product:

Less bulky
more agile in the thick of the plant
Higher working width

The special design of the comb and its movement make the collection work even more effective. The movement and conformation ensure a correct separation of the olives causing them to fall perpendicularly to the branches of the plant, directly on the collecting cloth.

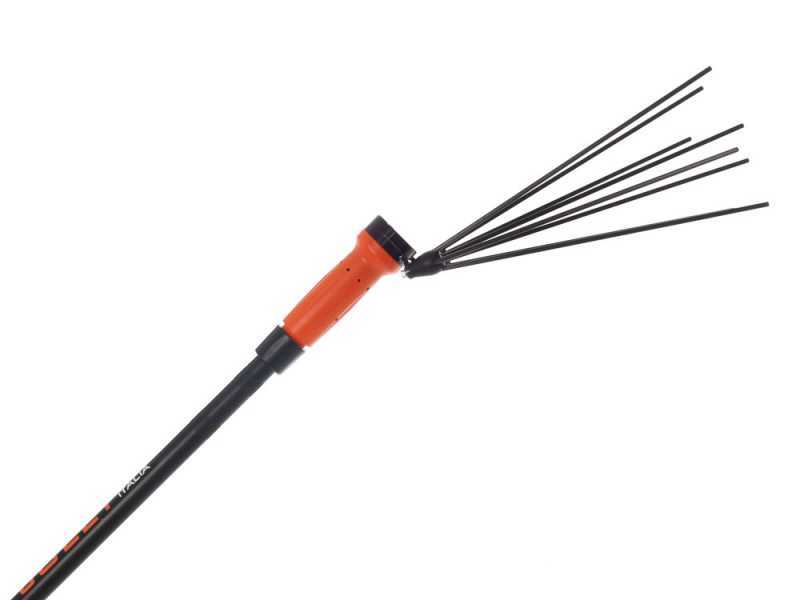

Machine body

The body, which contains the electric motor made in Italy, is made of resin and nylon, ensuring strength and lightness.

Between the seat of the teeth and the motor is present a steel pole to ensure greater robustness. The 36 V motor ensures 1350 beats per minute for a working absorption of 0.7 - 1.7 amp/h.

This olive harvester model requires a 18 V 9Ah Lithium battery (2 batteries + charger provided on standard kit), which guarantees long running time.

Focus on the power switch.

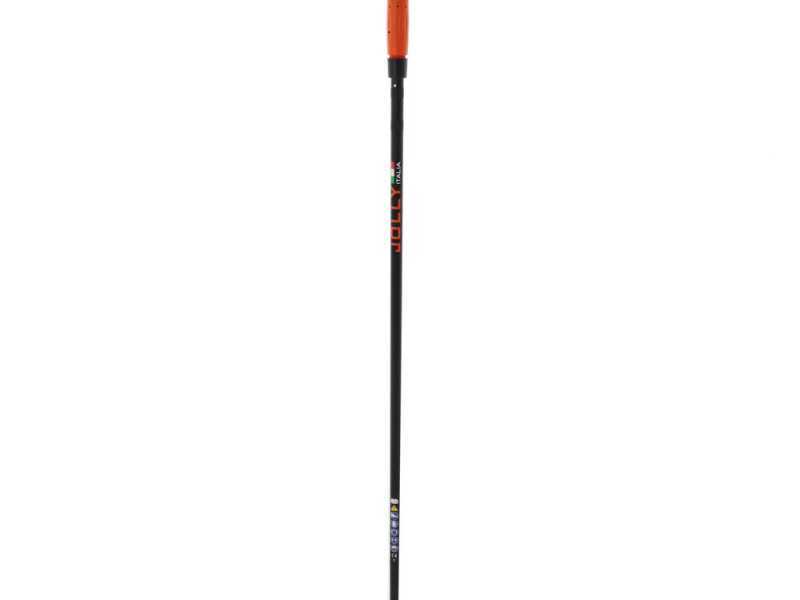

Pole

Fixed aluminium extension pole, which allows reaching a maximum length of 186 cm. The pole extension can be done with the quick hook and release system.

At the bottom of the pole is the hole for connecting the slide for the battery or other accessories.

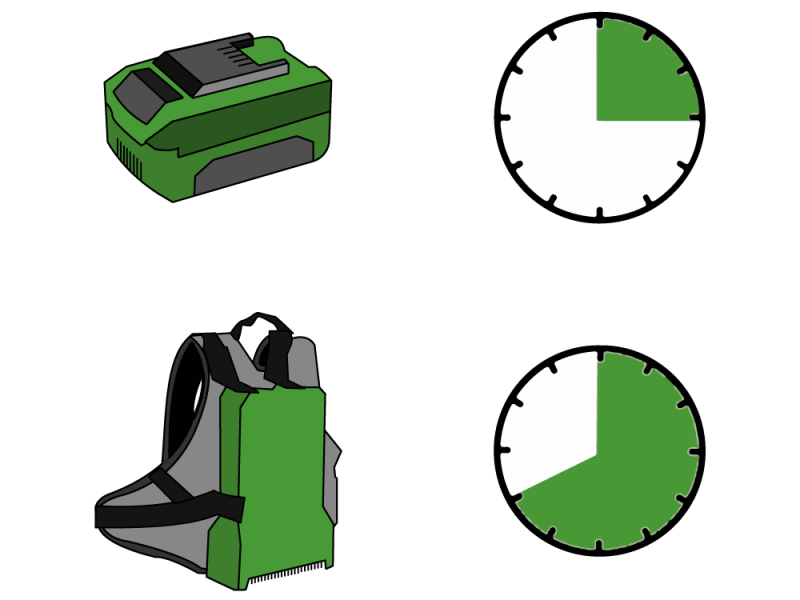

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.

Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.

On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.

However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.
