Karcher Pro HD 9/25 G Classic Petrol Pressure Washer - Loncin G390FA Engine - petrol

Questions & Answers (2)
ID: K603868

EAN: 4054278731834

MPN: 1.187-013.0

7,8/10
After-sales assistance & Spare parts
Karcher Pro HD 9/25 G Classic Petrol Pressure Washer - Loncin G390FA Engine - petrol
+60 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
FREE SPARK PLUGFREE SPARK PLUG
Foam air filterFoam air filter
Foam air filterFoam air filter
Free water supply connection kitFree water supply connection kit
Heavy-duty linear pump
Pump head material
Brass
Max. flow rate per hour
900 L/h
Max. pressure
300 bar
Nominal power
8.5 kW
Cubic capacity
389 cm³
Nominal power
11.4 HP
Motor type
4-stroke
Motor brand
Loncin
Motor Model
G390FA
Wheeled
Type
Trolley
Weight
56 Kg
Product Features
Model:
HD 9/25 G Classic
Wheeled:
Type:
Trolley
Operating mode:
Spark ignition
Operation mode:
Petrol
Nominal power:
8.5 kW
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G390FA
Motor type:
4-stroke
Cubic capacity:
389 cm³
No. of cylinders:
1
Nominal power:
11.4 HP
Motor speed:
3500 RPM
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Tank capacity:
3 L
Manufacturing country:
China
Pump data
Pump brand:
Karcher
Pump type:
3 axial cylinders
Heavy-duty linear pump:
Pistons material:
Ceramic
Pump head material:
Brass
Brass pump head:
Flow rate:
15 L/min
Max flow rate per minute:
15 L/min
Max. flow rate per hour:
900 L/h
Operating pressure:
250 bar
Max. pressure:
300 bar
Safety valve:
Yes
Equipment
On wheeled frame (with wheels and handles):
Yes
Hose holder:
Yes
Free gifts/extra features
Heavy-duty spray gun:
Yes
Heavy-duty lance:
Yes
Hose length:
10 m
Instructions manual:
Yes
Dimensions and logistics

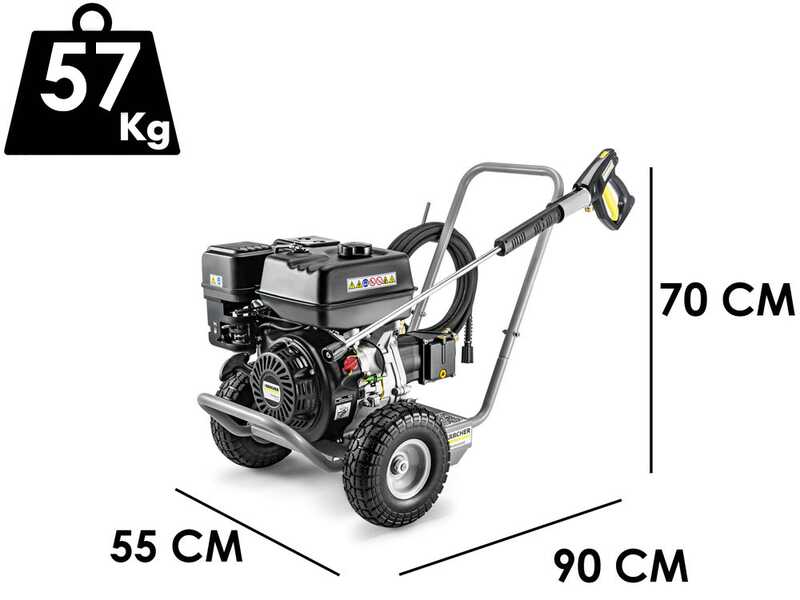

Product dimensions in cm (L x W x H):
55 x 90 x 70 cm
Net weight:
56 Kg
Packaging:
Original wooden box
Original packaging/s dimensions in cm (L x W x H):
46 x 58.5 x 75 cm
Gross weight (packaging included) :
45 Kg
Assembly time:
5 minutes
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 11/04/2025 - 15/04/2025
€ 1.762,13
Vat included

You're viewing:
Customers also viewed:
Description

Karcher HD 9/25 G Classic Petrol Pressure Washer

The Karcher HD 9/25 G Classic pressure washer is the ideal machine for anyone in need of a product to use for cleaning jobs where pressure and water are necessary. It is generally recommended for use on construction sites or simply for washing cars or caravans, terraces and any external wall or surface.

Its powerful 4-stroke petrol engine (EU STAGE V) allows you to complete cleaning tasks even in places without an external power supply; its 250 bar operating pressure, sturdy crankshaft pump and a flow rate of up to 900 L of water per hour produce outstanding results.

It is equipped with two large wheels with tyres, which are specifically intended for uneven surfaces. The compact machine is also very easy to manoeuvre in confined spaces. For excellent mobility, comfortable transport and space-saving storage, it can then be safely stored in the car.

Powered by a Loncin 4-stroke 389 cc petrol engine that can reach a rated power of 8.5 kW that, together with the self-priming pump, it ensures a flow rate of 15 L/min (900 L/h) and a pressure of Max 300 bar.

Finally, the sturdy metal frame and 2 large wheels make it easy to transport the machine over uneven floors and terrain. Thus, the front support with sturdy rubber feet stabilises the machine in use.

Wide range of accessories provided on standard kit:

  • Professional spray gun
  • High pressure hose 10m
  • Powerful nozzle
  • Professional lance
  • Frame protection cover
  • Crankshaft pump with ceramic pistons
  • Water filter

Kärcher is the world's leading manufacturer of machines and solutions for household cleaning, professional and industrial. With its high and very high pressure cleaners, vacuum cleaners and steam cleaners, sweeping and scrubbing, washing systems for vehicles and many others.

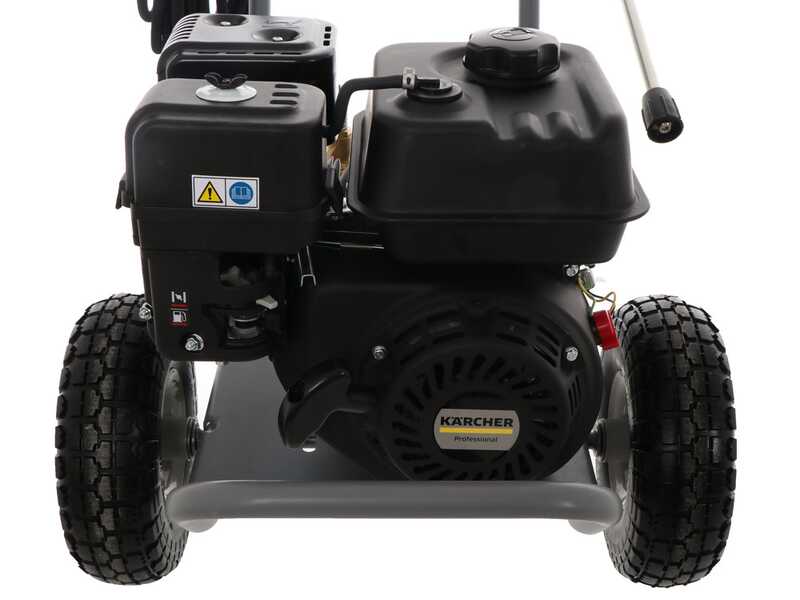

Loncin G390 FA Engine

Loncin G390F original latest 4-stroke petrol engine with 389 cccapacity. It has been designed with the ”OHV” overhead valve technology.

This latest generation model with overhead valve technology is suitable for works requiring moderate power.

Major advantages over conventional 2-stroke engines (still widely used on petrol-powered spraying pumps):

  • Greater reliability
  • Easier start especially after long periods of inactivity
  • Longer life, fewer problems with fuel preparation and freshness
  • Lower energy consumption
  • More silent

Features:

  • Engine type: 4-Stroke
  • Displacement: 389 cm³
  • Power: 8,5 kw 11.4 Hp

Focus on the air filter and spark plug.

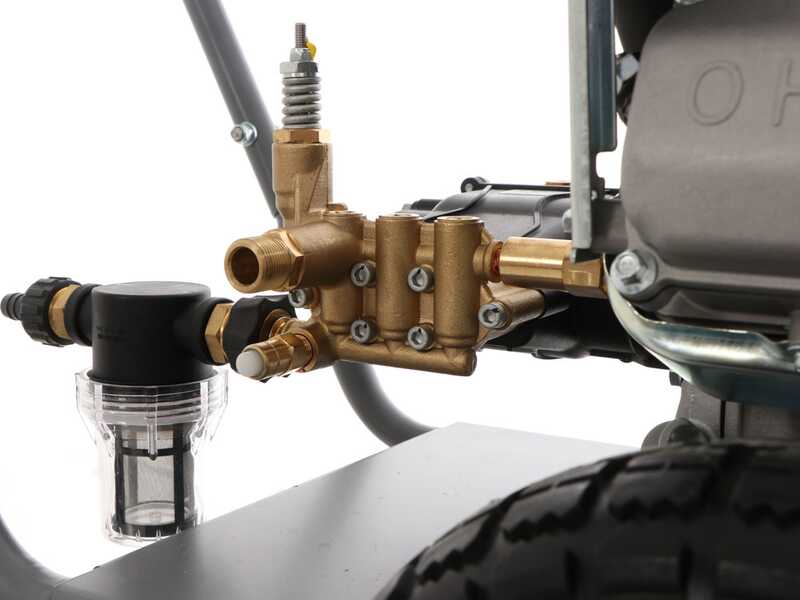

Karcher High Pressure Pump and Head

Ensured safety technology such as thermal and safety valve and water filter.

Crankshaft pump with ceramic pistons pistons and brass head

Major features:

  • Maximum pressure: 300 bar
  • Operating pressure: 250 bar
  • Flow Rate: 15 L/min / 900 L/h
  • Maximum temperature: 60 C°

The pressure represents a fundamental data while dealing with this category of machinery. An additional and more important technical specification is represented by the flow rate: the cheapest items may often feature a high pressure, but a very short flow rate resulting in inefficient units. The minimum flow rate must be at least 350 L/h.

Additional Features

Long-lasting and sturdy: a robust tubular steel frame reliably protects the machine from damage.

This pressure washer model is equipped with two large wheels to allow the user to move the machine easily in every working condition and uneven surface.

In addition, there is a large top handle on which there is a hook for rewinding the 10 m hose and a special compartment for storing the lance and gun, and that enhances both carrying and transport.

Focus on the power switch.

Rubber grommets

Front handle for lifting the machine, and which also protects the engine.

Plug of the 3 L tank

Focus on the starter rope

Free items & Standard equipment

COMPLIMENTARY: Spare parts and accessories kit for engine maintenance

Spare parts set and accessories for the maintenance of the following engines.

  • HONDA GX 330
  • HONDA GX 390
  • Loncin 330 cc
  • Loncin 390 cc
  • Axo 330 cc
  • Axo 390 cc

The set includes:

1 GeoTech spark plug

1 key professional jointed candle to use specifically for tractor engines, grass cutters and mowers professional mover

1 air filter elliptical and in sponge for the engine

WARNING: This kit can’t be used for other brands or models on market. We don’t provide different kit from the ones offered on our website. We do not guarantee the adaptability of products not purchased from our site.

COMPLIMENTARY: 1 lt Oil Bottles

COMPLIMENTARY: two 1 lt 10W 40 oil bottles. Specific lubricant for 4-stroke engine-powered gardening machinery featuring up to 10 HP. Good cleansing and dispersion.

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

Free items included

The pressure washer is shipped its original packaging along with its instructions manual

In the packaging there will also be:

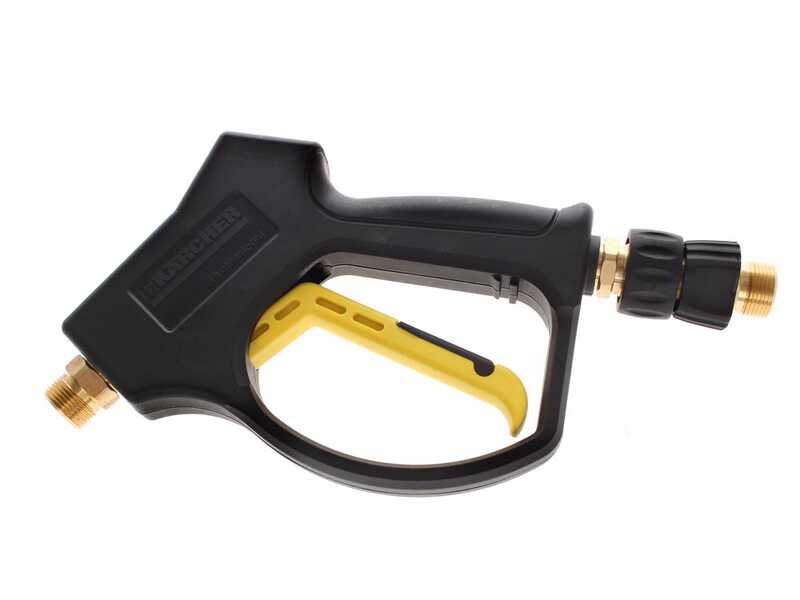

  • Professional spray gun
  • High pressure hose: 10 m
  • Professional lance
  • Water filter
